Frequency8~12GHz, Gain6dBi, Left-hand circular polarization, 50W, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
锥螺旋天线。整个工作带宽具备优越的阻抗匹配和辐射方向的控制性能， 具有超带宽、电压驻波比小、性能稳定、结构紧凑、重量轻等特点。我们可以根据客户需求定制各种特殊规格的右旋或左旋圆极化平面螺旋天线。
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 8 | ~ | 12 | GHz |
| Gain | 6 | dBi | ||
| VSWR | 1.8 |
| Polarization | Left-hand circular polarization |
| Power Capacity | 50W Design assurance |
| Connector | SMA-K |

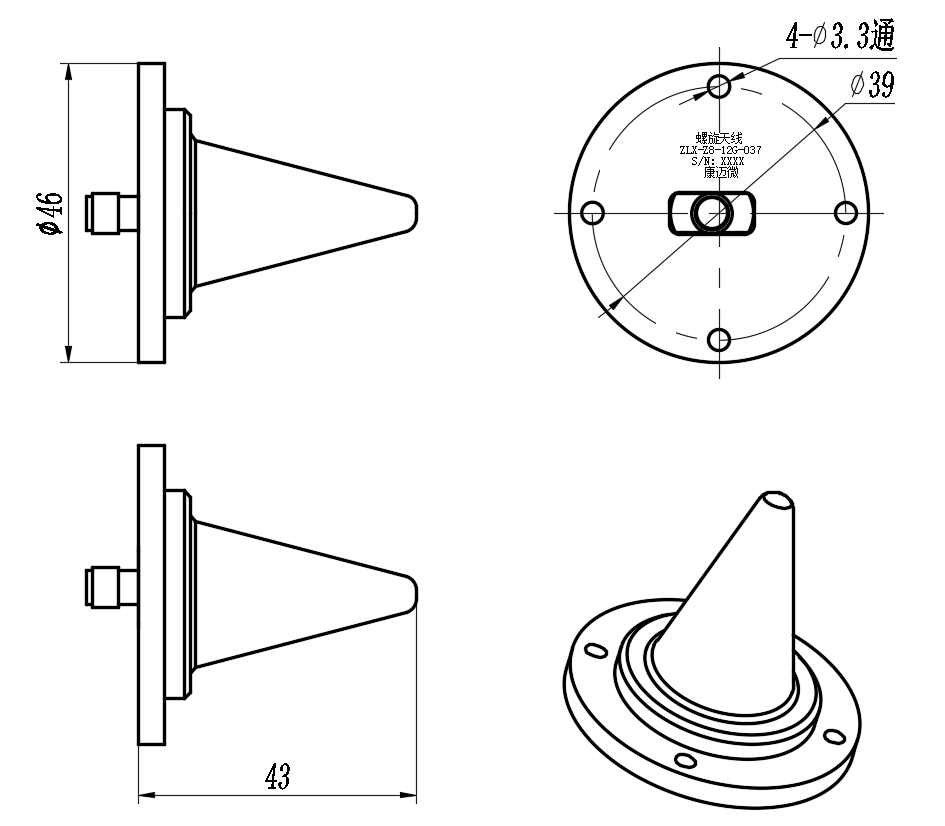

| Outline size | 46*46*43mm |
| Estimated weight | 33g |
| Surface | Grey |
| Operation Temp. | -25~+45℃ Design assurance |
| Storage Temp. | -45~+75℃ Design assurance |
Private disassembly by unprofessional personnel may worsen or even broken the antenna.
Make sure no obstacle or high electromagnetic radiation appears near the antenna.
It is strictly prohibited to install and use antenna in the thunderstorm outside, and the lightning protection facilities are necessary.
Please do not discard the antenna casually since it contains electronic components.
