F High：26500 - 32000 MHz× Clear all
matches 38 models Default Newest
KSHA-BJ220-25-2.92HV2 Standard horn antenna

Standard horn antenna KSHA-BJ220-25-2.92HV2

Frequency17.6~26.7GHz, Gain25dBi, Linear Pol., 2.92-K
In Stock View Details →
KOWP-BJ220-2.92 Open waveguide probe

Open waveguide probe KOWP-BJ220-2.92

Frequency17.6~26.7GHz, Gain5dBi, Linear polarization, 2.92-K
In Stock View Details →
ZLB7-SJ27.5-31G-1337 Dual Circular Polarization horn antenna

Dual Circular Polarization horn antenna ZLB7-SJ27.5-31G-1337

Frequency27.5~31GHz, Gain15dBi, Dual Circular Polarization, 2.92-K
In Stock View Details →
KSHA-BJ220-25-2.92H Standard horn antenna

Standard horn antenna KSHA-BJ220-25-2.92H

Frequency17.6~26.7GHz, Gain25dBi, Linear Pol., 2.92-K
In Stock View Details →
KBA-2-26.5-2.92 Biconical antenna

Biconical antenna KBA-2-26.5-2.92

Frequency2~26.5GHz, Gain2dBi, Vertical polarization, W, 2.92-F or K
In Stock View Details →
ZLB7-Z25-27G-1251 Left-handed conical horn antenna

Left-handed conical horn antenna ZLB7-Z25-27G-1251

Frequency25~27GHz, Gain10dBi, Left-hand circular polarization, 2.92-K
In Stock View Details →
ZLB7-SJ20-31G-1972 Dual Circular Polarization horn antenna

Dual Circular Polarization horn antenna ZLB7-SJ20-31G-1972

Frequency20~31GHz, Gain20dBi, Dual Circular Polarization, 2.92-K
In Stock View Details →
ZLB7-SJ27.5-31G-2840 Dual-CP horn antenna

Dual-CP horn antenna ZLB7-SJ27.5-31G-2840

Frequency27.5~31GHz, GaindBi, Dual Circular Polarization, 2.92-K
In Stock View Details →
ZLB7-B18-26.5G-1070 Standard horn antenna

Standard horn antenna ZLB7-B18-26.5G-1070

Frequency18~26.5GHz, Gain15dBi, Linear Pol., 2.92-K
In Stock View Details →
ZLB7-15-30G-1036 Horn Antenna

Horn Antenna ZLB7-15-30G-1036

Frequency15~32GHz, Gain18dBi, Vertical polarization, 2.92-K
In Stock View Details →
KSHA-BJ220-20-2.92L Standard horn antenna

Standard horn antenna KSHA-BJ220-20-2.92L

Frequency17.6~26.7GHz, Gain20dBi, Linear polarization, 2.92-K
In Stock View Details →

Linearly polarized microstrip antenna ZWD7-LP25-27G-1981

Frequency25~27GHz, Gain6dBi, Linear polarization, 2.92-K
In Stock View Details →

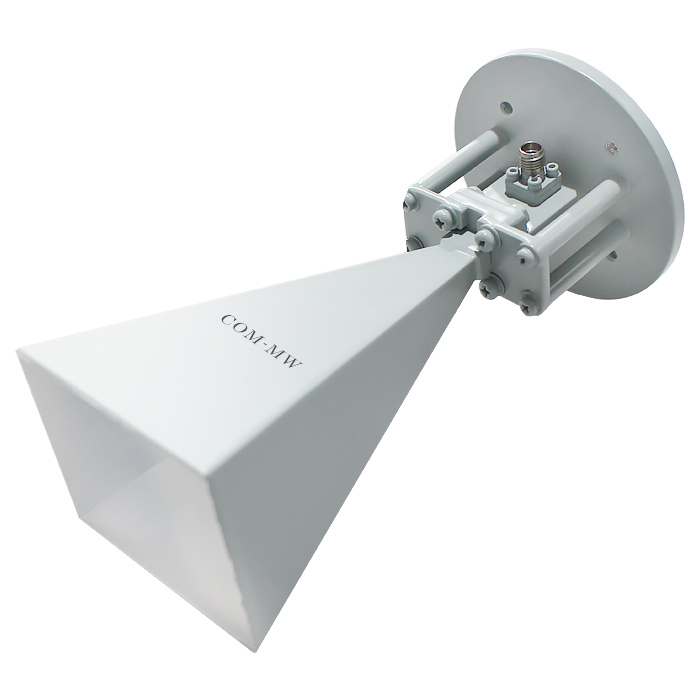

KSHA-BJ220-20-2.92H Standard horn antenna

Standard horn antenna KSHA-BJ220-20-2.92H

Frequency17.6~26.7GHz, Gain20dBi, Linear Pol., 2.92-K
In Stock View Details →

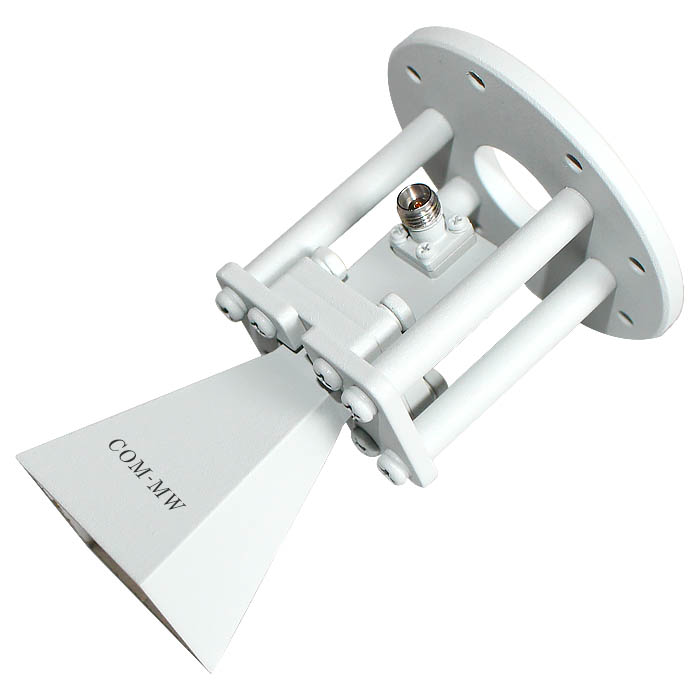

KSHA-BJ220-15-2.92H Standard horn antenna

Standard horn antenna KSHA-BJ220-15-2.92H

Frequency17.6~26.7GHz, Gain15dBi, Linear polarization, 2.92-K
In Stock View Details →

Right-handed microstrip antenna ZWD7-Y25-27G-916

Frequency25~27GHz, Gain6dBi, Right-handed circular polarization, 2.92-K
View Details →

Right-handed microstrip antenna ZWD7-Y24-28G-1281

Frequency24~28GHz, Gain5dBi, Right-handed circular polarization, 2.92
View Details →

Antenna ZTX7-1-26.5G-842

Frequency1~26.5GHz, Gain6dBi, Gain6dBi, Gain15dBi, Vertical polarization, N-K
View Details →

Left-handed parabolic antenna ZPW7-Z18-26.5G-2556

Frequency18~26.5GHz, Gain35dBi, Left-hand circular polarization, 2.92-K
View Details →

Parabolic antenna ZPW7-17.6-26.7G-2061

Frequency17.6~26.7GHz, Gain35dBi, Linear polarization, 2.92-K
View Details →
ZLX7-Y24-28G-810 Planar spiral antenna

Planar spiral antenna ZLX7-Y24-28G-810

Frequency24~28GHz, GaindBi@25-27GHZ, Right-handed circular polarization, 2.92
View Details →
ZLX7-Y18-30G-1280 Planar spiral antenna

Planar spiral antenna ZLX7-Y18-30G-1280

Frequency1830GHz, Gain2dBi, Right-handed circular polarization, 2.92
View Details →
ZLX7-Y18-26.5G-1276 Planar spiral antenna

Planar spiral antenna ZLX7-Y18-26.5G-1276

View Details →
ZLB7-WG18-26.5G-931 Waveguide horn antenna

Waveguide horn antenna ZLB7-WG18-26.5G-931

Frequency18~26.5GHz, Gain15dBi, Linear polarization, Waveguide
View Details →
ZLB7-SJ6-28G-2670 Dual polarized horn

Dual polarized horn ZLB7-SJ6-28G-2670

Frequency6~28GHz, GaindBi, Dual-polarized, 2.92-K
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
