Frequency27.5~31GHz, Gain15dBi, Dual Circular Polarization, 2.92-K
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
It has the characteristics of wide bandwidth, low sidelobes, and high efficiency.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 27.5 | ~ | 31 | GHz |
| Gain | 15 | dBi | ||
| VSWR | 1.8 | |||
| Isolation | 20 | dB | ||
| AR | 2.0 | dB | ||
| power | 10 | W |
| Polarization | Dual Circular Polarization |
| Connector | 2.92-K |

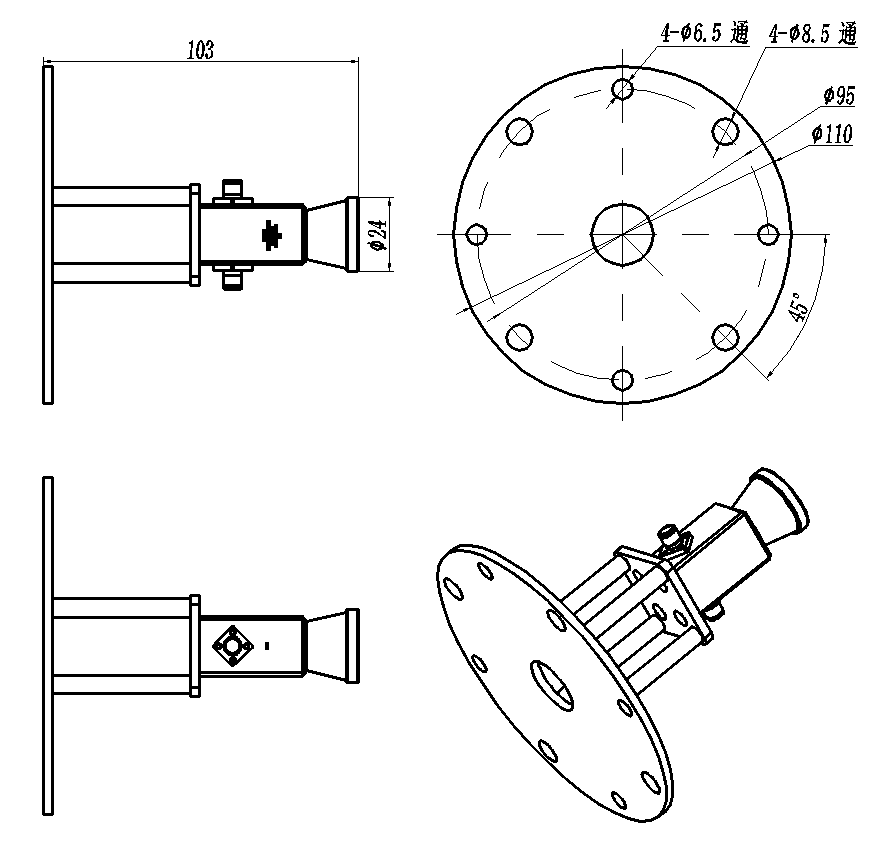

| Outline size | 110*110*103mm |
| Estimated weight | 150g |
| Surface | Grey |
| Operation Temp. | -25~+75℃ Design assurance |
Avoid collisions during installation.
It is strictly prohibited to disassemble antenna accessories, as it may cause poor antenna performance.
The installation position of the antenna should be free of any obstacles.
Outdoor use should be equipped with lightning protection facilities.
May contain electronic components, please do not dispose of them randomly.
