F High：2200 - 2300 MHz× Clear all
matches 37 models Default Newest
T0426 Balun

Balun T0426

1300~2300MHz, 1:1Balun, SMD, 功能替代TCN1-23+, LTCC
In Stock View Details →
B0360 Hybrid

Hybrid B0360

1500~2300MHz, 200W, 90°Hybrid, SMD, Industrial grade, Replace X3C20A2-03
In Stock View Details →
C1101 Coupler

Coupler C1101

400~2200MHz, Coupling35dB, SMD, 200W
In Stock View Details →
ZHPC8-1.8-2.2-321 Combiner

Combiner ZHPC8-1.8-2.2-321

1800~2200MHz, 200W, 3way, SMA, Series feed synthesizer
In Stock View Details →
ZHPC8-1.8-2.2-6D3 Combiner

Combiner ZHPC8-1.8-2.2-6D3

1800~2200MHz, 600W, 6way, L29, Series feed synthesizer
In Stock View Details →
ZDC8-40C1-2.2G-1921 Coupler

Coupler ZDC8-40C1-2.2G-1921

Frequency1~2.2GHz, Coupling40dB, L29-JK, 1800W
In Stock View Details →
ZHPC8-1.8-2.2-631 Combiner

Combiner ZHPC8-1.8-2.2-631

1800~2200MHz, 300W, 6way, SMA, Series feed synthesizer
In Stock View Details →
ZHPC8-1.8-2.2-621 Combiner

Combiner ZHPC8-1.8-2.2-621

1800~2200MHz, 200W, 6way, SMA, Series feed synthesizer
In Stock View Details →
ZHPC8-1.8-2.2-6D1 Combiner

Combiner ZHPC8-1.8-2.2-6D1

1800~2200MHz, 200W, 6way, SMA, Series feed synthesizer
In Stock View Details →
ZHPC8-1.8-2.2-62 Combiner

Combiner ZHPC8-1.8-2.2-62

1800~2200MHz, 400W, 6way, N, Series feed synthesizer
In Stock View Details →
ZHPC8-1.8-2.2-41 Combiner

Combiner ZHPC8-1.8-2.2-41

1800~2200MHz, 200W, 4way, SMA, Series feed synthesizer
In Stock View Details →
ZHPC8-1.8-2.2-421 Combiner

Combiner ZHPC8-1.8-2.2-421

1800~2200MHz, 200W, 4way, SMA, Series feed synthesizer
In Stock View Details →
ZDC8-50C1-2.2G-1924 Coupler

Coupler ZDC8-50C1-2.2G-1924

Frequency1~2.2GHz, Coupling50dB, N, 400W
In Stock View Details →
ZDC8-40C1-2.2G-2505 Coupler

Coupler ZDC8-40C1-2.2G-2505

Frequency1~2.2GHz, Coupling40dB, N
In Stock View Details →
ZDC25-50MC2-2.2G-3519 Coupler

Coupler ZDC25-50MC2-2.2G-3519

2~2.2GHz, Coupling50dB, L29, SMA, 2000W
In Stock View Details →
ZDC-BM2200-2300-0908 Coupler

Coupler ZDC-BM2200-2300-0908

2100~2400MHz, Coupling6dB, SMA, 10W
In Stock View Details →

Power divider ZPD8-4M2-2.3G-3263

2~2.3GHz, 200W, 4way, Phase90°, SMA
View Details →

Power divider ZPD8-4C376-2200-3247

376~2200MHz, 700W, 4way, 0°, L29
View Details →
ZPD8-3C376-2200-3246 Power divider

Power divider ZPD8-3C376-2200-3246

376~2200MHz, 700W, 3way, 0°, L29
View Details →

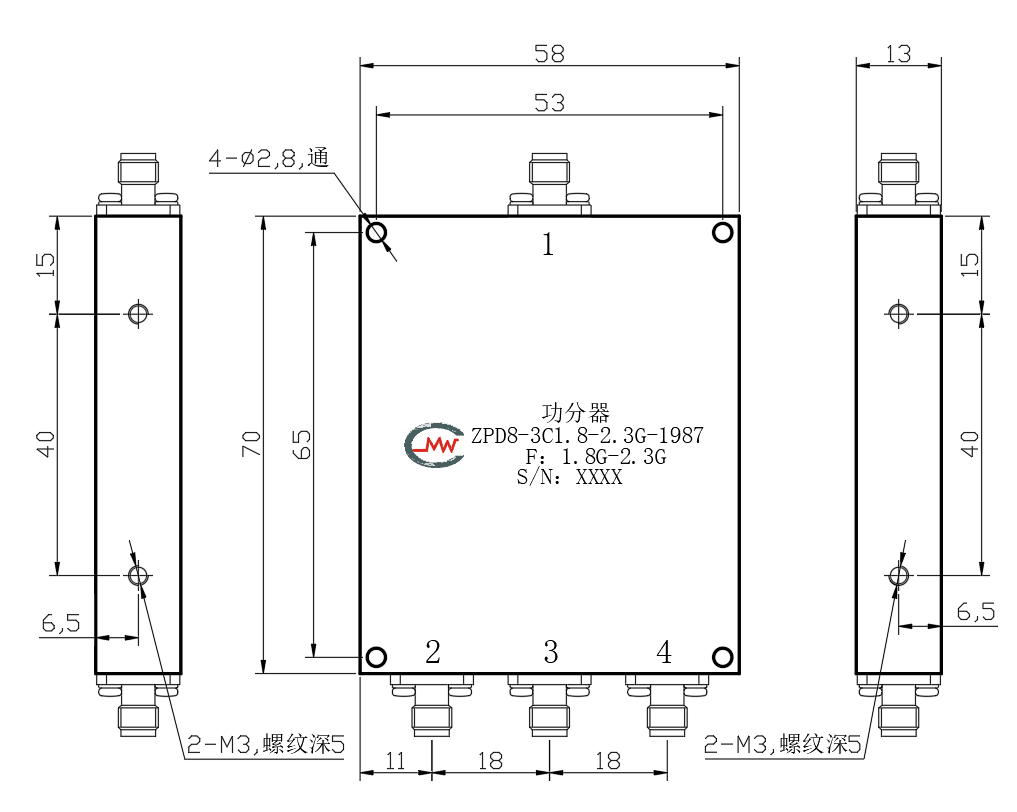

ZPD8-3C1.8-2.3G-1987 Power divider

Power divider ZPD8-3C1.8-2.3G-1987

1.8~2.3GHz, 100W, 3way, Phase0°, SMA,
View Details →
ZPD8-2C376-2200-3245 Power divider

Power divider ZPD8-2C376-2200-3245

376~2200MHz, 700W, 2way, 0°, L29
View Details →
ZPD8-16M0.95-2.3G-2052 Power divider

Power divider ZPD8-16M0.95-2.3G-2052

0.95~2.3GHz, 15W, 16way, 0°, SMA
View Details →
ZPD25-8M1.8-2.2G-458 Power divider

Power divider ZPD25-8M1.8-2.2G-458

1800~2200MHz, 200W, 3way, SMA, Series feed synthesizer
View Details →

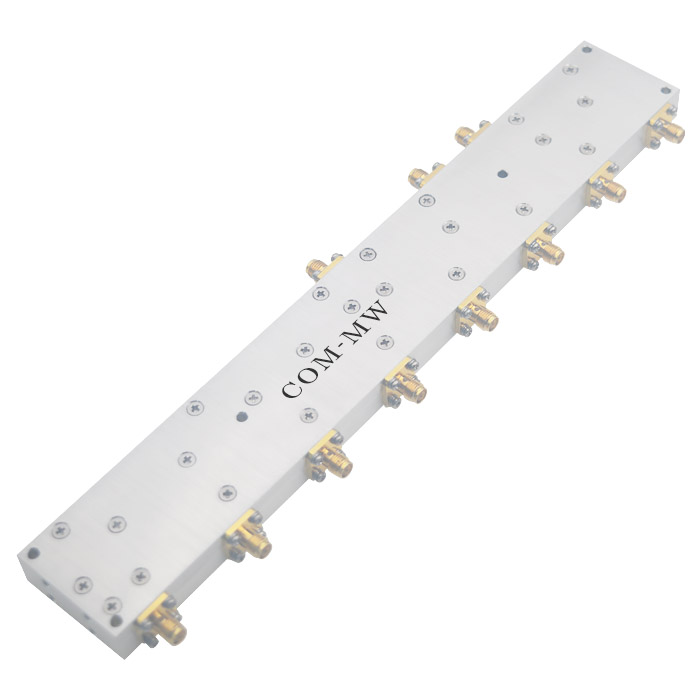

ZPD25-8M1.7-2.2G-459 Power divider

Power divider ZPD25-8M1.7-2.2G-459

1.8~2.2GHz, 150W, 8way, SMA, Series feed synthesizer
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
