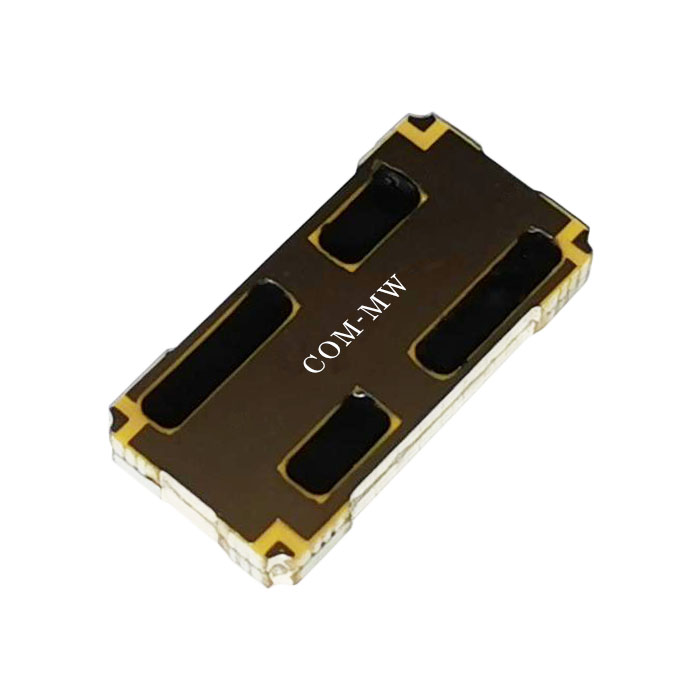

400~2200MHz, Coupling35dB, SMD, 200W
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Broadband, high directionality, high power.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 400 | ~ | 2200 | MHz |
| IL | 0.25 | dB | ||
| Coupling | 34 | 35 | 36 | dB |
| Coupling flatness | ±0.55 | dB | ||
| Directivity | 20 | dB | ||
| VSWR | 1.25 | 1.35 |
| Connector | SMD |
| Impedance | 50Ω |
| Power Capacity | 200W |
| Operation Temp. | -40~+85℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
| Quality Grade | Industrial grade |

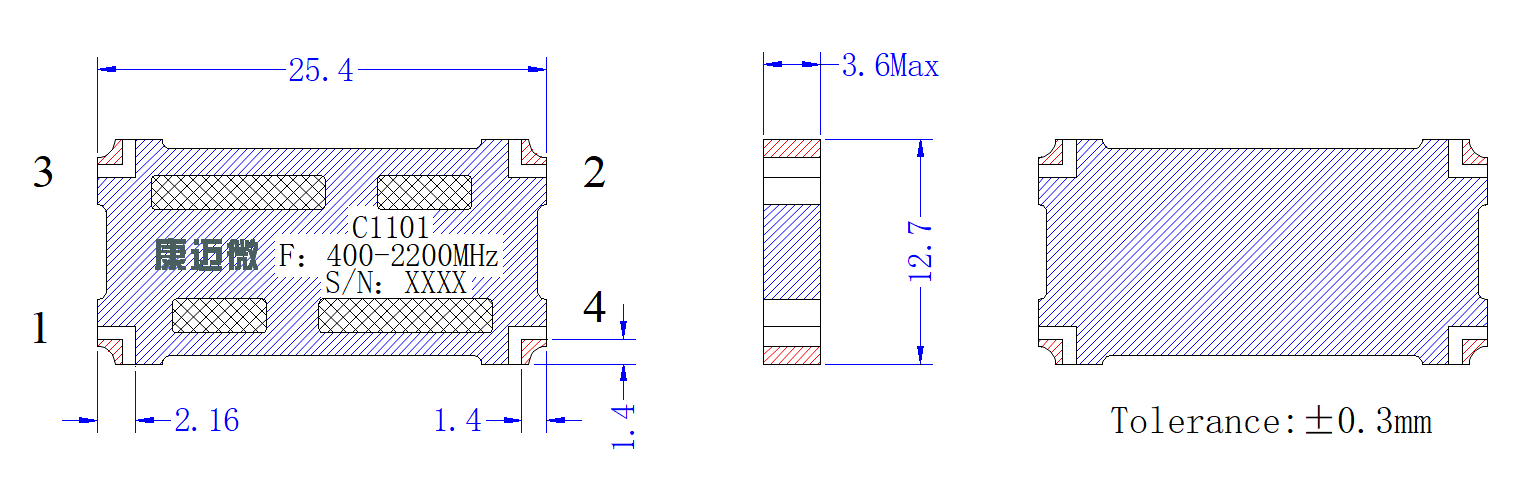

| Input port | 1&2 |
| Output port | 2&1 |
| Coupling port | 3&4 |
| Isolated Port | 4&3 |

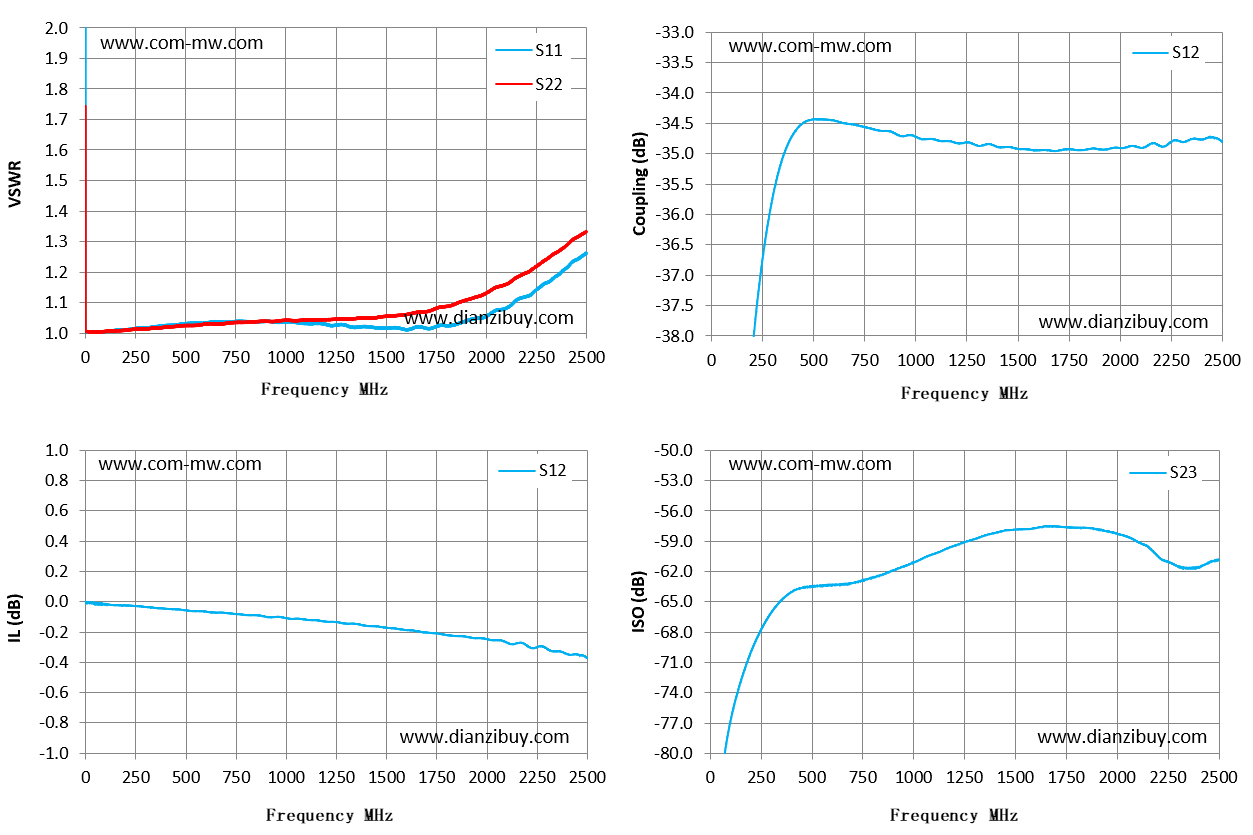

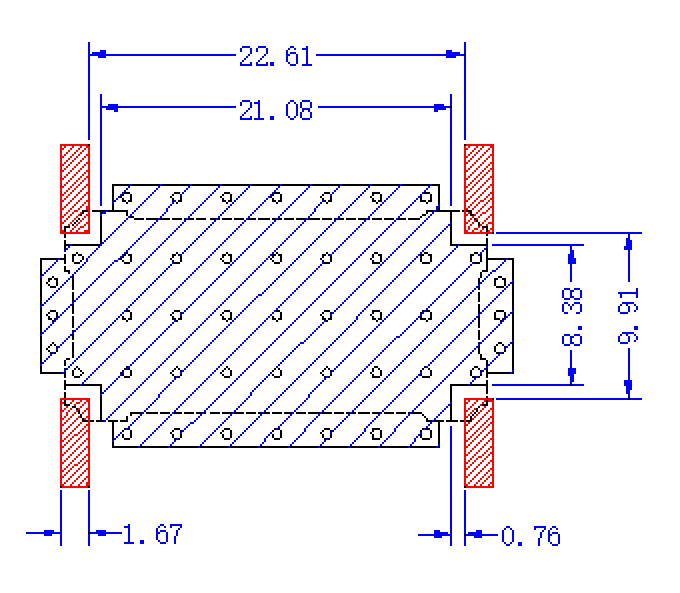

| Frequency MHz | S11 VSWR | S22 VSWR | S12 IL (dB) | S13 Coupling | S23 ISO dB |
|---|---|---|---|---|---|
| 179 | 1.01 | 1.01 | -0.03 | -39.08 | -71.14 |
| 357 | 1.02 | 1.02 | -0.04 | -34.99 | -64.7 |
| 536 | 1.03 | 1.02 | -0.06 | -34.44 | -63.42 |
| 714 | 1.04 | 1.03 | -0.08 | -34.53 | -63.08 |
| 893 | 1.04 | 1.04 | -0.1 | -34.66 | -61.95 |
| 1071 | 1.03 | 1.04 | -0.11 | -34.76 | -60.47 |
| 1250 | 1.03 | 1.05 | -0.13 | -34.82 | -59.1 |
| 1429 | 1.02 | 1.05 | -0.16 | -34.9 | -58.04 |
| 1607 | 1.01 | 1.06 | -0.19 | -34.94 | -57.67 |
| 1786 | 1.03 | 1.09 | -0.22 | -34.94 | -57.67 |
| 1964 | 1.05 | 1.12 | -0.24 | -34.91 | -58.08 |
| 2143 | 1.1 | 1.18 | -0.28 | -34.85 | -59.42 |
| 2321 | 1.17 | 1.25 | -0.33 | -34.8 | -61.63 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | The product supports 220 ℃ reflow soldering. |
| 3 | The above figure includes the loss of the testing fixture, and the actual loss at 2500MHz can be reduced by 0.2~0.3dB. |
