ZDC8-20M500-3000-1561 Coupler

Coupler ZDC8-20M500-3000-1561

500~3000MHz, Coupling20dB, N, 120W,
In Stock View Details →
ZDC9-10C698-3800-2561 Coupler

Coupler ZDC9-10C698-3800-2561

698~3800MHz, Coupling10dB, N, 300W
In Stock View Details →
ZDC9-30C698-3800-2555 Coupler

Coupler ZDC9-30C698-3800-2555

698~3800MHz, Coupling30dB, N, 300W
In Stock View Details →
ZDC8-20M500-3000-1766 Coupler

Coupler ZDC8-20M500-3000-1766

500~3000MHz, Coupling20dB, N, 100W, Dual directional coupler
In Stock View Details →
ZDC8-50MC2-6G-2191 Coupler

Coupler ZDC8-50MC2-6G-2191

2000~6000MHz, Coupling50dB, N, SMA, 500W
In Stock View Details →
ZDC9-7C0.8-2.7G-2322 Coupler

Coupler ZDC9-7C0.8-2.7G-2322

800~2700MHz, Coupling7dB, N, 200W, IM3140dBc
In Stock View Details →
ZDC9-6C698-3800-2564 Coupler

Coupler ZDC9-6C698-3800-2564

698~3800MHz, Coupling6dB, N, 300W
In Stock View Details →
ZDC9-15C698-3800-2558 Coupler

Coupler ZDC9-15C698-3800-2558

698~3800MHz, Coupling15dB, N, 300W
In Stock View Details →
ZDC9-12C0.8-2.7G-2324 Coupler

Coupler ZDC9-12C0.8-2.7G-2324

800~2700MHz, Coupling12dB, N, 200W, IM3140dBc
In Stock View Details →
ZDC9-40C698-3800-2553 Coupler

Coupler ZDC9-40C698-3800-2553

698~3800MHz, Coupling40dB, N, 300W
In Stock View Details →
ZDC25-30M0.6-8G-3599 Coupler

Coupler ZDC25-30M0.6-8G-3599

0.6~8GHz, Coupling30dB, N, SMA, 100W
In Stock View Details →
ZDC8-50MC6-18G-2192 Coupler

Coupler ZDC8-50MC6-18G-2192

6000~18000MHz, Coupling50dB, N, SMA, 200W
In Stock View Details →
ZDC8-40C1-6G-1593 Coupler

Coupler ZDC8-40C1-6G-1593

1000~6000MHz, Coupling40dB, N, 500W
In Stock View Details →
ZDC8-30M1-8G-2620 Coupler

Coupler ZDC8-30M1-8G-2620

1~8GHz, Coupling30dB, N, 50W
In Stock View Details →
ZDC9-20C698-3800-2557 Coupler

Coupler ZDC9-20C698-3800-2557

698~3800MHz, Coupling20dB, N, 300W
In Stock View Details →
ZDC9-30L30-512-2946 Coupler

Coupler ZDC9-30L30-512-2946

30~512MHz, Coupling30dB, N-K, 175W
In Stock View Details →
ZDC9-5C0.8-2.7G-2320 Coupler

Coupler ZDC9-5C0.8-2.7G-2320

800~2700MHz, Coupling5dB, N, 200W, IM3140dBc
In Stock View Details →

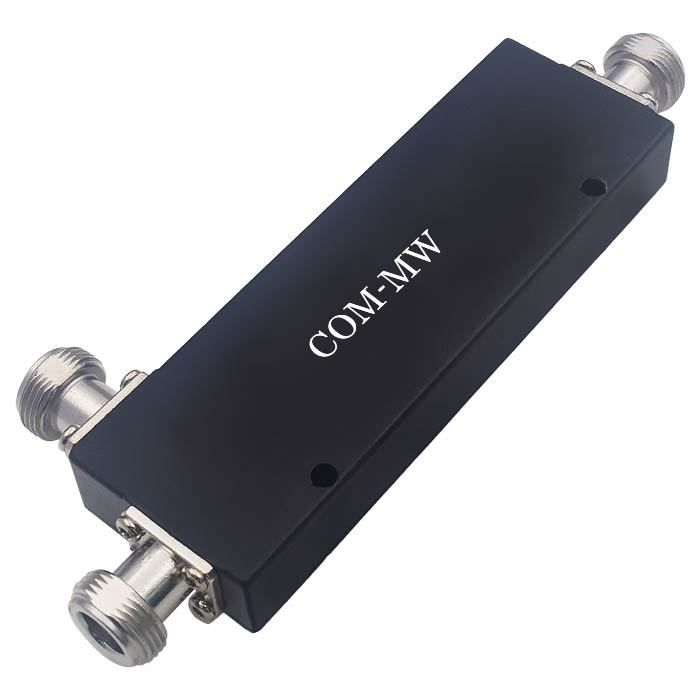

ZDC9-15C0.8-2.7G-2325 Coupler

Coupler ZDC9-15C0.8-2.7G-2325

800~2700MHz, Coupling15dB, N, 200W, IM3140dBc
In Stock View Details →
ZDC8-40MC6-18G-2693 Coupler

Coupler ZDC8-40MC6-18G-2693

6000~18000MHz, Coupling40dB, N, SMA, 200W
In Stock View Details →
ZDC9-6C0.8-2.7G-2321 Coupler

Coupler ZDC9-6C0.8-2.7G-2321

800~2700MHz, Coupling6dB, N, 200W, IM3140dBc
In Stock View Details →
ZDC9-5C698-6000-2867 Coupler

Coupler ZDC9-5C698-6000-2867

698~6000MHz, Coupling5dB, N, 300W, PIM-150dBc
In Stock View Details →
ZDC8-40M2000-6000-837 Coupler

Coupler ZDC8-40M2000-6000-837

2~6GHz, Coupling40dB, N, 400W
In Stock View Details →
ZDC9-30C698-6000-2869 Coupler

Coupler ZDC9-30C698-6000-2869

698~6000MHz, Coupling30dB, N, 300W, PIM-150dBc
In Stock View Details →

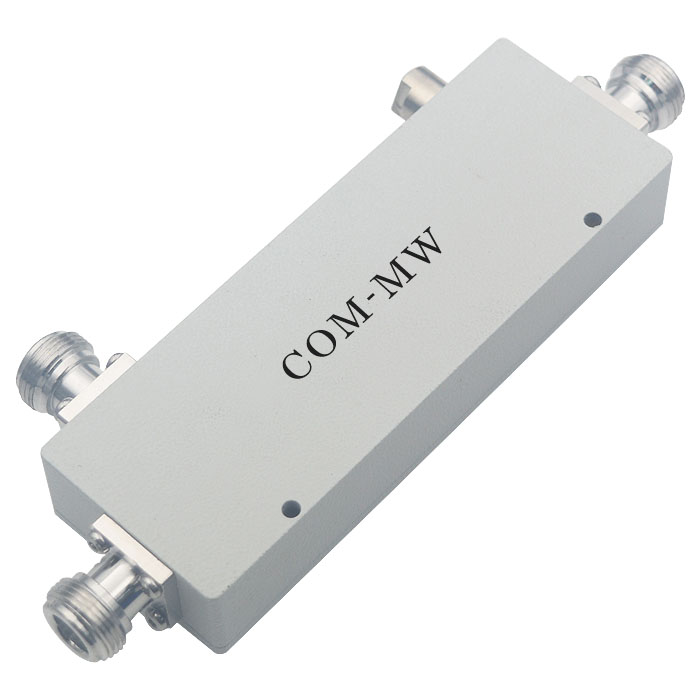

ZDC9-20C698-6000-2847 Coupler

Coupler ZDC9-20C698-6000-2847

698~6000MHz, Coupling20dB, N, 300W, PIM-150dBc
In Stock View Details →
