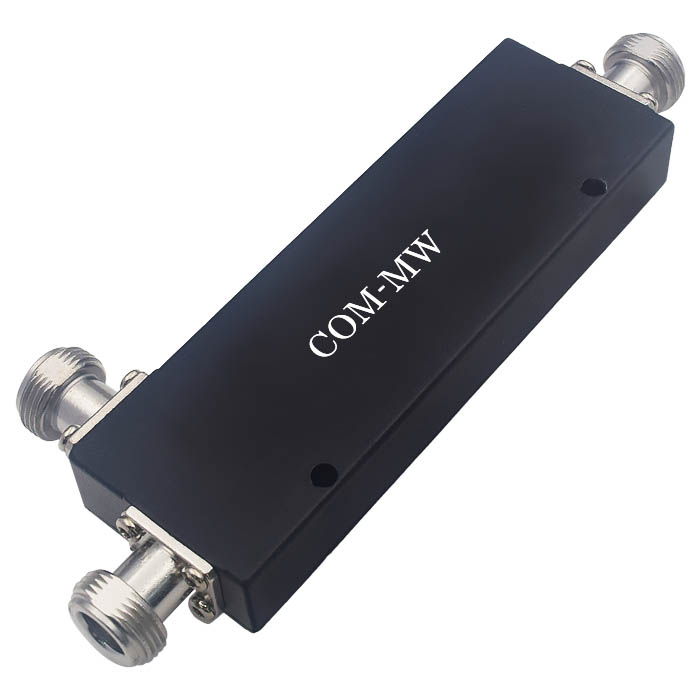

800~2700MHz, Coupling12dB, N, 200W, IM3140dBc
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Used for indoor coverage of mobile communication.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 800 | ~ | 2700 | MHz |
| IL | 0.7 | dB | ||
| Coupling | 11 | 12 | 13 | dB |
| Directivity | 18 | dB | ||
| Main line VSWR | 1.25 | |||
| Coupled line VSWR | 1.25 |
| Connector | N -K |
| Connector material | Shell copper: copper plated, tin plated, galvanized, inner conductor: silver plated |
| Impedance | 50Ω |
| Power Capacity | 200W Design assurance |
| IM3 | -140dBc@43dBm Design assurance |
| Operation Temp. | -30~+60℃ Design assurance |
| Quality Grade | Industrial grade |

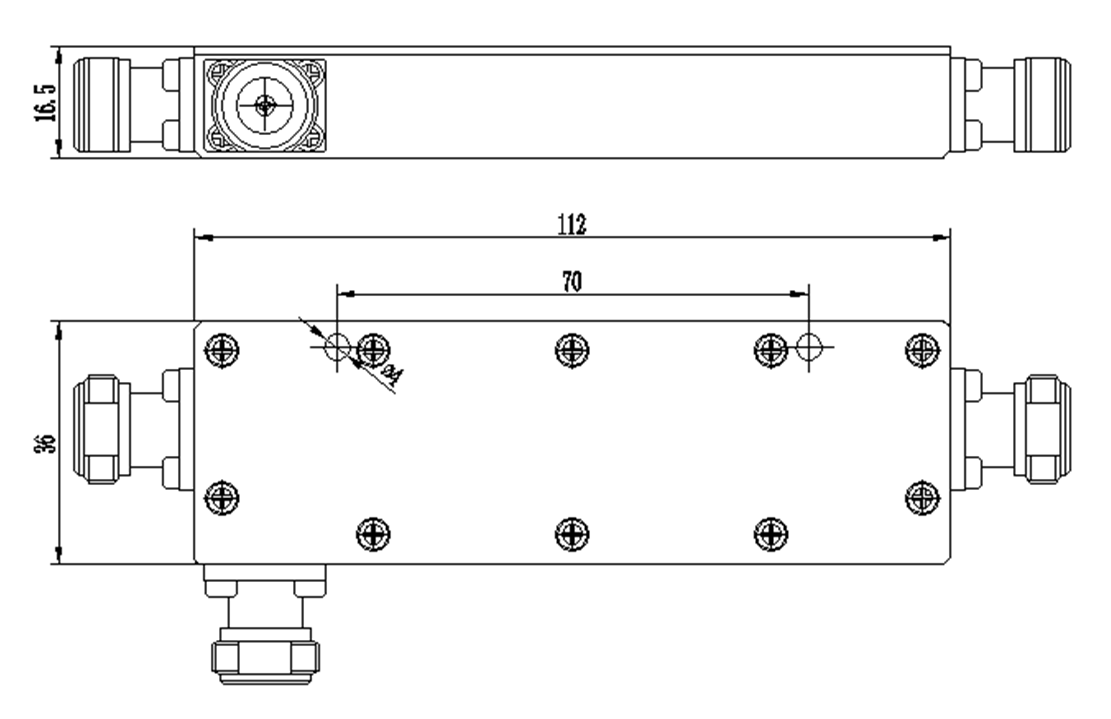

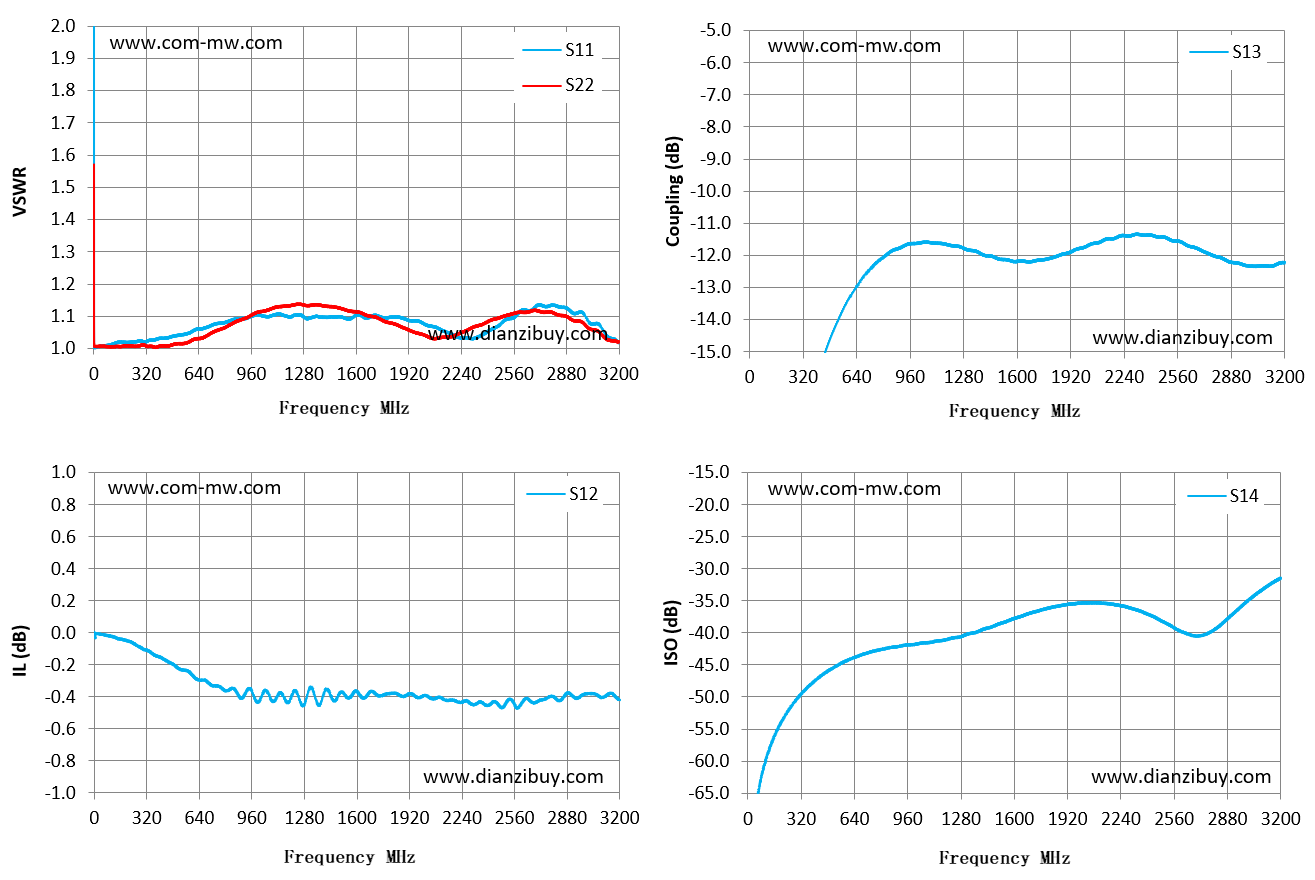

| Frequency MHz | S11 VSWR | S22 VSWR | S12 IL (dB) | S13 Coupling | S12 ISO dB |
|---|---|---|---|---|---|
| 0.01 | 1.01 | 1.01 | 0.01 | -83.81 | -82.58 |
| 229 | 1.02 | 1.01 | -0.06 | -20.15 | -52.63 |
| 457 | 1.03 | 1.01 | -0.18 | -14.94 | -46.36 |
| 686 | 1.07 | 1.04 | -0.3 | -12.63 | -43.39 |
| 914 | 1.09 | 1.09 | -0.39 | -11.73 | -42.06 |
| 1143 | 1.11 | 1.13 | -0.38 | -11.63 | -41.24 |
| 1371 | 1.1 | 1.14 | -0.45 | -11.91 | -39.91 |
| 1600 | 1.1 | 1.11 | -0.37 | -12.19 | -37.74 |
| 1829 | 1.1 | 1.08 | -0.38 | -12.04 | -35.98 |
| 2057 | 1.07 | 1.03 | -0.41 | -11.63 | -35.31 |
| 2286 | 1.03 | 1.06 | -0.44 | -11.38 | -36.05 |
| 2514 | 1.09 | 1.1 | -0.43 | -11.51 | -38.53 |
| 2743 | 1.13 | 1.11 | -0.42 | -11.94 | -40.28 |
| 2971 | 1.11 | 1.08 | -0.39 | -12.32 | -35.66 |
| 3200 | 1.02 | 1.02 | -0.42 | -12.23 | -31.44 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
