RF Filter

Total 45 models
Categories
Categories RF Filter
RF Filter16049
RF Filter15377 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1230
Antenna1174 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1428
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter193 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
F High MHz
300 - 610 11 1000 - 1661 9 1700 - 2483.5 10 2485 - 5500 9 6000 - 14550 6
–
Connector
Other 3 N 34 Microstrip needle 4 Waveguide 3
Power Handling
300 33 350 4 400 8
–
Maximum loss of side frequency dB
0.2 - 0.4 17 0.45 - 0.6 7 0.7 - 1 6 1.5 - 3 10
–
Rejection dB
25 - 35 6 40 - 50 18 55 - 65 12 70 - 80 8 100 1
–
F Low MHz
0 - 360 13 375 - 1500 7 1518 - 1800 7 1920 - 2700 11 3300 - 14000 7
–
Feature
Bandpass 25 low pass 6 Highpass 1 Notch 8
Center frequency MHz
305 - 395 5 510 - 1850 4 1962.5 - 2400 5 2500 - 4700 5 5750 - 14250 4
–
IL on center frequency dB
0.1 - 0.2 13 0.3 - 0.4 5 0.5 - 1 4
–
Insertion loss dB
0.5 1 0.6 1 0.7 1 1 2
–
Filter type
LC 4 Cavity&waveguide 35 stripline 1
Power Handling：300 - 400× Clear all
matches 45 models Default Newest
ZBF13-W14.13-0.85G-172 Filter

Filter ZBF13-W14.13-0.85G-172

Passband13.7~14.55GHz, DC-11.75GHz≥55dBc, 14.95-24GHz≥20dBc, Waveguide
In Stock View Details →
ZHPF5-C2.5-6G-3643 Filter

Filter ZHPF5-C2.5-6G-3643

Passband2.5~6GHz, DC-1.7GHz≥75dB, 1.7-2GHz≥45dB, N
In Stock View Details →
ZLPF8-C0-5.5G-2817 Filter

Filter ZLPF8-C0-5.5G-2817

Passband0~5500MHz, 7500-9000MHz≥60dBc, N, 300W
View Details →
ZLPF3-L0-410-1507 Filter

Filter ZLPF3-L0-410-1507

PassbandDC~410MHz, 519MHz≥40dB, 570-2500MHz≥60dB, N
View Details →
ZLPF25-C0-1.7G-563 Filter

Filter ZLPF25-C0-1.7G-563

PassbandDC~1.7GHz, 2.2-5.1GHz≥25dBc, N
View Details →
ZLPF2-L300-425-2012 Filter

Filter ZLPF2-L300-425-2012

Passband300~425MHz, 0.6-1.7GHz≥dBc, dB, N
View Details →
ZLPF2-L225-300-2011 Filter

Filter ZLPF2-L225-300-2011

Passband225~300MHz, 450-1200MHz≥40dBc, dB, N
View Details →
ZLPF2-C800-2200-2580 Filter

Filter ZLPF2-C800-2200-2580

Passband800~2200MHz, 4-4.5GHz≥40dBc, dB, N
View Details →
ZCB5-C1.1-1.7G-3663 Diplexer

Diplexer ZCB5-C1.1-1.7G-3663

Passband F11.1~1.3GHz, Passband F21.5~1.7GHz, N
View Details →
ZCB4-C1525-1660.5-858 Diplexer

Diplexer ZCB4-C1525-1660.5-858

Passband F11525~1559MHz, Passband F21626.5~1660.5MHz, N
View Details →
ZCB25-2W10.95-14.5G-389 Diplexer

Diplexer ZCB25-2W10.95-14.5G-389

Passband F110.95~12.75GHz, Passband F213.75~14.5GHz, Waveguide
View Details →
ZCB13-C344-396-2118 Diplexer

Diplexer ZCB13-C344-396-2118

Passband F1344~351MHz, Passband F2381~396MHz, N
View Details →
ZCB13-C335.4-415-287 Diplexer

Diplexer ZCB13-C335.4-415-287

Passband F1335.4~351MHz, Passband F2375~415MHz, N
View Details →

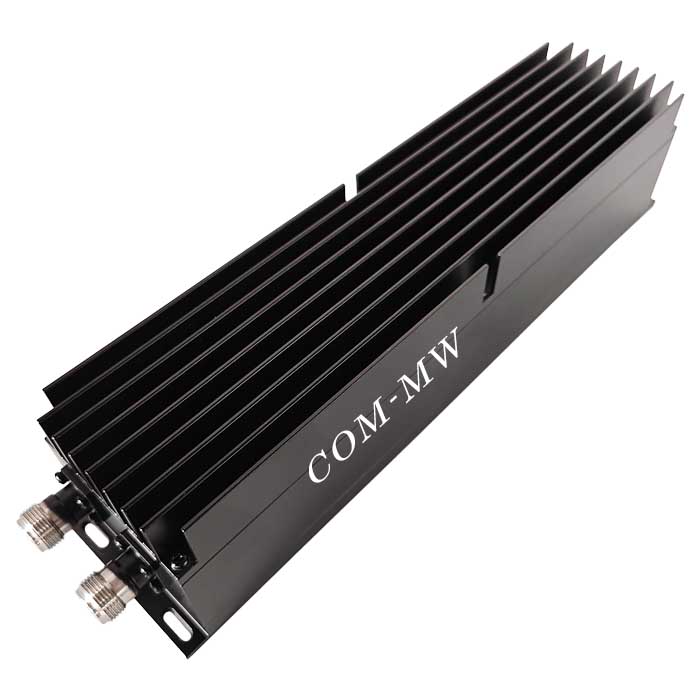

ZBSF6-C2400-2485-1618 Filter

Filter ZBSF6-C2400-2485-1618

Stopband F2400~2485MHz, ≥60dB, PassbandDC~2390MHz, 2495~6000MHz, N
View Details →

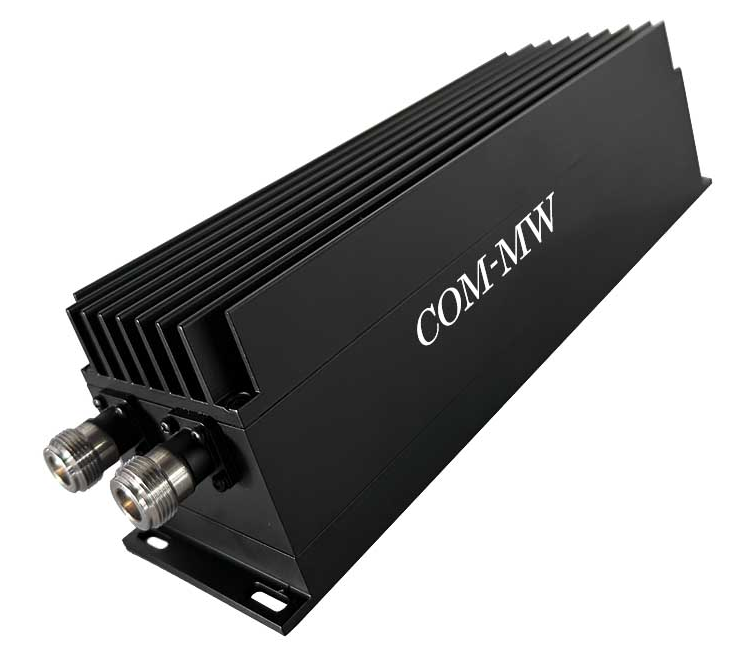

ZBSF6-C2400-2483.5-5382 Filter

Filter ZBSF6-C2400-2483.5-5382

Stopband F2400~2483.5MHz, ≥30dB, PassbandDC~2385MHz, 2498.5~6000MHz, N
View Details →

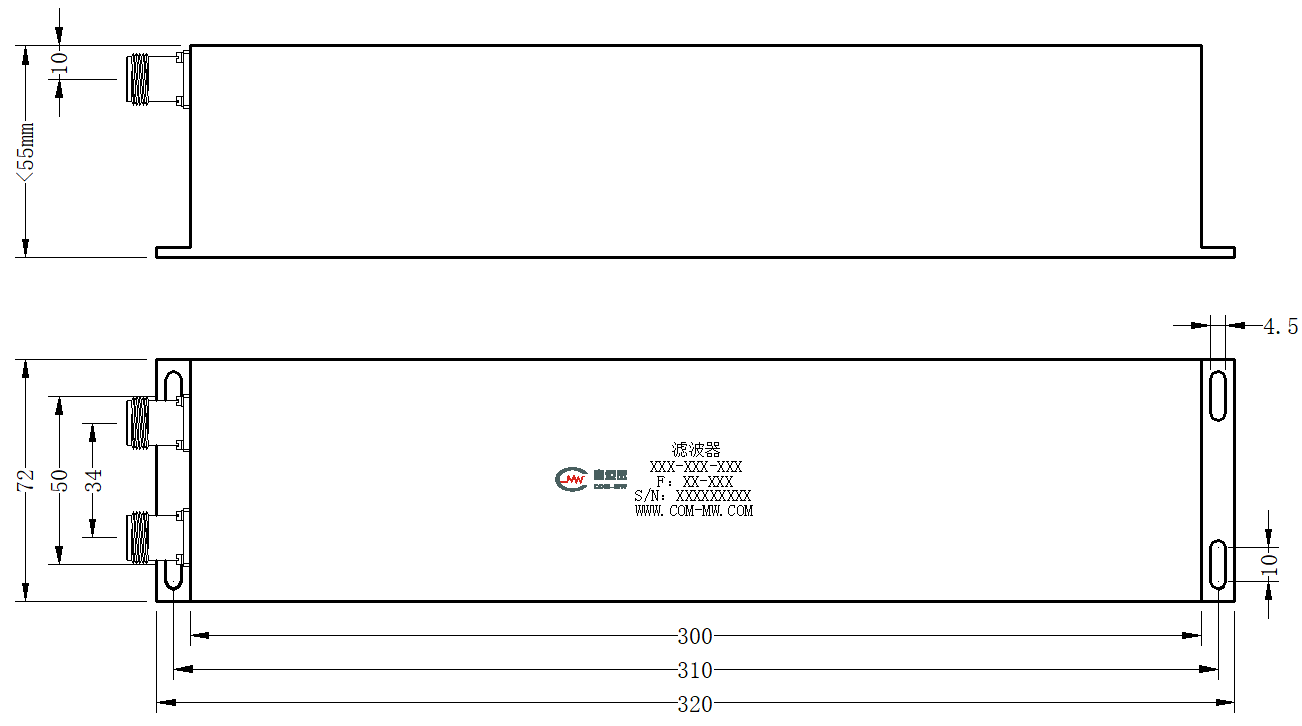

ZBSF6-C2400-2483-4494 Filter

Filter ZBSF6-C2400-2483-4494

Stopband F2400~2483MHz, ≥30dB, PassbandDC~2310MHz, 2580~6000MHz, N
View Details →

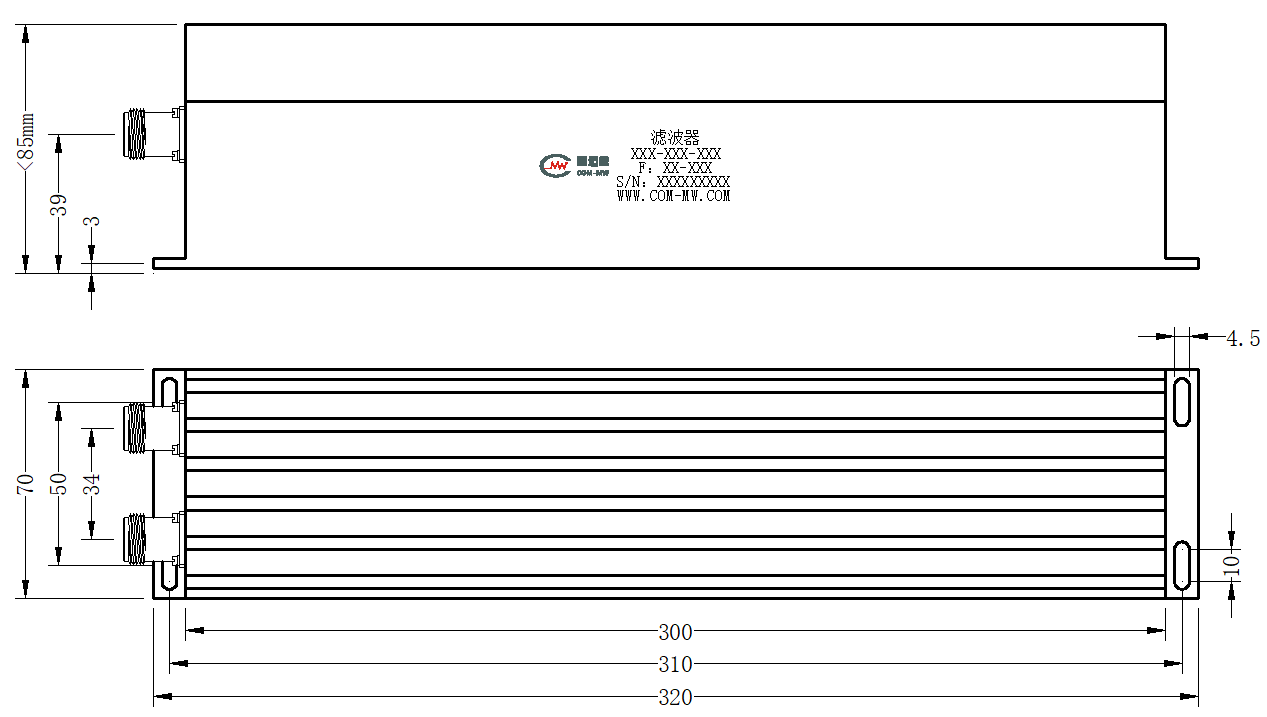

ZBSF6-C1920-1980-3062 Filter

Filter ZBSF6-C1920-1980-3062

Stopband F1920~1980MHz, ≥60dB, PassbandDC~1905MHz, 1995~6000MHz, N
View Details →
ZBSF6-C1573.92-1576.92-3665 Filter

Filter ZBSF6-C1573.92-1576.92-3665

Stopband F1573.92~1576.92MHz, ≥70dB, PassbandDC~1567MHz, 1582~3000MHz, L29
View Details →

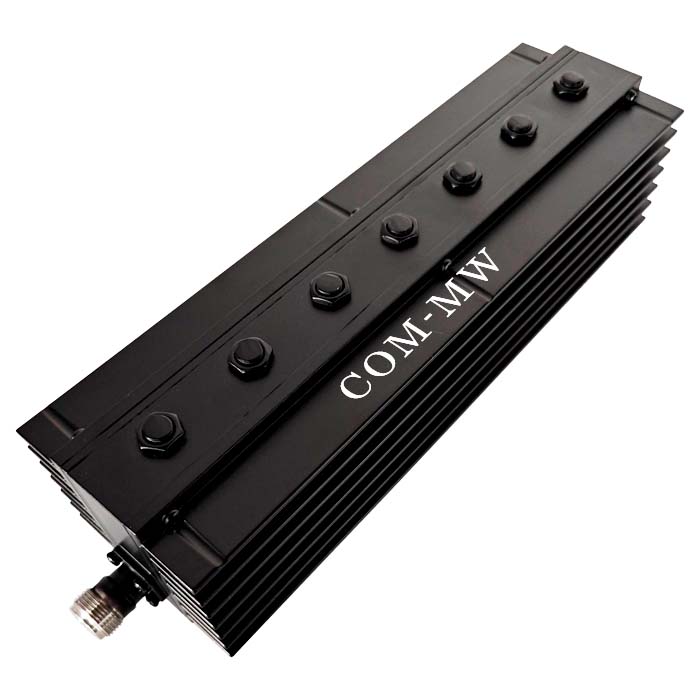

ZBSF6-C1559-1592-5745 Filter

Filter ZBSF6-C1559-1592-5745

Stopband F1559~1592MHz, ≥45dB, PassbandDC~1539MHz, 1612~3000MHz, N
View Details →
ZBSF6-C1518-1610-3313 Filter

Filter ZBSF6-C1518-1610-3313

Stopband F1518~1610MHz, ≥50dB, PassbandDC~1463MHz, 1657~2500MHz, L29
View Details →

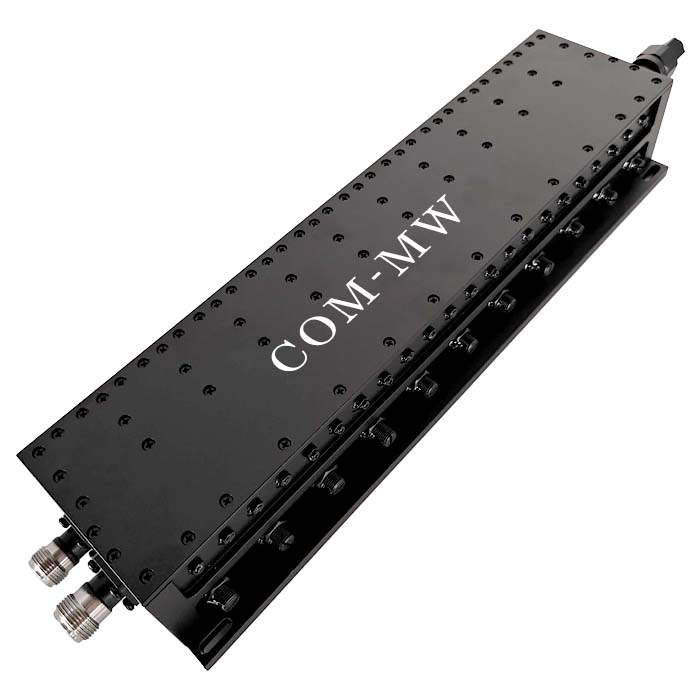

ZBSF6-C1205.094-1331.946-6149 Filter

Filter ZBSF6-C1205.094-1331.946-6149

Stopband F1205.094~1331.946MHz, ≥60dB, PassbandDC~1105.094MHz, 1431.946~3500MHz, N
View Details →
ZBSF6-C1164-1300-3312 Filter

Filter ZBSF6-C1164-1300-3312

Stopband F1164~1300MHz, ≥50dB, PassbandDC~1100MHz, 1364~2200MHz, L29
View Details →

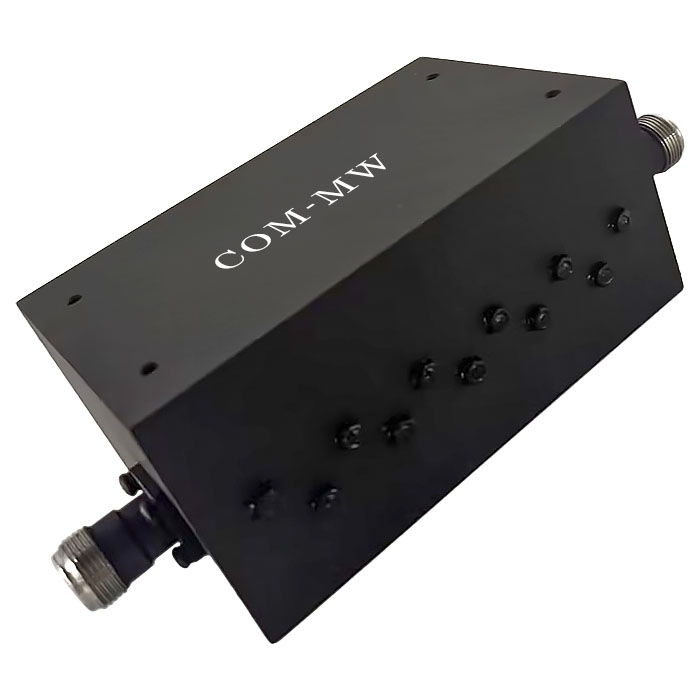

ZBF6-C395-40-4618 Filter

Filter ZBF6-C395-40-4618

Passband375~415MHz, DC-351MHz≥35dB, 750-830MHz≥10dB, N
View Details →

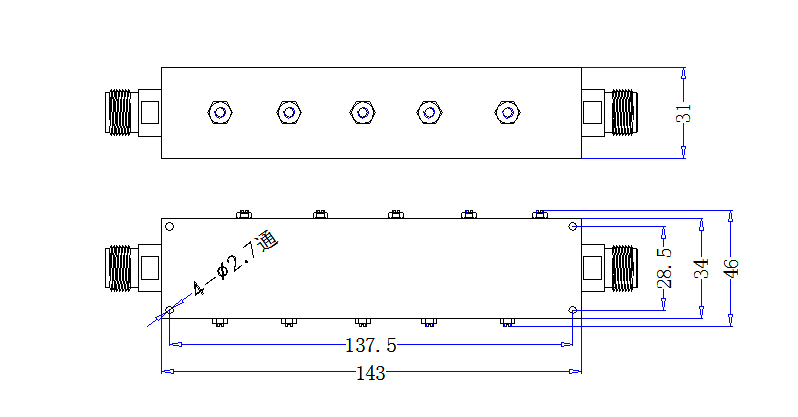

ZBF6-C2350-1300-1053 Filter

Filter ZBF6-C2350-1300-1053

Passband1700~3000MHz, 5150-5850MHz≥50dB, DC-1000MHz≥50dB, N, -140dBc@2*43dBm
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
