Passband F1335.4~351MHz, Passband F2375~415MHz, N
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

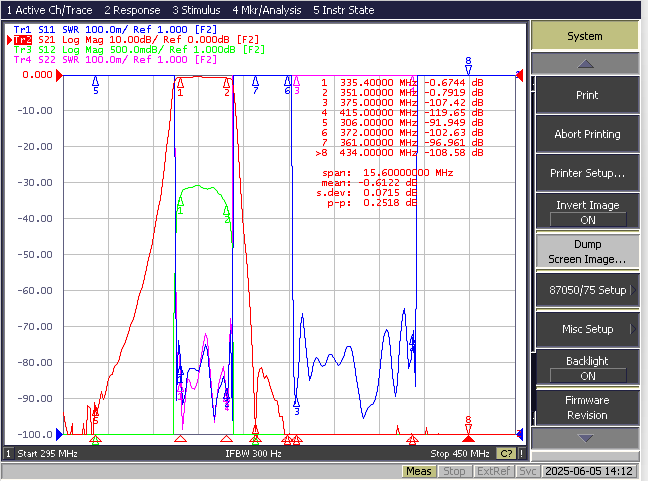

| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband F1 | / | / | 335.4 | ~ | 351 | MHz |
| Passband F2 | / | / | 375 | ~ | 415 | MHz |
| band 1 IL | / | / | 1.0 | dB | ||
| band 2 IL | / | / | 1.0 | dB | ||
| Passband ripple | / | / | 0.5 | dB | ||
| Passband VSWR | / | / | 1.40 | |||
| Band 1 Rejection | DC-306 | MHz≥ | 80 | dBc | ||
| Band 1 Rejection | 372-800 | MHz≥ | 80 | dBc | ||
| band 2 Rejection | DC-361 | MHz≥ | 80 | dBc | ||
| band 2 Rejection | 434-800 | MHz≥ | 80 | dBc | ||
| Channel isolation | / | / | 95 | dBc |
| Connector | N -K |
| Impedance | 50Ω |
| Surface | Black baking paint |
| Power Capacity | 300W Design assurance |
| Product shell material | Aluminium |
| Operation Temp. | -40~+70℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |

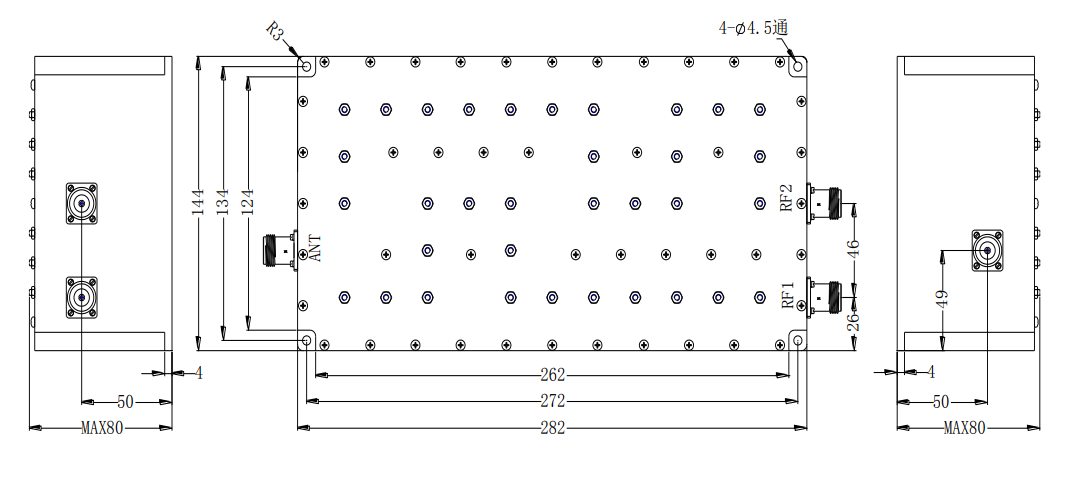

| 1 | Common port | ANT |
|---|---|---|
| 2 | Passband 1 | RF1 |
| 3 | Passband 2 | RF2 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 1 | If the temperature is higher than 125℃, consult with us before ordering. |
