matches 43 models Default Newest
ZBF4-C14-1G-1129 Filter

Filter ZBF4-C14-1G-1129

Passband13.5~14.5GHz, DC-13GHz≥45dB, 15-25GHz≥45dB, SMA-KDetachable
In Stock View Details →
ZBF4-C2.4-0.2G-1112 Filter

Filter ZBF4-C2.4-0.2G-1112

Passband2.3~2.5GHz, DC-2.2GHz≥40dB, 2.6-10GHz≥50dB, SMA-KDetachable
In Stock View Details →
ZCB4-M0-8.5G-1652 Diplexer

Diplexer ZCB4-M0-8.5G-1652

Passband F1DC~2800MHz, Passband F23200~8500MHz, SMA
In Stock View Details →
OQ-HPF1-M12.73-30G-305 Filter

Filter OQ-HPF1-M12.73-30G-305

Passband12.73~30GHz, DC-4GHz≥70dB, 4-9GHz≥40dB, SMA
In Stock View Details →
ZBF13-C1550-300-3675 Filter

Filter ZBF13-C1550-300-3675

Passband1400~1700MHz, DC-1200MHz≥40dBc, 1900-5000MHz≥50dBc, SMA
In Stock View Details →

Component ZS20-L580-3000-149

580~1050MHz, 1000~1750MHz, 1700~3000MHz, ~MHz, ~MHz, SMD
View Details →
ZLPF5-L900-1400-2557 Filter

Filter ZLPF5-L900-1400-2557

Passband900~1400MHz, 1800MHz≥60dBc, Pin
View Details →
ZLPF3-L0-512-1632 Filter

Filter ZLPF3-L0-512-1632

PassbandDC~512MHz, 600-3000MHz≥40dB, dB, SMA
View Details →
ZLPF3-L0-2500-1633 Filter

Filter ZLPF3-L0-2500-1633

PassbandDC~2500MHz, 2950-6000MHz≥40dB, dB, SMA
View Details →
ZCB5-L400-1000-3650 Diplexer

Diplexer ZCB5-L400-1000-3650

Passband F1400~500MHz, Passband F2800~1000MHz, N
View Details →
ZCB5-C5.1-5.9G-3652 Diplexer

Diplexer ZCB5-C5.1-5.9G-3652

Passband F15.1~5.35GHz, Passband F25.7~5.9GHz, N
View Details →
ZCB5-C12.25-14.5G-1958 Diplexer

Diplexer ZCB5-C12.25-14.5G-1958

12.25~12.75GHz, 14~14.5GHz, SMA
View Details →
ZCB5-C1.1-1.61G-3651 Diplexer

Diplexer ZCB5-C1.1-1.61G-3651

Passband F11.1~1.3GHz, Passband F21.5~1.61GHz, N
View Details →
ZCB4-C2483-2690-1054 Diplexer

Diplexer ZCB4-C2483-2690-1054

Passband F12483~2535MHz, Passband F22660~2690MHz, SMA
View Details →
ZCB4-C1268-2491-668 Diplexer

Diplexer ZCB4-C1268-2491-668

Passband F11264~1625MHz, Passband F22483~2500MHz, SMA
View Details →
ZCB15-C1750-2501-026 Diplexer

Diplexer ZCB15-C1750-2501-026

Passband F11750~1851MHz, Passband F22200~2501MHz, SMA
View Details →
ZCB15-2L130-300-1681 Diplexer

Diplexer ZCB15-2L130-300-1681

Passband F1130~180MHz, Passband F2280~300MHz, SMA
View Details →
ZCB13-C4.4-5.15G-1782 Diplexer

Diplexer ZCB13-C4.4-5.15G-1782

Passband F14.4~4.65GHz, Passband F24.85~5.15GHz, SMA
View Details →
ZCB13-C1518-1675-3052 Diplexer

Diplexer ZCB13-C1518-1675-3052

Passband F11518~1525MHz, Passband F21668~1675MHz, SMA
View Details →
ZCB13-C1350-1785-2360 Diplexer

Diplexer ZCB13-C1350-1785-2360

Passband F11350~1520MHz, Passband F21626~1785MHz, Pin
View Details →
ZCB13-C1248-1473-2401 Diplexer

Diplexer ZCB13-C1248-1473-2401

Passband F11248.52~1288.52MHz, Passband F21432.66~1472.66MHz, SMA
View Details →
ZCB13-C1.7-2.4G-2134 Diplexer

Diplexer ZCB13-C1.7-2.4G-2134

Passband F11700~1800MHz, Passband F22250~2400MHz, SMA
View Details →
ZBSF6-C960-1224-4233 Filter

Filter ZBSF6-C960-1224-4233

Stopband F960~1230MHz, ≥45dB, PassbandDC~850MHz, 1350~3700MHz, SMA
View Details →

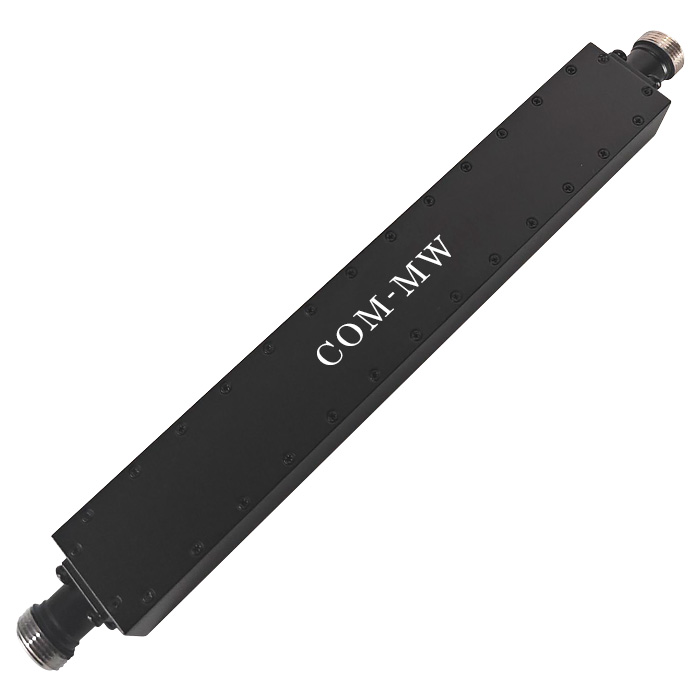

ZBSF6-C832-862-3073 Filter

Filter ZBSF6-C832-862-3073

Stopband F832~862MHz, ≥80dB, PassbandDC~802MHz, 892~4000MHz, N
View Details →
