Passband F11750~1851MHz, Passband F22200~2501MHz, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

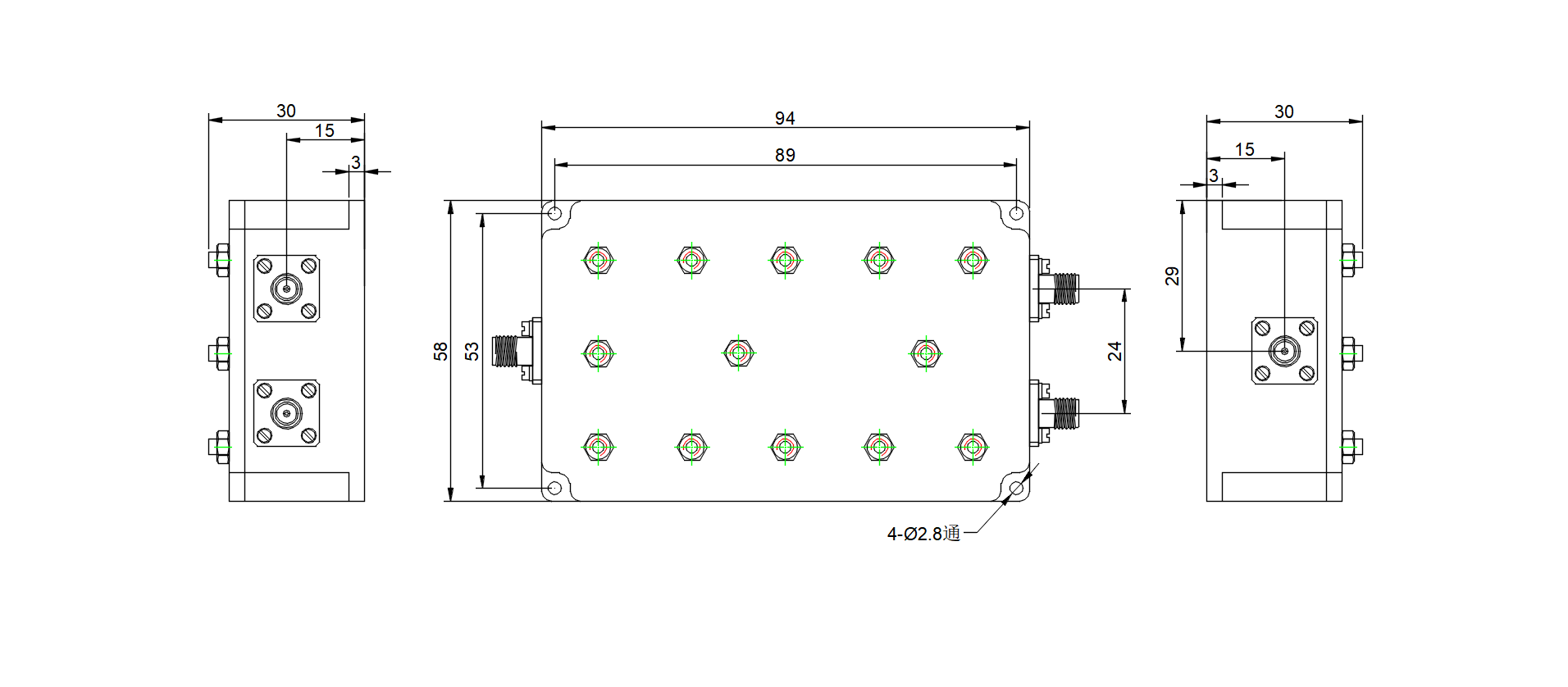

| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband F1 | / | / | 1750 | ~ | 1851 | MHz |
| Passband F2 | / | / | 2200 | ~ | 2501 | MHz |
| band 1 IL | / | / | 0.6 | dB | ||
| band 2 IL | / | / | 0.6 | dB | ||
| Passband ripple | / | / | 0.6 | dB | ||
| Passband VSWR | / | / | 1.5 | |||
| Band 1 Rejection | 2200-2501 | MHz≥ | 90 | dB | ||
| Band 1 Rejection | 1750-1851 | MHz≥ | 90 | dB | ||
| 通带间隔离度 | 90 | dB |
| Connector | SMA-F |
| Impedance | 50Ω |
| Surface | silver-plate |
| Power Capacity | 40W Design assurance |
| Phase balance | ≤10°（全频段）（2200-2501±3°）（中心频段） |
| Operation Temp. | -40~+70℃ Design assurance |
| Storage Temp. | -50~+80℃ Design assurance |
| Quality Grade | Industrial grade |
| 1 | Common port | --- |
|---|---|---|
| 2 | Passband 1 | --- |
| 3 | Passband 2 | --- |
| 4 | GND Port | --- |
| 1 | If the temperature is higher than 125℃, consult with us before ordering. |
