Power Handling：250 - 260× Clear all
matches 23 models Default Newest
ZLPF25-C0-850-589 Filter

Filter ZLPF25-C0-850-589

PassbandDC~850MHz, 900-950MHz≥20dB, 950-1200MHz≥50dB, N
In Stock View Details →

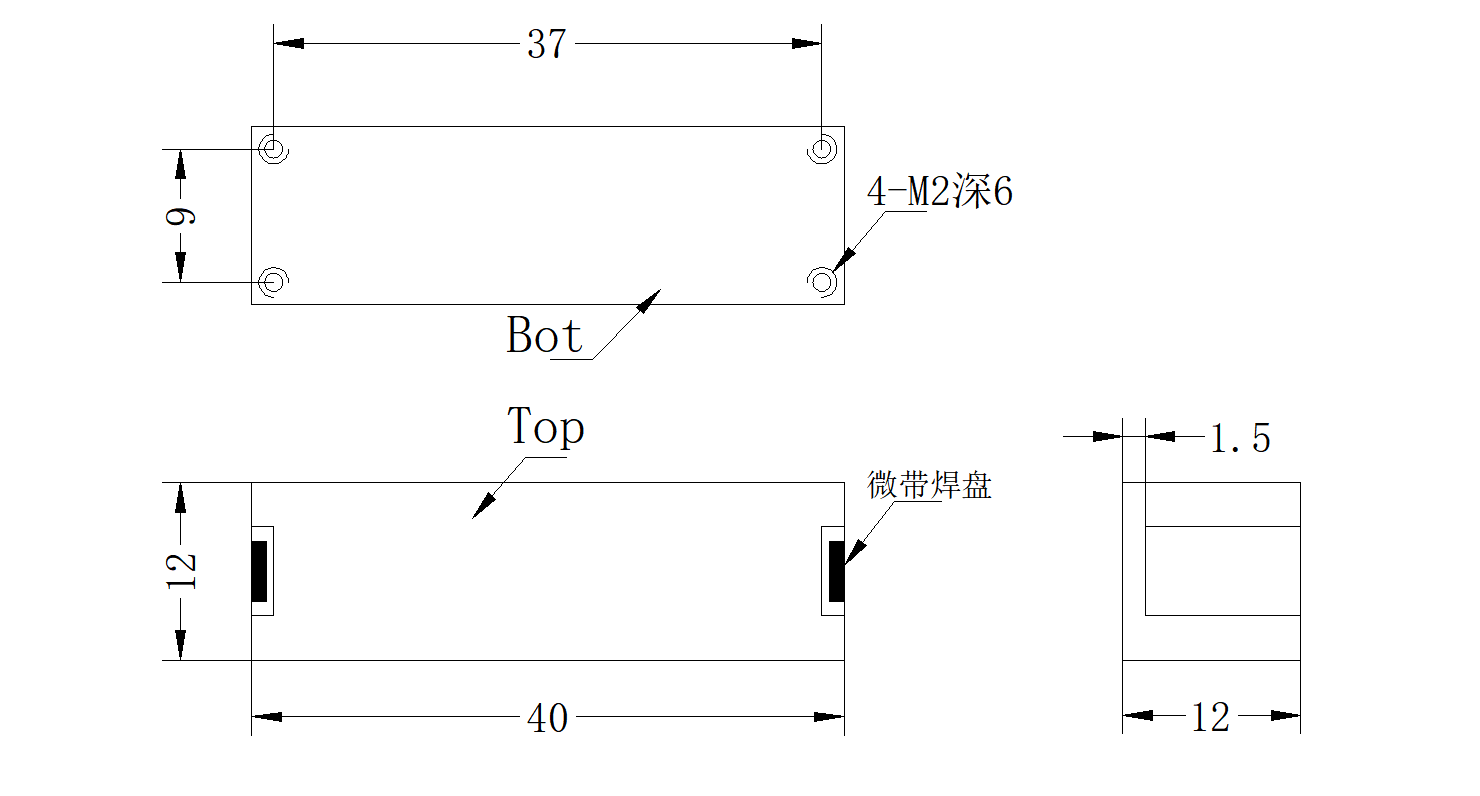

ZLPF14-L290-320-614 Filter

Filter ZLPF14-L290-320-614

Passband290~320MHz, 580-1000MHz≥55dBc, dBc, Microstrip pad,
View Details →

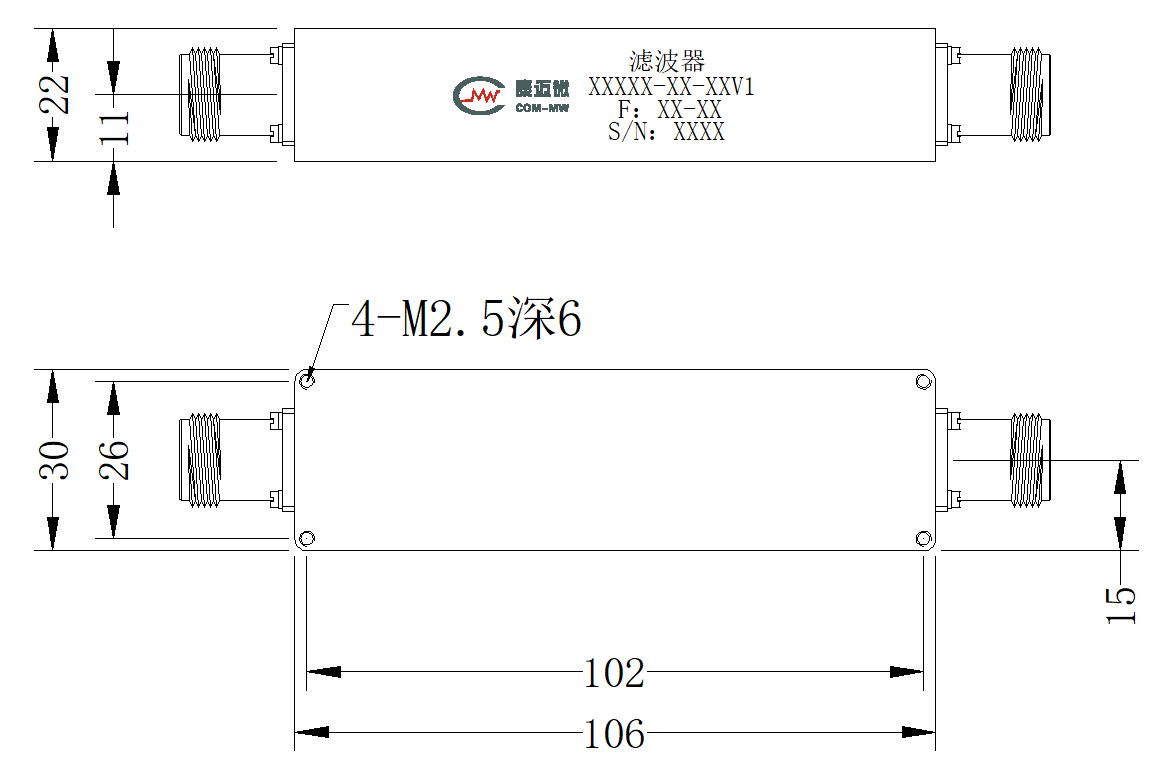

ZHPF6-C2500-6000-4115 Filter

Filter ZHPF6-C2500-6000-4115

Passband2500~6000MHz, DC-1610MHz≥50dB, dB, N
View Details →

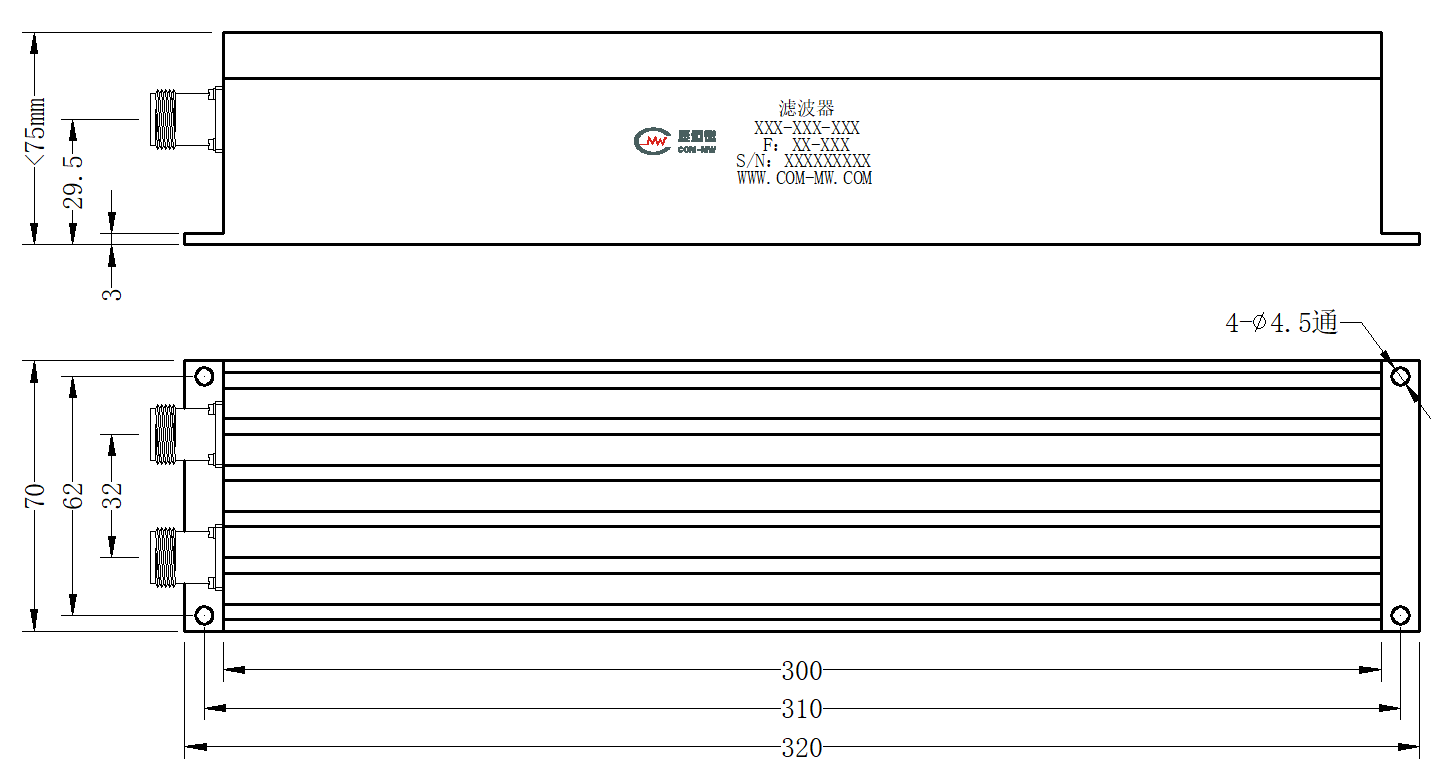

ZBSF6-C5465-6000-4461 Filter

Filter ZBSF6-C5465-6000-4461

Stopband F5465~6000MHz, ≥50dB, PassbandDC~5285MHz, ~MHz, N
View Details →

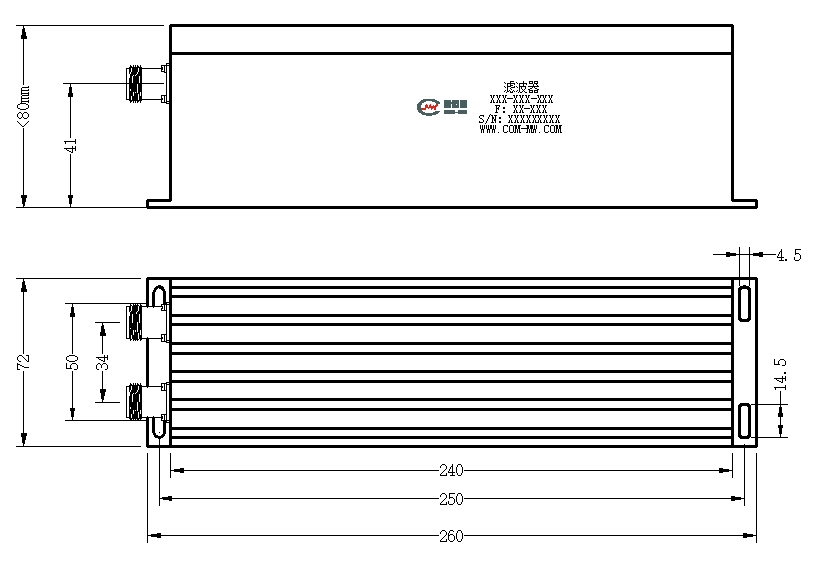

ZBSF6-C2400-2483.5-4111 Filter

Filter ZBSF6-C2400-2483.5-4111

Stopband F2400~2483.5MHz, ≥50dB, PassbandDC~2340MHz, 2545~6000MHz, N
View Details →

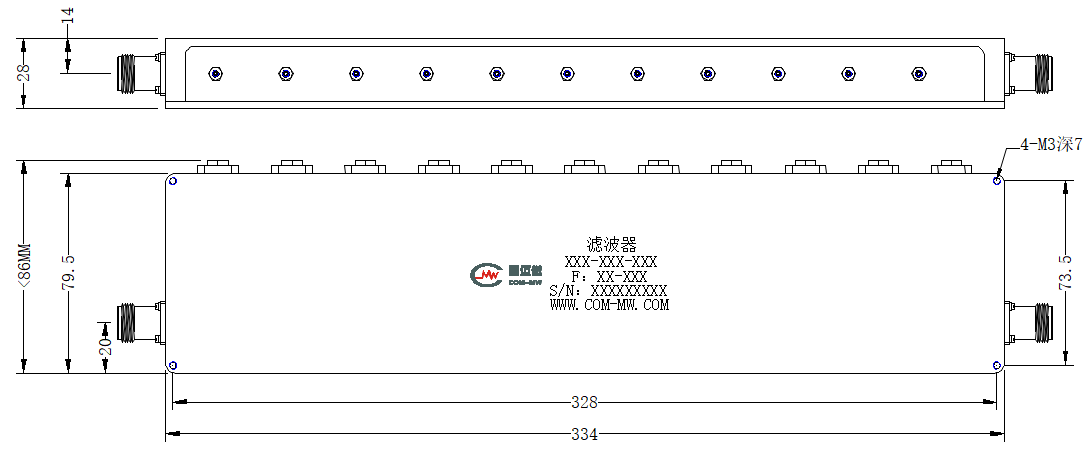

ZBSF6-C1563-1610-6218 Filter

Filter ZBSF6-C1563-1610-6218

Stopband F1563~1610MHz, ≥60dB, PassbandDC~1538MHz, 1635~3000MHz, N
View Details →

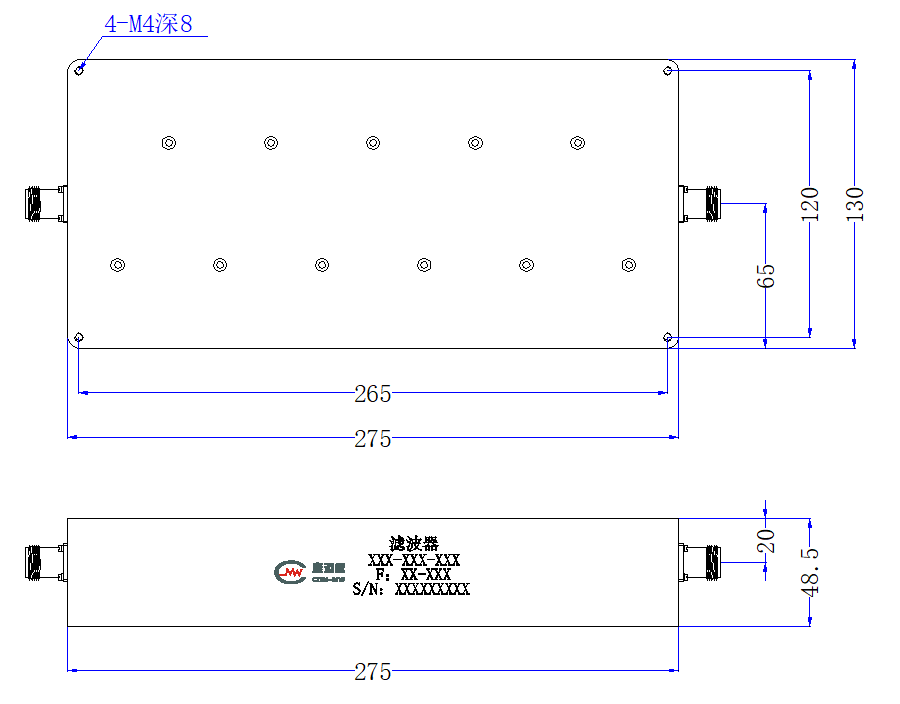

ZBSF6-C1518-1610-4113 Filter

Filter ZBSF6-C1518-1610-4113

Stopband F1518~1610MHz, ≥50dB, PassbandDC~1492MHz, 1657~2500MHz, N
View Details →

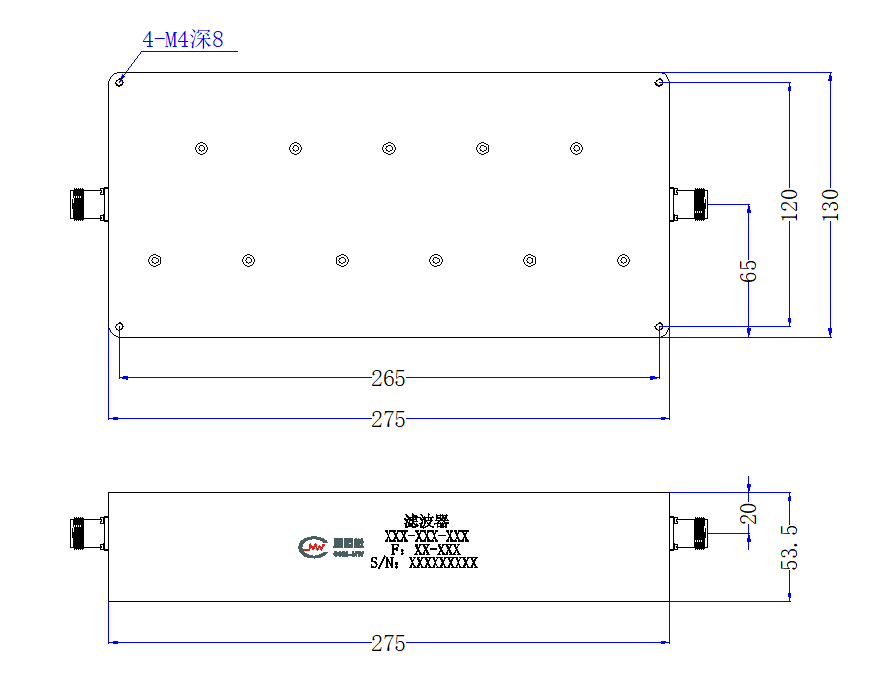

ZBSF6-C1164-1300-4112 Filter

Filter ZBSF6-C1164-1300-4112

Stopband F1164~1300MHz, ≥50dB, PassbandDC~1100MHz, 1364~2500MHz, N
View Details →

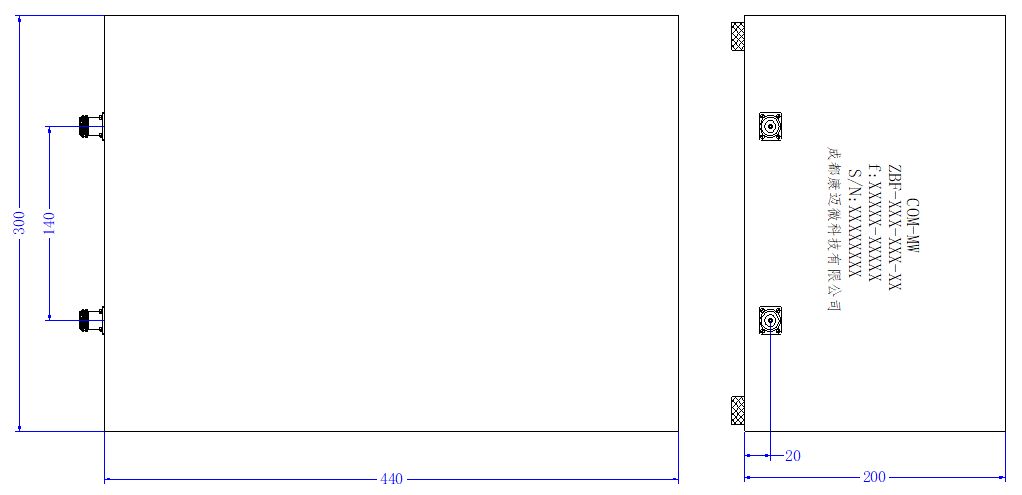

ZBSF-C433.9-2-045 Filter

Filter ZBSF-C433.9-2-045

Stopband F432.9~434.9MHz, ≥70dB, PassbandDC~430MHz, 438~1000MHz, N
View Details →
ZBSF-C433.9-0-1022-250W Filter

Filter ZBSF-C433.9-0-1022-250W

Stopband F433.9MHz, ≥80dB, PassbandDC~431.4MHz, 436.4~1000MHz, N
View Details →

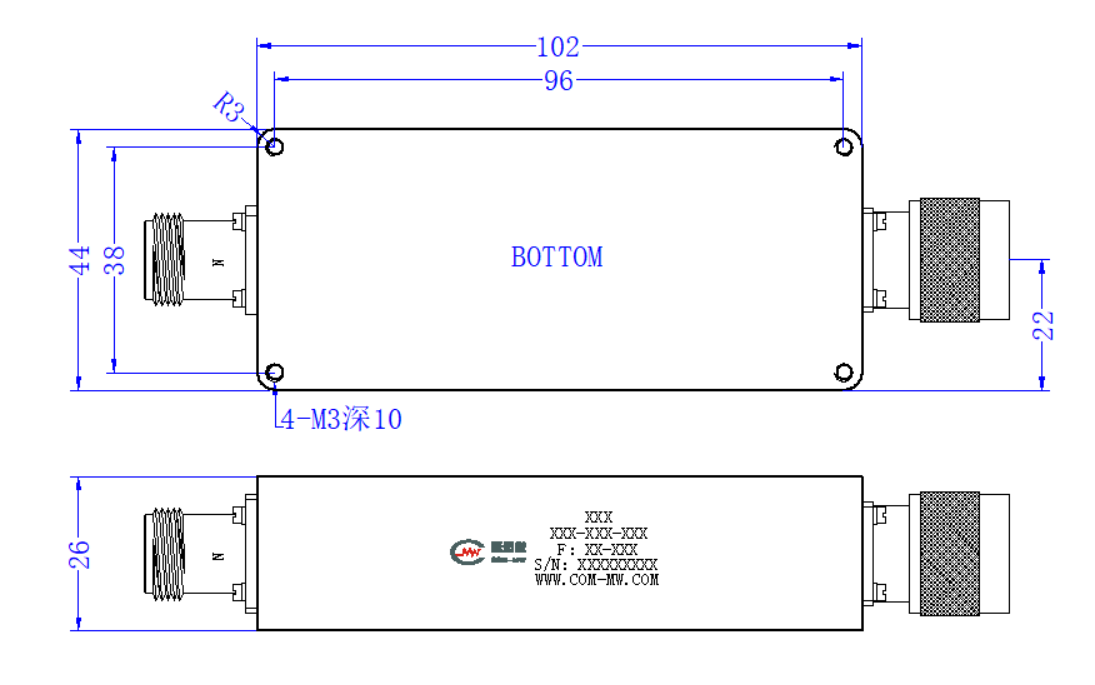

ZBF13-C7200-200-2096 Filter

Filter ZBF13-C7200-200-2096

Passband7100~7300MHz, 2.2-2.3GHz≥70dBc, 7.5-9GHz≥60dBc, N
View Details →
ZBF13-C700-200-3512 Filter

Filter ZBF13-C700-200-3512

Passband600~800MHz, DC-400MHz≥40dB, 950-1600MHz≥40dB, N
View Details →
ZBF13-C600-200-3511 Filter

Filter ZBF13-C600-200-3511

Passband500~700MHz, DC-350MHz≥40dB, 850-1400MHz≥40dB, N
View Details →

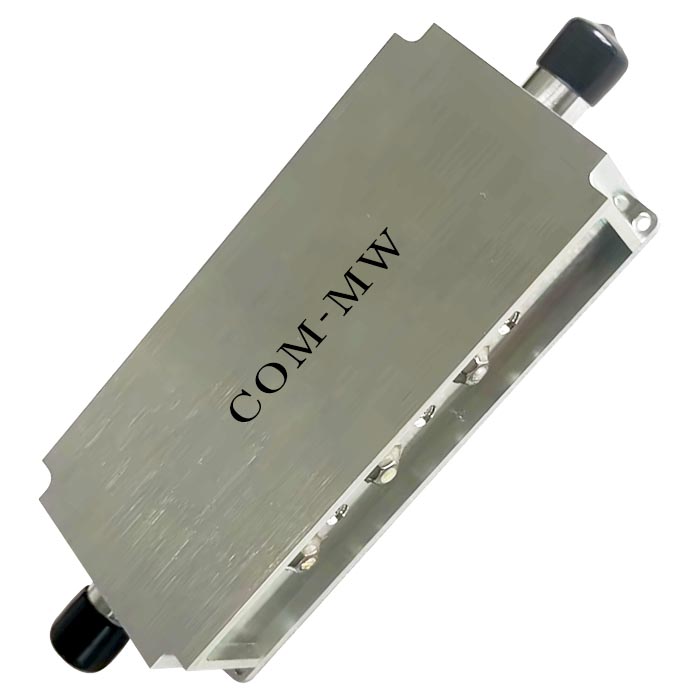

ZBF13-C500-200-3510 Filter

Filter ZBF13-C500-200-3510

Passband400~600MHz, DC-250MHz≥40dB, 750-1200MHz≥40dB, N
View Details →
ZBF13-C3300-200-3505 Filter

Filter ZBF13-C3300-200-3505

Passband3200~3400MHz, DC-3000MHz≥50dB, 3.6-6GHz≥50dB, N
View Details →
ZBF13-C3100-200-3509 Filter

Filter ZBF13-C3100-200-3509

Passband3000~3200MHz, DC-2800MHz≥50dB, 3.4-6GHz≥50dB, N
View Details →

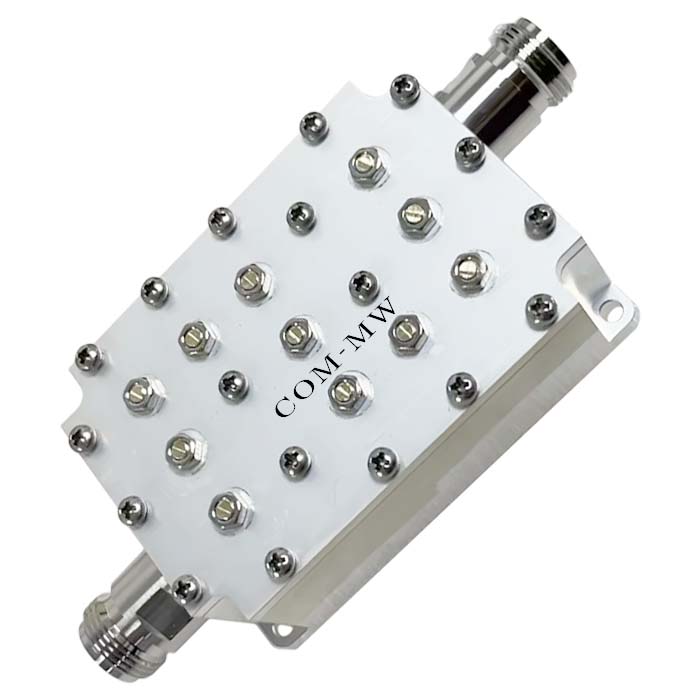

ZBF13-C2900-200-3504 Filter

Filter ZBF13-C2900-200-3504

Passband2800~3000MHz, DC-2600MHz≥50dB, 3.2-6GHz≥50dB, N
View Details →
ZBF13-C2700-200-3503 Filter

Filter ZBF13-C2700-200-3503

Passband2600~2800MHz, DC-2400MHz≥50dB, 3-6GHz≥50dB, N
View Details →
ZBF13-C2100-200-3502 Filter

Filter ZBF13-C2100-200-3502

Passband2000~2200MHz, DC-1800MHz≥50dB, 2.4-5GHz≥50dB, N
View Details →

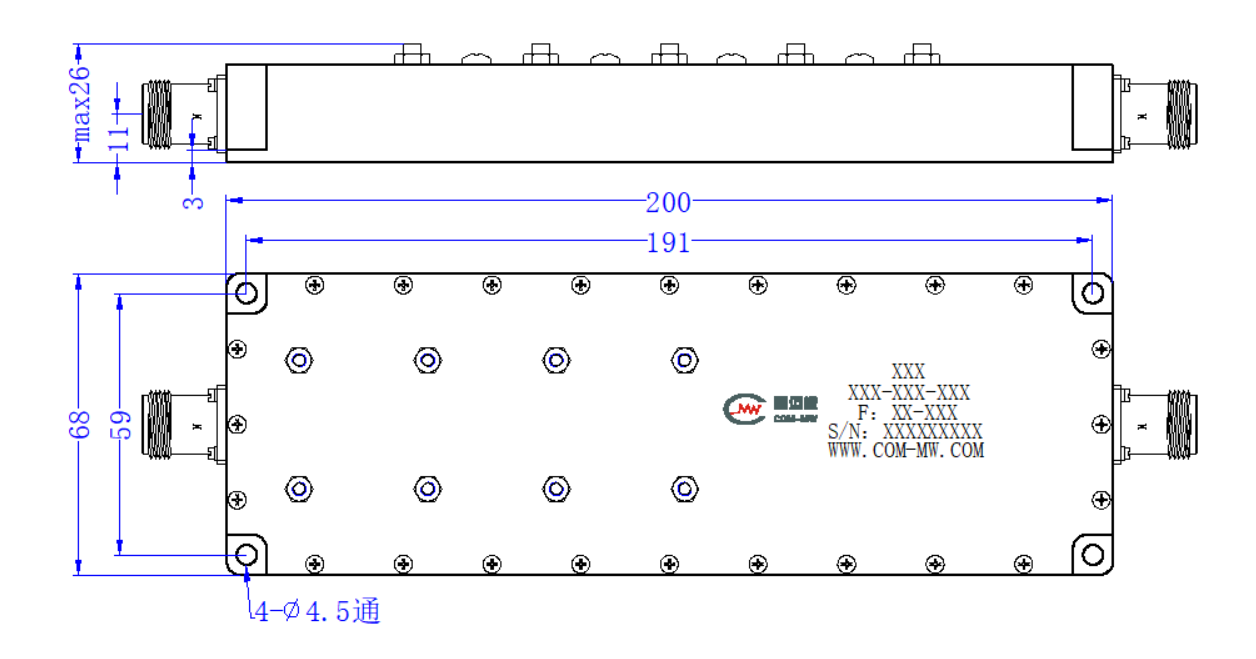

ZBF13-C2069-102-1809 Filter

Filter ZBF13-C2069-102-1809

Passband2018~2120MHz, 2.2-2.5GHz≥75dBc, Second harmonic60dBc
View Details →
ZBF13-C1700-200-3501 Filter

Filter ZBF13-C1700-200-3501

Passband1600~1800MHz, DC-1400MHz≥50dB, 2-5GHz≥50dB, N
View Details →

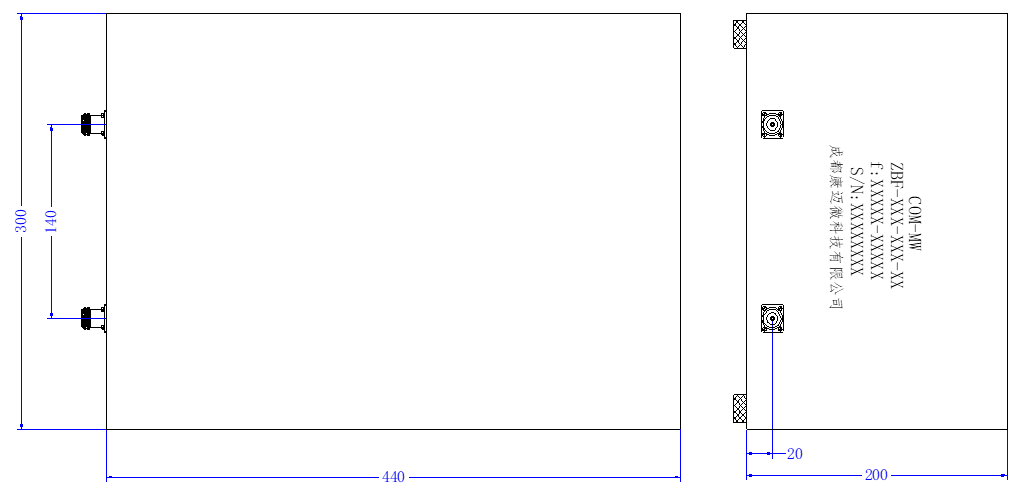

K6-432.9-434.9-2N80250-001 Filter

Filter K6-432.9-434.9-2N80250-001

Stopband F432.9~434.9MHz, ≥80dB, PassbandDC~430.9MHz, 436.9~1000MHz, N
View Details →

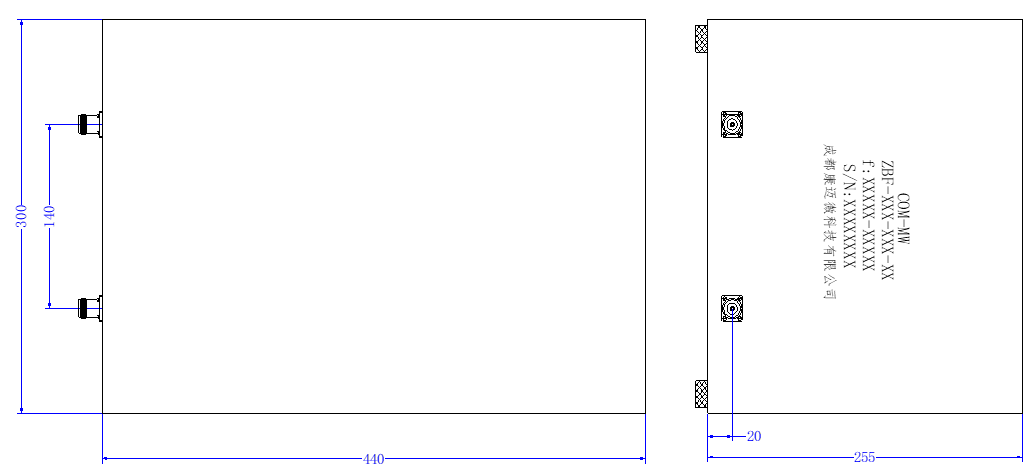

K6-315-315-1.5N80250-001 Filter

Filter K6-315-315-1.5N80250-001

Stopband F315~315MHz, ≥80dB, PassbandDC~313.5MHz, 316.5~1000MHz, N
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
