Feature：Notch× Clear all
matches 2580 models Default Newest
ZBSF7-C3400-3420-901 Filter

Filter ZBSF7-C3400-3420-901

Stopband F3400~3420MHz, ≥40dB, PassbandDC~3395MHz, 3425~6000MHz, SMA
View Details →
ZBSF7-C3400-3405-900 Filter

Filter ZBSF7-C3400-3405-900

Stopband F3400~3405MHz, ≥40dB, PassbandDC~3395MHz, 3410~6000MHz, SMA
View Details →

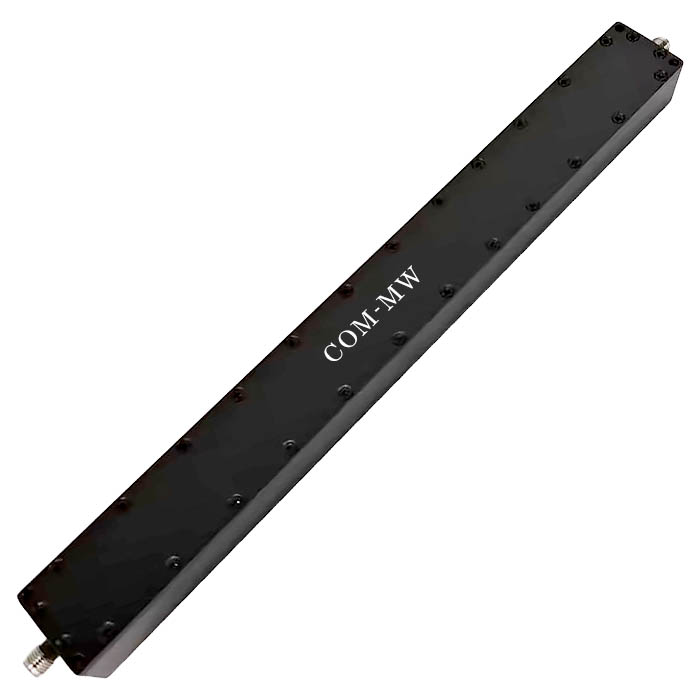

ZBSF6-MC1150-1610-5813 Filter

Filter ZBSF6-MC1150-1610-5813

Stopband F1150~1279MHz, 1525~1610MHz, ≥35dB, PassbandDC~1000MHz, 1400~1463MHz, 1650~6000MHz, SMA
View Details →

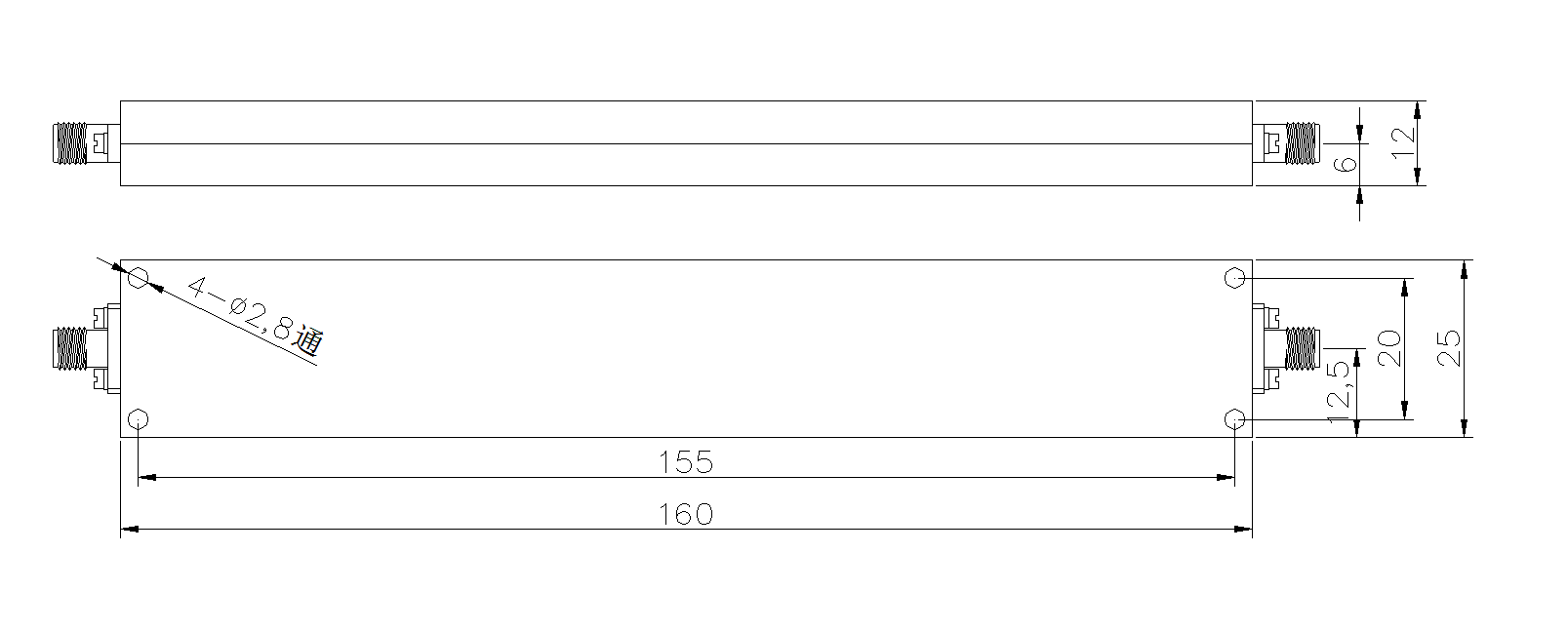

ZBSF6-M9400-9900-2697 Filter

Filter ZBSF6-M9400-9900-2697

Stopband F9400~9900MHz, ≥50dB, PassbandDC~9150MHz, 10150~15000MHz, SMA
View Details →
ZBSF6-M9000-9500-4948 Filter

Filter ZBSF6-M9000-9500-4948

Stopband F9000~9500MHz, ≥40dB, PassbandDC~8750MHz, 9750~20000MHz, SMA
View Details →
ZBSF6-M8430-8850-2108 Filter

Filter ZBSF6-M8430-8850-2108

Stopband F8430~8850MHz, ≥60dB, PassbandDC~8170MHz, 9110~18000MHz, SMA
View Details →
ZBSF6-M7.7-8.5G-5567 Filter

Filter ZBSF6-M7.7-8.5G-5567

Stopband F7.725~8.5GHz, ≥70dB, PassbandDC~7.3GHz, 8.9~18GHz, SMA
View Details →
ZBSF6-M6875-7125-5062 Filter

Filter ZBSF6-M6875-7125-5062

Stopband F6875~7125MHz, ≥50dB, PassbandDC~6700MHz, 7300~15000MHz, SMA
View Details →

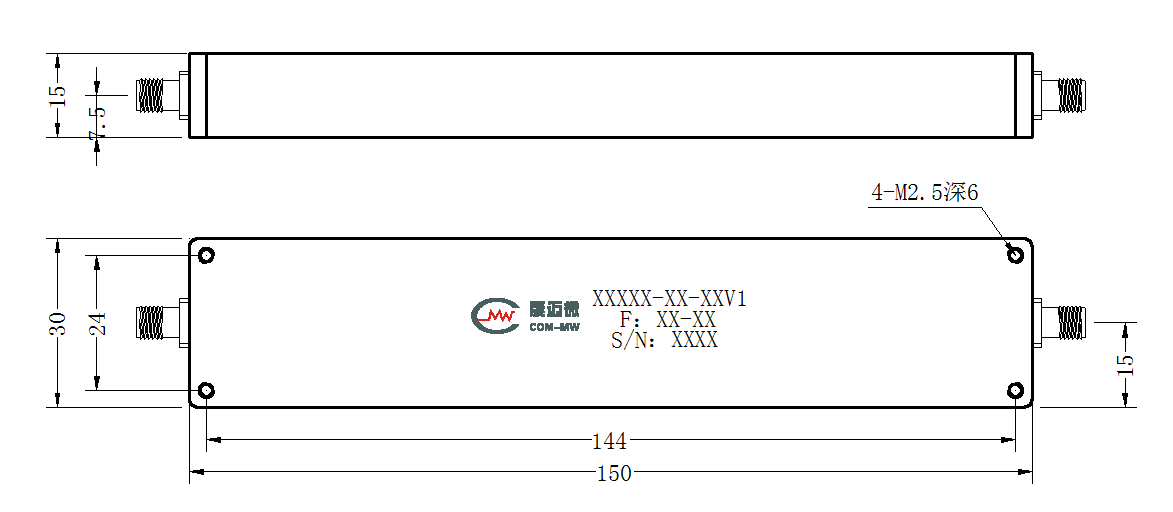

ZBSF6-M6525-7125-2914 Filter

Filter ZBSF6-M6525-7125-2914

Stopband F6525~7125MHz, ≥50dB, PassbandDC~6250MHz, 7400~13000MHz, SMA
View Details →
ZBSF6-M6525-6875-5061 Filter

Filter ZBSF6-M6525-6875-5061

Stopband F6525~6875MHz, ≥50dB, PassbandDC~6350MHz, 7050~14200MHz, SMA
View Details →
ZBSF6-M6425-6525-5060 Filter

Filter ZBSF6-M6425-6525-5060

Stopband F6425~6525MHz, ≥50dB, PassbandDC~6300MHz, 6650~14000MHz, SMA
View Details →

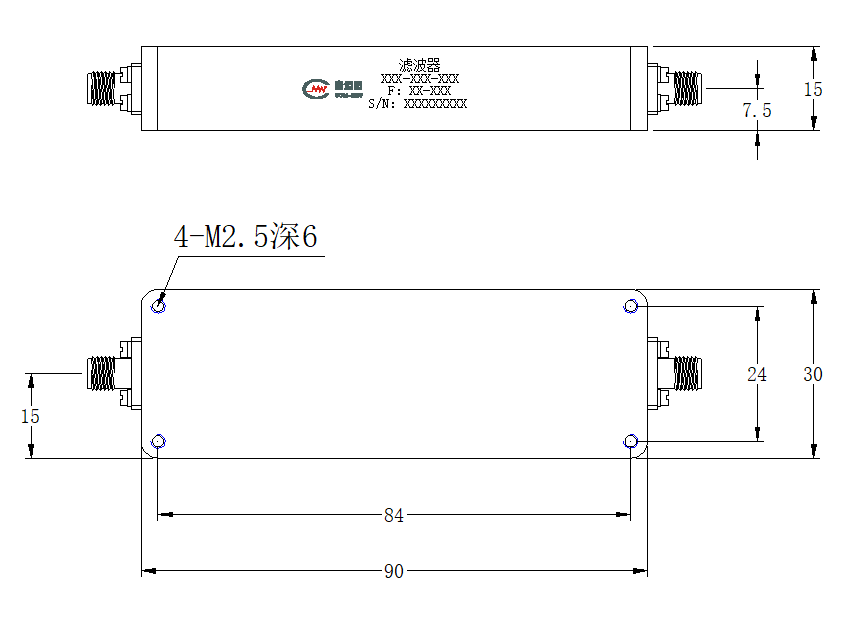

ZBSF6-M6178-6190-5862 Filter

Filter ZBSF6-M6178-6190-5862

Stopband F6178~6190MHz, ≥70dB, PassbandDC~6078MHz, 6290~18000MHz, SMA
View Details →
ZBSF6-M5925-7125-5583 Filter

Filter ZBSF6-M5925-7125-5583

Stopband F5925~7125MHz, ≥50dB, PassbandDC~5550MHz, 7500~14500MHz, SMA
View Details →
ZBSF6-M5925-7125-5413 Filter

Filter ZBSF6-M5925-7125-5413

Stopband F5925~7125MHz, ≥50dB, PassbandDC~5550MHz, 7500~18000MHz, SMA
View Details →
ZBSF6-M5925-6525-2913 Filter

Filter ZBSF6-M5925-6525-2913

Stopband F5925~6525MHz, ≥50dB, PassbandDC~5650MHz, 6800~11700MHz, SMA
View Details →
ZBSF6-M5925-6425-5059 Filter

Filter ZBSF6-M5925-6425-5059

Stopband F5925~6425MHz, ≥60dB, PassbandDC~5705MHz, 6645~11500MHz, SMA
View Details →
ZBSF6-M5924-6525-5439 Filter

Filter ZBSF6-M5924-6525-5439

Stopband F5924~6525MHz, ≥40dB, PassbandDC~5724MHz, 6725~18000MHz, SMA
View Details →

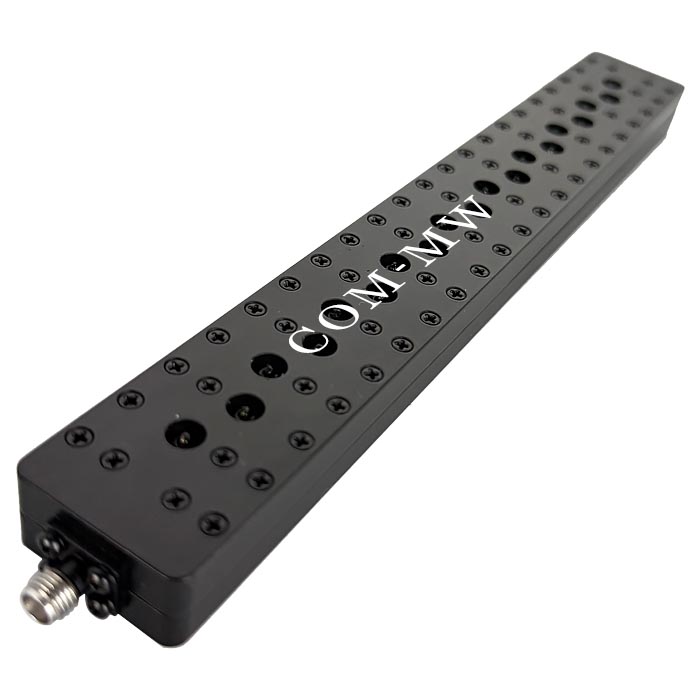

ZBSF6-M5170-5835-5652 Filter

Filter ZBSF6-M5170-5835-5652

Stopband F5170~5835MHz, ≥70dB, Passband F1DC~4500MHz, 4500~5000MHz, 6050~6500MHz, 6500~11500MHz, SMA
View Details →
ZBSF6-M5170-5835-5378 Filter

Filter ZBSF6-M5170-5835-5378

Stopband F5170~5835MHz, ≥80dB, PassbandDC~4900MHz, 6200~18000MHz, SMA
View Details →
ZBSF6-M5150-5880-3048 Filter

Filter ZBSF6-M5150-5880-3048

Stopband F5150~5880MHz, ≥40dB, PassbandDC~4900MHz, 6130~18000MHz, SMA
View Details →

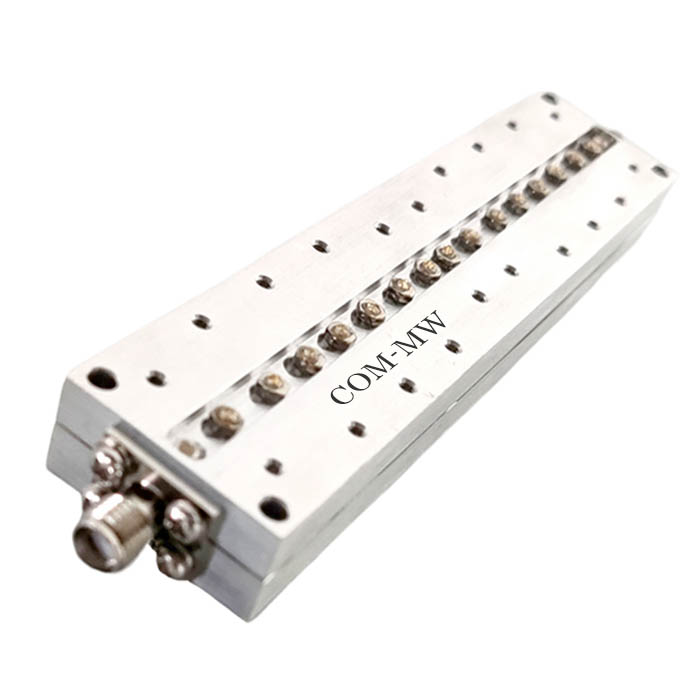

ZBSF6-M5150-5850-5348 Filter

Filter ZBSF6-M5150-5850-5348

Stopband F5150~5850MHz, ≥70dB, PassbandDC~4900MHz, 6100~18000MHz, SMA
View Details →
ZBSF6-M5-7.3G-5765 Filter

Filter ZBSF6-M5-7.3G-5765

Stopband F5~7.3GHz, ≥45dB, PassbandDC~4.6GHz, 7.7~18GHz, SMA
View Details →

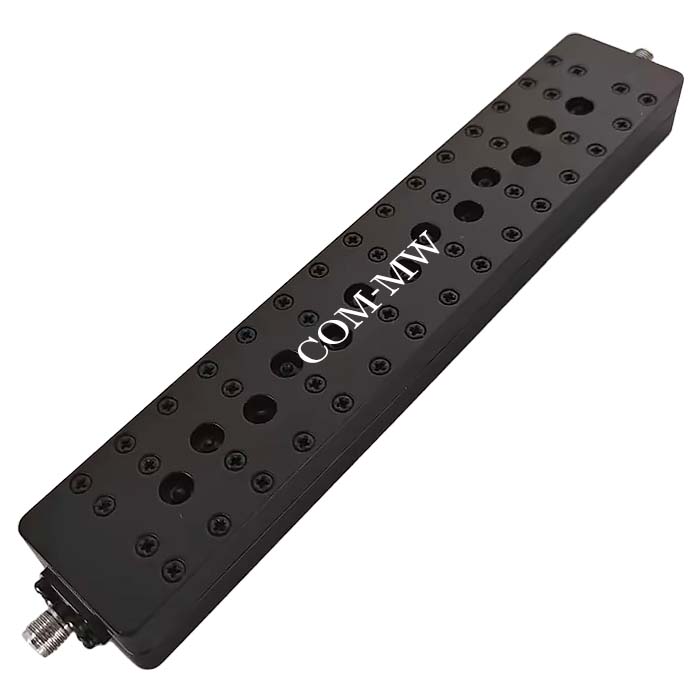

ZBSF6-M4900-5850-5412 Filter

Filter ZBSF6-M4900-5850-5412

Stopband F4900~5850MHz, ≥50dB, PassbandDC~4400MHz, 6350~18000MHz, SMA
View Details →
ZBSF6-M4800-5000-4944 Filter

Filter ZBSF6-M4800-5000-4944

Stopband F4800~5000MHz, ≥50dB, PassbandDC~4600MHz, 5200~12000MHz, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
