F Low：540 - 586 MHz× Clear all
matches 105 models Default Newest
BF058 Filter

Filter BF058

Passband565~670MHz, 380MHz≥20dB, 720MHz≥20dB, SMD, Replace SXBP-615+
In Stock View Details →
ZHPF5-L0.58-4G-3101 Filter

Filter ZHPF5-L0.58-4G-3101

Passband0.58~4GHz, RejectionDC-430MHz≥40dB, SMD
In Stock View Details →
ZBF5-L614-60-2334 Filter

Filter ZBF5-L614-60-2334

Passband584~644MHz, DC-524MHz≥40dB, 704-2000MHz≥40dB, SMD
In Stock View Details →
ZBF15-L620-120-650 Filter

Filter ZBF15-L620-120-650

Passband560~680MHz, DC-460MHz≥40dB, 800-2000MHz≥40dB, SMA
In Stock View Details →
ZBF15-L750-400-651 Filter

Filter ZBF15-L750-400-651

Passband550~950MHz, DC-420MHz≥40dB, 1100-4000MHz≥40dB, SMD
In Stock View Details →
ZBF5-L560-10-3722 Filter

Filter ZBF5-L560-10-3722

Passband555~565MHz, DC-500MHz≥40dB, SMD
In Stock View Details →
ZHPF3-L550-11000-4284 Filter

Filter ZHPF3-L550-11000-4284

Passband550~11000MHz, Passband IL, DC-260MHz≥60dB, 260-330MHz≥40dB, SMD
In Stock View Details →
ZBF15-L750-400-652 Filter

Filter ZBF15-L750-400-652

Passband550~950MHz, DC-420MHz≥40dBc, 1100-4000MHz≥40dBc, SMA
In Stock View Details →
ZBF15-L610-60-2849 Filter

Filter ZBF15-L610-60-2849

Passband580~640MHz, DC-480MHz≥40dBc, 720-4000MHz≥40dBc, SMA
In Stock View Details →
SC-BP621.5-113 Filter

Filter SC-BP621.5-113

Passband565~678MHz, DC-88MHz≥50dBc, 225-508.5MHz≥30dBc, SMD
In Stock View Details →
ZBF15-L620-160-1453 Filter

Filter ZBF15-L620-160-1453

Passband540~700MHz, DC-460MHz≥40dB, 780-2000MHz≥40dB, SMD
In Stock View Details →
ZBF15-L578-24-1459 Filter

Filter ZBF15-L578-24-1459

Passband566~590MHz, DC-540MHz≥30dBc, 616-2000MHz≥30dBc, SMD
In Stock View Details →
ZBF15-L554-24-1458 Filter

Filter ZBF15-L554-24-1458

Passband542~566MHz, DC-516MHz≥30dBc, 592-2000MHz≥30dBc, SMD
In Stock View Details →
ZBF-H554-8-7 Filter

Filter ZBF-H554-8-7

Passband550~558MHz, 518MHz≥40dB, 590MHz≥40dB, SMA
In Stock View Details →

Component ZS20-L580-3000-149

580~1050MHz, 1000~1750MHz, 1700~3000MHz, ~MHz, ~MHz, SMD
View Details →
ZHPF6-C550-2500-4882 Filter

Filter ZHPF6-C550-2500-4882

Passband550~2500MHz, DC-445MHz≥40dB, SMA
View Details →
ZHPF20-L578-1500-364 Filter

Filter ZHPF20-L578-1500-364

Passband578~1500MHz, DC-490MHz≥65dB, dB, SMD
View Details →
ZHPF-L550-860-4409 Filter

Filter ZHPF-L550-860-4409

Passband550~860MHz, 400-470MHz≥40dB, dB,
View Details →
ZCB16-4C540-590-2042 Diplexer

Diplexer ZCB16-4C540-590-2042

Passband F1540~590MHz, Passband F2606~678MHz, N
View Details →
ZBSF20-L0-1000-289 Filter

Filter ZBSF20-L0-1000-289

Stopband F566~678MHz, ≥40dB, PassbandDC~516MHz, 728~1500MHz, SMA
View Details →

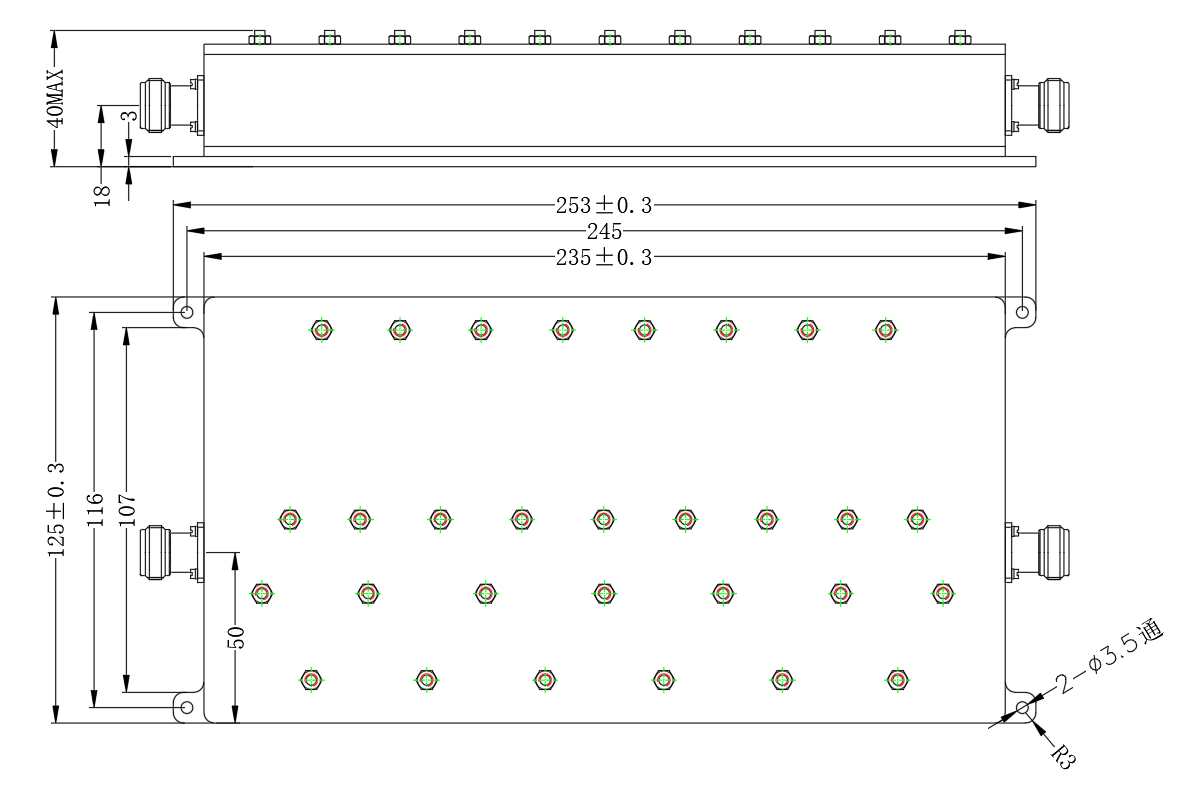

ZBSF16-C300-900-729 Filter

Filter ZBSF16-C300-900-729

Stopband F566~678MHz, ≥40dB, Passband300~541MHz, 703~900MHz, N
View Details →
ZBF9-D628-100-2068 Filter

Filter ZBF9-D628-100-2068

Passband578~678MHz, 498MHz≥15dB, 758MHz≥15dB, SMD
View Details →

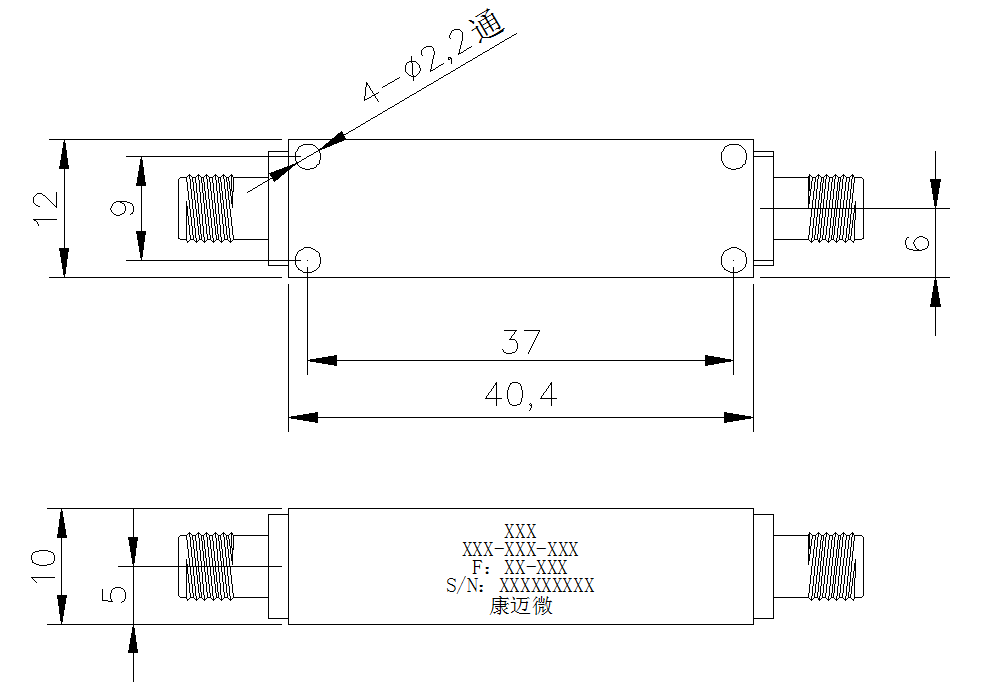

ZBF6-L622-112-4135 Filter

Filter ZBF6-L622-112-4135

Passband566~678MHz, DC-436MHz≥40dB, 808-1500MHz≥40dB, SMA
View Details →
ZBF6-L585-50-5848 Filter

Filter ZBF6-L585-50-5848

Passband560~610MHz, DC-520MHz≥40dB, 650-1000MHz≥40dB, SMA
View Details →
