Passband F1540~590MHz, Passband F2606~678MHz, N
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband F1 | / | / | 540 | ~ | 590 | MHz |
| Passband F2 | / | / | 606 | ~ | 678 | MHz |
| band 1 IL | / | / | 1.6 | dB | ||
| band 2 IL | / | / | 1.6 | dB | ||
| Passband ripple | / | / | 1.2 | dB | ||
| Passband VSWR | / | / | 1.2 | |||
| Band 1 Rejection | DC~535 | MHz≥ | 60 | dB | ||
| Band 1 Rejection | 595~3000 | MHz≥ | 60 | dB | ||
| band 2 Rejection | DC~601 | MHz≥ | 60 | dB | ||
| band 2 Rejection | 683~3000 | MHz≥ | 60 | dB |
| Connector | N -F or K |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Power Capacity | 50W Design assurance |
| Delay ripple | ≤2us |
| 幅度误差 | ≤0.2dB |
| Operation Temp. | -55~+85℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
| 相位误差 | ≤1° |

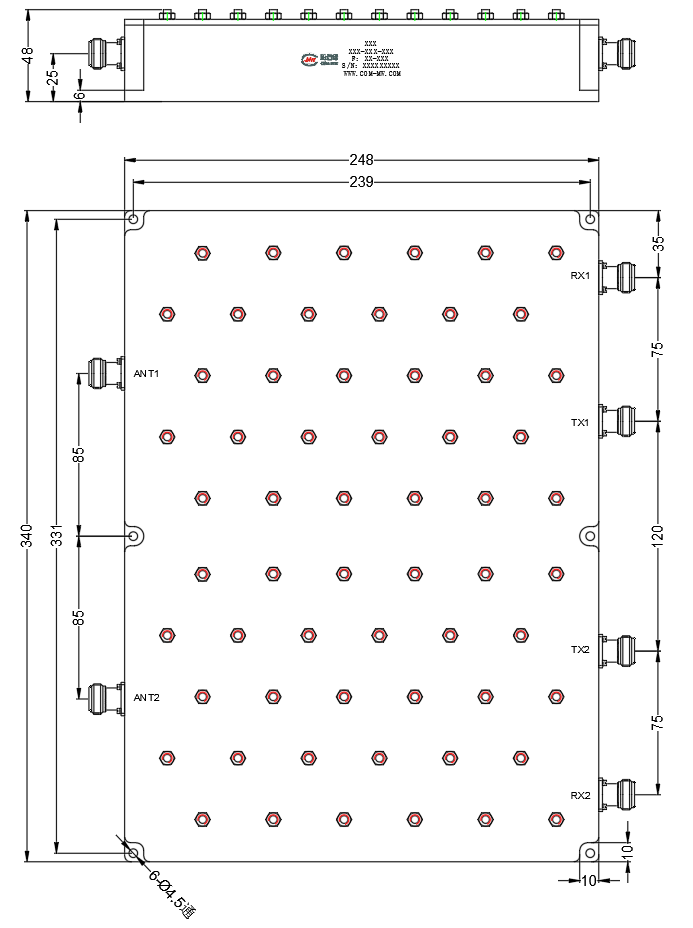

| 1 | Common port | ANT1/ANT2 |
|---|---|---|
| 2 | Passband 1 | RX1/RX2 |
| 3 | Passband 2 | TX1/TX2 |
| 4 | GND Port | --- |
