F Low：332 - 336 MHz× Clear all
matches 15 models Default Newest
ZBF6-C340-10-4139 Filter

Filter ZBF6-C340-10-4139

Passband335~345GHz, DC-325MHz≥40dB, 355~1400MHz≥40dB, SMA-K
In Stock View Details →
340-8-4 Filter

Filter 340-8-4

Passband336~344MHz, DC-325MHz≥dB, 355-1200MHz≥dB, SMA
In Stock View Details →
ZCB-BC335-400-3101 Diplexer

Diplexer ZCB-BC335-400-3101

Passband F1335~345MHz, Passband F2390~400MHz, N
In Stock View Details →
ZCB13-C335.4-415-287 Diplexer

Diplexer ZCB13-C335.4-415-287

Passband F1335.4~351MHz, Passband F2375~415MHz, N
View Details →
ZBF5-L343.2-15.6-2623 Filter

Filter ZBF5-L343.2-15.6-2623

Passband335.4~351MHz, 375-415MHz≥50dB, SMA-K
View Details →
ZBF3-L397.5-125-2958 Filter

Filter ZBF3-L397.5-125-2958

Passband335~460MHz, DC-260MHz≥50dBc, 500-4000MHz≥50dBc, Pin
View Details →
ZBF3-L375-84-1428 Filter

Filter ZBF3-L375-84-1428

Passband333~417MHz, DC-250MHz≥60dB, 500-1000MHz≥50dB, Pin
View Details →
ZBF3-L375-82-2949 Filter

Filter ZBF3-L375-82-2949

View Details →
ZBF3-L375-80-2388 Filter

Filter ZBF3-L375-80-2388

Passband335~415MHz, DC-275MHz≥50dB, 475-1000MHz≥50dB, SMD
View Details →
ZBF3-L375-80-1590 Filter

Filter ZBF3-L375-80-1590

Passband335~415MHz, DC-240MHz≥60dB, 510-1000MHz≥60dB, SMD
View Details →
ZBF15-L367.5-65-128 Filter

Filter ZBF15-L367.5-65-128

Passband335-400MHz, DC-305MHz≥40dBc, 430-2000MHz≥40dBc, SMD
View Details →
ZBF15-L350-36-665 Filter

Filter ZBF15-L350-36-665

Passband332~368MHz, DC-280MHz≥55dBc, 420MHz≥30dBc, SMD
View Details →
ZBF15-L350-30-723 Filter

Filter ZBF15-L350-30-723

Passband335~365MHz, DC-230MHz≥55dB, 400MHz≥15dB, 450-900MHz≥50dB, 1670-1770MHz≥55dB, Pin
View Details →
ZBF13-L350-28-225 Filter

Filter ZBF13-L350-28-225

Passband336~364MHz, 294MHz≥65dBc, 322MHz≥45dBc, Pin
View Details →

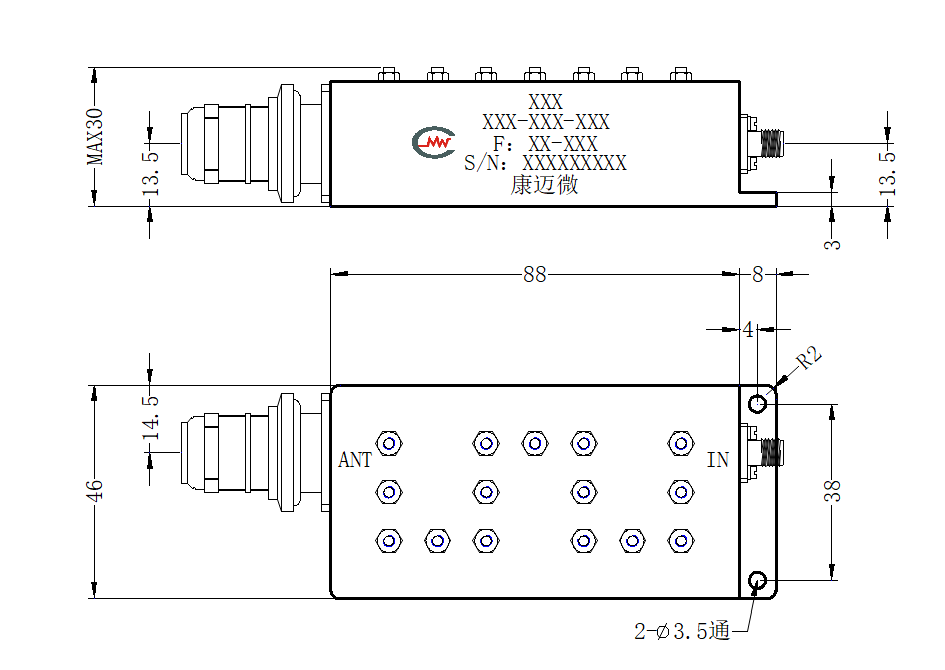

ZBF13-H340-8-500 Filter

Filter ZBF13-H340-8-500

Passband336~344MHz, DC-300MHz≥40dBc, 380-600MHz≥40dBc, SMA, N
View Details →
