RF Filter

Total 22 models
Categories
Categories RF Filter
RF Filter16037
RF Filter15365 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1228
Antenna1172 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1428
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter193 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller641
Limiter77 RF Switch359 Equalizer45 Switching filter62 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
F High MHz
127.5 - 142 3 156.1 - 157.5 4 158 - 177.5 7 183.6 - 186.6 8
–
Connector
SMD 10 SMA 2 Microstrip needle 10
Power Handling
0.1 1 1 12 2 6 5 3
–
Ways 路
3 1
–
Maximum loss of side frequency dB
1.5 - 2 9 2.5 - 3 10 4 - 5 2 18 1
–
Rejection dB
40 - 45 9 50 - 55 7 60 - 70 6
–
F Low MHz
120.6 1 122 7 122.5 4 123 2 123.6 8
–
Feature
Bandpass 20 Notch 1
Center frequency MHz
125 - 128 2 140 - 146 9 150 - 153.6 9
–
IL on center frequency dB
1 9 2 8 2.5 1 3 1 17 1
–
Filter type
LC 19 Cavity&waveguide 1 SAW 1
F Low：120.6 - 123.6 MHz× Clear all
matches 22 models Default Newest
ZBF13-L153.6-60-3696 Filter

Filter ZBF13-L153.6-60-3696

Passband123.6~183.6MHz, DC-95MHz≥40dBc, 210-1000MHz≥40dBc, SMD
In Stock View Details →
ZBF15-L140-34-034 Filter

Filter ZBF15-L140-34-034

Passband123~157MHz, DC-90MHz≥45dBc, 190-1000MHz≥45dBc, Pin
In Stock View Details →

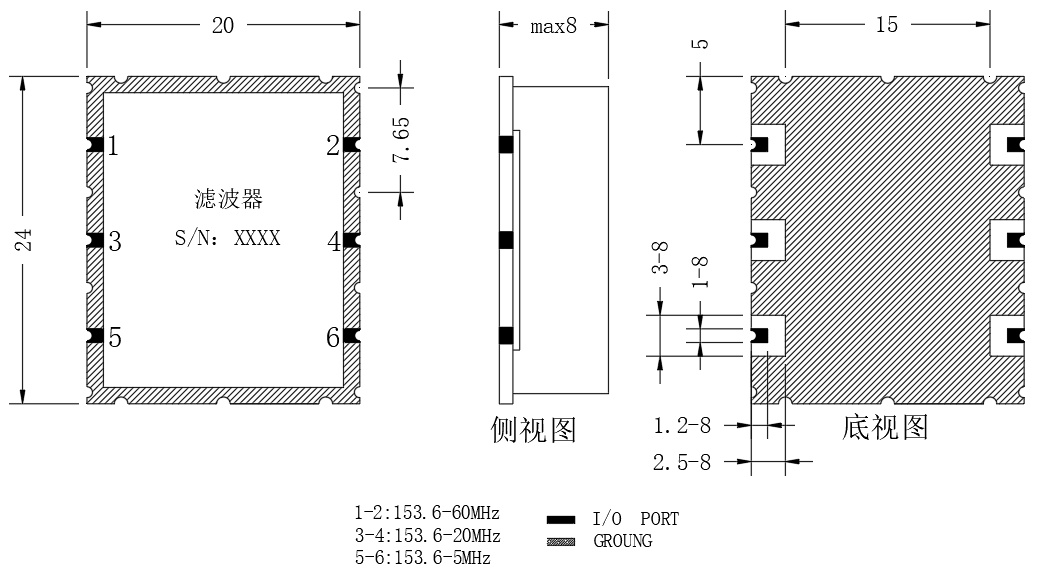

ZS15-L123.6-183.6-1463 Component

Component ZS15-L123.6-183.6-1463

123.6~183.6MHz, 143.6~163.6MHz, 151.1~156.1MHz, ~MHz, ~MHz, SMD
View Details →
ZBSF6-L122-142-4641 Filter

Filter ZBSF6-L122-142-4641

Stopband F122~142MHz, ≥50dB, PassbandDC~100MHz, 170~800MHz, SMA
View Details →
ZBF9-S140-35-2306 Filter

Filter ZBF9-S140-35-2306

Center Frequency140MHz, -3dB BW35MHz, -40dB BW47MHz
View Details →
ZBF5-L153.6-66-2950 Filter

Filter ZBF5-L153.6-66-2950

Passband120.6~186.6MHz, Pin
View Details →
ZBF5-L153.6-60-1365 Filter

Filter ZBF5-L153.6-60-1365

Passband123.6~183.6MHz, DC-93.6MHz≥40dBc, 213.6-400MHz≥40dBc, Pin
View Details →
ZBF5-L140-36-525 Filter

Filter ZBF5-L140-36-525

Center Frequency140MHz, -3dB BW34~38MHz, DC-90MHz≥50dBc, 190-300MHz≥50dBc, Pin
View Details →
ZBF5-L140-36-2095 Filter

Filter ZBF5-L140-36-2095

Passband122~158MHz, 86MHz≥60dB, Pin
View Details →
ZBF3-L153.6-60-4065 Filter

Filter ZBF3-L153.6-60-4065

Passband123.6~183.6MHz, DC-84.6MHz≥60dBc, 222.6-500MHz≥60dBc, SMD
View Details →
ZBF3-L153.6-60-2851 Filter

Filter ZBF3-L153.6-60-2851

Passband123.6~183.6MHz, DC-100MHz≥45dBc, 210-1000MHz≥45dBc, SMD
View Details →
ZBF3-L140-36-2343 Filter

Filter ZBF3-L140-36-2343

Passband122~158MHz, DC-104MHz≥55dB, 176-1000MHz≥55dB, SMA
View Details →
ZBF3-L128-6-2185 Filter

Filter ZBF3-L128-6-2185

Passband122~134MHz, 80MHz≥45dBc, 175MHz≥45dBc, DC-50MHz≥55dBc, 200-400MHz≥55dBc, SMD
View Details →
ZBF3-L125-5-4471 Filter

Filter ZBF3-L125-5-4471

Passband122.5~127.5MHz, DC-95MHz≥45dB, 155-400MHz≥45dB, Pin
View Details →
ZBF20-L140-35-232 Filter

Filter ZBF20-L140-35-232

Passband122.5~157.5MHz, DC-85MHz≥60dB, 205-1000MHz≥60dB, Pin
View Details →
ZBF2-L153.6-60-1806 Filter

Filter ZBF2-L153.6-60-1806

Passband123.6~183.6MHz, DC-100MHz≥45dBc, 210-1000MHz≥45dBc, SMD
View Details →
ZBF2-L150-55-2685 Filter

Filter ZBF2-L150-55-2685

Passband122.5~177.5MHz, DC-50MHz≥50dB, 300-1500MHz≥50dB, SMD
View Details →
ZBF13-L153.6-60-2190 Filter

Filter ZBF13-L153.6-60-2190

Passband123.6~183.6MHz, 2nd~4th harmonic70dB, Pin
View Details →
ZBF13-L153.6-60-2114 Filter

Filter ZBF13-L153.6-60-2114

Passband123.6~183.6MHz, 2nd~4th harmonic70dBc, Pin
View Details →
ZBF13-L146-46-2865 Filter

Filter ZBF13-L146-46-2865

Passband146MHz, DC-100MHz≥50dBc, 192-800MHz≥50dBc, SMD
View Details →
ZBF-L140-36-S2010 Filter

Filter ZBF-L140-36-S2010

Passband122~158MHz, 86MHz≥40dB, 226MHz≥40dB, SMD
View Details →
XPF-L140M36M-Z Filter

Filter XPF-L140M36M-Z

Passband122~158MHz, DC-104MHz≥60dBc, 176-1000MHz≥60dBc, Pin
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
