F High：925 - 965 MHz× Clear all
matches 180 models Default Newest
ZBF15-L750-400-651 Filter

Filter ZBF15-L750-400-651

Passband550~950MHz, DC-420MHz≥40dB, 1100-4000MHz≥40dB, SMD
In Stock View Details →
ZBF13-L915-90-1529 Filter

Filter ZBF13-L915-90-1529

Passband870~960MHz, DC-700MHz≥40dB, 1.15-3GHz≥40dB, SMD
In Stock View Details →
ZBF15-L855-210-647 Filter

Filter ZBF15-L855-210-647

Passband750~960MHz, DC-600MHz≥40dB, 1150-3000MHz≥40dB, SMD
In Stock View Details →
ZBF13-L915-90-1530 Filter

Filter ZBF13-L915-90-1530

Passband870~960MHz, DC-800MHz≥40dB, 1040-4000MHz≥40dB, SMA
In Stock View Details →
ZBF15-L750-400-652 Filter

Filter ZBF15-L750-400-652

Passband550~950MHz, DC-420MHz≥40dBc, 1100-4000MHz≥40dBc, SMA
In Stock View Details →
ZMC2-3D758-960-2474 Combiner

Combiner ZMC2-3D758-960-2474

758~803MHz, 869~894MHz, 925~960MHz, ~MHz, ~MHz, SMD
In Stock View Details →
ZBF15-L855-210-646 Filter

Filter ZBF15-L855-210-646

Passband750~960MHz, DC-610MHz≥40dB, 1150-3000MHz≥40dB, SMA
In Stock View Details →
K6-925-960-10S60100-002 Notch filter

Notch filter K6-925-960-10S60100-002

Stopband F925~960MHz, ≥60dB, PassbandDC~915MHz, 970~4000MHz, SMA
In Stock View Details →
OQZCB6-L617-3700-4245 Diplexer

Diplexer OQZCB6-L617-3700-4245

Passband frequency C1617~960MHz, Passband frequency C21300~3700MHz, SMA
In Stock View Details →
K6-925-960-10S60100-001 Notch filter

Notch filter K6-925-960-10S60100-001

Stopband F925~960MHz, ≥60dB, PassbandDC~915MHz, 970~3000MHz, SMA
In Stock View Details →
ZCB6-L600-3000-1996 Diplexer

Diplexer ZCB6-L600-3000-1996

Passband frequency C1600~960MHz, Passband frequency C21200~3000MHz, 1200-3000MHz≥60dB, DC-960MHz≥60dB, SMA
In Stock View Details →
ZBSF3-2C98-892-D30 限波器

限波器 ZBSF3-2C98-892-D30

Stopband F188~108MHz, Stopband F2825~960MHz, ≥30dB, PassbandDC~70MHz, 128~750MHz, 1010~1350MHz, N
In Stock View Details →
ZBSF2-L500-1660-1497 Filter

Filter ZBSF2-L500-1660-1497

Stopband F870~960MHz, ≥30dBc, Passband500~780MHz, 1030~1660MHz, Pin
In Stock View Details →
ZBF13-L855-210-118 Filter

Filter ZBF13-L855-210-118

Passband750~960MHz, DC-530MHz≥35dB, 1.1-1.2GHz≥42dB, Pin
In Stock View Details →
ZBF-BL720-470-0420B2 Filter

Filter ZBF-BL720-470-0420B2

Passband485~955MHz, DC-250MHz≥60dBc, 2-3.4GHz≥60dBc, Pin
In Stock View Details →
ZCB2-L90-2000-3339 Diplexer

Diplexer ZCB2-L90-2000-3339

90~950MHz, 1050~1900MHz, ~GHz, ~MHz, ~MHz, SMA
In Stock View Details →
ZCB1-M650-3000-308 Diplexer

Diplexer ZCB1-M650-3000-308

Passband F1650~930MHz, Passband F21300~3000MHz, SMA
In Stock View Details →
ZBSF6-C934-949-3736 Filter

Filter ZBSF6-C934-949-3736

Stopband F934~949MHz, ≥60dB, PassbandDC~926MHz, 957~3000MHz, N
In Stock View Details →
ZBSF6-C890-960-2930 Filter

Filter ZBSF6-C890-960-2930

Stopband F890~960MHz, ≥50dB, PassbandDC~860MHz, 990~4000MHz, SMA
In Stock View Details →
ZMC15-4L758-3600-1057 Combiner

Combiner ZMC15-4L758-3600-1057

758~960MHz, 1805~2130MHz, 2320~2675MHz, 3400~3600MHz, ~MHz, SMA
View Details →
ZLPF5-L100-930-1982 Filter

Filter ZLPF5-L100-930-1982

Passband100~930MHz, 1020-2000MHz≥40dB, SMA
View Details →
ZLPF5-L0-930-3776 Filter

Filter ZLPF5-L0-930-3776

PassbandDC~930MHz, 1150-1700MHz≥90dB, 1700-3000MHz≥55dB, N
View Details →

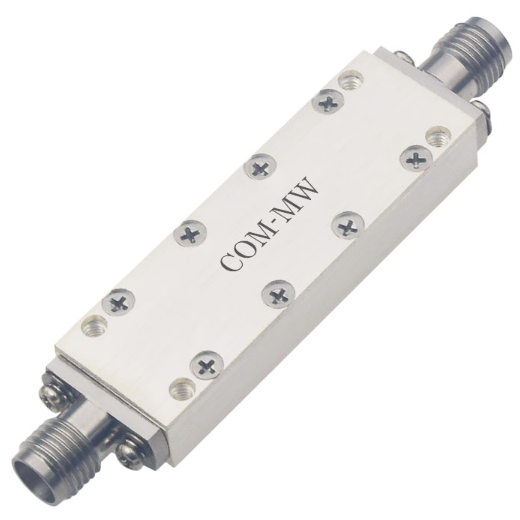

ZLPF5-L0-930-3767 Filter

Filter ZLPF5-L0-930-3767

PassbandDC~930MHz, 1150-1700MHz≥90dB, 1700-3000MHz≥55dB, SMA
View Details →

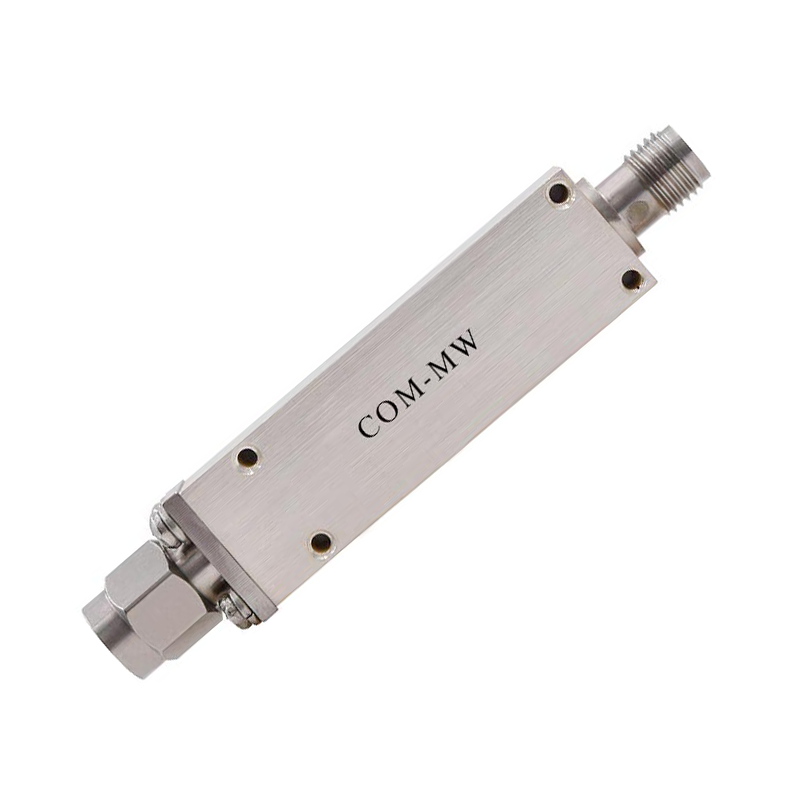

ZLPF13-L650-950-3525 Filter

Filter ZLPF13-L650-950-3525

Passband650~950MHz, 2nd harmonicMHz≥85dB, 3rd harmonicMHz≥85dB, SMA
View Details →
