LF013 Filter

Filter LF013

Highpass FDC~70MHz, 100-115MHz≥20dB, 115-1000MHz≥40dB, SMD, Industrial grade,
In Stock View Details →
ZBF2-L60-14-3332 Filter

Filter ZBF2-L60-14-3332

Passband53~67MHz, DC-40MHz≥45dBc, 80-83MHz≥25dBc, SMD
In Stock View Details →
ZLPF5-L0-70-3046 Filter

Filter ZLPF5-L0-70-3046

PassbandDC~70MHz, Rejection110-1000MHz≥30dB, SMD
In Stock View Details →
ZBF3-L60-20-4318 Filter

Filter ZBF3-L60-20-4318

Passband50~70MHz, DC-40MHz≥50dB, 80-100MHz≥50dB, SMD
In Stock View Details →
ZBF13-L60-20-1512 Filter

Filter ZBF13-L60-20-1512

Passband50~70MHz, DC-40MHz≥40dB, 90-700MHz≥40dB, SMD
In Stock View Details →
ZBF9-Q70-0.04-2826 Filter

Filter ZBF9-Q70-0.04-2826

Center Frequency70MHz, -6dB BW38KHz, BW-60dB/6dB3, Pin
In Stock View Details →
ZLPF5-L0-70-3497 Filter

Filter ZLPF5-L0-70-3497

PassbandDC~70MHz, 100-600MHz≥50dB, SMD
In Stock View Details →
ZBF9-Q70-0-2050 Filter

Filter ZBF9-Q70-0-2050

Center Frequency70MHz, -3dB BW12.5KHz, -60dB BW≤25KHz, Pin
In Stock View Details →
ZBF9-Q70-0-2927 Filter

Filter ZBF9-Q70-0-2927

Center Frequency70MHz, -3dB BW12.5KHz, -60dB BW25KHz, Pin
In Stock View Details →
ZLPF5-L0-70-3903 Filter

Filter ZLPF5-L0-70-3903

PassbandDC~70MHz, Rejection110-1000MHz≥30dB, SMD
View Details →
ZLPF2-L45-70-2163 Filter

Filter ZLPF2-L45-70-2163

Passband40~70MHz, 98-1000MHz≥45dBc, dB, SMD
View Details →

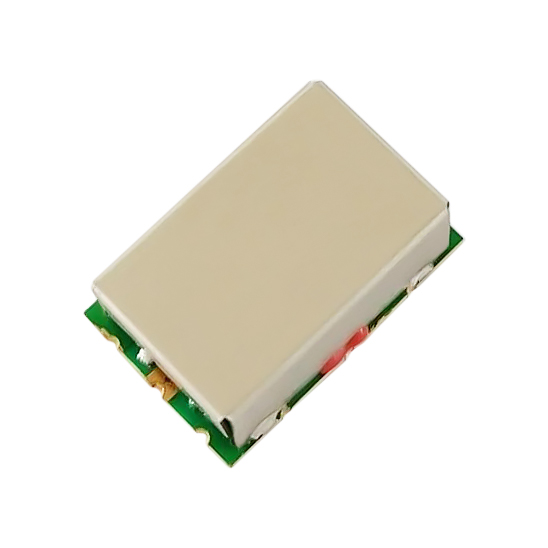

ZLPF14-L45-70-622 Filter

Filter ZLPF14-L45-70-622

Passband45~70MHz, 90-800MHz≥40dBc, dB, Microstrip pad,
View Details →
ZCB5-2L0-1500-2384 Diplexer

Diplexer ZCB5-2L0-1500-2384

Passband F1DC~70MHz, Passband F2150~1500MHz, SMA
View Details →
ZBF9-Q70-0-2537 Filter

Filter ZBF9-Q70-0-2537

Center Frequency70MHz, -3dB BW3KHz, -50dB BW6KHz, Pin
View Details →
ZBF5-L60-20-745 Filter

Filter ZBF5-L60-20-745

Center Frequency60MHz, 1dB BW20MHz, -3dB BW28MHz, DC-30MHz≥70dBc, 120-144MHz≥65dBc, SMD
View Details →
ZBF3-L64-7-1149 Filter

Filter ZBF3-L64-7-1149

Passband60.5~67.5MHz, DC-48MHz≥30dBc, 80-500MHz≥30dBc, SMA
View Details →
ZBF3-L60-20-4298 Filter

Filter ZBF3-L60-20-4298

Passband50~70MHz, DC-40MHz≥50dB, 80-100MHz≥50dB, SMD
View Details →
ZBF15-L65.78-3.5-1104 Filter

Filter ZBF15-L65.78-3.5-1104

Passband64.03~67.53MHz, 0.6-2.3GHz≥50dB, dB, SMD
View Details →
ZBF13-L68-2-3507 Filter

Filter ZBF13-L68-2-3507

Passband67~69MHz, 68±10MHz≥80dBc, SMA
View Details →

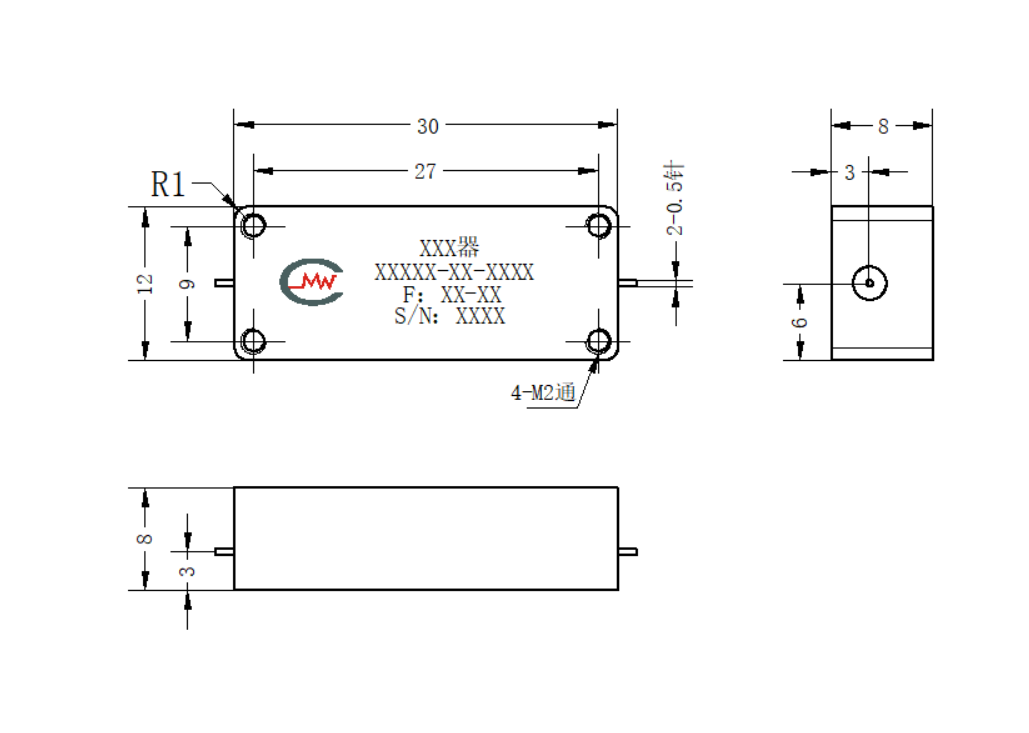

ZBF13-L68-2-1087 Filter

Filter ZBF13-L68-2-1087

Passband67~69MHz, F0±10MHz≥70dBc, , Industrial grade
View Details →
ZBF13-L60-5-3513 Filter

Filter ZBF13-L60-5-3513

Passband57.5~62.5MHz, DC-48MHz≥40dBc, 72-1000MHz≥40dBc, SMA
View Details →
ZBF13-L55-30-1097 Filter

Filter ZBF13-L55-30-1097

Passband40~70MHz, DC-26MHz≥60dB, 32MHz≥20dB, SMD
View Details →
ZBF13-L50-40-1098 Filter

Filter ZBF13-L50-40-1098

Passband30~70MHz, DC-20MHz≥50dB, 22MHz≥20dB, SMD
View Details →

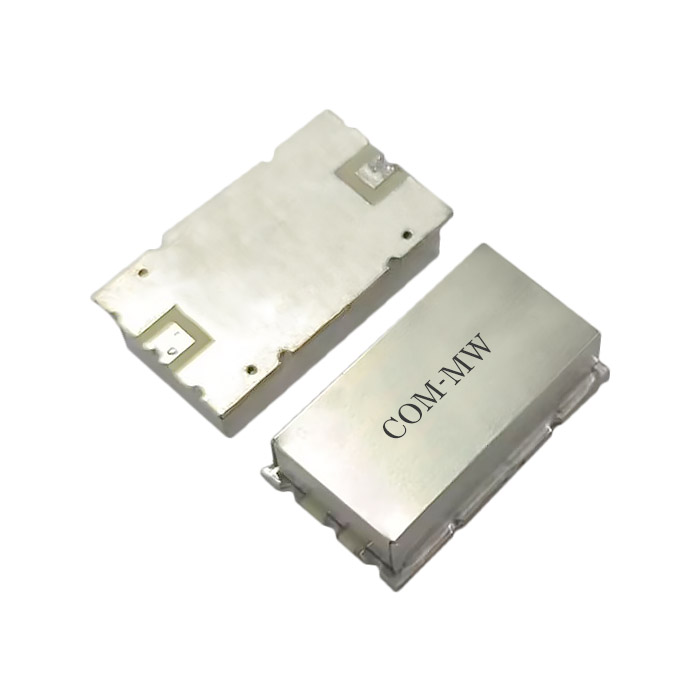

ZBF-L64-10-4183B3A Filter

Filter ZBF-L64-10-4183B3A

Passband59~69MHz, DC-44MHz≥40dB, 84-500MHz≥40dB, SMD
View Details →
