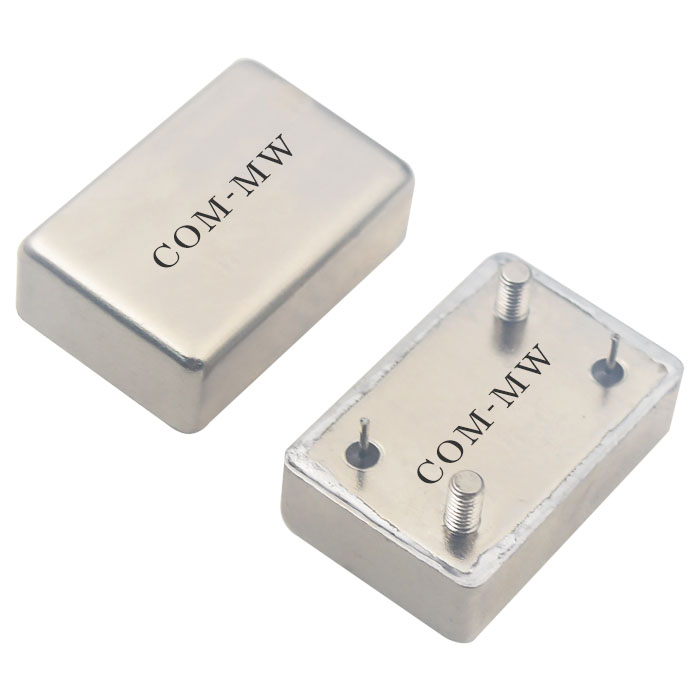

Center Frequency70MHz, -6dB BW38KHz, BW-60dB/6dB3, Pin
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Center Frequency | / | / | 70 | MHz | ||
| Passband IL | / | / | 4 | dB | ||
| Ripple | / | / | 1 | dB | ||
| -3dB BW | 30 | KHz | ||||
| -6dB BW | 38 | KHz | ||||
| BW-60dB/6dB | 3 | |||||
| Rejection | DC-69.9 | MHz≥ | 55 | dB | ||
| Rejection | 70.1 | MHz≥ | 55 | dB |

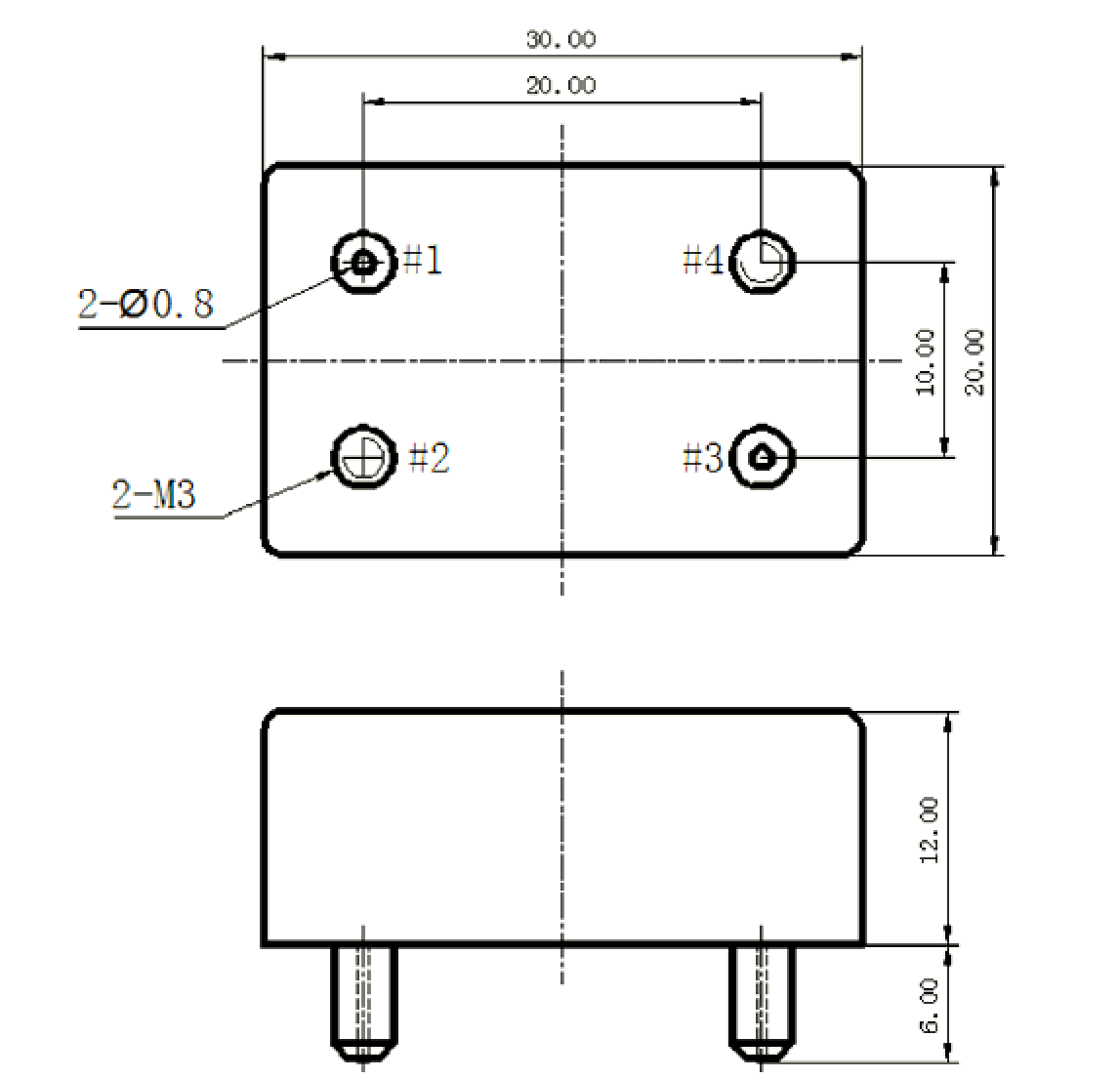

| Connector | Pin |
| Power Capacity | 10dBm Design assurance |
| Delay ripple | ＜8uS@±20KHz |
| Operation Temp. | -40~+75℃ Design assurance |
| Quality Grade | Industrial grade |

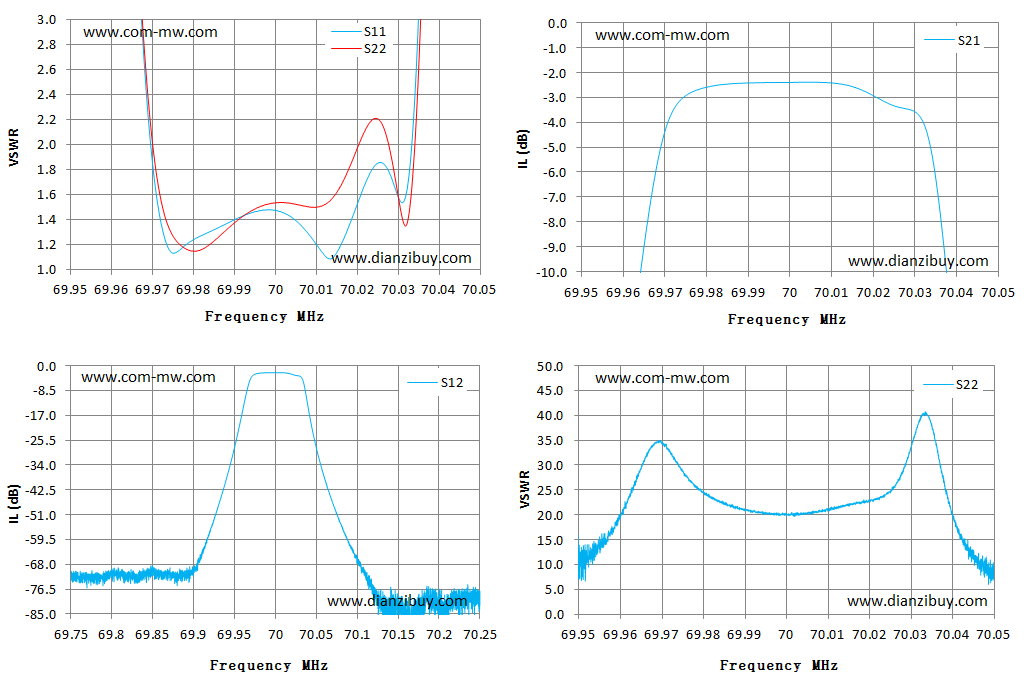

| Frequency MHz | S11 VSWR | S12 IL dB | S21 IL dB | S22 VSWR | Delay us |
|---|---|---|---|---|---|
| 69.90 | 18.48 | -69.81 | -70.66 | 21.10 | / |
| 69.95 | 14.91 | -28.21 | -28.24 | 14.30 | 7.02 |
| 69.96 | 8.82 | -15.52 | -15.53 | 8.27 | 19.89 |
| 69.97 | 1.82 | -4.36 | -4.36 | 1.98 | 34.76 |
| 69.98 | 1.24 | -2.59 | -2.58 | 1.14 | 24.28 |
| 69.99 | 1.40 | -2.42 | -2.41 | 1.37 | 20.92 |
| 70.00 | 1.47 | -2.39 | -2.39 | 1.53 | 20.11 |
| 70.01 | 1.20 | -2.41 | -2.41 | 1.50 | 21.03 |
| 70.02 | 1.52 | -2.93 | -2.92 | 1.97 | 22.80 |
| 70.03 | 1.58 | -3.57 | -3.57 | 1.58 | 33.78 |
| 70.04 | 9.13 | -14.04 | -14.09 | 8.56 | 19.93 |
| 70.05 | 17.11 | -27.87 | -27.97 | 18.51 | 9.54 |
| 70.10 | 21.56 | -66.95 | -66.39 | 25.62 | / |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
