RF Filter

Total 18 models
Categories
Categories RF Filter
RF Filter16040
RF Filter15368 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1228
Antenna1172 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1428
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter193 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
F High MHz
4250 13 4260 1 4270 2 4272.5 1 4280 1
–
Connector
SMD 1 SMA 10 Microstrip needle 7
Power Handling
1 - 5 7 10 - 15 9 20 - 30 2
–
Maximum loss of side frequency dB
0.8 - 1 3 1.5 - 2 4 2.3 - 2.5 3 3 - 4 6 5.5 1
–
Rejection dB
20 - 25 2 30 - 38 3 40 - 60 7 65 - 70 3 75 - 80 3
–
F Low MHz
0 - 3350 4 3450 - 3750 7 4050 - 4150 4 4210 - 4227.5 3
–
Feature
Bandpass 16 Notch 1
Center frequency MHz
3800 - 3850 4 3900 - 4000 6 4160 - 4200 3 4230 - 4250 3
–
IL on center frequency dB
0.4 - 0.5 3 1 - 1.3 5 1.5 - 2 4 3 4
–
Insertion loss dB
1.5 1
–
Filter type
LC 2 Cavity&waveguide 13 stripline 1 Dielectric 1
F High：4250 - 4280 MHz× Clear all
matches 18 models Default Newest
CA0221 SMD Filter

SMD Filter CA0221

Bandwidth3.45-4.25GHz, Rejection38@DC-2.9GHz, 35@4.8-10.0GHz
In Stock View Details →
ZBF16-C4-0.5G-331 Filter

Filter ZBF16-C4-0.5G-331

Passband3.75~4.25GHz, DC~3.5GHz≥40dBc, 4.5~12GHz≥50dBc, SMA-KDetachable
In Stock View Details →
ZCB4-M4.5-20G-1611 Diplexer

Diplexer ZCB4-M4.5-20G-1611

Passband F1DC~4.27GHz, Passband F24.73~20GHz, SMA
In Stock View Details →
ZBF8-C3800-940-3144 Filter

Filter ZBF8-C3800-940-3144

Passband3330~4270MHz, DC-3030MHz≥60dBc, 4570-13000MHz≥60dBc, SMA
In Stock View Details →
ZBSF6-C4049.99-4249.99-4446 Filter

Filter ZBSF6-C4049.99-4249.99-4446

Stopband F4049.99~4249.99MHz, ≥30dB, PassbandDC~4029.99MHz, 4269.99~7500MHz, SMA
View Details →
ZBF9-D4200-100-2951 Filter

Filter ZBF9-D4200-100-2951

Passband4150~4250MHz, DC-3500MHz≥60dBc, 4600-6500MHz≥50dBc, Pin
View Details →
ZBF5-L4000-500-203 Filter

Filter ZBF5-L4000-500-203

Passband3750~4250MHz, DC-3040MHz≥60dB, 3050-3600MHz≥20dB, Pin
View Details →
ZBF5-C4250-40-2386 Filter

Filter ZBF5-C4250-40-2386

Passband4227.5~4272.5MHz, DC-3.9GHz≥40dBc, 3.9-4.15GHz≥80dBc, Pin
View Details →
ZBF5-C4230-40-3213 Filter

Filter ZBF5-C4230-40-3213

Passband4210~4250MHz, DC-4GHz≥75dBc, 4-4.13GHz≥55dBc, Pin
View Details →

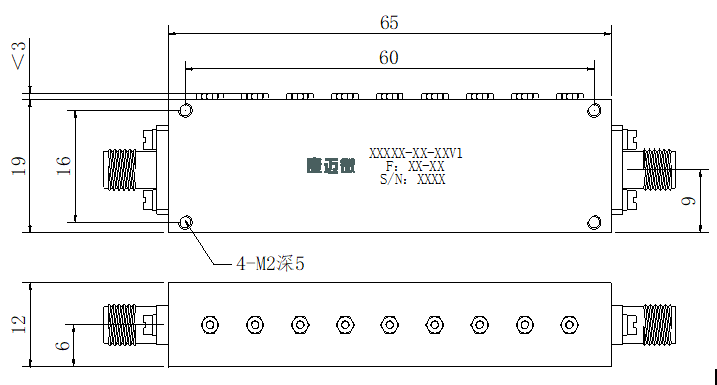

ZBF4-C4000-500-341 Filter

Filter ZBF4-C4000-500-341

Passband3750~4250MHz, DC-3500MHz≥50dB, 5000-8500MHz≥60dB, SMA
View Details →
ZBF4-C3800-900-334 Filter

Filter ZBF4-C3800-900-334

Passband3350~4250MHz, DC-1500MHz≥40dBc, 6100-8500MHz≥80dBc, SMA
View Details →

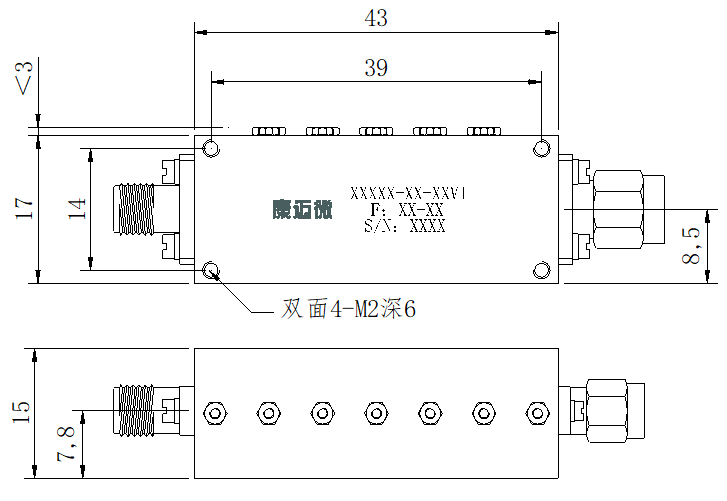

ZBF4-C3800-900-288 Filter

Filter ZBF4-C3800-900-288

Passband3350~4250MHz, DC-2100MHz≥25dB, 6100-8000MHz≥dB, SMA
View Details →
ZBF25-C4250-60-365 Filter

Filter ZBF25-C4250-60-365

Passband4220~4280MHz, DC-4160MHz≥30dBc, 4340-5000MHz≥30dBc, SMA
View Details →

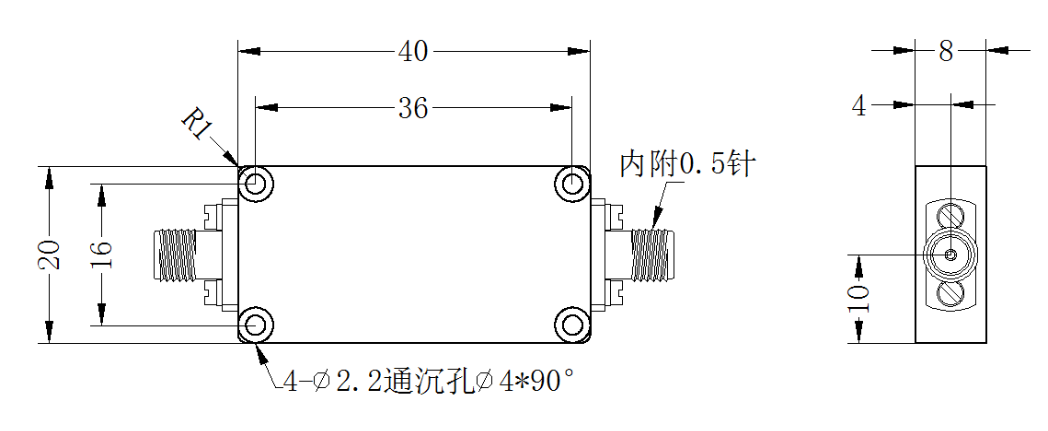

ZBF2-C3900-700-2175 Filter

Filter ZBF2-C3900-700-2175

Passband3550~4250MHz, DC-2.8GHz≥70dBc, 4.8-9GHz≥50dBc,
View Details →
ZBF13-L4-0.5G-744 Filter

Filter ZBF13-L4-0.5G-744

Passband3.75~4.25GHz, DC-2.15GHz≥65dBc, 5.6-6.4GHz≥70dBc, Pin
View Details →
ZBF13-C4200-100-2611 Filter

Filter ZBF13-C4200-100-2611

Passband4150~4250MHz, DC-4.1GHz≥20dB, 4.28-10GHz≥20dB, Pin
View Details →
ZBF13-C4160-200-387 Filter

Filter ZBF13-C4160-200-387

Passband4060~4260MHz, DC-3.5GHz≥65dB, 3.6-3.96GHz≥35dB, Pin
View Details →
ZBF13-C4000-500-2514 Filter

Filter ZBF13-C4000-500-2514

Passband3750~4250MHz, 3.55&4.45GHz≥40dBc, 3.3&4.7GHz≥65dBc, SMA
View Details →
