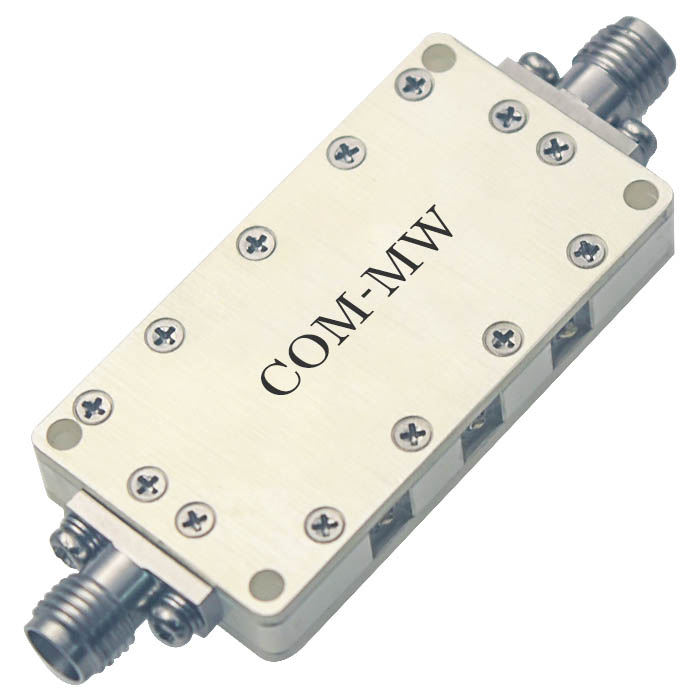

Passband4220~4280MHz, DC-4160MHz≥30dBc, 4340-5000MHz≥30dBc, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband | / | / | 4220 | ~ | 4280 | MHz |
| Passband IL | / | / | 2 | dB | ||
| Ripple | / | / | dB | |||
| Rejection | DC-4160 | MHz≥ | 30 | dBc | ||
| Rejection | 4340-5000 | MHz≥ | 30 | dBc | ||
| Passband VSWR | / | / | 1.5 | |||
| Return loss | / | / | dB |
| Connector | SMA-F detachable Pin0.38mm |
| Impedance | 50Ω |
| Surface | silver-plate |
| Power Capacity | 10W Design assurance |
| Product shell material | Aluminium |
| Operation Temp. | -40~+70℃ Design assurance |

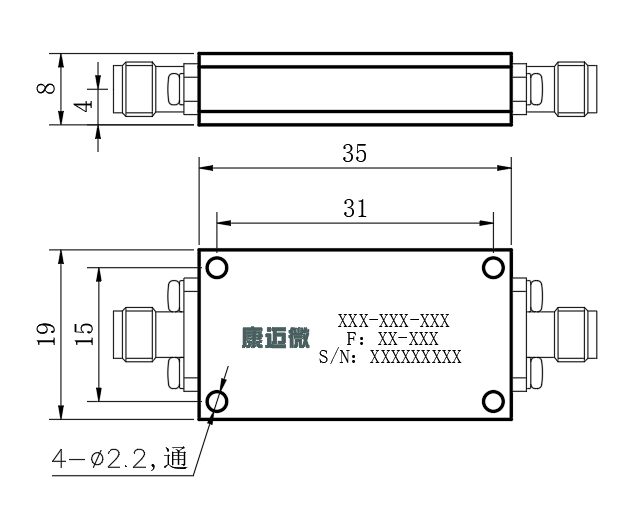

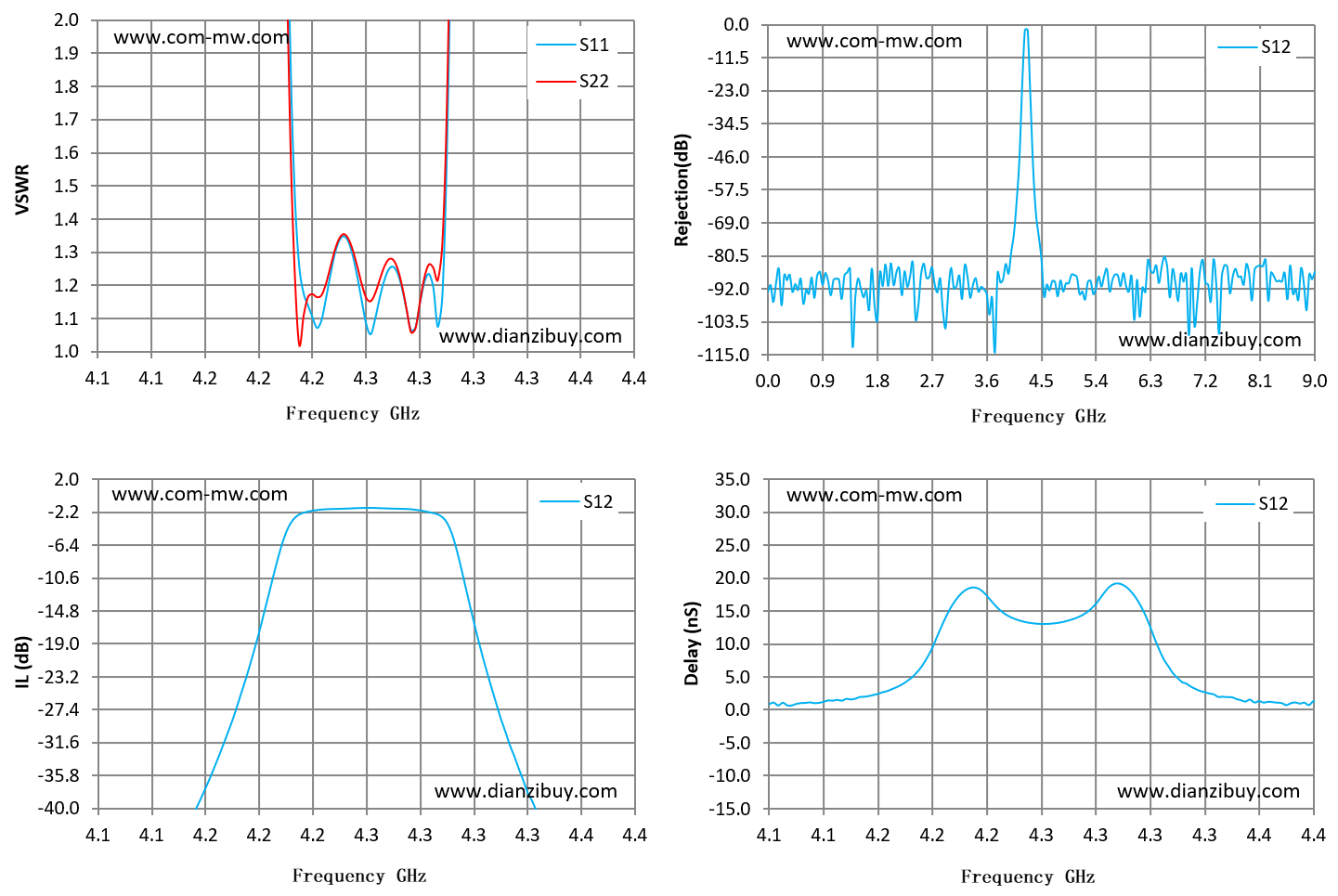

| Frequency GHz | S11 VSWR | S22 VSWR | S12 IL (dB) | S12 Delay (ns) |
|---|---|---|---|---|
| 4.1 | 771.55 | 1010.22 | -60.7 | 0.83 |
| 4.12 | 7230.56 | 425.94 | -54.11 | 1.04 |
| 4.14 | 522.44 | 283.78 | -46.58 | 1.37 |
| 4.16 | 139.25 | 106.78 | -37.36 | 2.41 |
| 4.19 | 20.68 | 18.21 | -17.39 | 9.45 |
| 4.21 | 1.48 | 1.24 | -2.85 | 18.42 |
| 4.23 | 1.23 | 1.26 | -1.77 | 14.53 |
| 4.25 | 1.08 | 1.16 | -1.62 | 13.02 |
| 4.27 | 1.19 | 1.2 | -1.75 | 14.02 |
| 4.29 | 1.08 | 1.22 | -2.49 | 19.09 |
| 4.31 | 11.15 | 12.19 | -16.35 | 12.59 |
| 4.34 | 35.61 | 37.95 | -38.03 | 2.67 |
| 4.36 | 54.32 | 58.61 | -47.64 | 1.45 |
| 4.38 | 71.98 | 78.52 | -55.44 | 1.08 |
| 4.4 | 93.14 | 101.67 | -61.69 | 1.31 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
