RF Filter

Total 63 models
Categories
Categories RF Filter
RF Filter16040
RF Filter15368 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1228
Antenna1172 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1428
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter193 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
F High MHz
2680 2 2685 1 2687 1 2690 58 2697.5 1
–
Connector
Other 2 SMD 2 SMA 34 N 24 Microstrip needle 1
Power Handling
2 - 5 3 10 - 15 3 20 - 30 6 50 - 100 37 150 14
–
Ways 路
5 1
–
Maximum loss of side frequency dB
0.6 - 1.2 6 1.5 - 1.6 4 2 - 2.5 13 3 - 3.5 30 4 - 5 7
–
Rejection dB
40 - 45 7 50 - 53 21 55 - 60 18 70 - 80 14 90 2
–
F Low MHz
1710 - 2300 8 2483.5 - 2499 27 2500 - 2590 6 2596 - 2660 19 2665 - 2680 3
–
Feature
Bandpass 15 Notch 45
Center frequency MHz
2425 - 2593 4 2595 - 2600 3 2602.5 - 2655 3 2675 - 2685 4
–
IL on center frequency dB
0.3 2 0.6 3 1 8 4 1
–
Insertion loss dB
0.5 1 1 1
–
Filter type
Cavity&waveguide 59 Dielectric 1
F High：2680 - 2697.5 MHz× Clear all
matches 63 models Default Newest
ZBF9-D2600-90-2041 Filter

Filter ZBF9-D2600-90-2041

Passband2510~2690MHz, DC-2.3GHz≥45dB, 2.9GHz≥45dB, Microstrip pad
In Stock View Details →
ZMC2-5D1805-2690-2475 Combiner

Combiner ZMC2-5D1805-2690-2475

1805~1920MHz, 2010~2025MHz, 2110~2170MHz, 2300~2400MHz, 2496~2690MHz, SMD
In Stock View Details →
K6-2620-2690-10N60100-003 Filter

Filter K6-2620-2690-10N60100-003

Stopband F2620~2690MHz, ≥60dB, PassbandDC~2610MHz, 2700~6000MHz, N
In Stock View Details →
K6-2496-2690-10N60100-004 Filter

Filter K6-2496-2690-10N60100-004

Stopband F2496~2690MHz, ≥60dB, PassbandDC~2476MHz, 2710~6000MHz, N
In Stock View Details →
K6-2620-2690-10S60100-003 Filter

Filter K6-2620-2690-10S60100-003

Stopband F2620~2690MHz, ≥60dB, PassbandDC~2610MHz, 2700~6000MHz, SMA
In Stock View Details →
ZBF6-C2595-190-5189 Filter

Filter ZBF6-C2595-190-5189

Passband2500~2690MHz, DC-2400MHz≥40dB, 2790-500MHz≥40dB, SMA
In Stock View Details →
K6-2496-2690-10S60100-004 Filter

Filter K6-2496-2690-10S60100-004

Stopband F2496~2690MHz, ≥60dB, PassbandDC~2471MHz, 2715~6000MHz, SMA
In Stock View Details →
ZBSF6-C2600-2680-5876 Filter

Filter ZBSF6-C2600-2680-5876

Stopband F2600~2680MHz, ≥50dB, PassbandDC~2590MHz, 2690~6000MHz, N
In Stock View Details →
ZCB4-M2300-12200-1394 Diplexer

Diplexer ZCB4-M2300-12200-1394

Passband frequency C12300~2690MHz, Passband frequency C24600~12200MHz, SMA
View Details →

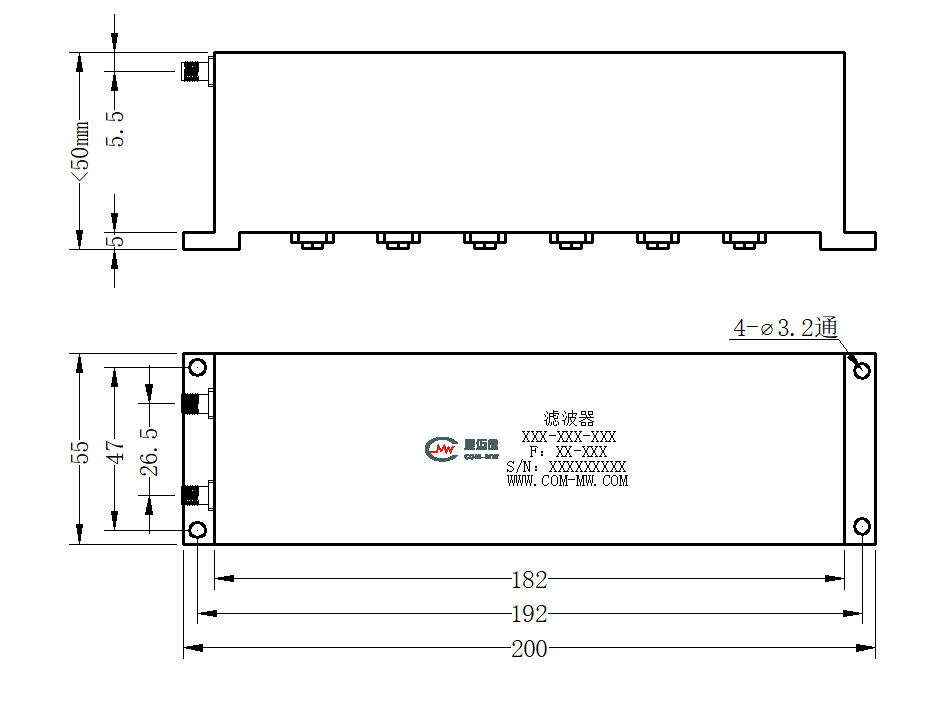

ZBSF6-C2677.5-2697.5-4049 Filter

Filter ZBSF6-C2677.5-2697.5-4049

Stopband F2677.5~2697.5MHz, ≥55dB, PassbandDC~2657.5MHz, 2717.5~4200MHz, SMA
View Details →
ZBSF6-C2620-2690-5752 Filter

Filter ZBSF6-C2620-2690-5752

Stopband F2620~2690MHz, ≥60dB, PassbandDC~2610MHz, 2700~6000MHz, N
View Details →
ZBSF6-C2620-2690-4289 Filter

Filter ZBSF6-C2620-2690-4289

Stopband F2620~2690MHz, ≥50dB, PassbandDC~2610MHz, 2700~6100MHz, N
View Details →
ZBSF6-C2600-2680-5814 Filter

Filter ZBSF6-C2600-2680-5814

Stopband F2600~2680MHz, ≥60dB, PassbandDC~2590MHz, 2690~6000MHz, N
View Details →
ZBSF6-C2496-2690-6139 Filter

Filter ZBSF6-C2496-2690-6139

Stopband F2496~2690MHz, ≥80dB, PassbandDC~2471MHz, 2715~6000MHz, N
View Details →
ZBSF6-C2496-2690-552 Filter

Filter ZBSF6-C2496-2690-552

Stopband F2496~2690MHz, ≥53dB, PassbandDC~2486MHz, 2700~3000MHz, N
View Details →
ZBSF6-C2496-2690-3045 Filter

Filter ZBSF6-C2496-2690-3045

Stopband F2496~2690MHz, ≥40dB, PassbandDC~2486MHz, 2700~6000MHz, SMA
View Details →
ZBSF6-C2496-2690-3034 Filter

Filter ZBSF6-C2496-2690-3034

Stopband F2496~2690MHz, ≥60dB, PassbandDC~2486MHz, 2700~6000MHz, SMA
View Details →
ZBSF6-C2496-2690-1850 Filter

Filter ZBSF6-C2496-2690-1850

Stopband F2496~2690MHz, ≥50dB, PassbandDC~2456MHz, 2730~4000MHz, SMA
View Details →
ZBSF6-C2496-2690-1695 Filter

Filter ZBSF6-C2496-2690-1695

Stopband F2496~2690MHz, ≥50dB, PassbandDC~2486MHz, 2700~4000MHz, SMA
View Details →
ZBSF6-C2496-2690-1018 Filter

Filter ZBSF6-C2496-2690-1018

Stopband F2496~2690MHz, ≥50dB, PassbandDC~2466MHz, 2720~4500MHz, SMA
View Details →
ZBSF6-C2483.5-2690-1036 Notch filter

Notch filter ZBSF6-C2483.5-2690-1036

Stopband F2483.5~2690MHz, ≥50dB, PassbandDC~2433.5MHz, 2740~4000MHz, SMA
View Details →
ZBSF6-C2300-2690-6003 Filter

Filter ZBSF6-C2300-2690-6003

Stopband F2300~2690MHz, ≥55dB, PassbandDC~2260MHz, 2730~4500MHz, SMA
View Details →
ZBSF6-C2300-2690-3271 Filter

Filter ZBSF6-C2300-2690-3271

Stopband F2300~2690MHz, ≥50dB, PassbandDC~2250MHz, 2740~4500MHz, SMA
View Details →
ZBSF6-C2300-2690-2274 Filter

Filter ZBSF6-C2300-2690-2274

Stopband F2300~2690MHz, ≥50dB, PassbandDC~2250MHz, 2730~4000MHz, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
