F High：174.6 - 199 MHz× Clear all
matches 137 models Default Newest
LF053 Filter

Filter LF053

PassbandDC~190MHz, 290-390MHz≥20dB, 390-1000MHz≥40dB, SMD, Replace SXLP-190+
In Stock View Details →
BF009 Filter

Filter BF009

Passband185~195MHz, 170MHz≥20dB, 212MHz≥30dB, Substitutes BPF-B190+
In Stock View Details →
BF048 Filter

Filter BF048

Passband170~186MHz, 150MHz≥20dB, 210MHz≥20dB, SMD, Replace SXBP-178+
In Stock View Details →
BF018 Filter

Filter BF018

Passband160~185MHz, DC-80MHz≥35dB, 245-1500MHz≥35dB, /
In Stock View Details →
ZBF5-L153.6-80-2327 Filter

Filter ZBF5-L153.6-80-2327

Passband113.6~193.6MHz, DC-91.2MHz≥40dB, 216-500MHz≥40dB, SMD
In Stock View Details →
BF008 Filter

Filter BF008

Passband170~185MHz, 150MHz≥20dB, 210MHz≥30dB, Substitutes BPF-B177+
In Stock View Details →
ZBF13-L150-60-1514 Filter

Filter ZBF13-L150-60-1514

Passband120~180MHz, DC-90MHz≥55dBc, 220-1500MHz≥55dBc, SMD
In Stock View Details →
ZLPF5-L0-180-3384 Filter

Filter ZLPF5-L0-180-3384

PassbandDC~180MHz, Rejection240-1000MHz≥30dB, SMD
In Stock View Details →
WLD000001-LK Filter

Filter WLD000001-LK

Passband0~180MHz, 400MHz≥20dBc, Microstrip pad, MMIC
In Stock View Details →
BF045 Filter

Filter BF045

Passband148~175MHz, DC-130MHz≥20dB, 200-2300MHz≥30dB, SMD, Replace SXBP-161R5+
In Stock View Details →
ZBF-L140-72-2883B2C Filter

Filter ZBF-L140-72-2883B2C

Passband104~176MHz, DC-75.2MHz≥40dB, 204.8-500MHz≥40dB, Pin
In Stock View Details →
LF078 Filter

Filter LF078

PassbandDC~190MHz, 290-390MHz≥47dB, 390-800MHz≥75dB, SMA
In Stock View Details →

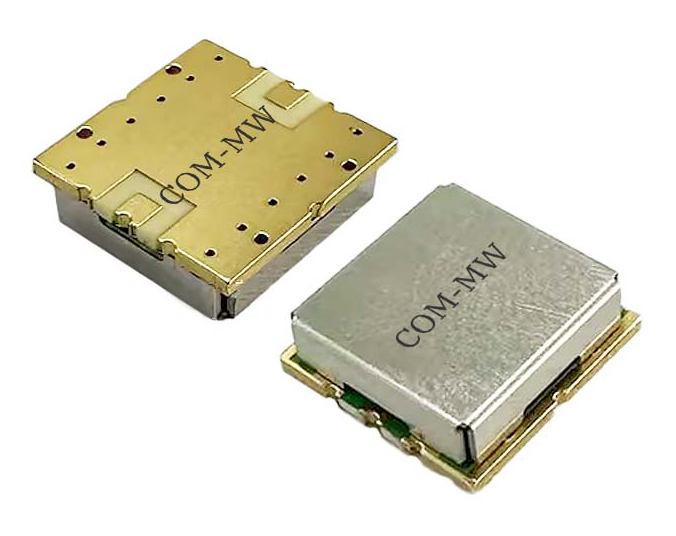

BF014 Filter

Filter BF014

Passband95~180MHz, DC-48MHz≥35dB, 58MHz≥20dB, 260MHz≥20dB, 310-2000MHz≥35dB, Substitutes RBP-130+
In Stock View Details →
LF019 Filter

Filter LF019

PassbandDC~176MHz, 245-285MHz≥20dB, 285-1000MHz≥40dB, SMD, Replace RLP-176+
In Stock View Details →
BF090 Filter

Filter BF090

Passband100~180MHz, DC-80MHz≥40dB, 200-500MHz≥40dB, SMD
In Stock View Details →
BF091 Filter

Filter BF091

Passband95~185MHz, DC-75MHz≥40dB, 205-500MHz≥40dB, SMD
In Stock View Details →
ZBF14-L140-80-158 Filter

Filter ZBF14-L140-80-158

Passband100~180MHz, DC-85MHz≥40dB, 200-500MHz≥40dB, SMA
In Stock View Details →
ZHPF20-L3-180-220 Filter

Filter ZHPF20-L3-180-220

Passband3~180MHz, DC-2.4MHz≥40dB, SMA-MF
In Stock View Details →
ZBF20-L140-72-198 Filter

Filter ZBF20-L140-72-198

Passband104~176MHz, Passband IL1.5dB, Pin
In Stock View Details →
ZBF5-L140-80-3461 Filter

Filter ZBF5-L140-80-3461

Passband100~180MHz, DC-60MHz≥33dB, SMD
In Stock View Details →
ZBF14-L140-90-719 Filter

Filter ZBF14-L140-90-719

Passband95~185MHz, DC-80MHz≥40dB, 205-1000MHz≥40dB, SMA-K
In Stock View Details →
ZBF15-L150-50-841 Filter

Filter ZBF15-L150-50-841

Passband125~175MHz, DC-100MHz≥50dB, 210-1000MHz≥50dB, SMD
In Stock View Details →
ZBF14-L140-72-718 Filter

Filter ZBF14-L140-72-718

Passband104~176MHz, DC-90MHz≥40dB, 196-1000MHz≥40dB, SMA-K
In Stock View Details →
ZBF13-L160-40-1515 Filter

Filter ZBF13-L160-40-1515

Passband140~180MHz, DC-110MHz≥40dB, 220-1500MHz≥40dB, SMA
In Stock View Details →
