Downloads

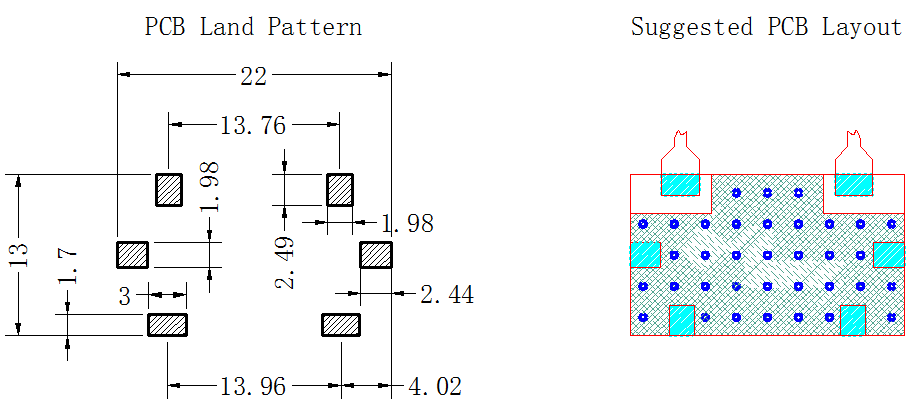

↓ Datasheet ↓ S-Parameters 1.8 MB ↓ PCB Layout 79 KB

Main specifications

Parameters	Frequency	/	Min	Typical	Max	Units
Passband			185	~	195	MHz
Passband IL					4.7	dB
Rejection	170	MHz≥	20			dB
Rejection	212	MHz≥	30			dB
Rejection	DC-155	MHz≥	40			dB
Rejection	220-2000	MHz≥	40			dB
Passband VSWR					1.5

Other parameters

Connector	SMD
Impedance	50Ω
Power	1W Design assurance
Work Temp.	-40~+85℃ Design assurance
Storage Temp.	-55~+100℃ Design assurance
Quality Grade	Industrial grade
Other	替代 BPF-B190+

Port Definition

I/O Port	1 , 2
GND	3 ，4 ，5 ， 6

Functional diagram

Typical test data

Frequency MHz	S11 VSWR	S22 VSWR	S12 IL (dB)	S12 Rejection	S12 Delay (ns)
160	65.77	123.82	-43.45	-43.45	12.54
164	51.91	85.07	-38.6	-38.6	11.13
169	34.68	48.33	-31.28	-31.28	12.17
173	21.11	26.57	-24	-24	17.29
177	9.18	10.71	-14.92	-14.92	34.61
181	2.36	2.66	-6.41	-6.41	60.4
186	1.21	1.32	-3.46	-3.46	51.72
190	1.24	1.25	-3.33	-3.33	48.93
194	1.35	1.2	-3.75	-3.75	53.12
199	1.99	2.2	-6.78	-6.78	66.82
203	7.6	8.24	-16.31	-16.31	39.61
207	17.82	20.11	-27.36	-27.36	14.94
211	29.03	35.64	-36.38	-36.38	3.4
216	43.16	60.2	-45.28	-45.28	-9.06
220	53.75	84.74	-49.74	-49.74	-14.81

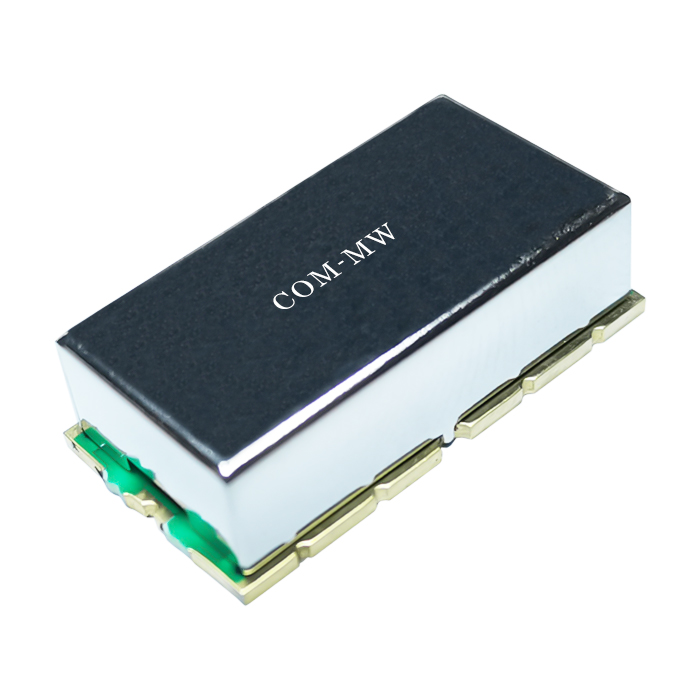

Reference picture

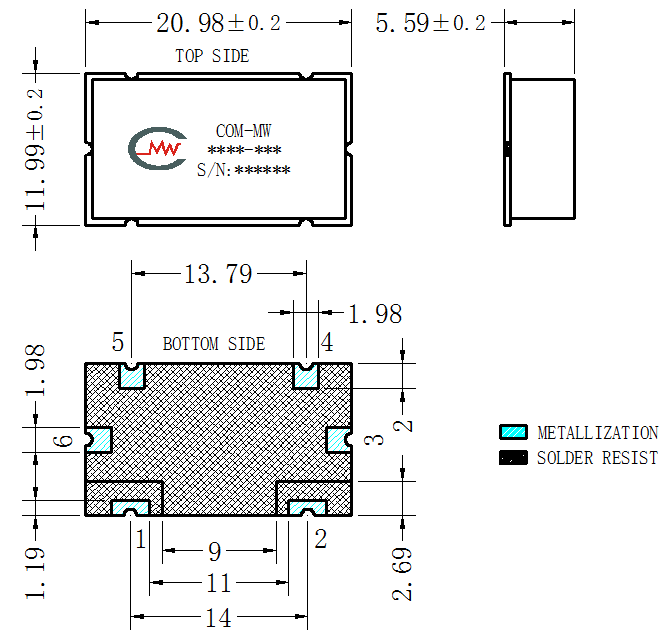

Configuration(mm)

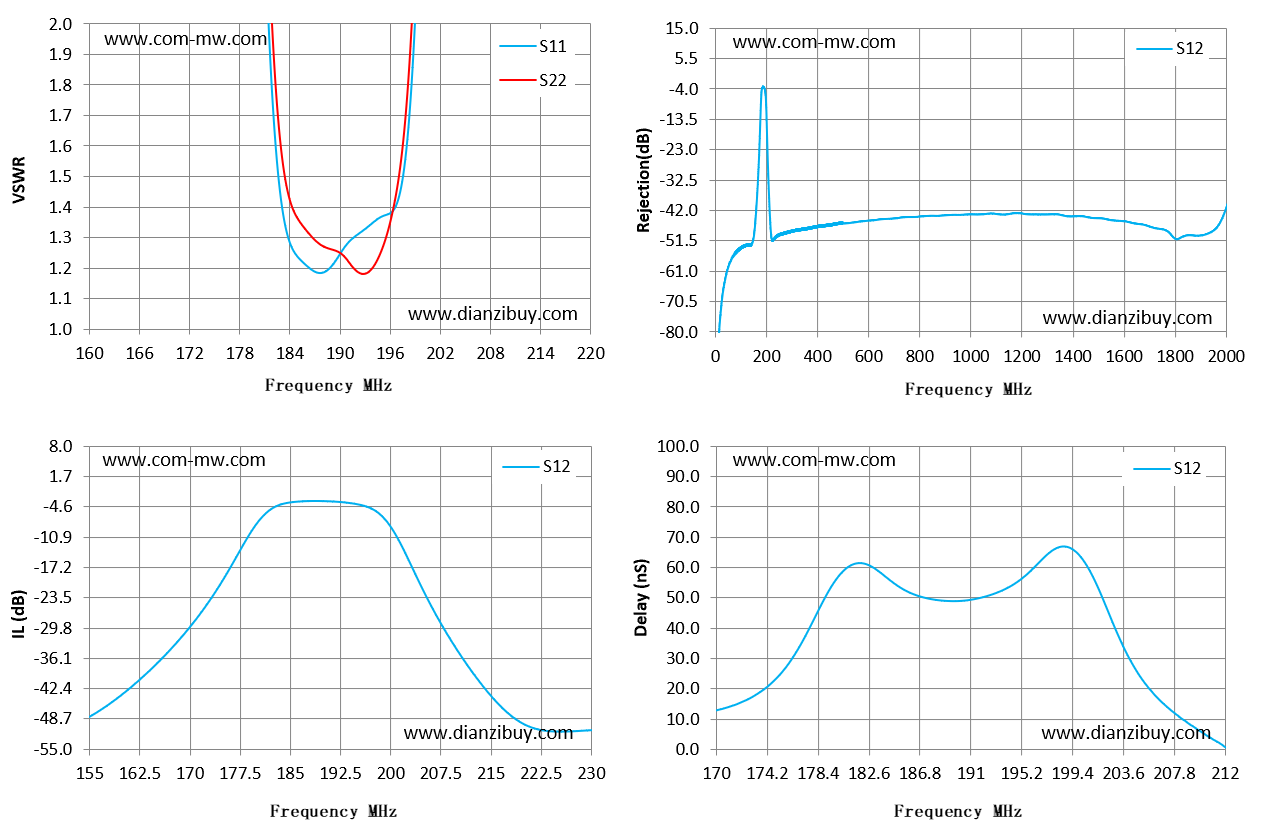

Typical test data

Note

1	Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution.
2	If the temperature is higher than 125℃, consult with us before ordering.

Filter BF009
