RF Filter

Total 40 models
Categories
Categories RF Filter
RF Filter16040
RF Filter15368 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1228
Antenna1172 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1428
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter193 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
F High MHz
1850 40
–
Connector
Other 1 SMD 10 SMA 13 Microstrip pad 1 Microstrip needle 14
Power Handling
1 - 2 26 5 - 10 9 30 - 50 3 110 - 120 2
–
Ways 路
3 1 5 1
–
Maximum loss of side frequency dB
0.35 - 1.2 5 1.5 - 2.5 11 2.7 - 3.5 14 4 - 5 7
–
Rejection dB
30 - 40 17 45 - 55 9 60 - 65 10 70 - 75 3
–
F Low MHz
108 - 950 5 960 - 1300 6 1350 - 1650 8 1750 - 1830 21
–
Feature
Bandpass 35 Notch 1
Center frequency MHz
1200 - 1400 4 1405 - 1570 4 1575 - 1638.5 4 1700 - 1800 21 1827.5 - 1840 2
–
IL on center frequency dB
0.2 - 0.5 4 0.8 - 1 9 2 - 3 20 4 2
–
Insertion loss dB
0.5 2
–
Filter type
LC 29 Cavity&waveguide 7
F High：1850 - 1850 MHz× Clear all
matches 40 models Default Newest
ZBF5-L1800-100-2323 Filter

Filter ZBF5-L1800-100-2323

Passband1750~1850MHz, DC-1650MHz≥40dB, 1950-9000MHz≥40dB, SMA
In Stock View Details →
ZBF15-L1750-200-1071 Filter

Filter ZBF15-L1750-200-1071

Passband1650~1850MHz, DC-1500MHz≥40dB, 2020-5500MHz≥40dB, SMA
In Stock View Details →
ZBF5-L1800-100-2346 Filter

Filter ZBF5-L1800-100-2346

Passband1750~1850MHz, DC-1550MHz≥40dB, 2030-3000MHz≥40dB, SMD
In Stock View Details →

Component ZS14-L108-1850-728

108~180MHz, 180~305MHz, 305~525MHz, 525~900MHz, 1350~1850MHz, 2nd harmonicMHz≥55dB, DC-925&2700-3200MHz≥45dB, SMD
View Details →
ZMC3-3C1805-2500-3123 Combiner

Combiner ZMC3-3C1805-2500-3123

1805~1850MHz, 2100~2170MHz, 2300~2500MHz, ~MHz, ~MHz, SMA
View Details →
ZCB3-C1805-2025-3117 Diplexer

Diplexer ZCB3-C1805-2025-3117

Passband F11805~1850MHz, Passband F22010~2025MHz, SMA
View Details →
ZCB3-C1750-2400-4194 Diplexer

Diplexer ZCB3-C1750-2400-4194

Passband F11750~1850MHz, Passband F22200~2400MHz, Pin, SMA
View Details →
ZBSF6-C1.8-1.85G-5020 Filter

Filter ZBSF6-C1.8-1.85G-5020

Stopband F1800~1850MHz, ≥40dB, PassbandDC~1700MHz, 1950~2700MHz, SMA
View Details →
ZBF7-C1840-20-879 Filter

Filter ZBF7-C1840-20-879

Passband1830~1850MHz, DC-1740MHz≥30dB, 1940-3000MHz≥30dB, N
View Details →
ZBF6-C1800-100-1920 Filter

Filter ZBF6-C1800-100-1920

Passband1750~1850MHz, DC-1720MHz≥75dB, 1880-4000MHz≥75dB, SMA
View Details →
ZBF5-L1800-100-1254 Filter

Filter ZBF5-L1800-100-1254

Passband1750~1850MHz, 1430-1590MHz≥30dB, DC-1430MHz≥45dB, Pin
View Details →
ZBF5-L1750-200-1519 Filter

Filter ZBF5-L1750-200-1519

Passband1650~1850MHz, DC-1500MHz≥40dBc, 1500-1550MHz≥20dBc, Pin
View Details →
ZBF3-L1827.5-45-1848 Filter

Filter ZBF3-L1827.5-45-1848

Passband1805~1850MHz, DC-1625MHz≥30dB, 2035-3700MHz≥30dB, Pin
View Details →
ZBF3-L1800-200-2939 Filter

Filter ZBF3-L1800-200-2939

Passband1750~1850MHz, DC-1500MHz≥40dB, 2100-400040dB, SMA
View Details →
ZBF3-L1800-100-2938 Filter

Filter ZBF3-L1800-100-2938

Passband1750~1850MHz, DC-1650MHz≥40dB, 1950-400040dB, SMA
View Details →
ZBF3-L1800-100-2214 Filter

Filter ZBF3-L1800-100-2214

Passband1750~1850MHz, DC-1500MHz≥40dB, 2100-6000MHz≥40dB, Pin
View Details →
ZBF3-L1700-300-2970 Filter

Filter ZBF3-L1700-300-2970

Passband1550~1850MHz, DC-800MHz≥60dBc, 800-1450MHz≥30dBc, Pin
View Details →

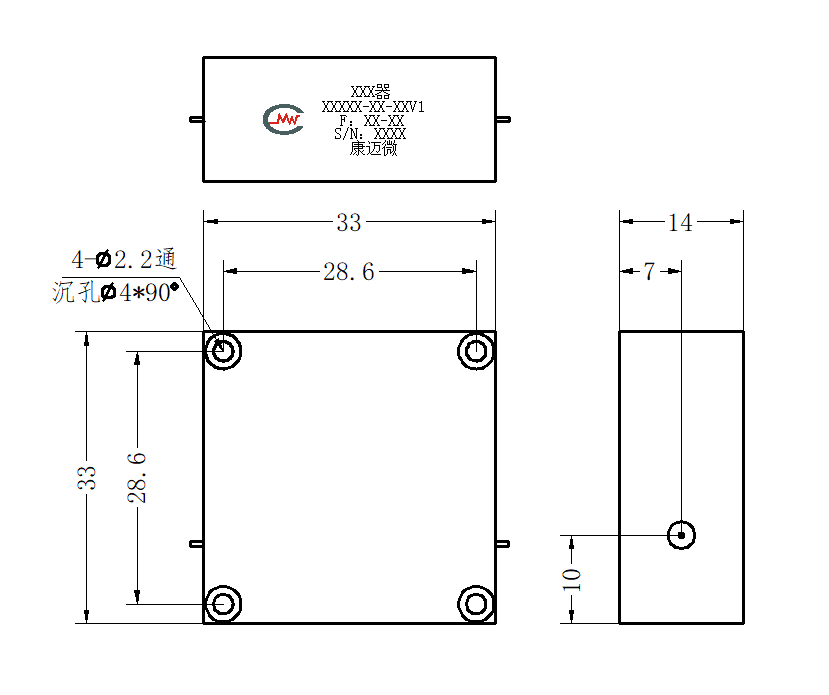

ZBF3-C1800.5-100-2451 Filter

Filter ZBF3-C1800.5-100-2451

Passband1750.5~1850.5, dB, DC-1400MHz≥60dBc, Pin
View Details →
ZBF3-C1800-100-4193 Filter

Filter ZBF3-C1800-100-4193

Passband1750~1850MHz, 2200-3500MHz≥65dB, DC-1600MHz≥40dB, Pin
View Details →
ZBF20-L1575-550-057 Filter

Filter ZBF20-L1575-550-057

Passband1300~1850MHz, DC-925MHz≥30dB, 2.7-4.0GHz≥30dB, Microstrip pad
View Details →
ZBF20-L1570-560-126 Filter

Filter ZBF20-L1570-560-126

Passband1290~1850MHz, DC-0.9GHz≥50dBc, 2.6-6GHz≥50dBc, MCX
View Details →

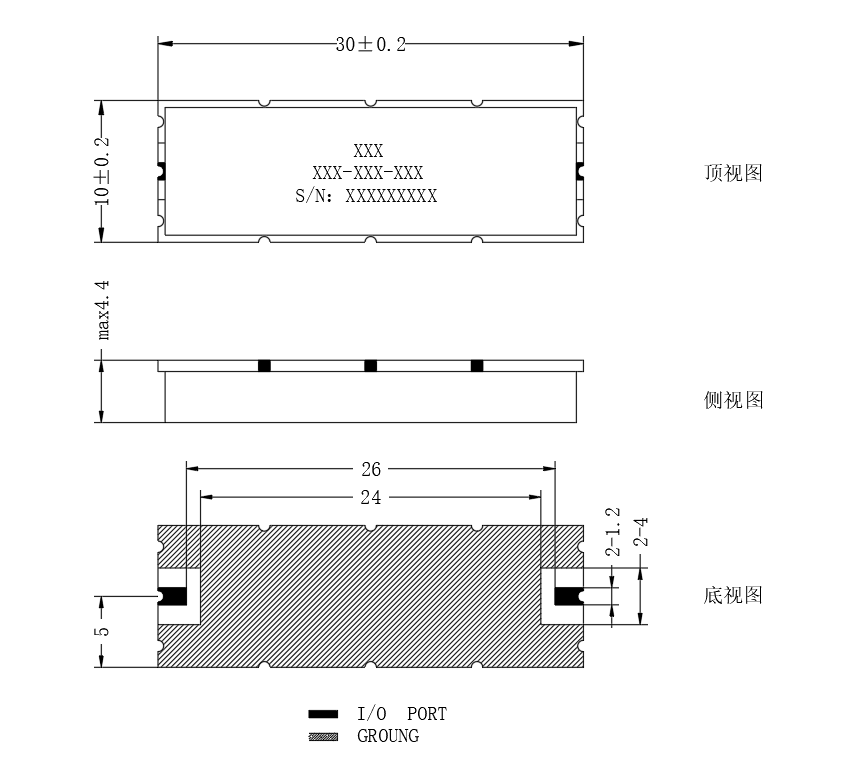

ZBF20-L1405-890-065 Filter

Filter ZBF20-L1405-890-065

Passband960~1850MHz, DC-730MHz≥50dBc, 730-790MHz≥25dBc, 2080-3000MHz≥50dBc, Microstrip pad
View Details →
ZBF2-L1800-100-2242 Filter

Filter ZBF2-L1800-100-2242

Passband1750~1850MHz, DC-400MHz≥40dB, 1000-1600MHz≥40dB, 2000-2500MHz≥40dB, Microstrip pad
View Details →
ZBF16-L1200-1300-052 Filter

Filter ZBF16-L1200-1300-052

Passband1200MHz, DC-0.5GHz≥30dBc, 6.5-7GHz≥50dBc, SMD
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
