Passband1750~1850MHz, DC-400MHz≥40dB, 1000-1600MHz≥40dB, 2000-2500MHz≥40dB, Microstrip pad
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband | / | / | 1750 | ~ | 1850 | MHz |
| Passband IL | / | / | 3.0 | dB | ||
| Ripple | / | / | 1.0 | dB | ||
| Rejection | DC-400 | MHz≥ | 40 | dB | ||
| Rejection | 1000-1600 | MHz≥ | 40 | dB | ||
| Rejection | 2000-2500 | MHz≥ | 40 | dB | ||
| Passband VSWR | / | / | 1.6 |

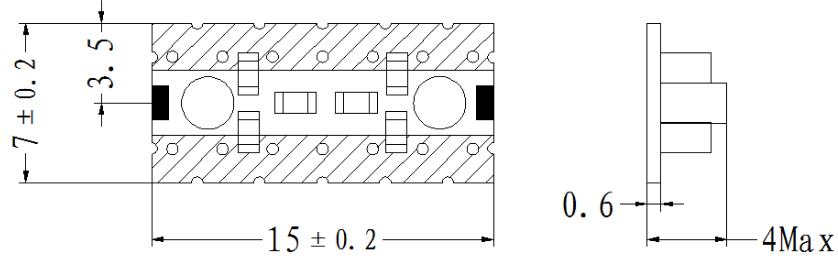

| Connector | Microstrip pad |
| Impedance | 50Ω |
| Power Capacity | 1W Design assurance |
| Phase balance | ±2.5°2只一组 |
| Operation Temp. | -40~+70℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | 冲击:150g，三个轴向，持续6ms. |
| Other | PCB板上不能有通孔，所有过孔塞铜，输入输出焊盘与边缘留0.1mm间隙 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
