Center frequency：17450 - 17700 MHz× Clear all
matches 24 models Default Newest
CA0371 SMD Filter

SMD Filter CA0371

Bandwidth16.3-18.7GHz, Rejection45@DC-14.2GHz, 40@21.2-34.0GHz
In Stock View Details →
STBP175-5R4-N252 Thin film filter

Thin film filter STBP175-5R4-N252

Bandwidth14.8-20.2GHz, Rejection40@DC-13.2GHz, 40@22.4-44.0GHz
In Stock View Details →
WLMX170180K Filter

Filter WLMX170180K

Passband17000~18000MHz, 16.25&18.85GHz≥30dB, 16.05&19.0GHz≥40dB, Microstrip pad, MEMS
In Stock View Details →
STBP177-2R8-M495 Thin film filter

Thin film filter STBP177-2R8-M495

Bandwidth16.3-19.1GHz, Rejection40@DC-14.7GHz, 40@20.5-40.0GHz
In Stock View Details →
STBP176-6R3-K565 Thin film filter

Thin film filter STBP176-6R3-K565

Bandwidth14.4-20.7GHz, Rejection40@DC-12.5GHz, 40@23.0-41.0GHz
In Stock View Details →
SM0050 MEMS Filter

MEMS Filter SM0050

Bandwidth16.9-18.5GHz, Rejection40@DC-15.0GHz, 40@19.8-27.0GHz,
In Stock View Details →
STBP177-8R4-M479 Thin film filter

Thin film filter STBP177-8R4-M479

Bandwidth13.5-21.9GHz, Rejection40@DC-10.5GHz, 40@24.8-40.0GHz
In Stock View Details →
STBP177-5R8-K562 Thin film filter

Thin film filter STBP177-5R8-K562

Bandwidth14.8-20.6GHz, Rejection40@DC-13.0GHz, 40@22.7-42.0GHz
In Stock View Details →
STBP177-5R0-M541 Thin film filter

Thin film filter STBP177-5R0-M541

Bandwidth15.2-20.2GHz, Rejection40@DC-13.4GHz, 55@22.2-42.0GHz
In Stock View Details →
STBP175-5R2-M585 Thin film filter

Thin film filter STBP175-5R2-M585

Bandwidth14.9-20.1GHz, Rejection40@DC-12.8GHz, 40@22.3-46.0GHz
In Stock View Details →
ZBF4-C17.5-5G-499 Filter

Filter ZBF4-C17.5-5G-499

Passband15~20GHz, DC-13GHz≥40dB, 22-34GHz≥40dB, SMA
In Stock View Details →
SM0013 MEMS Filter

MEMS Filter SM0013

Bandwidth16.9-18.5GHz, Rejection40@DC-15.2GHz, 40@19.8-26.0GHz,
In Stock View Details →
CC0247 Filter

Filter CC0247

Bandwidth17.1-17.9GHz, Rejection50@DC-14.7GHz, 35@19.5-23.0GHz
In Stock View Details →
ZBF25-C17700-4-513 Filter

Filter ZBF25-C17700-4-513

Passband17698~17702MHz, DC-17GGHz≥60dB, 18.4-38GHz≥60dB, SMA-F
In Stock View Details →

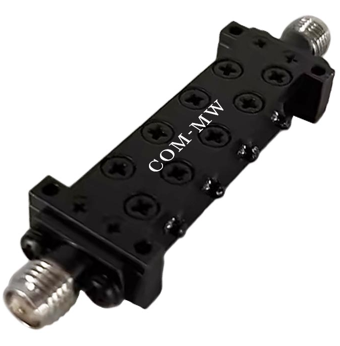

ZBF6-C17.5-5G-5247 Filter

Filter ZBF6-C17.5-5G-5247

Passband15~20GHz, DC-10GHz≥40dB, 22.5-30GHz≥25dB, SMA
View Details →

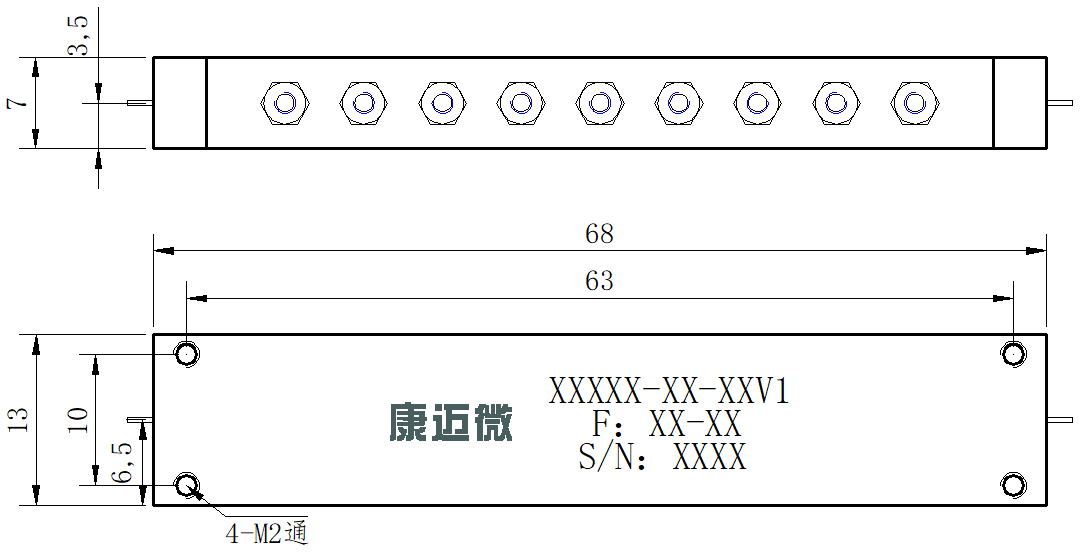

ZBF4-C17.5-1G-1091 Filter

Filter ZBF4-C17.5-1G-1091

Passband17~18GHz, 16GHz≥30dBc, 18.15GHz≥40dB,
View Details →

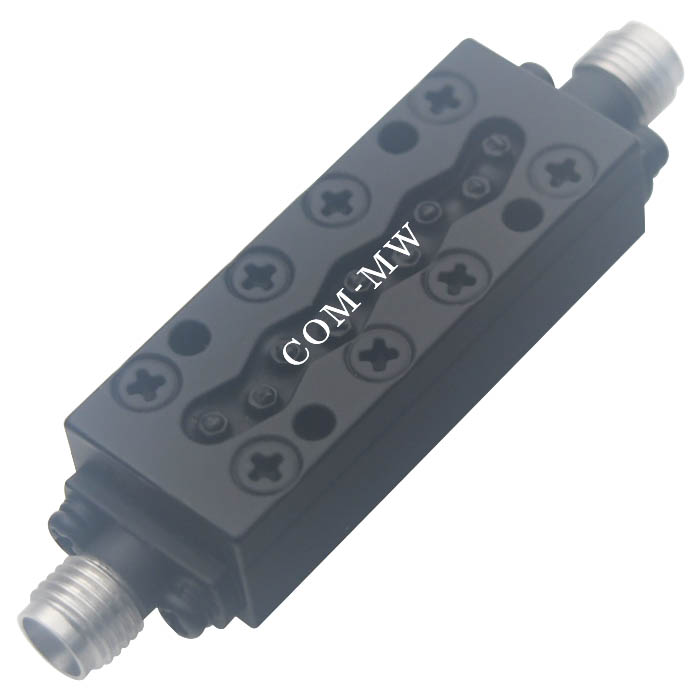

ZBF25-C17.45-0.1G-425 Filter

Filter ZBF25-C17.45-0.1G-425

Passband17.4~17.5GHz, DC-15GHz≥70dBc, 19-28GHz≥70dBc, SMA
View Details →

Filter ZBF15-C17.5-0G-357

Passband17.5GHz, F0±500MHz≥65dBc, dB, Pin
View Details →

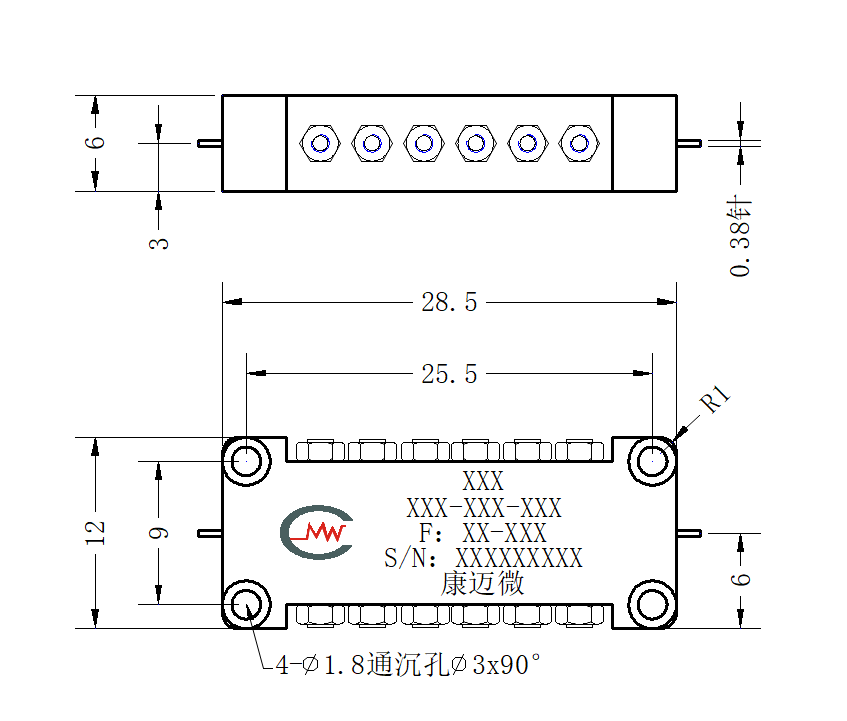

ZBF13-C17.5-5G-429 Filter

Filter ZBF13-C17.5-5G-429

Passband15~20GHz, DC-5GHz≥50dBc, 30-40GHz≥50dBc, Pin
View Details →
ZBF13-C17.5-1G-2586 Filter

Filter ZBF13-C17.5-1G-2586

Passband17~18GHz, DC-16.5GHz≥60dBc, 18.5-30GHz≥60dBc, Pin
View Details →
ZBF13-C17.5-0.5G-3323 Filter

Filter ZBF13-C17.5-0.5G-3323

Passband17.25~17.75GHz, 17GHz≥30dBc, 18GHz≥30dBc, Pin
View Details →
ZBF-C17.5-1.2G-1274A1 Filter

Filter ZBF-C17.5-1.2G-1274A1

Passband16900~18100MHz, 14500MHz≥63dB, DC-12100MHz≥80dB, Pin
View Details →
CA0247 SMD Filter

SMD Filter CA0247

Bandwidth17.1-17.9GHz, Rejection50@DC-14.6GHz, 35@19.6-23.5GHz
View Details →

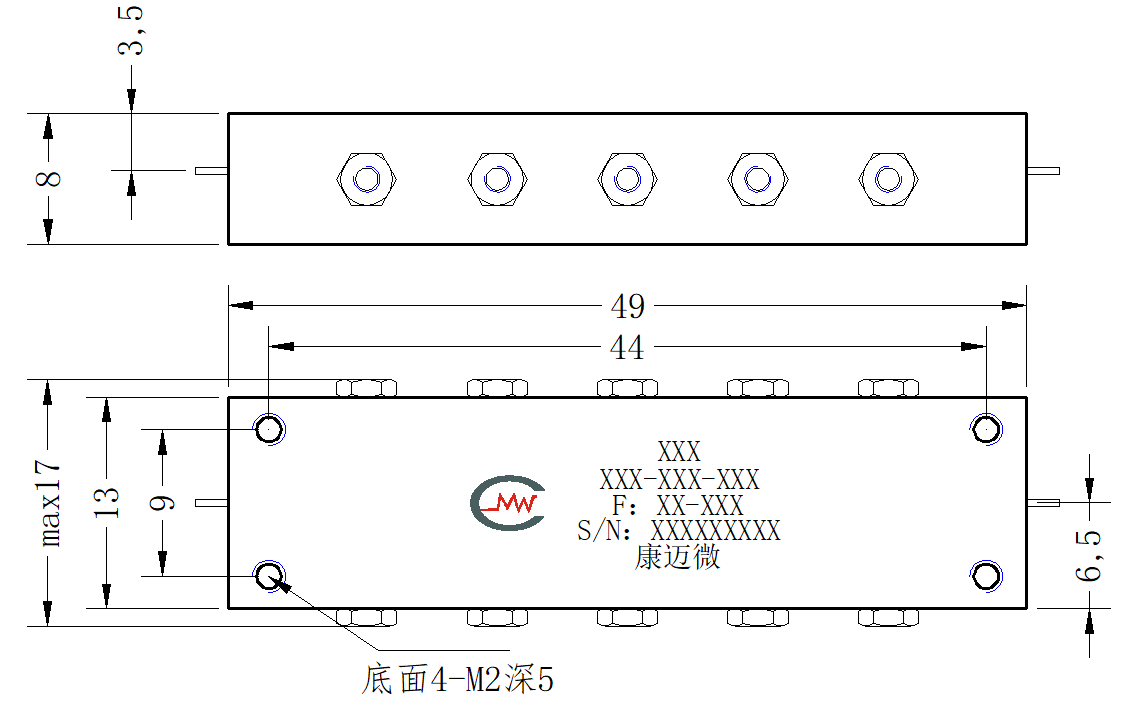

C17.5-1G-A5294 Filter

Filter C17.5-1G-A5294

Passband17~18GHz, DC-15GHz≥75dBc, 18.5-20GHz≥15dBc, Pin 0.38mm
View Details →
