ZS15-L225-400-823 Component

Component ZS15-L225-400-823

225~290MHz, 280~345MHz, 335~400MHz, ~MHz, ~MHz, SMD
In Stock View Details →

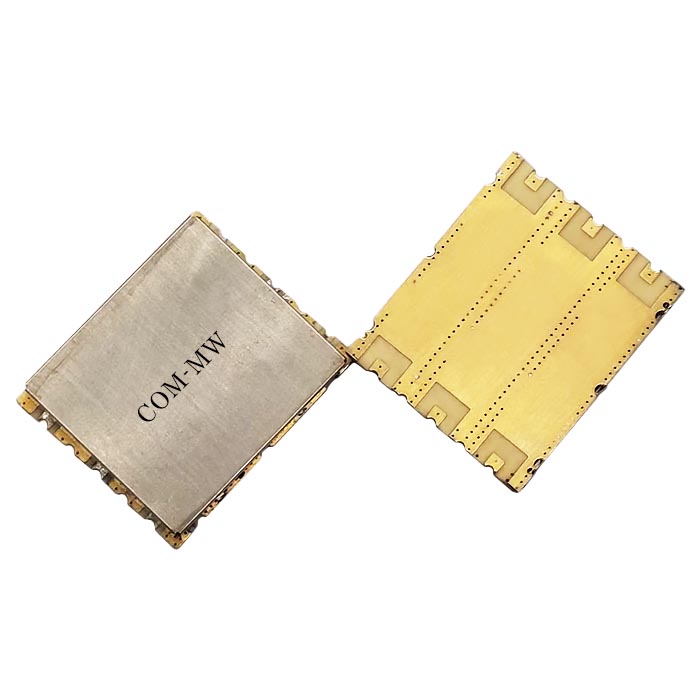

ZS15-L100-520-822 Component

Component ZS15-L100-520-822

100~520MHz, 108~174MHz, 225~400MHz, ~MHz, ~MHz, SMD
In Stock View Details →
ZS14-245-1700-082 Component

Component ZS14-245-1700-082

Passband F1245~410MHz, Passband F2410~678MHz, Passband F3678~1100MHz, Passband F41100~1700MHz, 490-800MHz≥40dBc, 820-1200MHz≥40dBc, SMD
In Stock View Details →
ZLPF3-L290-340-2267 Filter

Filter ZLPF3-L290-340-2267

Passband290~340MHz, 370-1000MHz≥20dB, SMD
In Stock View Details →
ZLPF3-L25-85-C114 Filter

Filter ZLPF3-L25-85-C114

Passband25~85MHz, 97-1.8MHz≥20dB, dB, SMD
In Stock View Details →
ZLPF2-L30-512-1349 Filter

Filter ZLPF2-L30-512-1349

140~235MHz, 51~88MHz, 88~140MHz, SMD
In Stock View Details →
ZLPF2-L1650-2500-2171 Filter

Filter ZLPF2-L1650-2500-2171

Passband1650~2500MHz, 3.3-4.0GHz≥30dB, dB, SMD
In Stock View Details →
ZLPF15-L30-88-1272 Filter

Filter ZLPF15-L30-88-1272

Passband F130~51MHz, Passband F151~88MHz, 2F050dB, 3F0-1000MHz≥40dB, Microstrip pad
In Stock View Details →
ZHPF3-L370-410-2268 Filter

Filter ZHPF3-L370-410-2268

Passband370~1500MHz, DC-340MHz≥20dB, SMD
In Stock View Details →

Diplexer ZCB15-2L225-678-259

225~321MHz, 417~512MHz, ~MHz, 321~417MHz, 512~678MHz, SMD
In Stock View Details →
ZCB15-2L20-6000-499 Diplexer

Diplexer ZCB15-2L20-6000-499

Passband F120~500MHz, Passband F20.5~8GHz, SMD
In Stock View Details →
ZBF9-D2700-180-2924 Filter

Filter ZBF9-D2700-180-2924

Passband2610~2790MHz, DC-2510MHz≥45dBc, 2890MHz≥45dBc, SMD
In Stock View Details →
ZBF5-L2300-200-3540 Filter

Filter ZBF5-L2300-200-3540

Passband2200~2400MHz, DC-1680MHz≥50dBc, SMD
In Stock View Details →
ZBF3-L7.5-4-467 Filter

Filter ZBF3-L7.5-4-467

Passband5.5~9.5MHz, DC-2.75MHz≥40dB, 19-300MHz≥15dB, SMD
In Stock View Details →
ZBF3-L3400-5200-3562 Filter

Filter ZBF3-L3400-5200-3562

Passband800~6000MHz, DC-700MHz≥40dB, 6400-14000MHz≥25dB, SMD
In Stock View Details →
ZBF20-L307.2-80-173 Filter

Filter ZBF20-L307.2-80-173

Passband267.2~347.2MHz, DC-227.2MHz≥58dB, 387.2-1000MHz≥58dB, SMD
In Stock View Details →
