RF Filter

Total 281 models
Categories
Categories RF Filter
RF Filter16049
RF Filter15377 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1230
Antenna1174 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1428
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter193 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
F High MHz
29.25 - 20200 33 20450 - 28200 56 28300 - 31200 64 31300 - 36000 52 36050 - 45000 76
–
Connector
Other 92 SMD 2353 SMA 6415 N 1263 2.92 281 2.4 39 Microstrip pad 1142 Microstrip needle 3895 Waveguide 94 1.85 18 SMP 47 SSMA 1 TNC 16 BMA 1
Power Handling
1 - 2 28 5 - 10 232 15 - 20 20 50 1
–
Maximum loss of side frequency dB
0.5 - 1.2 41 1.3 - 2 155 2.2 - 2.8 24 3 - 4.5 35 5 - 6 6
–
Rejection dB
20 - 40 38 45 - 53 51 55 - 65 111 70 - 80 68 85 - 90 13
–
F Low MHz
0 - 18450 64 19000 - 24000 40 24100 - 29250 77 29300 - 32940 50 33000 - 41000 50
–
Feature
Bandpass 229 low pass 4 Highpass 20 Notch 8
Center frequency MHz
5 - 21000 29 21500 - 27000 39 27175 - 30600 74 30750 - 36000 55 36130 - 43000 32
–
IL on center frequency dB
0.3 - 0.5 22 0.6 - 1 168 1.5 - 3 34 4 - 6 4
–
Insertion loss dB
0.8 1 1 1 1.2 1 1.5 15 2 2
–
Filter type
Cavity&waveguide 236 stripline 25
Connector：2.92× Clear all
matches 281 models Default Newest
ZBF8-C28.3-1.6G-3163 Filter

Filter ZBF8-C28.3-1.6G-3163

Passband27.5~29.1GHz, DC-25.1GHz≥90dB, 2.92
View Details →
ZBF8-C24.13-1.95G-1945 Filter

Filter ZBF8-C24.13-1.95G-1945

Passband23.15~25.1GHz, 25.75GHz≥60dB, 22.15GHz≥80dB, 2.92-F
View Details →
ZBF8-C20.6-0.5G-1910 Filter

Filter ZBF8-C20.6-0.5G-1910

Passband20350~20850MHz, DC-19600MHz≥55dB, 21600-22100MHz≥55dB, 2.92
View Details →
ZBF8-C20.2-0.5G-1909 Filter

Filter ZBF8-C20.2-0.5G-1909

Passband19950~20450MHz, DC-19200MHz≥55dB, 21200-21700MHz≥55dB, 2.92
View Details →
ZBF8-C20-0.06G-3098 Filter

Filter ZBF8-C20-0.06G-3098

Passband19.97~20.03GHz, DC-19.89GHz≥40dBc, 20.11GHz≥40dBc, SMA
View Details →
ZBF8-C19.5-5G-2018 Filter

Filter ZBF8-C19.5-5G-2018

Passband17~22GHz, DC-16GHz≥45dB, 23-35GHz≥45dB, 2.92
View Details →
ZBF8-1C30.8-0.5G-1874 Filter

Filter ZBF8-1C30.8-0.5G-1874

Passband30550~31050MHz, DC-29800MHz≥55dB, 31800-32300MHz≥55dB, 2.92
View Details →
ZBF8-1C30.4-0.5G-1873 Filter

Filter ZBF8-1C30.4-0.5G-1873

Passband30150~30650MHz, DC-29400MHz≥55dB, 31400-31900MHz≥55dB, 2.92
View Details →
ZBF8-1C30-0.5G-1872 Filter

Filter ZBF8-1C30-0.5G-1872

Passband29750~30250MHz, DC-29000MHz≥55dB, 31000-31500MHz≥55dB, 2.92
View Details →
ZBF8-1C29.6-0.5G-1871 Filter

Filter ZBF8-1C29.6-0.5G-1871

Passband29350~29850MHz, DC-28600MHz≥55dB, 30600-31100MHz≥55dB, 2.92
View Details →
ZBF8-1C21-0.5G-1870 Filter

Filter ZBF8-1C21-0.5G-1870

Passband20750~21250MHz, DC-20000MHz≥55dB, 22000-22500MHz≥55dB, 2.92
View Details →
ZBF6-C38-4G-1056 Filter

Filter ZBF6-C38-4G-1056

Passband36~40GHz, 20-30GHz≥50dB, DC-20GHz≥70dB, 2.92
View Details →

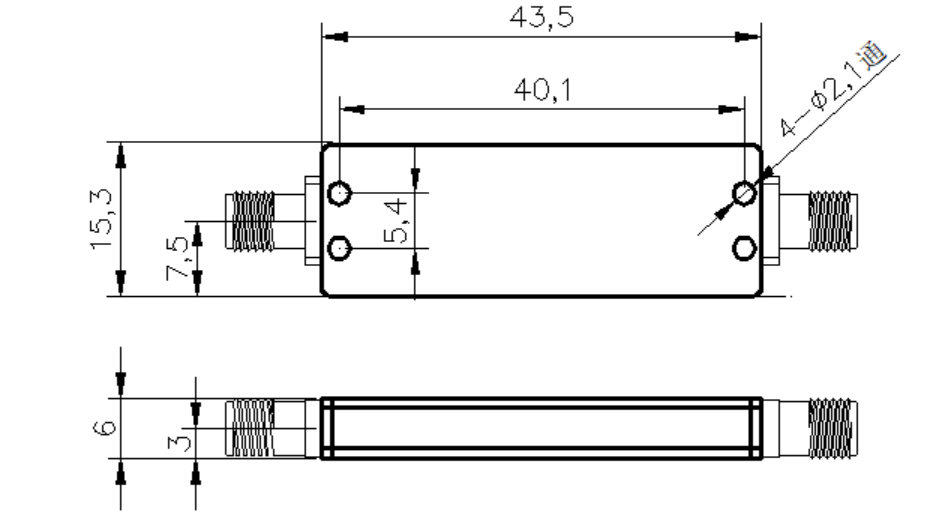

ZBF6-C36.3-7.4G-1562 Filter

Filter ZBF6-C36.3-7.4G-1562

Passband32.6~40GHz, DC-31.5GHz≥55dB, 43-50GHz≥50dB, 2.92
View Details →
ZBF6-C35.5-3G-3456 Filter

Filter ZBF6-C35.5-3G-3456

Passband34~37GHz, 10~25GHz≥40dBc, 38~50GHz≥40dBc, 2.92
View Details →
ZBF6-C35.5-3G-1055 Filter

Filter ZBF6-C35.5-3G-1055

Passband34~37GHz, DC-32GHz≥50dB, 2.92
View Details →

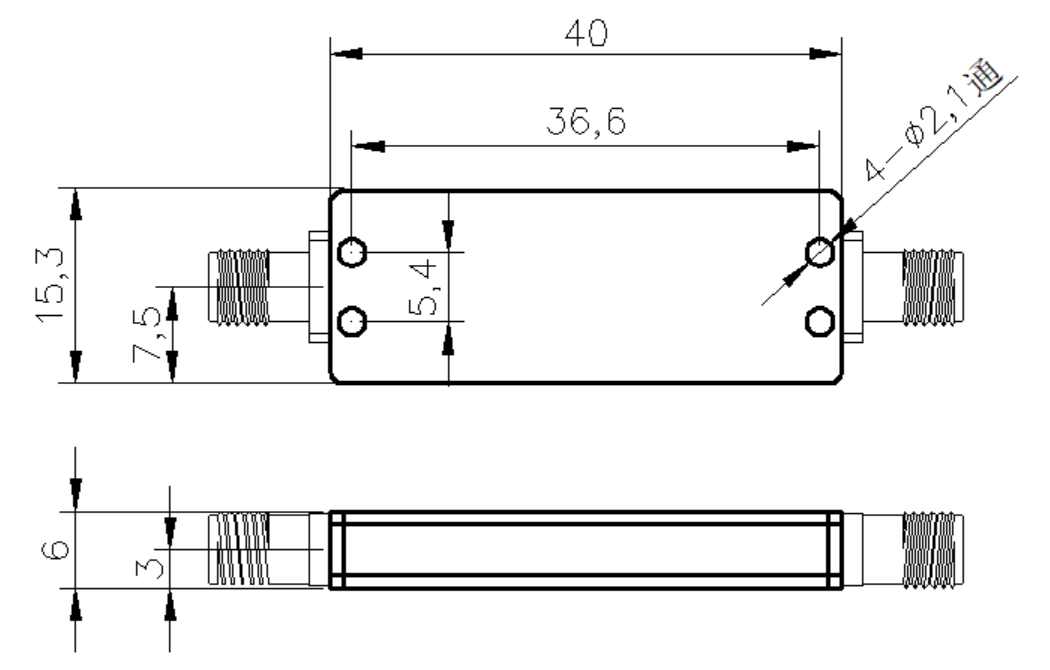

ZBF6-C31-8.4G-1561 Filter

Filter ZBF6-C31-8.4G-1561

Passband26.8~35.2GHz, DC-25.4GHz≥55dB, 36.6-40GHz≥55dB, 2.92
View Details →

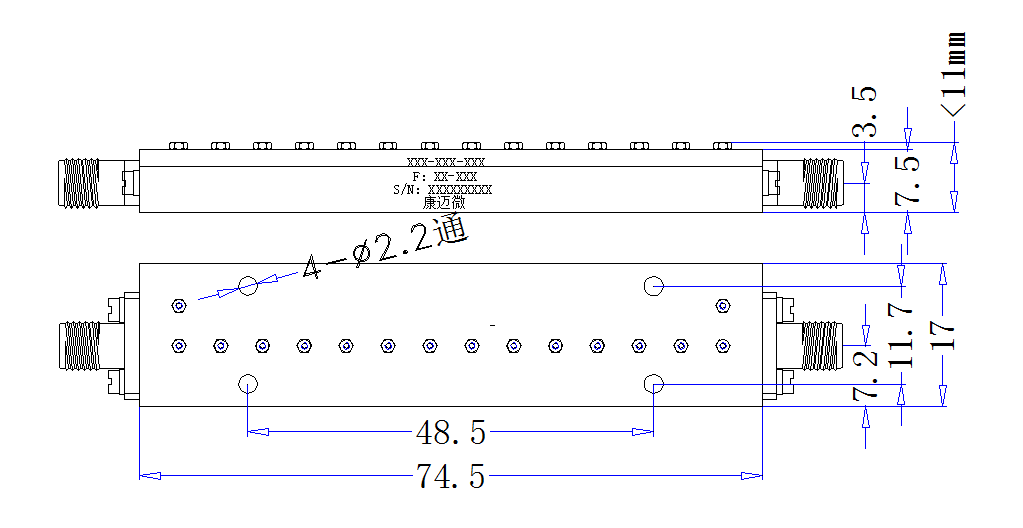

ZBF6-C29.9-2.2G-6063 Filter

Filter ZBF6-C29.9-2.2G-6063

Passband28.8~31GHz, DC-28.2GHz≥80dB, 32-48GHz≥70dBc, 2.92
View Details →
ZBF6-C29.14-3.25G-1566 Filter

Filter ZBF6-C29.14-3.25G-1566

通带频率(-1.5dB)27515~30765MHz, 通带频率(-0.5dB)27635~30645MHz, DC-26750MHz≥60dB, 37450-40000MHz≥60dB, 2.92
View Details →
ZBF6-C28.65-2.3G-6062 Filter

Filter ZBF6-C28.65-2.3G-6062

Passband27.5~29.8GHz, DC-27GHz≥80dB, 30.8-48GHz≥70dBc, 2.92
View Details →
ZBF6-C27.75-2.5G-2848 Filter

Filter ZBF6-C27.75-2.5G-2848

Passband26.5~29.5GHz, 20-25GHz≥40dB, 30.5-35GHz≥40dB, 2.92
View Details →
ZBF6-C27.3-3.5G-1565 Filter

Filter ZBF6-C27.3-3.5G-1565

通带频率(-0.5dB)25550~29050MHz, DC-24200MHz≥60dB, 30250-40000MHz≥60dB, 2.92
View Details →

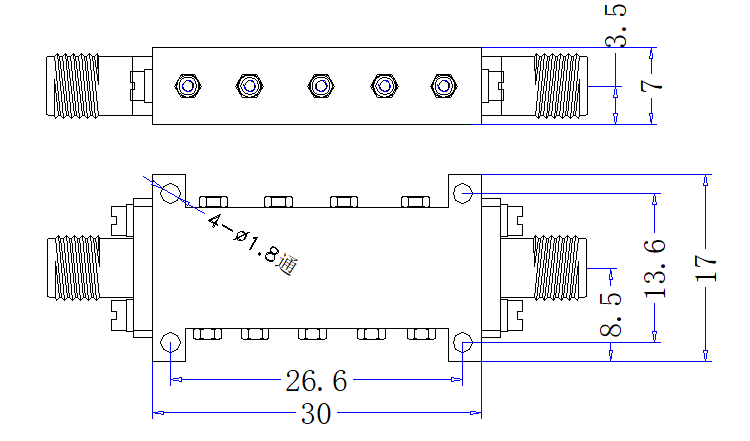

ZBF6-C25-8G-4802 Filter

Filter ZBF6-C25-8G-4802

Passband21~29GHz, DC-18.4GHz≥50dB, 31.5-40GHz≥50dB, 2.92
View Details →
ZBF6-C23.9-8.8G-4822 Filter

Filter ZBF6-C23.9-8.8G-4822

Passband19.5~28.3MHz, DC-18GHz≥50dB, 18.5GHz≥30dB, 2.92
View Details →

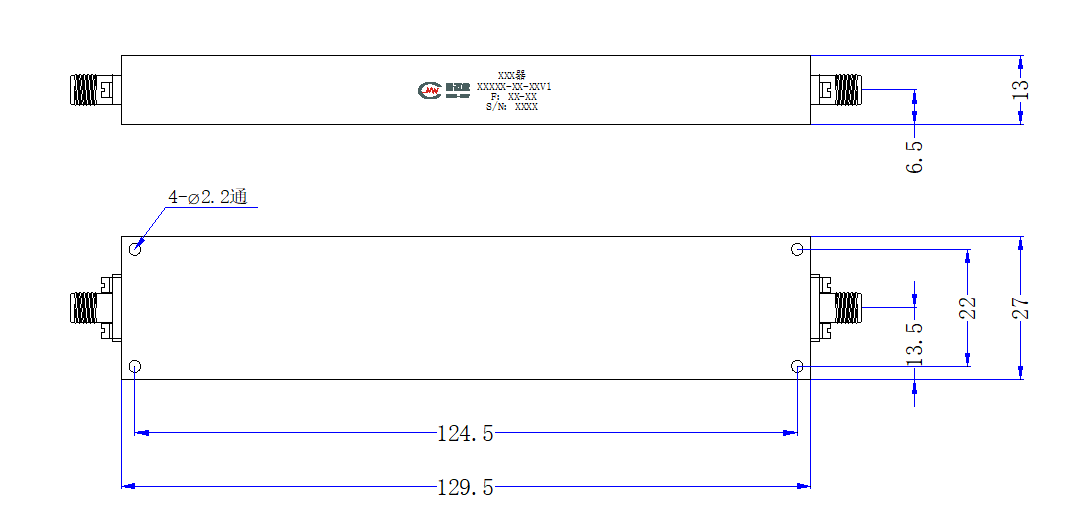

ZBF6-C20.13-2.15G-6065 Filter

Filter ZBF6-C20.13-2.15G-6065

Passband19.05~21.2GHz, DC-18.4GHz≥65dBc, 22-30GHz≥65dBc, 2.92
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
