ZBF13-C27.35-13.3G-3298 Filter

Filter ZBF13-C27.35-13.3G-3298

Passband20.7~34GHz, DC-18.6GHz≥60dBc, 19.6GHz≥35dBc, 2.92
In Stock View Details →

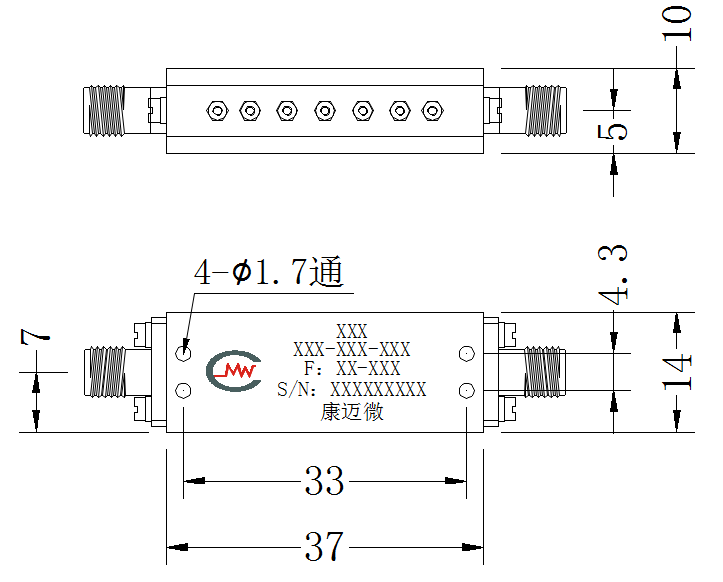

ZHPF6-C18-40G-5884 Filter

Filter ZHPF6-C18-40G-5884

Passband18~40GHz, DC-15.5GHz≥50dB, dB, 2.92
In Stock View Details →
ZHPF4-M6-40G-1530 Filter

Filter ZHPF4-M6-40G-1530

Passband6~40GHz, DC-4.8GHz≥50dB, 2.92
In Stock View Details →
ZBF8-C35000-10000-2507 Filter

Filter ZBF8-C35000-10000-2507

Passband30000~40000MHz, DC-28500MHz≥50dB, 42000-50000MHz≥40dB, 2.92-K
In Stock View Details →
ZBF8-C28-1G-3133 Filter

Filter ZBF8-C28-1G-3133

Passband27.5~28.5GHz, DC-26.55GHz≥105dB, 26.55-27GHz≥50dB, 2.92
In Stock View Details →
ZBF8-C18.95-1G-3131 Filter

Filter ZBF8-C18.95-1G-3131

Passband18.45~19.45GHz, DC-16.75GHz≥100dB, 16.75-17.5GHz≥90dB, 17.5-17.95GHz≥45dB, 2.92
In Stock View Details →

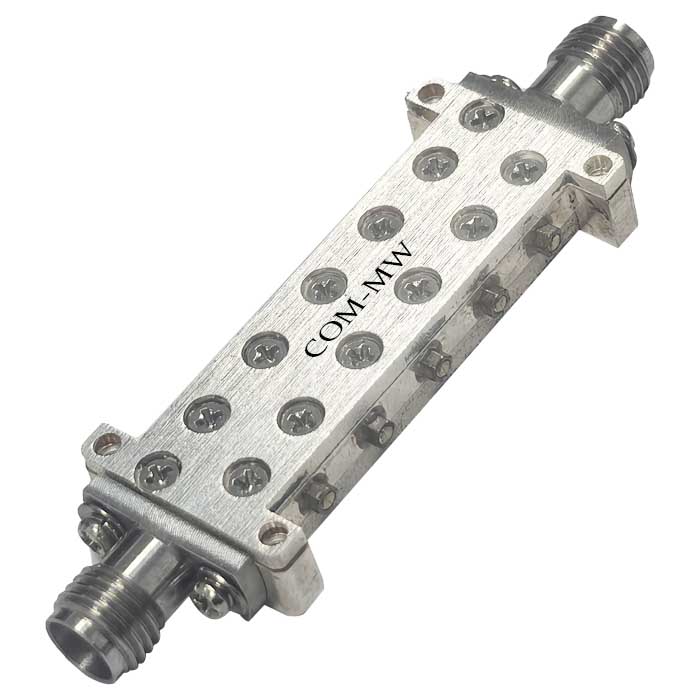

ZBF5-C38-4.6G-2500 Filter

Filter ZBF5-C38-4.6G-2500

Passband35.7~40.3GHz, DC-35GHz≥35dBc, 41-50GHz≥35dBc, 2.92
In Stock View Details →
ZBF3-C28.25-6.5G-602 Filter

Filter ZBF3-C28.25-6.5G-602

Passband25000~31500MHz, DC-8300MHz≥60dB, 32800-50000MHz≥30dB, 2.92
In Stock View Details →
ZBF25-C40-6G-519 Filter

Filter ZBF25-C40-6G-519

Passband37~43GHz, DC-34GHz≥53dBc, 47-52GHz≥53dBc, 2.92
In Stock View Details →
ZBF25-C38.5-2G-891 Filter

Filter ZBF25-C38.5-2G-891

Passband37.5~39.5GHz, DC-35.7GHz≥60dBc, 41.2-50GHz≥40dB, 2.92
In Stock View Details →
ZBF25-C38.25-13.5G-051 Filter

Filter ZBF25-C38.25-13.5G-051

Passband31.5~45GHz, DC-28GHz≥40dB, 49.5-60GHz≥40dB, 2.92-K
In Stock View Details →

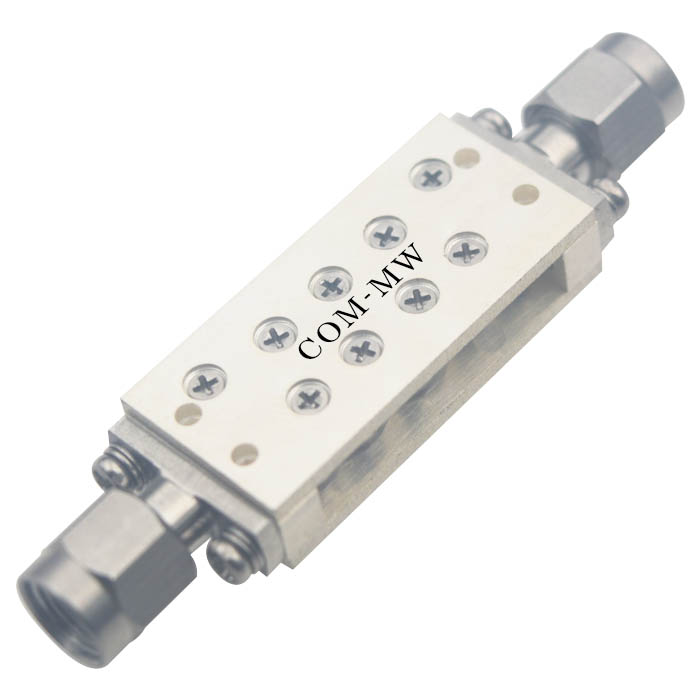

ZBF25-C31-12G-060 Filter

Filter ZBF25-C31-12G-060

Passband25~37GHz, DC-22GHz≥40dB, 44-55GHz≥40dB, 2.92-J
In Stock View Details →

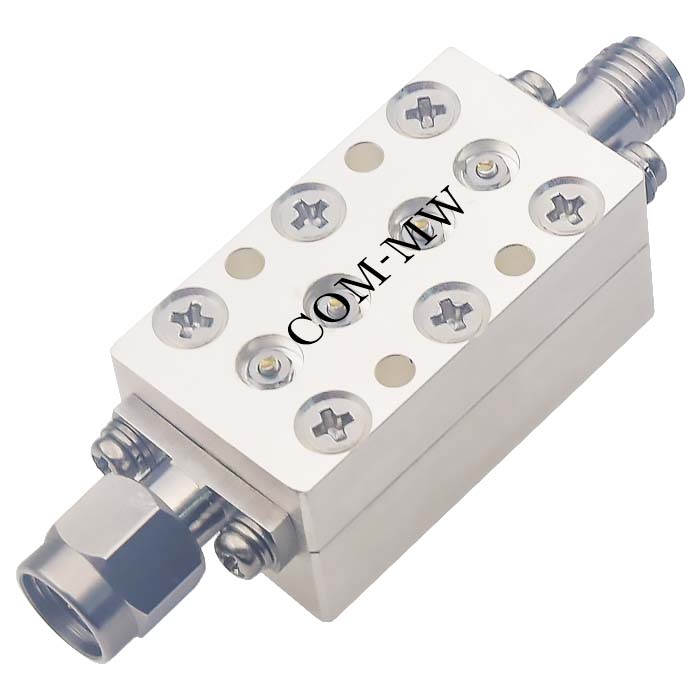

ZBF25-C30.6-0.02G-249 Filter

Filter ZBF25-C30.6-0.02G-249

Passband30.59~30.61GHz, DC-30.48GHz≥50dB, 30.72-40GHz≥50dB, 2.92-JK
In Stock View Details →

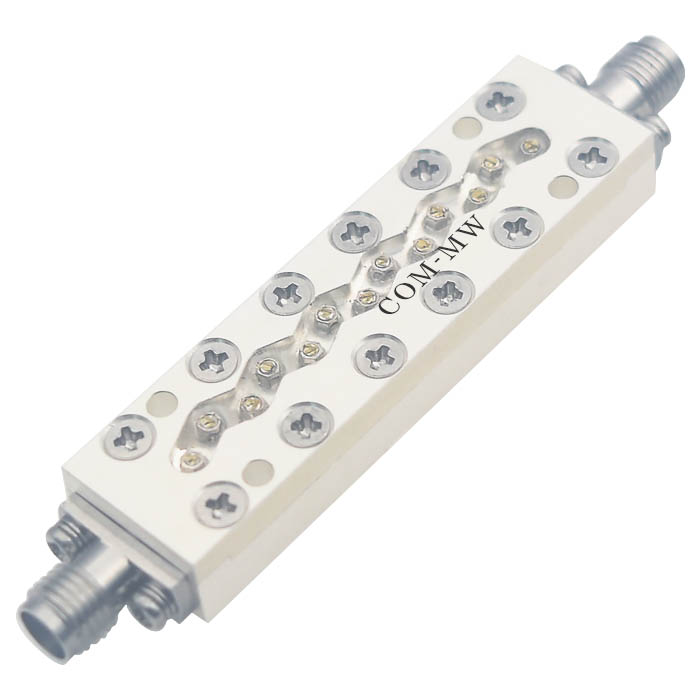

ZBF25-C29.5-1G-3556 Filter

Filter ZBF25-C29.5-1G-3556

Passband29~30GHz, DC-28.05GHz≥105dB, 28.05-28.5GHz≥50dB, 2.92
In Stock View Details →
ZBF25-C29.25-3.5G-3717 Filter

Filter ZBF25-C29.25-3.5G-3717

Passband27.5~31GHz, DC-26.8GHz≥38dBc, 32-48GHz≥55dBc, 2.92
In Stock View Details →
ZBF25-C29-4G-815 Filter

Filter ZBF25-C29-4G-815

Passband27~31GHz, 17-22GHz≥60dBc, 36-40GHz≥55dBc, 2.92
In Stock View Details →
ZBF25-C27-1G-218 Filter

Filter ZBF25-C27-1G-218

Passband26.5~27.5GHz, 17.2-25.81GHz≥35dB, 28.19-36.75GHz≥35dB, 2.92
In Stock View Details →
ZBF25-C24.5-14G-050 Filter

Filter ZBF25-C24.5-14G-050

Passband17.5~31.5GHz, DC-14.5GHz≥40dB, 38.5-47GHz≥40dB, 2.92-K
In Stock View Details →

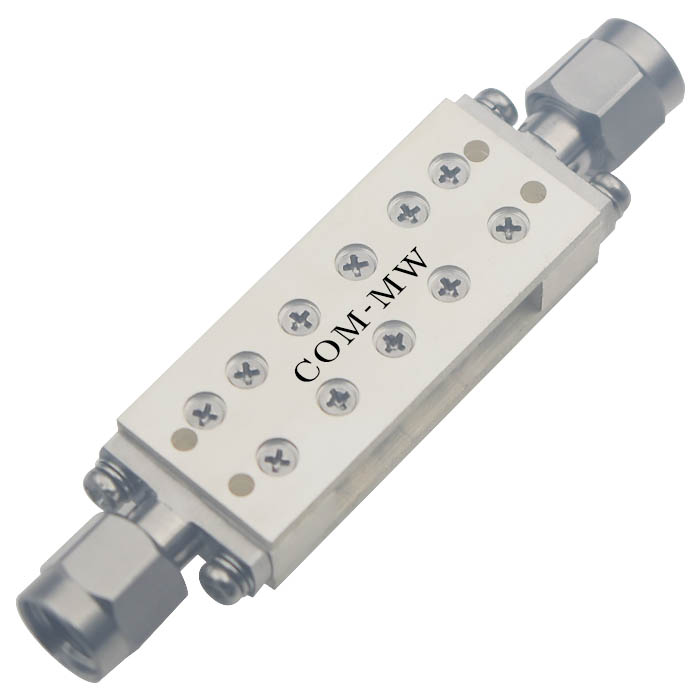

ZBF25-C21.5-7G-059 Filter

Filter ZBF25-C21.5-7G-059

Passband18~25GHz, DC-16GHz≥40dB, 28-45GHz≥40dB, 2.92-J
In Stock View Details →

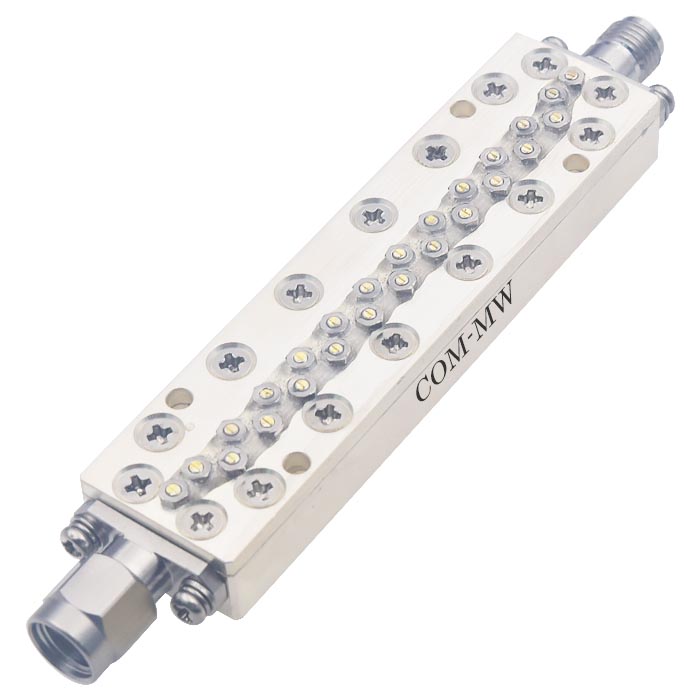

ZBF25-C18.9-1.2G-126 Filter

Filter ZBF25-C18.9-1.2G-126

Passband18.3~19.5GHz, DC-16.85GHz≥100dB, 16.85-17.35GHz≥90dB, 2.92
In Stock View Details →
ZBF25-C18.3-1G-127 Filter

Filter ZBF25-C18.3-1G-127

Passband17.8~18.8GHz, DC-15.9GHz≥100dB, 15.9-16.85GHz≥90dB, 2.92-MF
In Stock View Details →
ZBF13-C37.75-0.5G-2378 Filter

Filter ZBF13-C37.75-0.5G-2378

Passband37.5~38GHz, DC-29.5GHz≥65dBc, 33.5GHz≥80dBc, 2.92
In Stock View Details →
ZBF13-C34-0G-1505 Filter

Filter ZBF13-C34-0G-1505

Passband34GHz, DC-33.7GHz≥40dBc, 34.3-40GHz≥40dBc, 2.92
In Stock View Details →

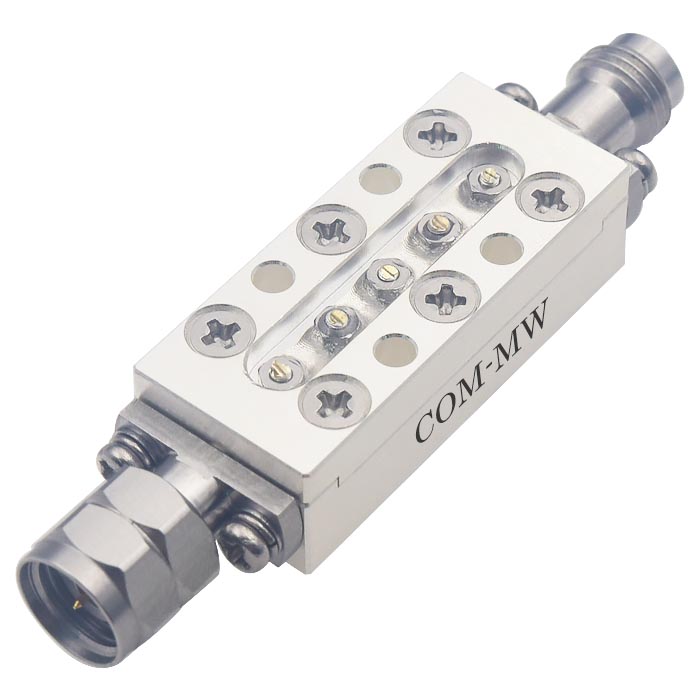

ZBF13-C32.05-0.5G-3333 Filter

Filter ZBF13-C32.05-0.5G-3333

Passband31.8~32.3GHz, DC-29.5GHz≥75dBc, 31.3GHz≥60dBc, 2.92
In Stock View Details →
