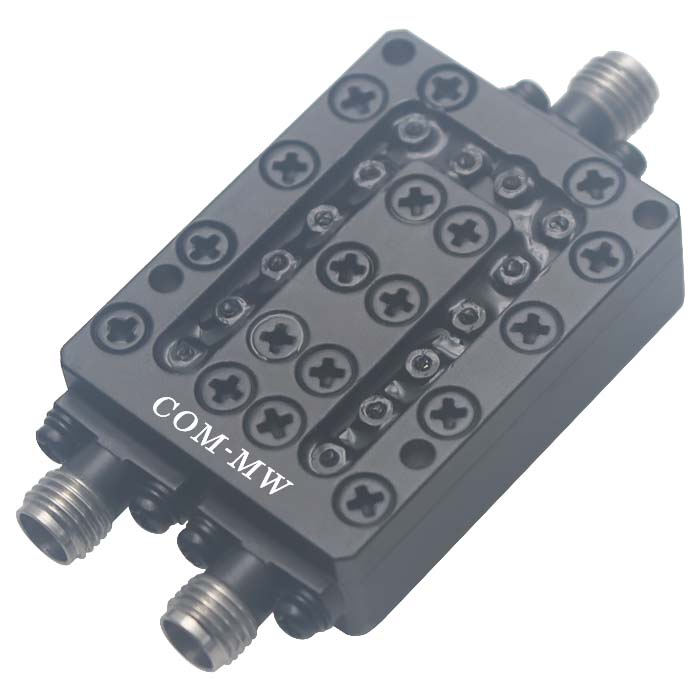

Passband F129.4~31GHz, Passband F219.6~21.2GHz, 2.92
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband F1 | / | / | 29.4 | ~ | 31 | GHz |
| Passband F2 | / | / | 19.6 | ~ | 21.2 | GHz |
| band 1 IL | / | / | 2 | dB | ||
| band 2 IL | / | / | 2 | dB | ||
| Passband VSWR | / | / | 1.5 | |||
| Band 1 Rejection | 19.6G-21.2 | GHz≥ | 90 | dBc | ||
| band 2 Rejection | 29.4G-31 | GHz≥ | 90 | dBc |
| Connector | 2.92-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Black baking paint, no paint on the bottom surface. |
| Power Capacity | 100W peak power, maximum duty cycle 50% |
| Operation Temp. | -30~+70℃ Design assurance |

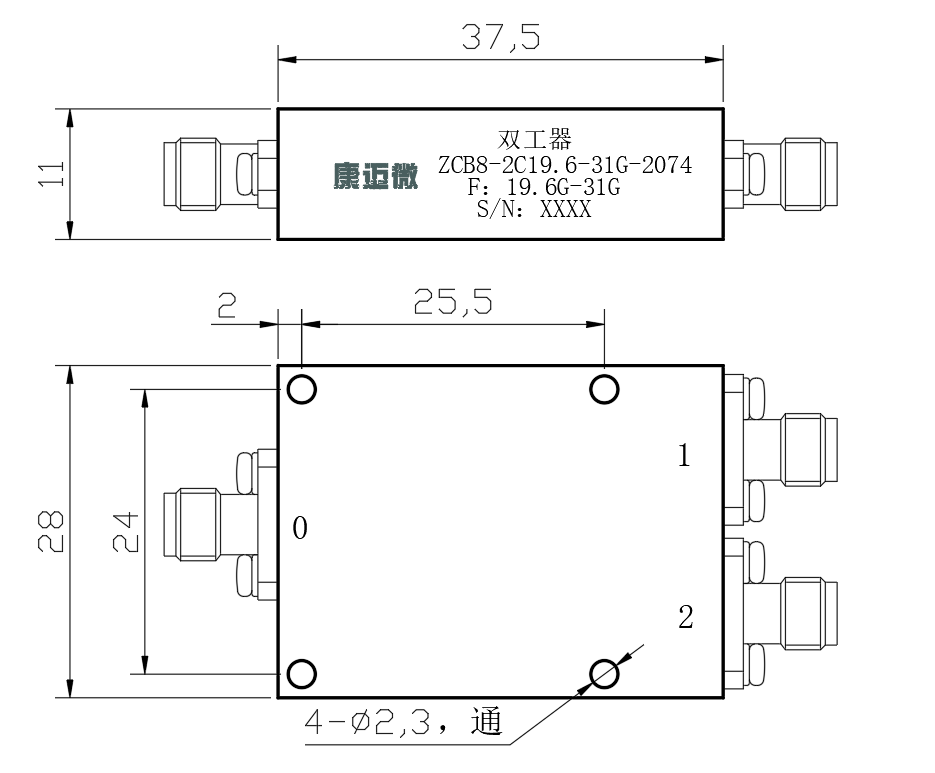

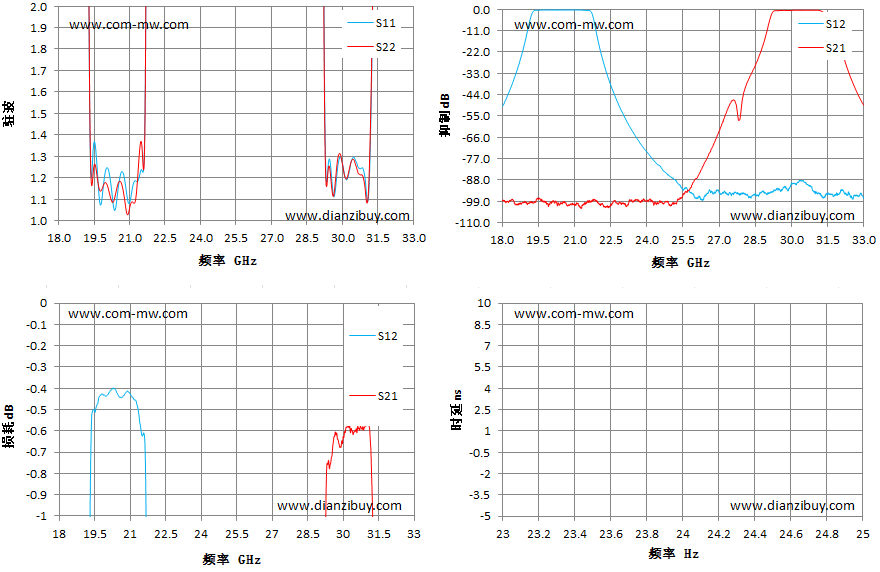

| Frequency(GHz) | S11 VSWR | S12 IL dB | S12 Rej. |
|---|---|---|---|
| 18 | 66.62 | -50.18 | -50.18 |
| 19.07 | 24.59 | -10.13 | -10.13 |
| 20.14 | 1.22 | -0.41 | -0.41 |
| 21.21 | 1.18 | -0.45 | -0.45 |
| 22.29 | 53.47 | -31.09 | -31.09 |
| 23.36 | 86.05 | -62.03 | -62.03 |
| 24.43 | 136.37 | -79.78 | -79.78 |
| 25.5 | 216.77 | -92.85 | -92.85 |
| 26.57 | 156.48 | -93.97 | -93.97 |
| 27.64 | 12.69 | -94.31 | -94.31 |
| 28.71 | 39.19 | -94.73 | -94.73 |
| 29.79 | 1.24 | -92.68 | -92.68 |
| 30.86 | 1.24 | -92.8 | -92.8 |
| 31.93 | 19.87 | -95.2 | -95.2 |
| 33 | 57.07 | -97.59 | -97.59 |
