F High：3600 - 4600 MHz× Clear all
matches 21 models Default Newest
ZCB4-M4.5-20G-1611 Diplexer

Diplexer ZCB4-M4.5-20G-1611

Passband F1DC~4.27GHz, Passband F24.73~20GHz, SMA
In Stock View Details →
ZCB4-M4-20G-1610 Diplexer

Diplexer ZCB4-M4-20G-1610

Passband F1DC~3.8GHz, Passband F24.2~20GHz, SMA
In Stock View Details →
ZCB8-M3300-12000-905 Diplexer

Diplexer ZCB8-M3300-12000-905

Passband F13300~3800MHz, Passband F26500~12000MHz, SMA-K
In Stock View Details →
ZCB1-2M3.4-10.8-367 Diplexer

Diplexer ZCB1-2M3.4-10.8-367

Passband F13.4~3.6GHz, Passband F26.8~10.8GHz, SMA
In Stock View Details →
ZCB1-2M3.3-12.6G-357 Diplexer

Diplexer ZCB1-2M3.3-12.6G-357

Passband F13.3~4.2GHz, Passband F26.6~12.6GHz, SMA
In Stock View Details →
ZCB8-M3800-13000-906 Diplexer

Diplexer ZCB8-M3800-13000-906

Passband F13.8~4.2GHz, Passband F27.5~13GHz, SMA
View Details →
ZCB6-C4-15G-3933 Diplexer

Diplexer ZCB6-C4-15G-3933

Passband F14~4.6MHz, Passband F28~13.8MHz, SMA
View Details →
ZCB6-C3300-5000-5861 Diplexer

Diplexer ZCB6-C3300-5000-5861

Passband frequency C13300~3600MHz, Passband frequency C24800~5000MHz, SMA
View Details →
ZCB6-C3.6-12G-4238 Diplexer

Diplexer ZCB6-C3.6-12G-4238

Passband frequency C13.6~4GHz, Passband frequency C27.2~12GHz, SMA
View Details →

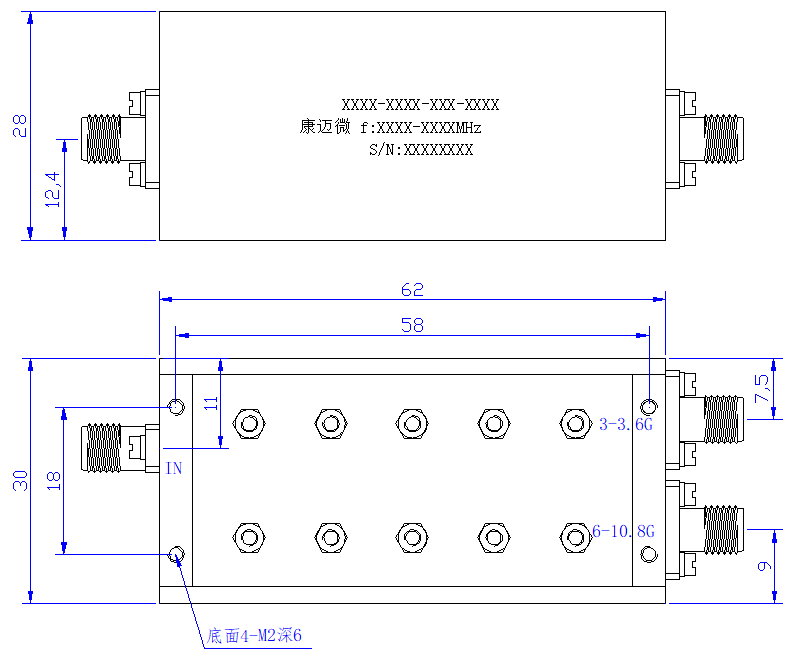

ZCB5-C3-10.8G-3266 Diplexer

Diplexer ZCB5-C3-10.8G-3266

Passband F13~3.6GHz, Passband F26~10.8GHz, 6-10.8GHz≥60dB, 3-3.6GHz≥60dB, SMA
View Details →
ZCB4-MC2-6G-1067 Diplexer

Diplexer ZCB4-MC2-6G-1067

Passband F12~3.8GHz, Passband F24.2~6GHz, SMA
View Details →
ZCB4-M3.7-4.3G-1677 Diplexer

Diplexer ZCB4-M3.7-4.3G-1677

Passband F1DC~3.7GHz, Passband F24.3~20GHz, SMA
View Details →

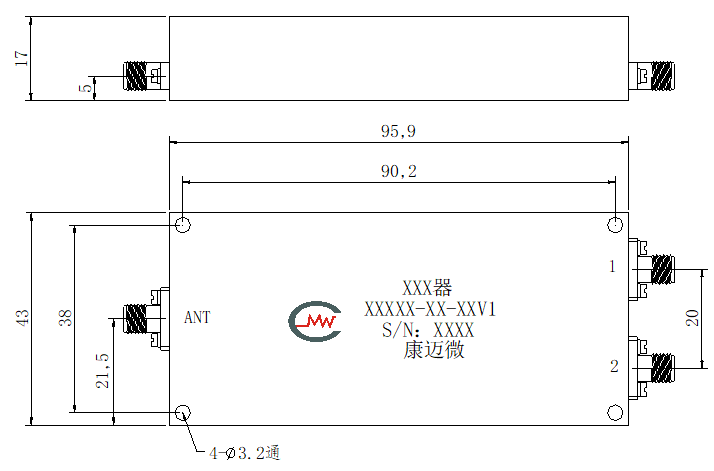

ZCB4-C4500-5060-107 Diplexer

Diplexer ZCB4-C4500-5060-107

Passband F14400~4600MHz, Passband F25020~5100MHz, SMA
View Details →

Diplexer ZCB4-C4.4-5.1G-1065

Passband F14.4~4.6GHz, Passband F24.8~5.1GHz, SMA
View Details →
ZCB4-C3551-6575-1287 Diplexer

Diplexer ZCB4-C3551-6575-1287

Passband F13551~3701MHz, Passband F26424~6575MHz
View Details →

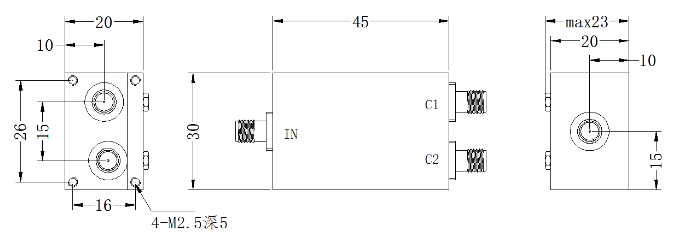

ZCB4-C3550-6575-415 Diplexer

Diplexer ZCB4-C3550-6575-415

Passband F13550~3700MHz, Passband F26424~6575MHz, SMA
View Details →

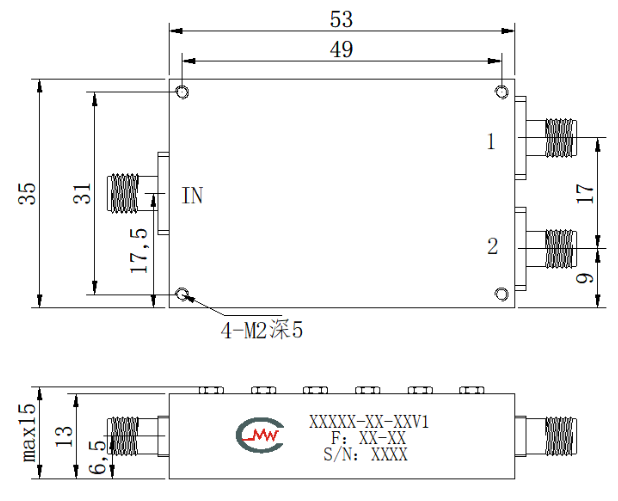

ZCB4-C3.3-5.85G-690 Diplexer

Diplexer ZCB4-C3.3-5.85G-690

Passband F13300~4200MHz, Passband F25150~5850MHz, SMA
View Details →

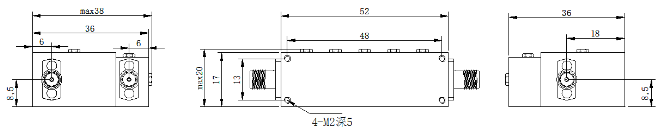

ZCB4-C3.3-11.25G-565 Diplexer

Diplexer ZCB4-C3.3-11.25G-565

Passband F13.3~4.2GHz, Passband F26.6~12.6GHz, SMA
View Details →

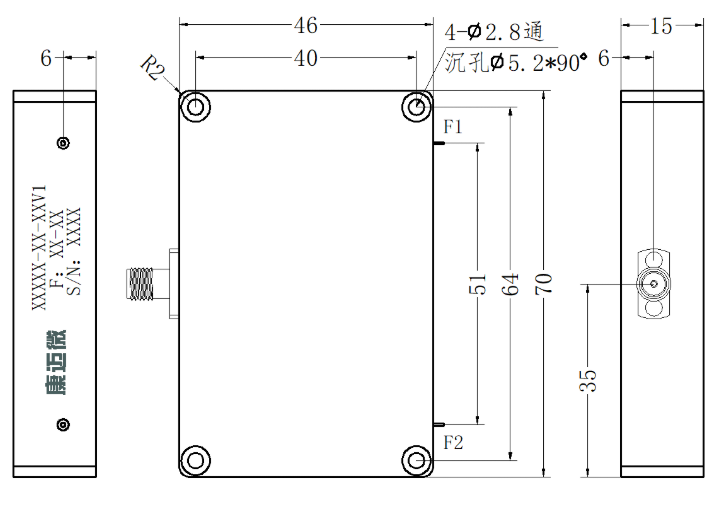

ZCB3-C4400-4850-2346 Diplexer

Diplexer ZCB3-C4400-4850-2346

Passband F14400~4450MHz, Passband F24700~4850MHz, SMA
View Details →
ZCB13-C4.4-4.8G-547 Diplexer

Diplexer ZCB13-C4.4-4.8G-547

Passband F14400~4500MHz, Passband F24700~4800MHz, Pin
View Details →

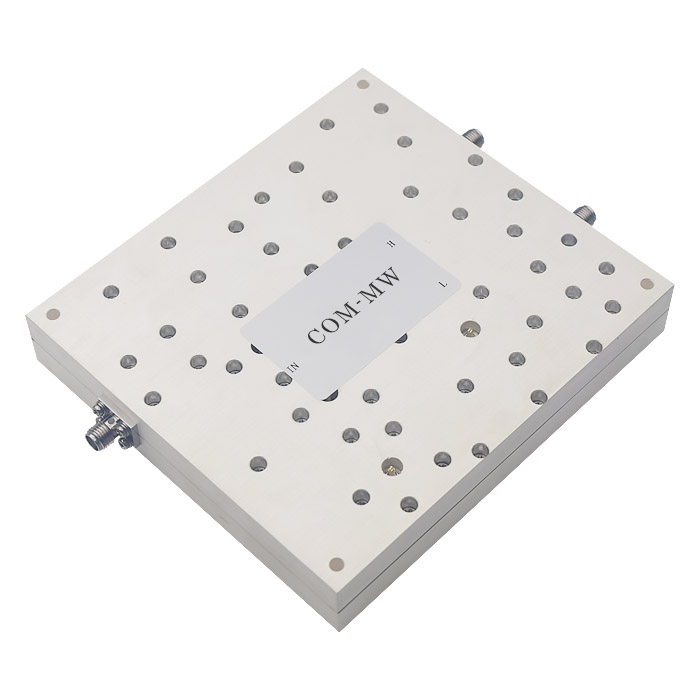

ZCB1-2M0-11G-499 Diplexer

Diplexer ZCB1-2M0-11G-499

Passband F10~3.8GHz, Passband F24.2~11GHz, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
