RF Filter

Total 24 models
Categories
Categories RF Filter
RF Filter16049
RF Filter15377 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1230
Antenna1174 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1428
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter193 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
Feature
Bandpass 21 low pass 1 Highpass 1
F Low MHz
0 - 1157.5 6 1750 - 3470 5 4000 - 7680 7 9000 - 15450 5 33190 1
–
Center frequency MHz
60 - 1162.5 4 1800 - 4395 6 5250 - 7720 6 10250 - 16000 5 33200 1
–
F High MHz
32 - 1250 5 1850 - 3620 5 3720 - 7350 6 7760 - 16550 6 17100 - 33210 2
–
IL on center frequency dB
0.8 - 1 12 2 - 2.5 4 3 - 4 5 5 1
–
Maximum loss of side frequency dB
1 - 1.5 7 1.6 - 2 7 2.5 - 4 5 5 - 6 5
–
Rejection dB
62 5 63 9 64 2 64.999 8
–
Connector
SMD 1 SMA 2 Microstrip needle 21
Power Handling
1 3 2 6 5 9 10 5 100 1
–
Filter type
LC 6 Cavity&waveguide 17 Dielectric 1
Rejection：62 - 64.999 dB× Clear all
matches 24 models Default Newest

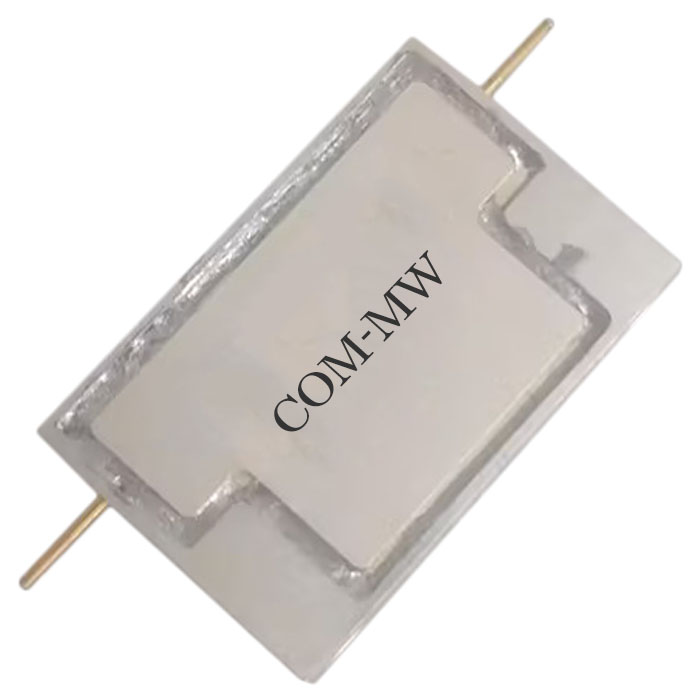

ZBF13-D1162.5-10-2989 Filter

Filter ZBF13-D1162.5-10-2989

Passband1157.5~1167.5MHz, DC-1.1GHz≥63dBc, 1.22-2GHz≥70dBc, Pin
In Stock View Details →
ZBF13-C7290-80-2886 Filter

Filter ZBF13-C7290-80-2886

Passband7.25~7.33GHz, F0±100MHz≥30dB, DC-7GHz≥63dBc, Pin
In Stock View Details →

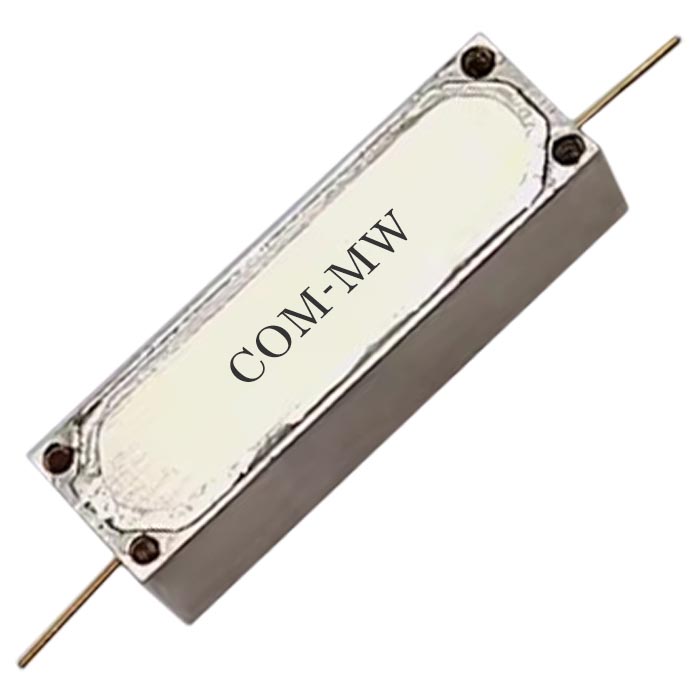

ZBF-BL2350-720-0533B2 Filter

Filter ZBF-BL2350-720-0533B2

Passband1990~2710MHz, DC-1GHz≥63dBc, 3.44-4.7GHz≥60dBc, Pin
In Stock View Details →

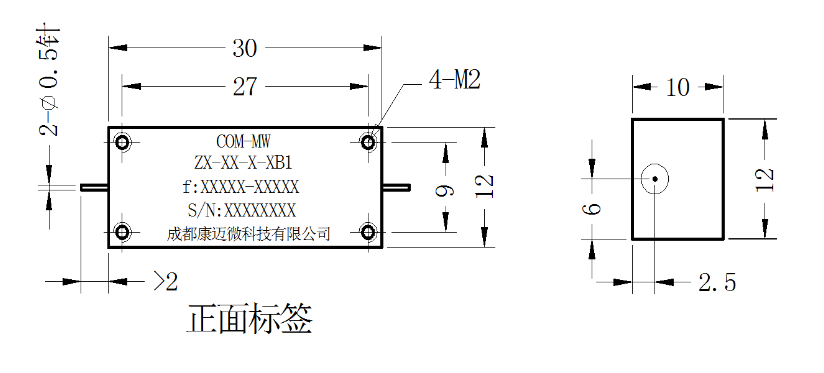

ZLPF3-L0-32-3787 Filter

Filter ZLPF3-L0-32-3787

PassbandDC~32MHz, 47-61MHz≥45dB, 61-200MHz≥63dB, Pin
View Details →

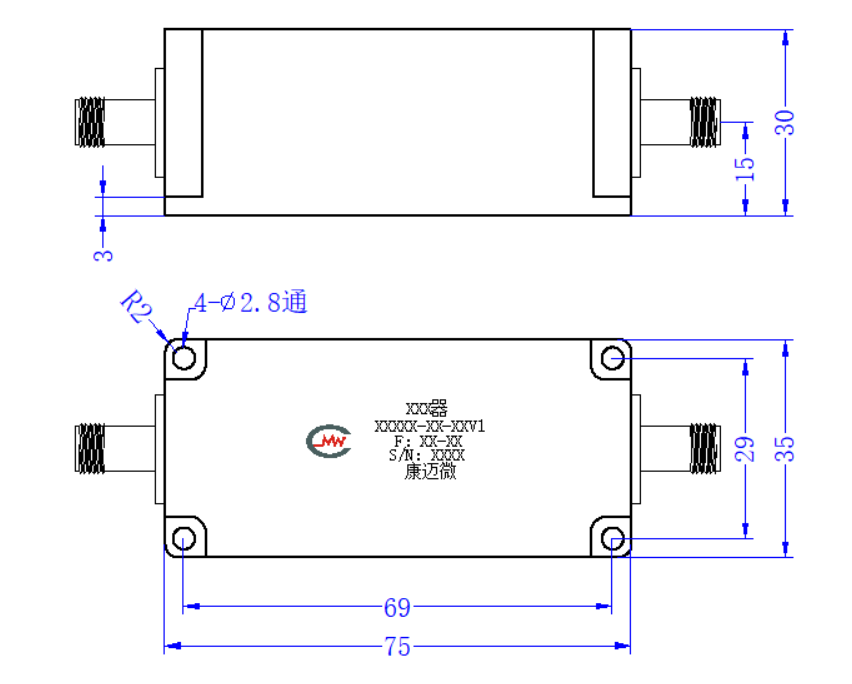

ZHPF13-L60-2200-2327 Filter

Filter ZHPF13-L60-2200-2327

Passband60~2200MHz, DC-40MHz≥63dB, 40-50MHz≥50dB, TNC
View Details →

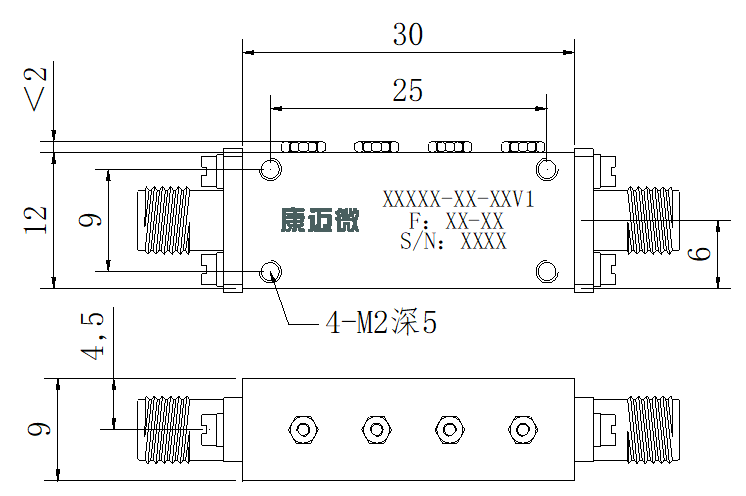

ZBF4-C7200-300-169 Filter

Filter ZBF4-C7200-300-169

Passband7050~7350MHz, DC-4000MHz≥65dBc, 9600-15000MHz≥65dBc, SMA
View Details →

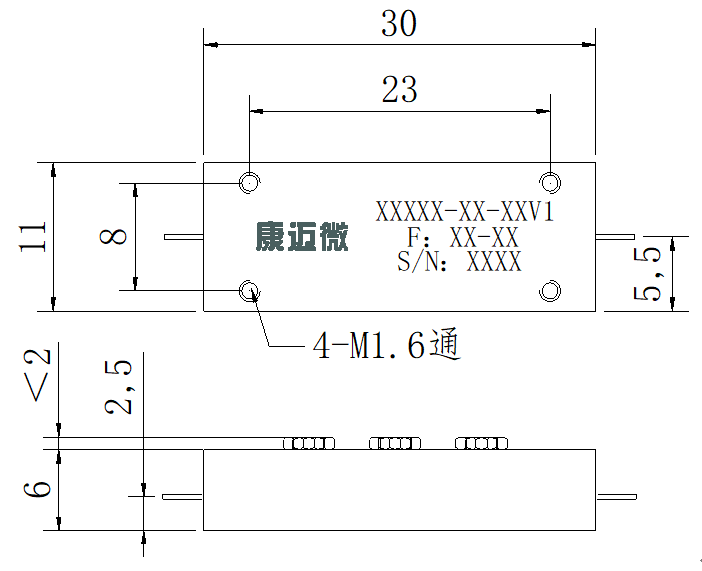

ZBF4-C33.2-0.02G-367 Filter

Filter ZBF4-C33.2-0.02G-367

Passband33.19~33.21GHz, DC-30GHz≥65dB, 34.2-43GHz≥55dB, Pin
View Details →

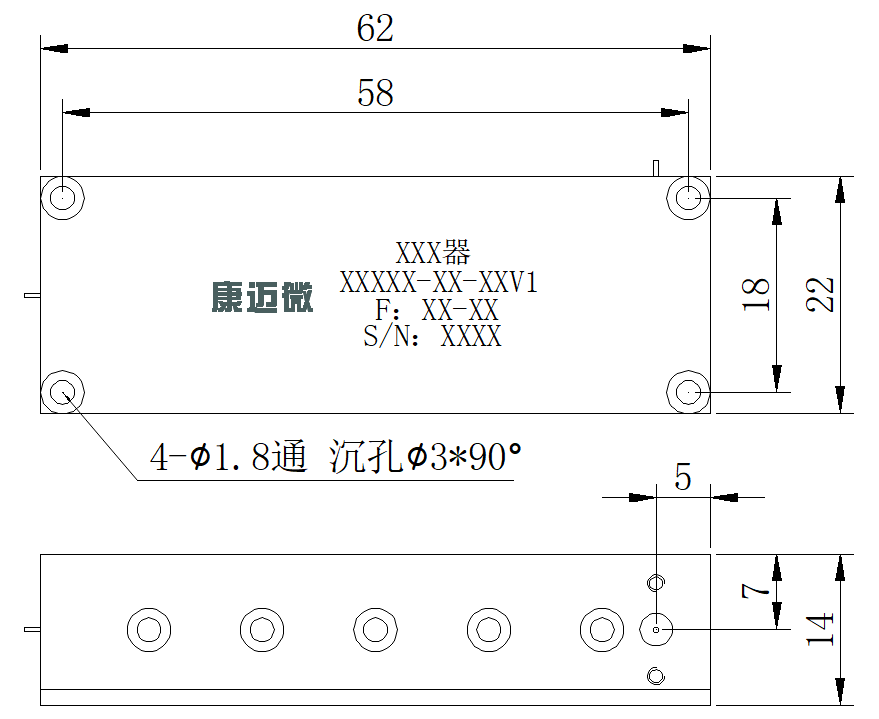

ZBF3-C1800-100-4193 Filter

Filter ZBF3-C1800-100-4193

Passband1750~1850MHz, 2200-3500MHz≥65dB, DC-1600MHz≥40dB, Pin
View Details →

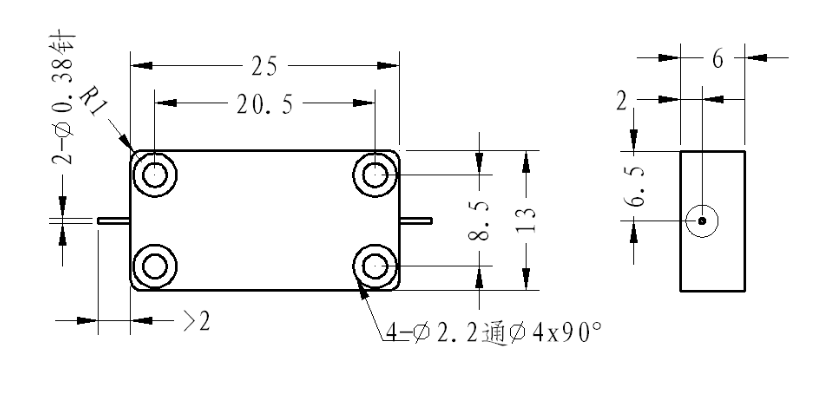

ZBF2-L1100-300-2723 Filter

Filter ZBF2-L1100-300-2723

Passband950~1250MHz, 400-800MHz≥65dBc, 1.5-4.5GHz≥65dBc, Pin
View Details →

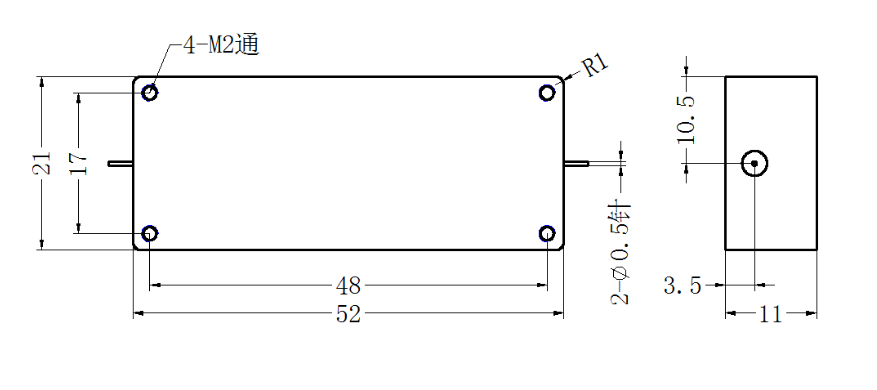

ZBF2-C3520-400-2239 Filter

Filter ZBF2-C3520-400-2239

Passband3320~3720MHz, DC-3.1GHz≥65dBc, 3.92-6GHz≥65dBc, Pin
View Details →

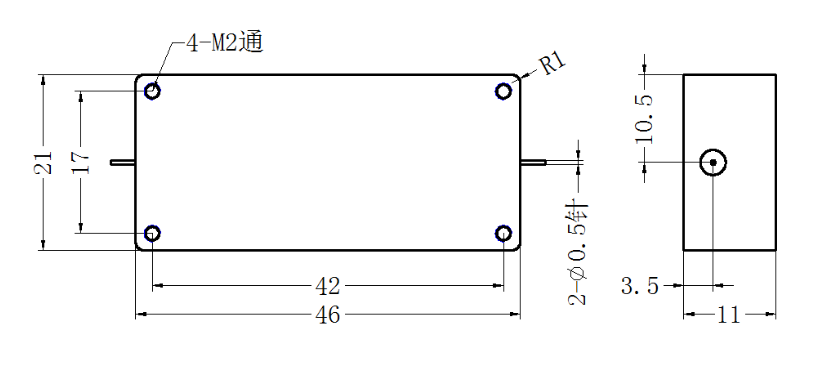

ZBF2-C3520-200-2240 Filter

Filter ZBF2-C3520-200-2240

Passband3420~3620MHz, DC-3.2GHz≥65dBc, 3820-6000MHz≥65dBc, Pin
View Details →

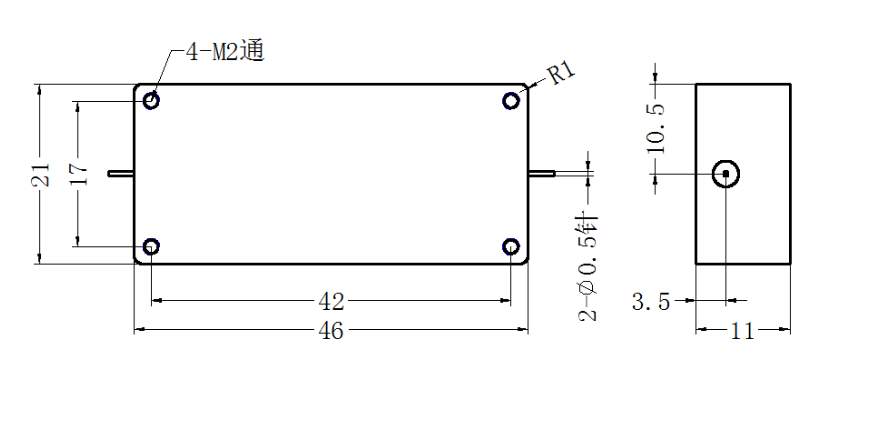

ZBF2-C3520-100-2241 Filter

Filter ZBF2-C3520-100-2241

Passband3470~3570MHz, DC-3.2GHz≥65dBc, 3820-6000MHz≥65dBc, Pin
View Details →
ZBF13-C7720-80-2887 Filter

Filter ZBF13-C7720-80-2887

Passband7.68~7.76GHz, F0±100MHz≥30dB, DC-7.42GHz≥63dBc, Pin
View Details →
ZBF13-C7720-80-2664 Filter

Filter ZBF13-C7720-80-2664

Passband7.68~7.76GHz, F0±100MHz≥35dB, DC-7.42GHz≥63dBc, Pin
View Details →
ZBF13-C7290-80-2665 Filter

Filter ZBF13-C7290-80-2665

Passband7.25~7.33GHz, F0±100MHz≥36dB, DC-7GHz≥63dBc, Pin
View Details →

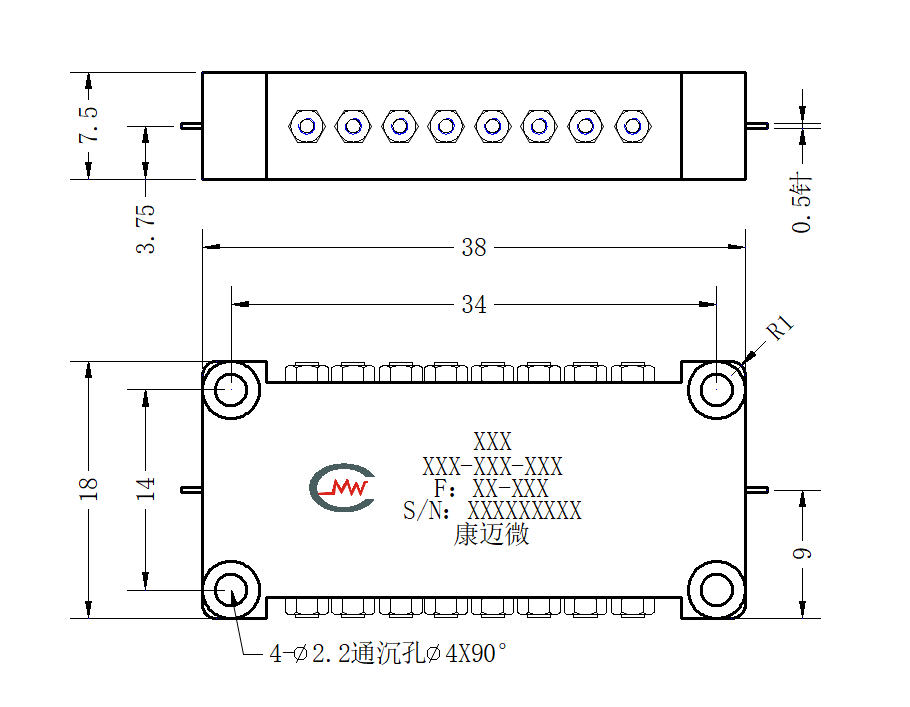

ZBF13-C5.25-2.5G-560 Filter

Filter ZBF13-C5.25-2.5G-560

Passband4~6.5GHz, DC-3.0GHz≥60dB, 7.5-13GHz≥62dB, Pin
View Details →

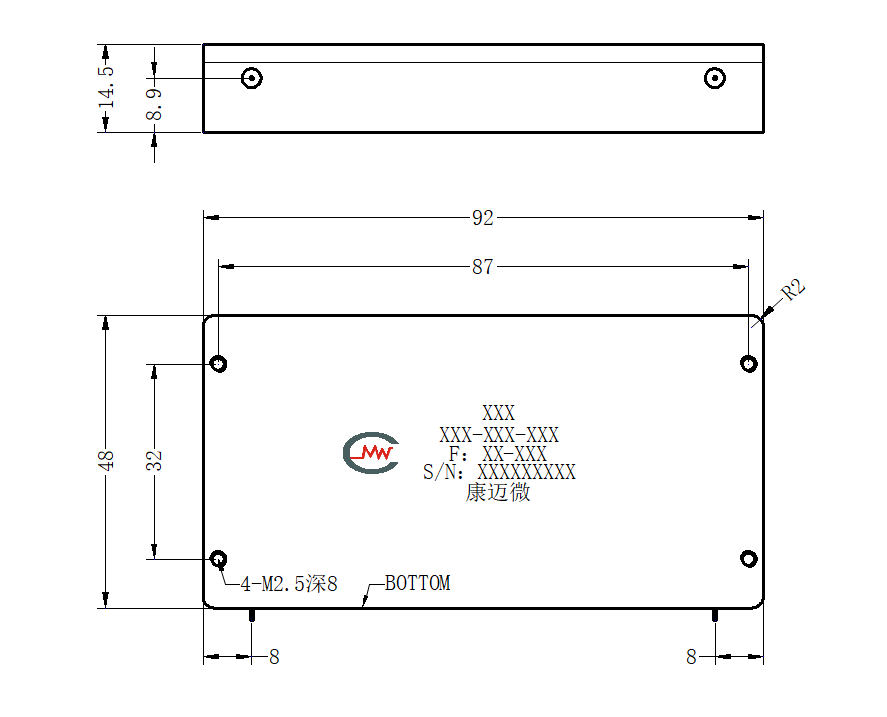

ZBF13-C4395-80-046 Filter

Filter ZBF13-C4395-80-046

Passband4355~4435MHz, DC-4325MHz≥62dBc, 4.465-5GHz≥62dBc, Pin
View Details →

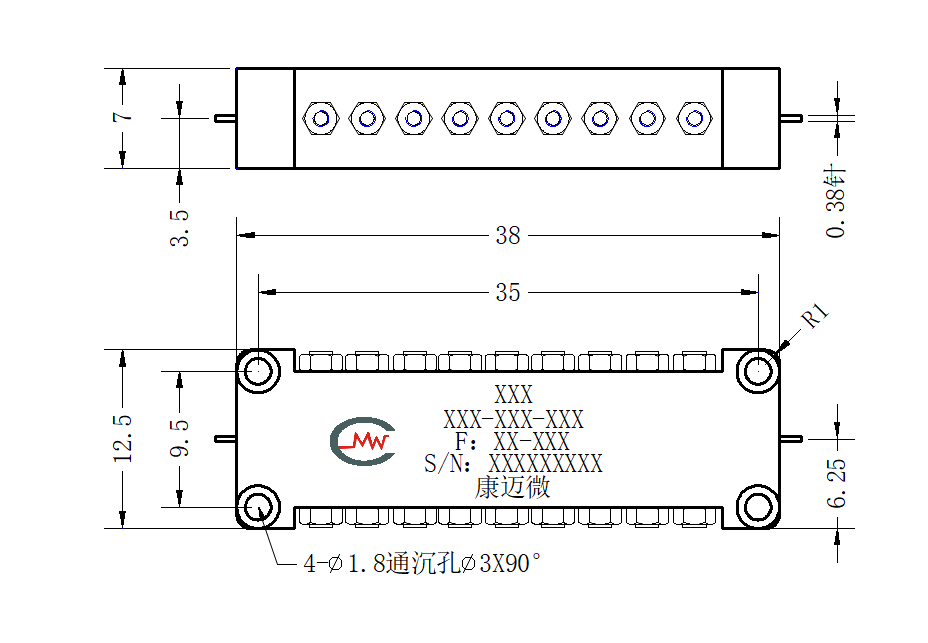

ZBF13-C10.25-2.5G-562 Filter

Filter ZBF13-C10.25-2.5G-562

Passband9~11.5GHz, DC-8GHz≥50dB, 12.5-24GHz≥62dB, Pin
View Details →

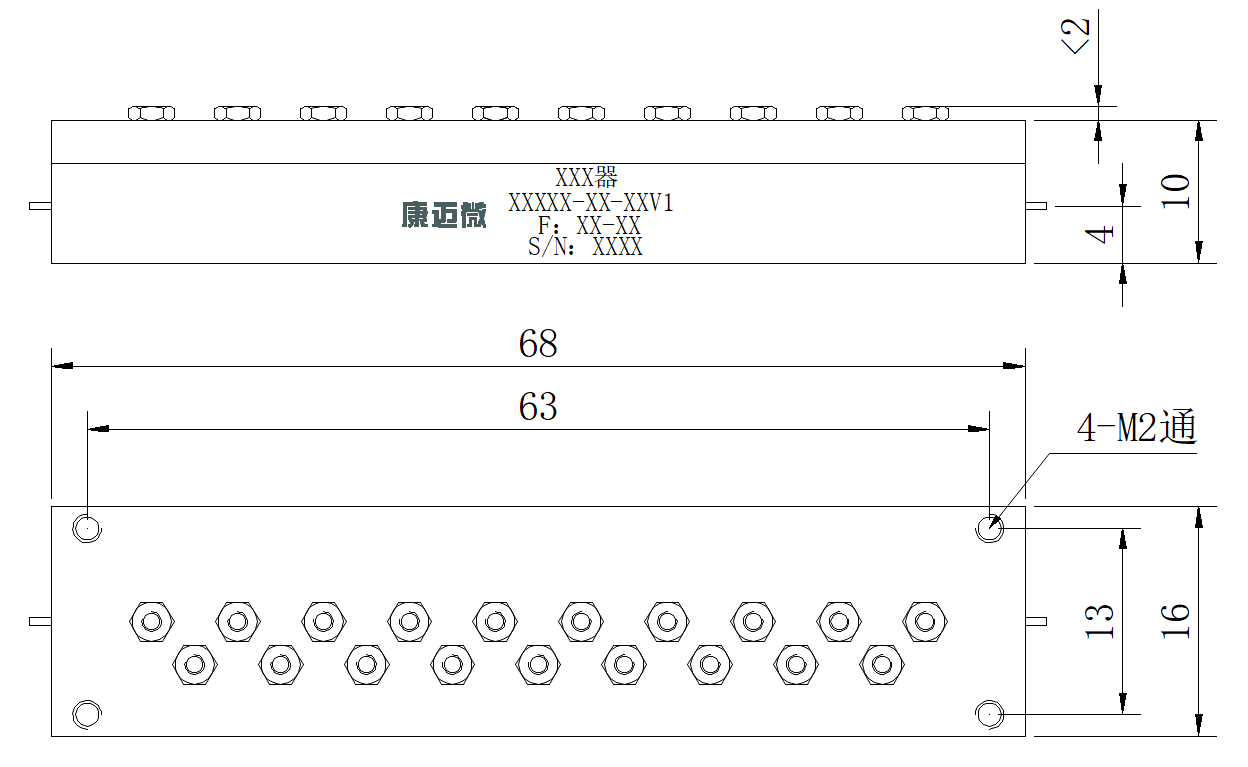

ZBF-C16-2.2G-1273A1 Filter

Filter ZBF-C16-2.2G-1273A1

Passband14900~17100MHz, 13500MHz≥63dB, DC-11100MHz≥80dB, 17300MHz≥10dB, 18000-25000MHz≥55dB, Pin
View Details →

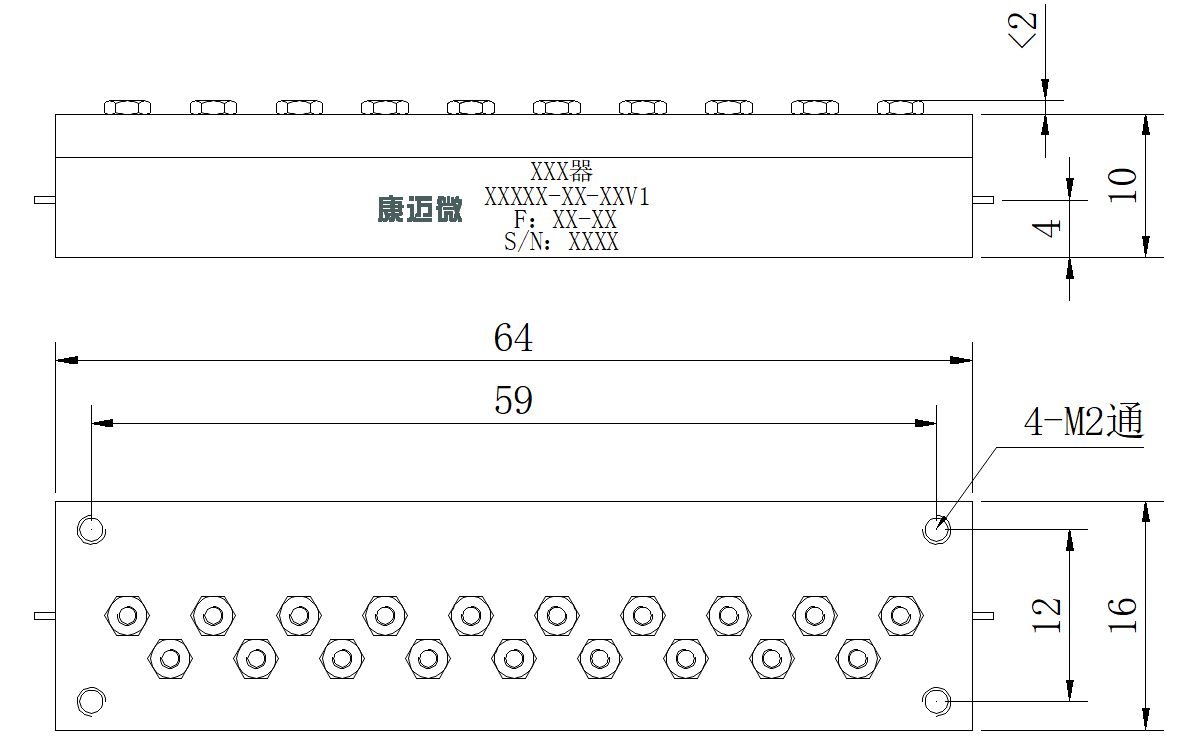

ZBF-C11-2.2G-1270A1 Filter

Filter ZBF-C11-2.2G-1270A1

Passband9900~12100MHz, 9700MHz≥10dB, DC-9200MHz≥45dB, 13500-14500MHz≥63dB, 15900-22000MHz≥55dB, Pin
View Details →

Filter UCFL62－60－6P2D

Passband60MHz, f0±40MHz≥65dBc, dB,
View Details →

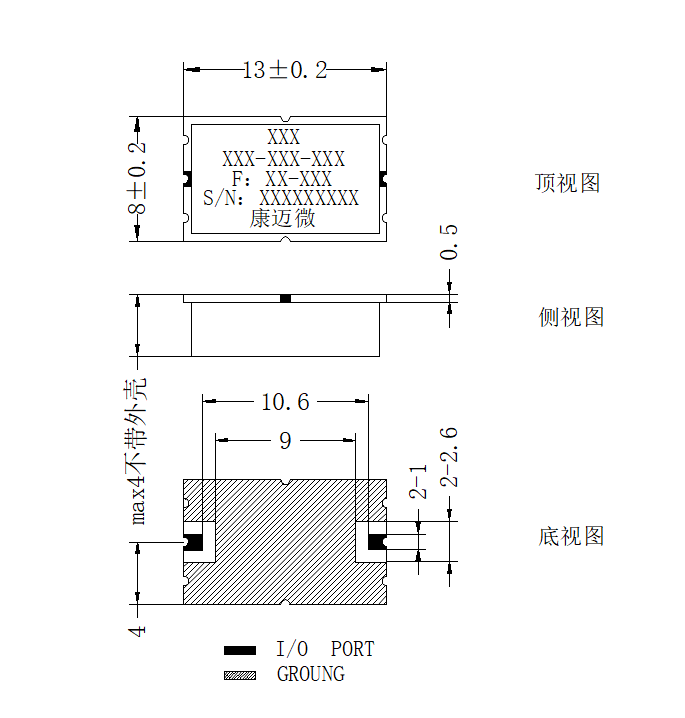

JBF-310X170-L Filter

Filter JBF-310X170-L

Passband225~395MHz, DC-150MHz≥62dB, 150-180MHz≥45dB, SMD
View Details →

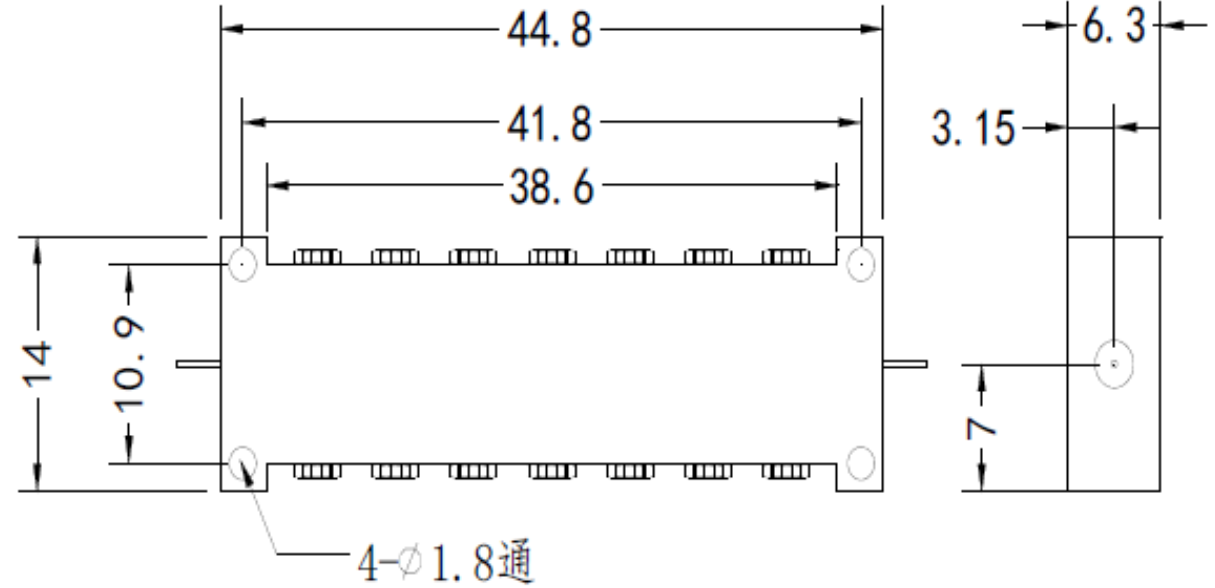

HBF-C16000-B1100MF0559 Filter

Filter HBF-C16000-B1100MF0559

Passband15450~16550MHz, 14838MHz≥62dBc, 17161MHz≥66dBc, SMA-K
View Details →

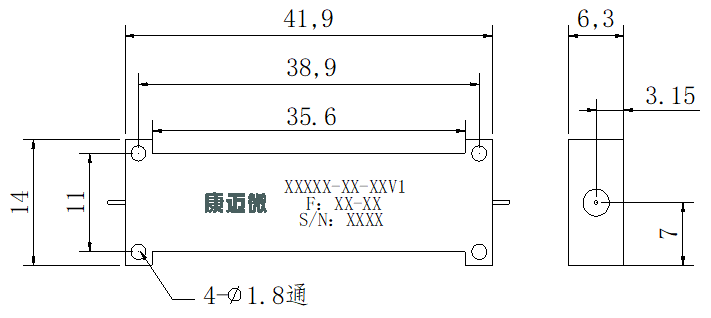

HBF-C10500-B1000 Filter

Filter HBF-C10500-B1000

Passband10000~11000MHz, DC-9500MHz≥64dBc, 11500-22050MHz≥63dBc, Pin
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
