Filters
Filters 1
Feature
Bandpass 30 low pass 10 Notch 1
F Low MHz
0 - 12 12 18 - 357 8 380 - 2200 7 2315 - 3925 10 5400 - 11800 4
–
Center frequency MHz
3 - 16 6 24.5 - 400 7 485 - 3000 7 3500 - 4050 7 5600 - 14900 3
–
F High MHz
5 - 31 8 90 - 490 8 520 - 2300 8 2350 - 3800 8 4175 - 18000 9
–
IL on center frequency dB
1 20 1.5 2 2 7 3 1
–
Maximum loss of side frequency dB
1.2 - 1.3 2 1.5 - 2 18 2.5 - 3 18 3.3 - 4 2 2500 1
–
Rejection dB
15 - 25 4 30 - 39.999 2 40 - 45 22 50 - 55 7 60 - 70 6
–
Connector
SMD 21 SMA 11 Microstrip pad 1 Microstrip needle 6 SMP 2
Power Handling
3 41
–
Filter type
LC 26 Cavity&waveguide 6 stripline 3 MEMS 1 Dielectric 4
Power Handling：3 - 3× Clear all
matches 41 models Default Newest
ZBF15-L11.5-5-787 Filter

Filter ZBF15-L11.5-5-787

Passband9~14MHz, ≥40dBcrectangle coefficient 2, dB, SMD
In Stock View Details →
ZBF9-D3575-40-2517 Filter

Filter ZBF9-D3575-40-2517

Passband3555~3595MHz, DC-3475MHz≥40dB, 3675-4300MHz≥40dB, SMD
In Stock View Details →
WLM026040K Filter

Filter WLM026040K

Passband2200~3800MHz, 1.55&4.8GHz≥30dB, 1.25&5.2GHz≥40dB, Microstrip pad, MEMS
In Stock View Details →
ZLPF15-L1-900-157 Filter

Filter ZLPF15-L1-900-157

PassbandDC~850MHz, 1300-1600MHz≥50dBc, 1600-4500MHz≥50dBc, 4.5-11GHz≥20dBc, dBc, SMA
In Stock View Details →
ZLPF15-L1-575-156 Filter

Filter ZLPF15-L1-575-156

PassbandDC~575MHz, 1000-2500MHz≥40dBc, 2500-4400MHz≥20dBc, dBc, dBc, SMA
In Stock View Details →
ZLPF15-L1-490-155 Filter

Filter ZLPF15-L1-490-155

PassbandDC~490MHz, 800-1500MHz≥60dBc, 1500-3000MHz≥46dBc, 3-8.5GHz≥17dBc, dBc, SMA
In Stock View Details →
ZBF3-D3640-80-3446 Filter

Filter ZBF3-D3640-80-3446

Passband3600~3680MHz, DC-3400MHz≥40dB, 3880-4500MHz≥40dB, SMD
View Details →
ZBF15-L300-200-2968 Filter

Filter ZBF15-L300-200-2968

Passband200~400MHz, DC-150MHz≥40dBc, 520-1200MHz≥40dBc, SMD
In Stock View Details →
ZBF15-L300-20-2965 Filter

Filter ZBF15-L300-20-2965

Passband290~310MHz, DC-245MHz≥40dBc, 355-1200MHz≥40dBc, SMD
In Stock View Details →
ZLPF15-L30-520-020 Filter

Filter ZLPF15-L30-520-020

Passband30~520MHz, 819.2-1700MHz≥70dBc, dB, SMD
View Details →
ZLPF15-L30-220-021 Filter

Filter ZLPF15-L30-220-021

Passband30~220, 819.2-2200MHz≥70dBc, dB, SMD
View Details →

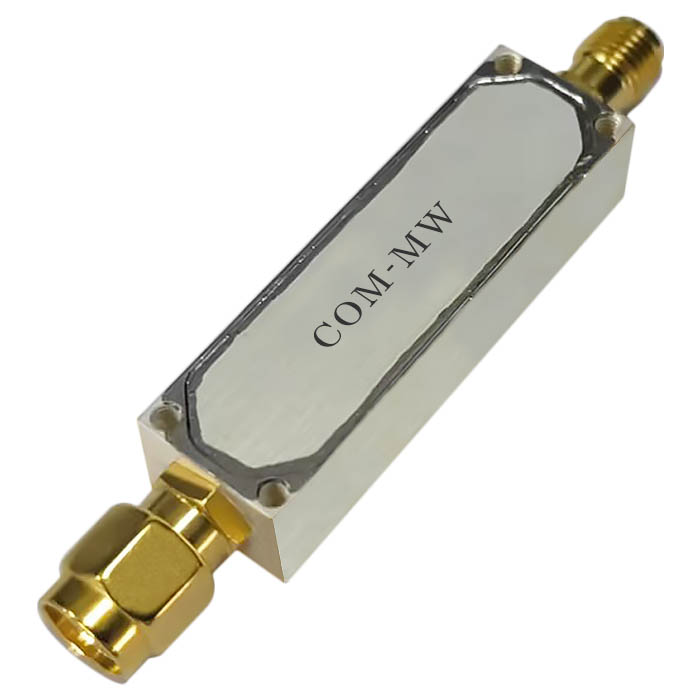

ZLPF15-L1-3500-160 Filter

Filter ZLPF15-L1-3500-160

PassbandDC~3500MHz, 4.8-5GHz≥35dBc, 5-8.5GHz≥45dBc, 8.5-15GHz≥25dBc, dBc, SMA
View Details →
ZLPF15-L1-30-790 Filter

Filter ZLPF15-L1-30-790

PassbandDC~30MHz, , 36MHz≥40dBc, SMD
View Details →
ZLPF15-L1-2250-159 Filter

Filter ZLPF15-L1-2250-159

PassbandDC~2250MHz, 2950-8000MHz≥40dBc, 8-15GHz≥26dBc, dBc, SMA
View Details →
ZLPF14-M6-10G-031 Filter

Filter ZLPF14-M6-10G-031

Passband6.4~10GHz, 12.8-25.6GHz≥40dBc, dB, SMA
View Details →

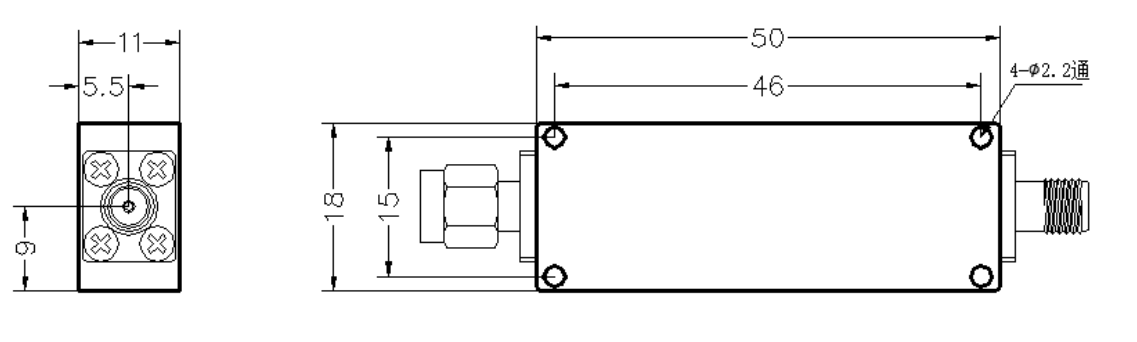

ZLPF14-M3200-6000-030 Filter

Filter ZLPF14-M3200-6000-030

Passband3.2~6GHz, 6.4-12.8GHz≥40dBc, dB, SMA
View Details →
ZBSF6-C2315-2350-3935 Filter

Filter ZBSF6-C2315-2350-3935

Stopband F2315~2350MHz, ≥45dB, PassbandDC~2300MHz, 2365~6000MHz, SMA
View Details →

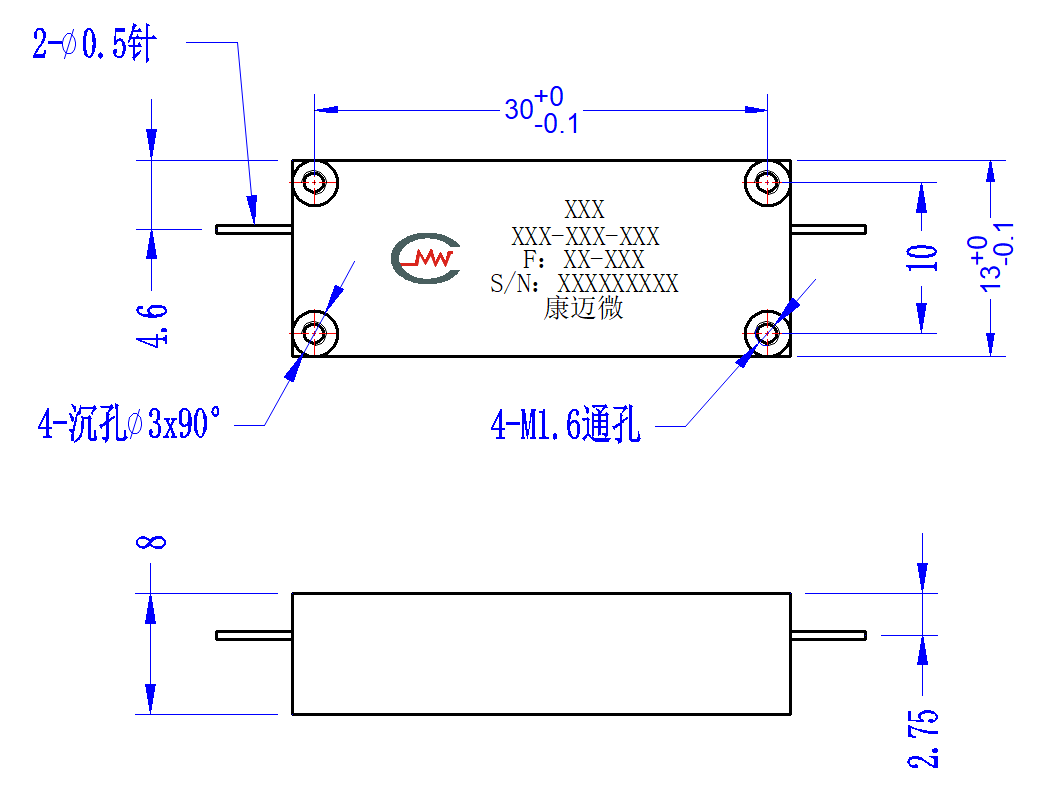

ZBF9-D4050-250-2314 Filter

Filter ZBF9-D4050-250-2314

Passband3925~4175MHz, DC-3500MHz≥55dBc, 4350-7000MHz≥45dB, Pin
View Details →
ZBF9-D3500-200-2069 Filter

Filter ZBF9-D3500-200-2069

Passband3400~3600MHz, 3320MHz≥15dB, 3680MHz≥15dB, SMD
View Details →
ZBF5-L310-20-1580 Filter

Filter ZBF5-L310-20-1580

Passband300~320MHz, DC-250MHz≥50dB, 370-440MHz≥50dB, Pin
View Details →
ZBF5-L1800-1000-3628 Filter

Filter ZBF5-L1800-1000-3628

Passband1300~2300MHz, DC-1200MHz≥25dB, 2400-4000MHz≥25dB, SMP
View Details →
ZBF5-C5600-400-2420 Filter

Filter ZBF5-C5600-400-2420

Passband5400~5800MHz, DC-4GHz≥70dB, 6.4-10GHz≥70dB, Pin
View Details →
ZBF5-C3.6-2G-3627 Filter

Filter ZBF5-C3.6-2G-3627

Passband2.6~4.6GHz, DC-2.4GHz≥25dB, 4.8-8GHz≥25dB, SMP
View Details →
ZBF2-C2350-500-1641 Filter

Filter ZBF2-C2350-500-1641

Passband2100~2600MHz, 1700-1750MHz≥40dBc, 2950-3100MHz≥40dBc, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
