Feature：Notch× Clear all
matches 2580 models Default Newest
ZBSF6-L75-75-4906 Filter

Filter ZBSF6-L75-75-4906

Stopband F75MHz, ≥40dB, PassbandDC~65MHz, 85~700MHz, SMA
View Details →
ZBSF6-L75-0-2805 Notch filter

Notch filter ZBSF6-L75-0-2805

Stopband F75MHz, ≥20dB, PassbandDC~63MHz, 85~1200MHz, SMA
View Details →
ZBSF6-L703-753-4764 Filter

Filter ZBSF6-L703-753-4764

Stopband F703~753MHz, ≥70dB, PassbandDC~653MHz, 806~2500MHz, SMA
View Details →
ZBSF6-L695-805-4617 Filter

Filter ZBSF6-L695-805-4617

Stopband F695~805MHz, ≥50dB, PassbandDC~495MHz, 1005~3500MHz, SMA
View Details →
ZBSF6-L663-698-4763 Filter

Filter ZBSF6-L663-698-4763

Stopband F663~698MHz, ≥70dB, PassbandDC~613MHz, 748~2500MHz, SMA
View Details →
ZBSF6-L617-960-5703 Filter

Filter ZBSF6-L617-960-5703

Stopband F617~960MHz, ≥50dB, PassbandDC~537MHz, 1040~3500MHz, SMA
View Details →
ZBSF6-L6.765-6.795-5364 Filter

Filter ZBSF6-L6.765-6.795-5364

Stopband F6.765~6.795MHz, ≥50dB, PassbandDC~4MHz, 9~30MHz, N
View Details →
ZBSF6-L6-9-4916 Filter

Filter ZBSF6-L6-9-4916

Stopband F6~9MHz, ≥40dB, PassbandDC~3.5MHz, 12~100MHz, SMA
View Details →

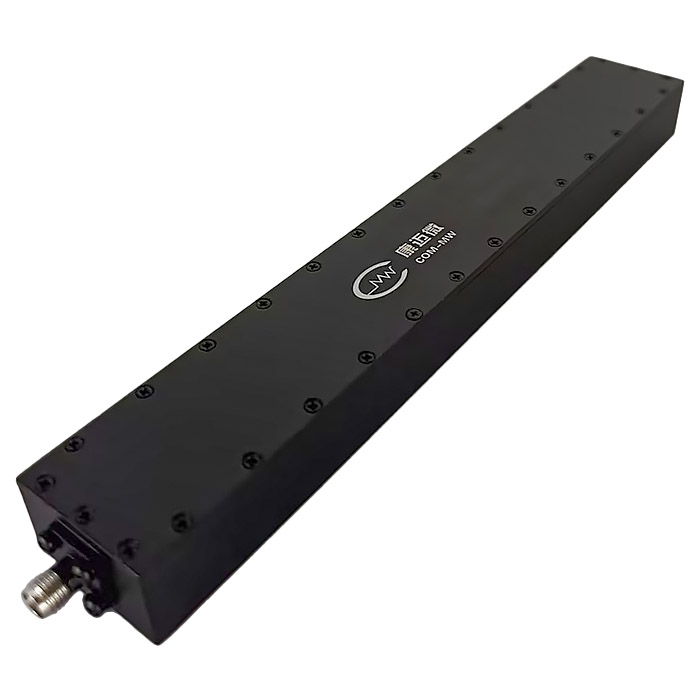

ZBSF6-L500-500-4785 Filter

Filter ZBSF6-L500-500-4785

Stopband F500MHz, ≥65dB, PassbandDC~450MHz, 550~2000MHz, SMA
View Details →
ZBSF6-L476.4-496.4-4644 Filter

Filter ZBSF6-L476.4-496.4-4644

Stopband F476.4~496.4MHz, ≥50dB, PassbandDC~435MHz, 540~1000MHz, SMA
View Details →
ZBSF6-L467-469-6081 Filter

Filter ZBSF6-L467-469-6081

Stopband F467~469MHz, ≥65dB, PassbandDC~437MHz, 499~1000MHz, SMA
View Details →

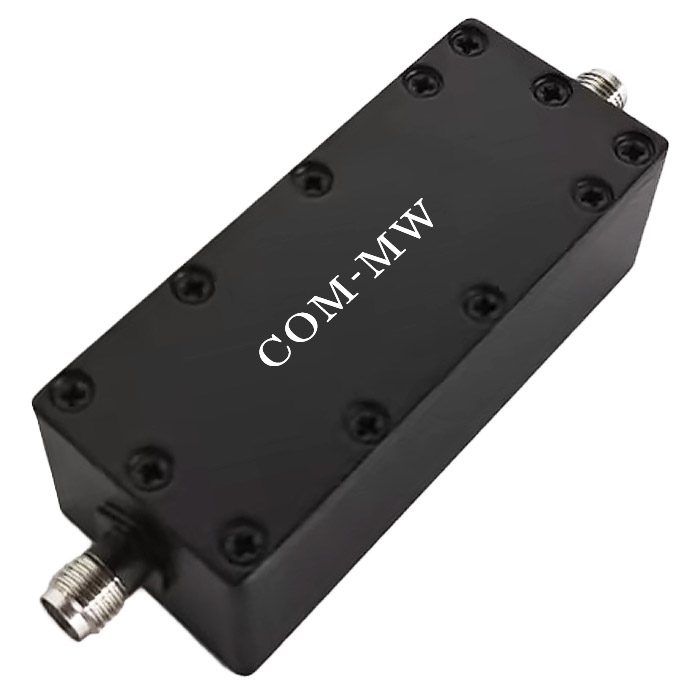

ZBSF6-L457-459-6080 Filter

Filter ZBSF6-L457-459-6080

Stopband F457~459MHz, ≥65dB, PassbandDC~427MHz, 489~1000MHz, SMA
View Details →

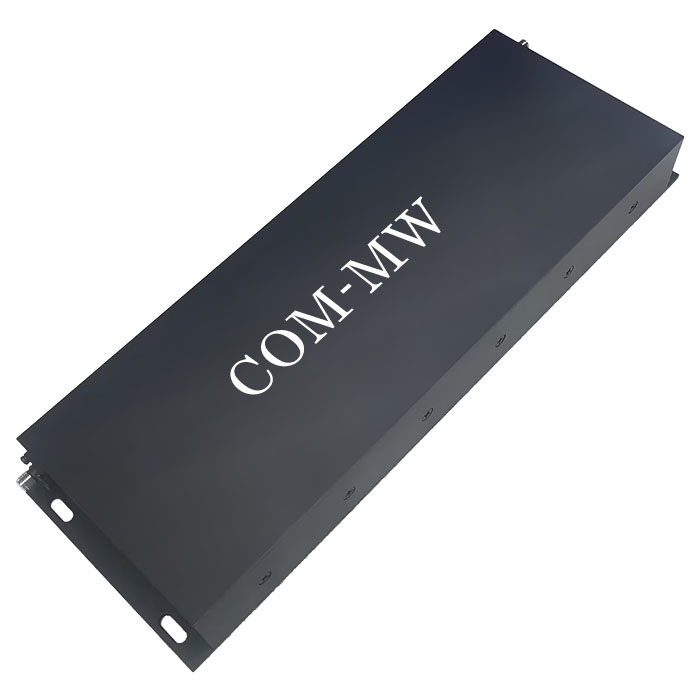

ZBSF6-L452.5-457.5-1544 Filter

Filter ZBSF6-L452.5-457.5-1544

Stopband F452.5~457.5MHz, ≥40dB, PassbandDC~449.5MHz, 460.5~1000MHz, SMA
View Details →
ZBSF6-L433-433-6123 Filter

Filter ZBSF6-L433-433-6123

Stopband F433MHz, ≥40dB, PassbandDC~428MHz, 438~1000MHz, SMA
View Details →
ZBSF6-L432.9-434.9-4767 Filter

Filter ZBSF6-L432.9-434.9-4767

Stopband F432.9~434.9MHz, ≥50dB, PassbandDC~402.9MHz, 464.9~1000MHz, SMA
View Details →
ZBSF6-L403-423.5-6079 Filter

Filter ZBSF6-L403-423.5-6079

Stopband F403~423.5MHz, ≥65dB, PassbandDC~373MHz, 453~1000MHz, SMA
View Details →
ZBSF6-L4-6-4897 Filter

Filter ZBSF6-L4-6-4897

Stopband F4~6MHz, ≥40dB, PassbandDC~2.5MHz, 8~100MHz, SMA
View Details →
ZBSF6-L330-430-6151 Filter

Filter ZBSF6-L330-430-6151

Stopband F330~430MHz, ≥50dB, PassbandDC~300MHz, 460~1500MHz, SMA
View Details →
ZBSF6-L312-316-4616 Filter

Filter ZBSF6-L312-316-4616

Stopband F312~316MHz, ≥50dB, PassbandDC~282MHz, 346~1200MHz, SMA
View Details →
ZBSF6-L300-320-4762 Filter

Filter ZBSF6-L300-320-4762

Stopband F300~320MHz, ≥60dB, PassbandDC~250MHz, 370~1000MHz, SMA
View Details →
ZBSF6-L300-320-4643 Filter

Filter ZBSF6-L300-320-4643

Stopband F300~320MHz, ≥50dB, PassbandDC~265MHz, 360~1000MHz, SMA
View Details →
ZBSF6-L300-300-4783 Filter

Filter ZBSF6-L300-300-4783

Stopband F300MHz, ≥65dB, PassbandDC~270MHz, 330~1000MHz, SMA
View Details →
ZBSF6-L206.1-209.1-5179 Filter

Filter ZBSF6-L206.1-209.1-5179

Stopband F206.1~209.1MHz, ≥40dB, PassbandDC~190MHz, 225~1000MHz, SMA
View Details →
ZBSF6-L2.8-4-4896 Filter

Filter ZBSF6-L2.8-4-4896

Stopband F2.8~4MHz, ≥40dB, PassbandDC~1.5MHz, 5.6~100MHz, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
