Feature：Notch× Clear all
matches 2580 models Default Newest

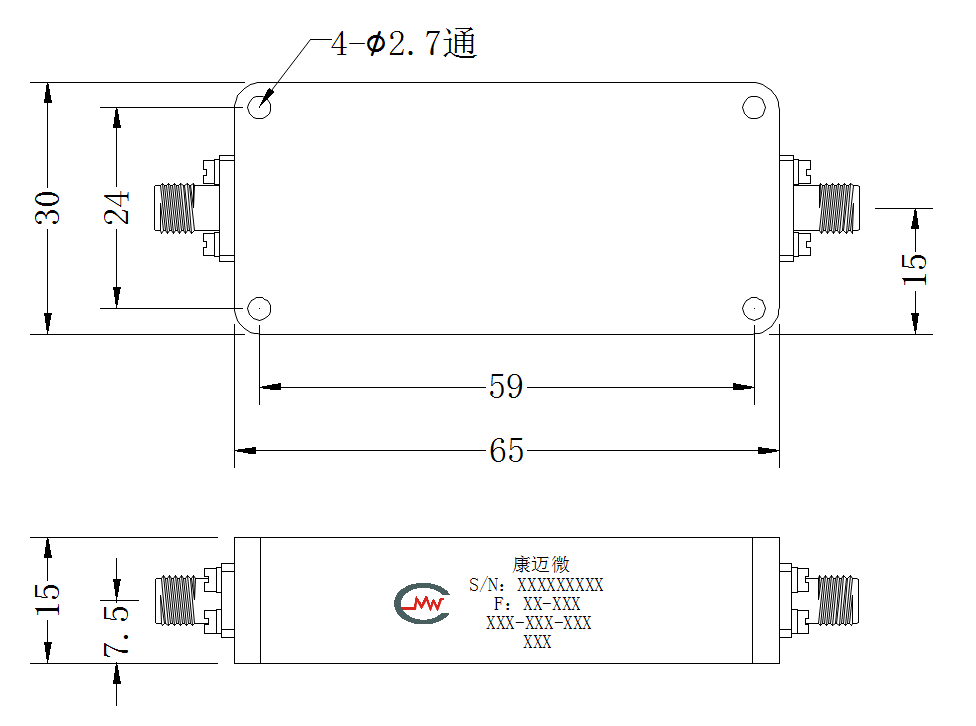

ZBSF6-M4780-5000-6052 Filter

Filter ZBSF6-M4780-5000-6052

Stopband F4780~5000MHz, ≥25dB, PassbandDC~4500MHz, 5300~18000MHz, SMA
View Details →
ZBSF6-M3400-3600-5084 Filter

Filter ZBSF6-M3400-3600-5084

Stopband F3400~3600MHz, ≥35dBc, Passband3650~8500MHz, ~MHz, Pin
View Details →

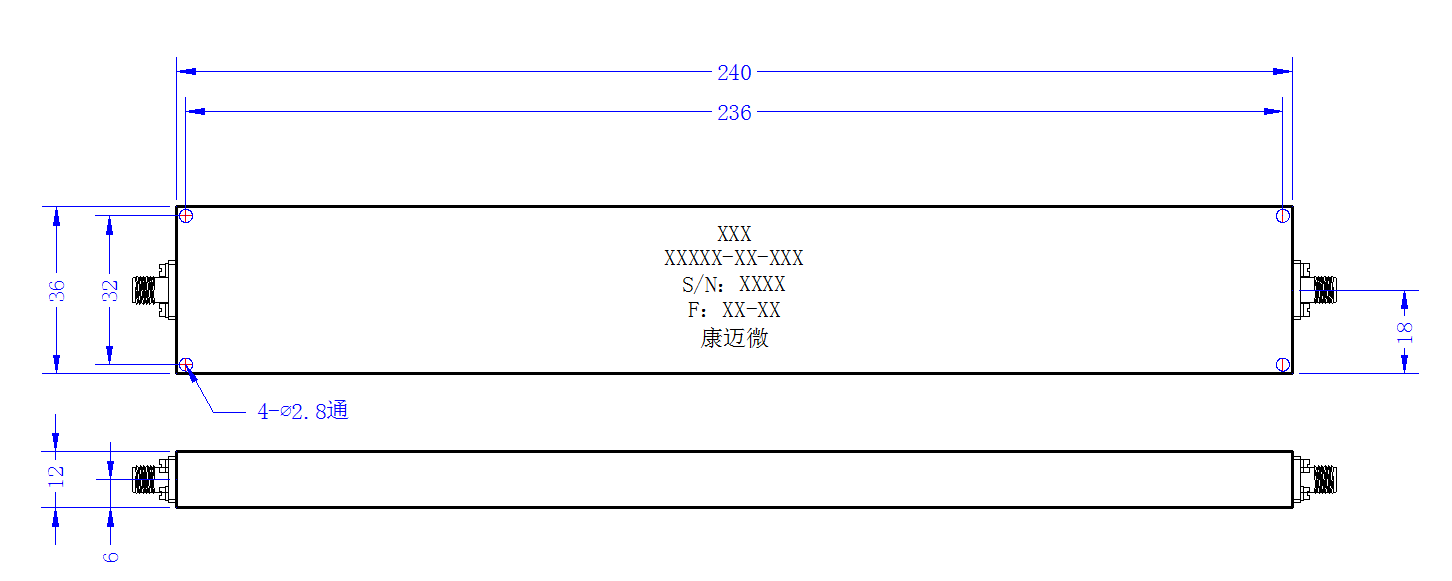

ZBSF6-M3300-4200-3047 Filter

Filter ZBSF6-M3300-4200-3047

Stopband F3300~4200MHz, ≥40dB, PassbandDC~3050MHz, 4450~12600MHz, SMA
View Details →
ZBSF6-M3300-3800-3046 Filter

Filter ZBSF6-M3300-3800-3046

Stopband F3300~3800MHz, ≥40dB, PassbandDC~3150MHz, 3950~11400MHz, SMA
View Details →
ZBSF6-M3234-3468-3627 Filter

Filter ZBSF6-M3234-3468-3627

Stopband F3234~3468MHz, ≥50dB, PassbandDC~2954MHz, 3748~12000MHz, SMA
View Details →
ZBSF6-M2700-2900-5701 Filter

Filter ZBSF6-M2700-2900-5701

Stopband F2700~2900MHz, ≥60dB, PassbandDC~2500MHz, 3100~16000MHz, N
View Details →
ZBSF6-M26.5-29.5G-5572 Filter

Filter ZBSF6-M26.5-29.5G-5572

Stopband F26.5~29.5GHz, ≥45dB, PassbandDC~24GHz, 31~40GHz, 2.92
View Details →
ZBSF6-M2400-2483.5-2990 Filter

Filter ZBSF6-M2400-2483.5-2990

Stopband F2400~2483.5MHz, ≥40dB, PassbandDC~2340MHz, 2543.5~8000MHz, SMA
View Details →

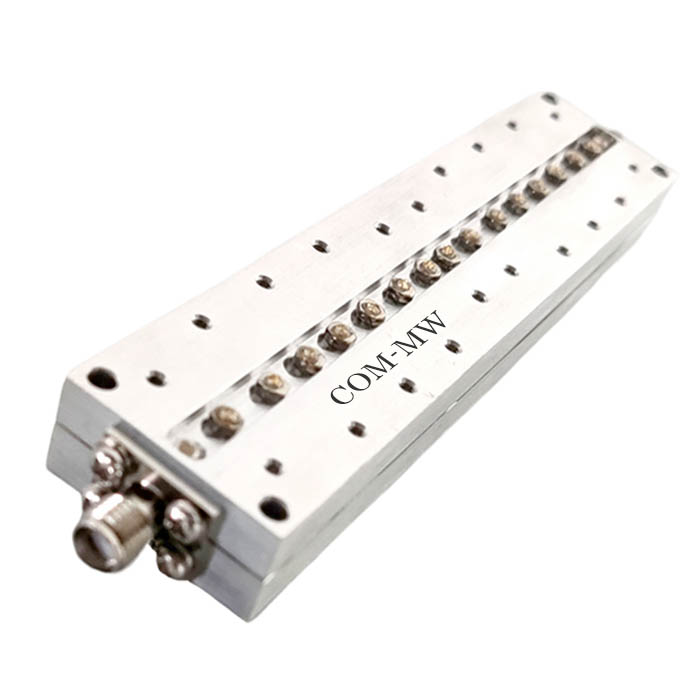

ZBSF6-M2400-2483-5376 Filter

Filter ZBSF6-M2400-2483-5376

Stopband F2400~2483MHz, ≥80dB, PassbandDC~2200MHz, 2683~10000MHz, SMA
View Details →
ZBSF6-M24.989-25.011G-4603 Filter

Filter ZBSF6-M24.989-25.011G-4603

Stopband F24.989~25.011GHz, ≥60dB, PassbandDC~24.7GHz, 25.3~40GHz, 2.92
View Details →
ZBSF6-M24.25-27.5G-5574 Filter

Filter ZBSF6-M24.25-27.5G-5574

Stopband F24.25~27.5GHz, ≥45dB, PassbandDC~22.45GHz, 29.3~40GHz, 2.92
View Details →

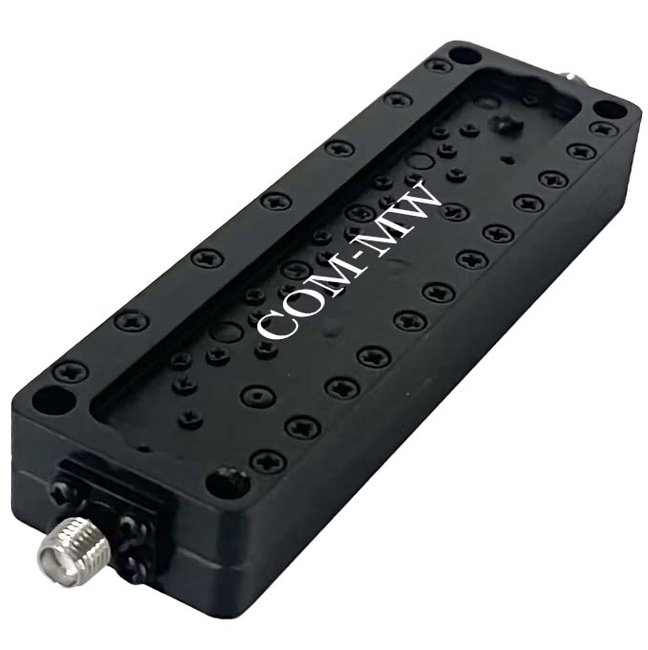

ZBSF6-M2208-2240-5431 Filter

Filter ZBSF6-M2208-2240-5431

Stopband F2208~2240MHz, ≥70dB, PassbandDC~2000MHz, 2400~12000MHz, SMA
View Details →
ZBSF6-M18.25-18.75G-4602 Filter

Filter ZBSF6-M18.25-18.75G-4602

Stopband F18.25~18.75GHz, ≥60dB, PassbandDC~17.65GHz, 19.35~30GHz, 2.92
View Details →
ZBSF6-M17.3-20.2G-5964 Filter

Filter ZBSF6-M17.3-20.2G-5964

Stopband F17.3~20.2GHz, ≥40dB, PassbandDC~16.435GHz, 21.065~30GHz, 2.92
View Details →

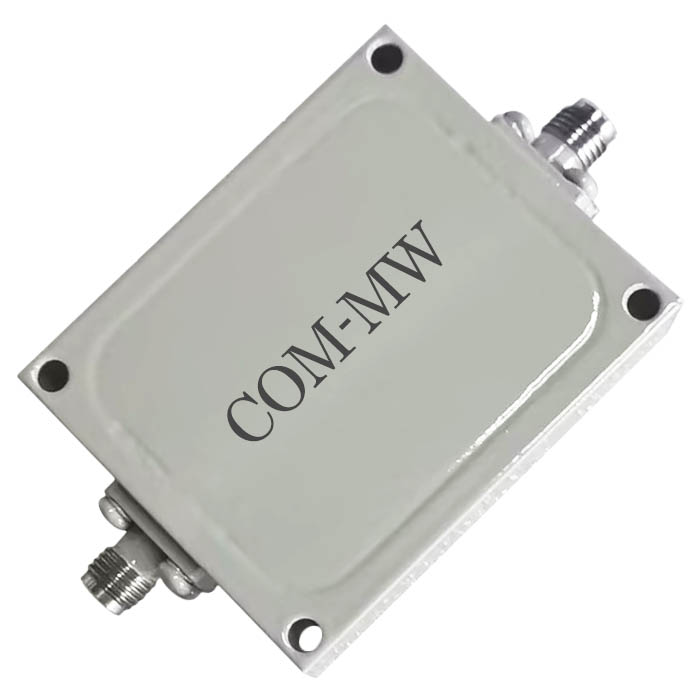

ZBSF6-M15.08-15.42-5318 带阻频选模块

带阻频选模块 ZBSF6-M15.08-15.42-5318

Stopband F15.08~15.42GHz, ≥dB, Passband2~14.65GHz, 15.9~18GHz, SMA
View Details →

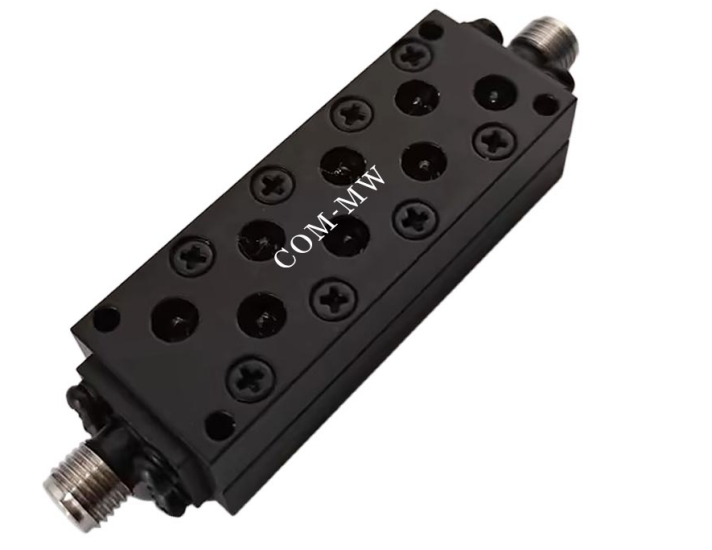

ZBSF6-M14-14.5G-5357 Filter

Filter ZBSF6-M14-14.5G-5357

Stopband F14~14.5GHz, ≥35dB, PassbandDC~13.5GHz, 15~18GHz, SMA
View Details →

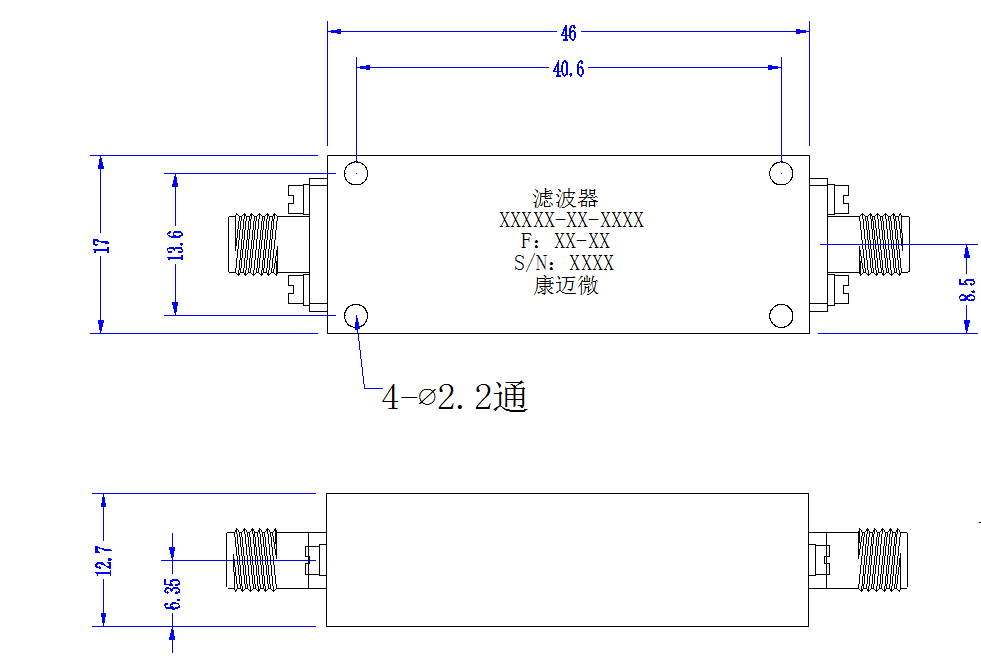

ZBSF6-M14-14.5G-2421 Filter

Filter ZBSF6-M14-14.5G-2421

Stopband F14~14.5GHz, ≥60dB, Passband2~13.4GHz, 15.1~18GHz, SMA
View Details →

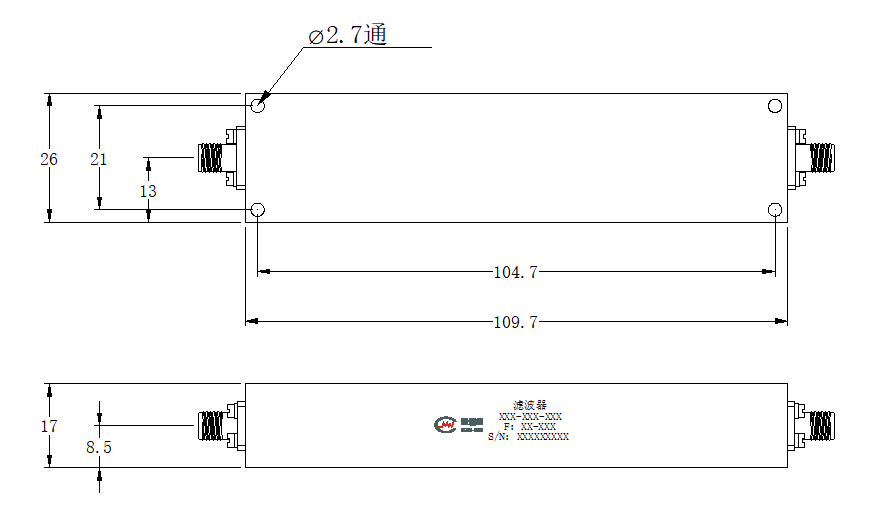

ZBSF6-M13-13.8G-5797 Filter

Filter ZBSF6-M13-13.8G-5797

Stopband F13~13.8GHz, ≥60dB, PassbandDC~12.5GHz, 14.3~20GHz, SMA
View Details →

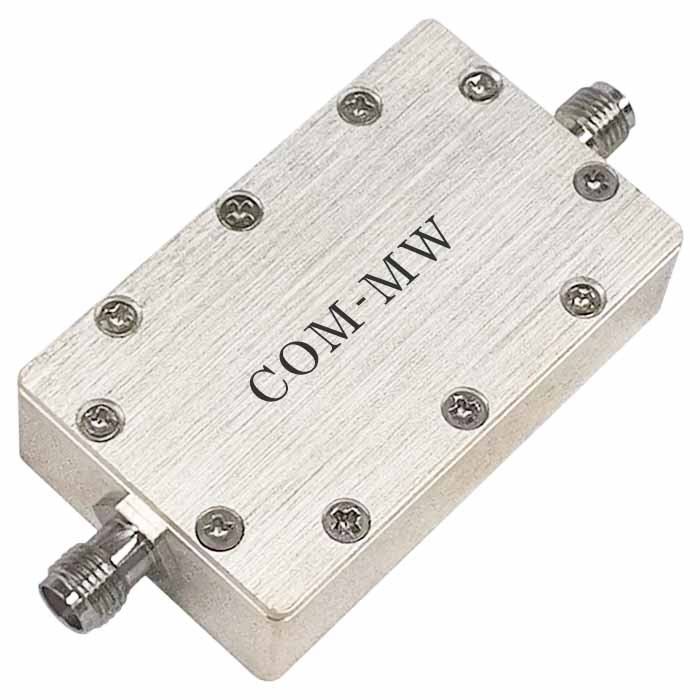

ZBSF6-L97.1-99.1-5178 Filter

Filter ZBSF6-L97.1-99.1-5178

Stopband F97.1~99.1MHz, ≥40dB, PassbandDC~90MHz, 108~1000MHz, SMA
View Details →
ZBSF6-L9-14-4917 Filter

Filter ZBSF6-L9-14-4917

Stopband F9~14MHz, ≥40dB, PassbandDC~6MHz, 18~100MHz, SMA
View Details →
ZBSF6-L851-870-6153 Filter

Filter ZBSF6-L851-870-6153

Stopband F851~870MHz, ≥50dB, PassbandDC~775MHz, 945~4000MHz, SMA
View Details →
ZBSF6-L807-849-4766 Filter

Filter ZBSF6-L807-849-4766

Stopband F807~849MHz, ≥70dB, PassbandDC~757MHz, 899~2600MHz, SMA
View Details →

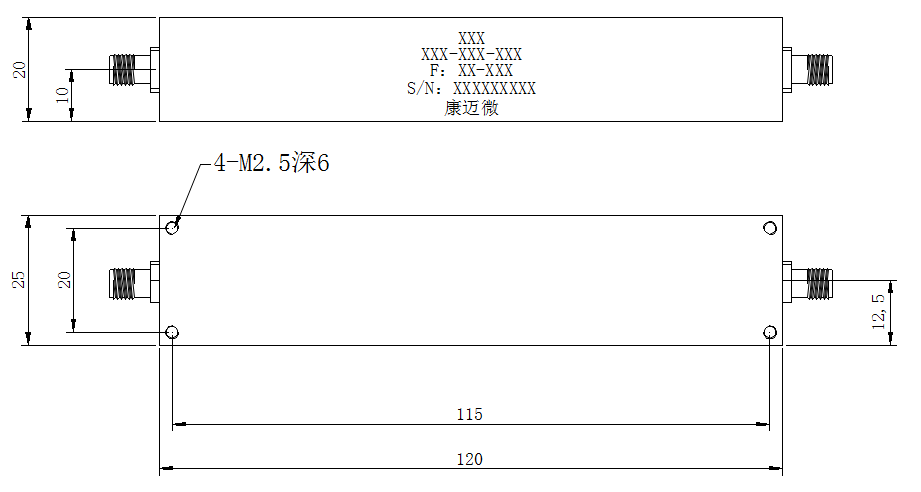

ZBSF6-L806-825-6152 Filter

Filter ZBSF6-L806-825-6152

Stopband F806~825MHz, ≥50dB, PassbandDC~730MHz, 900~4000MHz, SMA
View Details →
ZBSF6-L777-803-4765 Filter

Filter ZBSF6-L777-803-4765

Stopband F777~803MHz, ≥70dB, PassbandDC~727MHz, 853~2600MHz, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
