Filters
Filters 1
Feature
Bandpass 10733 low pass 1153 Highpass 622 Notch 2580
F Low MHz
2.8 - 728 362 729 - 1228 440 1238 - 1980 471 1995 - 4280 829 4300 - 33400 478
–
Center frequency MHz
10 - 433.9 17 435 - 1450 20 1500 - 2535 22 2595 - 4800 21 4950 - 22000 14
–
F High MHz
4 - 743 307 746 - 1341 493 1400 - 2000 440 2010 - 3965 796 4000 - 36000 544
–
IL on center frequency dB
0.6 - 1 5 1.2 - 2 7 2.5 - 3 4
–
Maximum loss of side frequency dB
0.5 - 0.8 11 1 - 1.5 134 1.8 - 2.6 842 3 - 4 1544 4.5 - 8 49
–
Rejection dB
11 - 25 31 27 - 39.999 103 40 - 55 1577 59 - 80 852 90 - 110 17
–
Connector
Other 12 SMD 23 SMA 1630 N 826 2.92 8 2.4 1 Microstrip pad 6 Microstrip needle 54 Waveguide 1 SMP 5 SSMA 1
Power Handling
0.1 - 5 289 10 - 40 527 50 - 110 1387 120 - 250 361 300 - 800 15
–
Filter type
LC 319 Cavity&waveguide 2130 stripline 115 Thin film 6 Manually adjustable 6
Feature：Notch× Clear all
matches 2580 models Default Newest
K6-1830-1880-15N60150-004 Filter

Filter K6-1830-1880-15N60150-004

Stopband F1830~1880MHz, ≥60dB, PassbandDC~1815MHz, 1895~6000MHz, N
In Stock View Details →
K6-1432-1517-10N50100-002 Filter

Filter K6-1432-1517-10N50100-002

Stopband F1432~1517MHz, ≥50dB, PassbandDC~1422MHz, 1527~4000MHz, N
In Stock View Details →

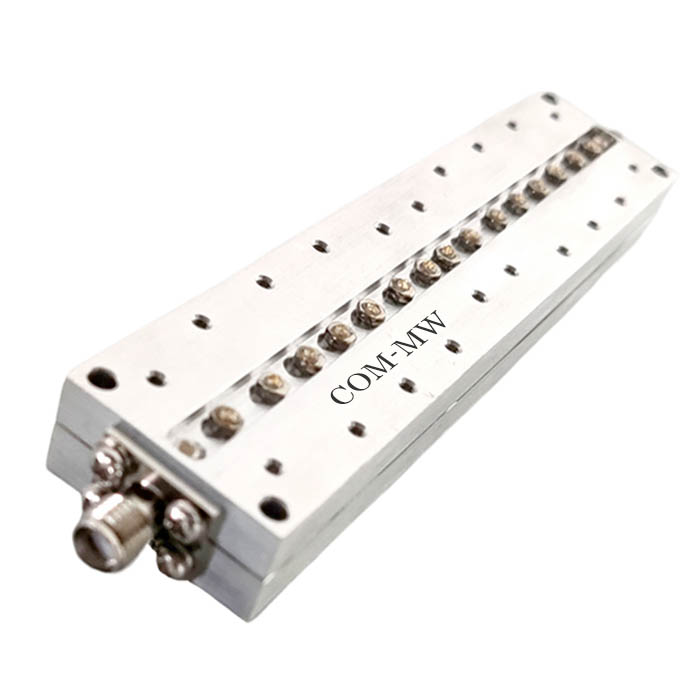

ZBSF6-M5425-5875-6060 Filter

Filter ZBSF6-M5425-5875-6060

Stopband F5425~5875MHz, ≥40dB, PassbandDC~5275MHz, 6025~18000MHz, SMA
In Stock View Details →
ZBSF6-C934-949-3736 Filter

Filter ZBSF6-C934-949-3736

Stopband F934~949MHz, ≥60dB, PassbandDC~926MHz, 957~3000MHz, N
In Stock View Details →

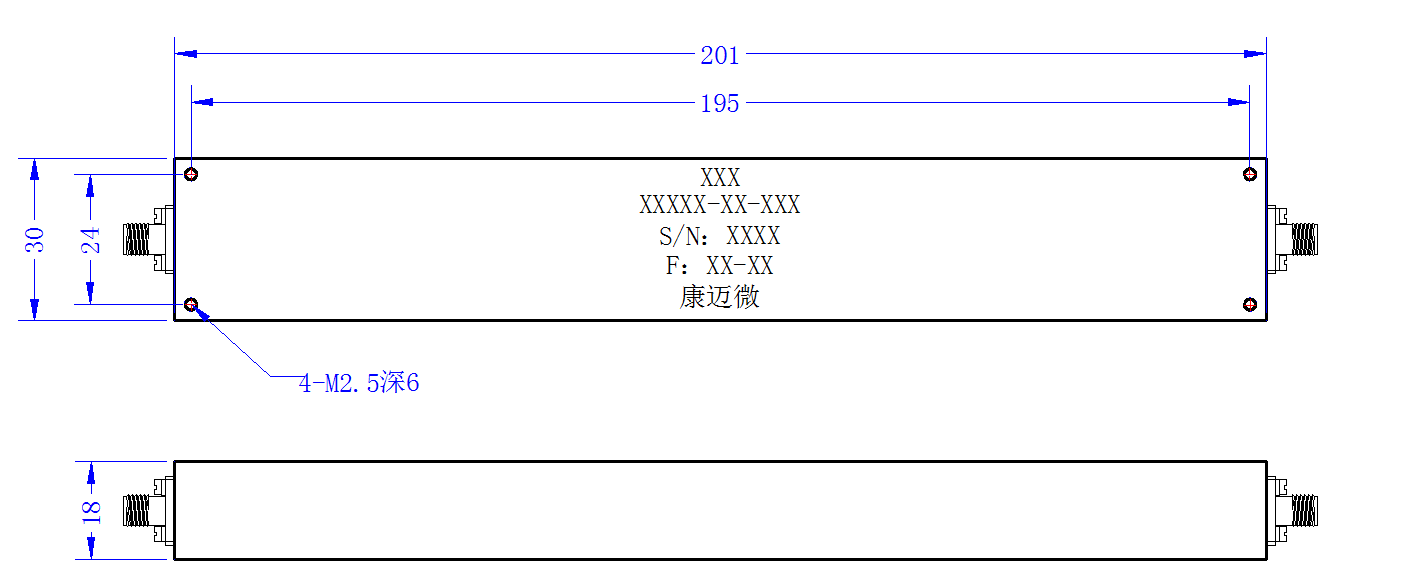

ZBSF6-C890-960-2930 Filter

Filter ZBSF6-C890-960-2930

Stopband F890~960MHz, ≥50dB, PassbandDC~860MHz, 990~4000MHz, SMA
In Stock View Details →
ZBSF6-C889-904-3735 Filter

Filter ZBSF6-C889-904-3735

Stopband F889~904MHz, ≥60dB, PassbandDC~881MHz, 912~3000MHz, N
In Stock View Details →

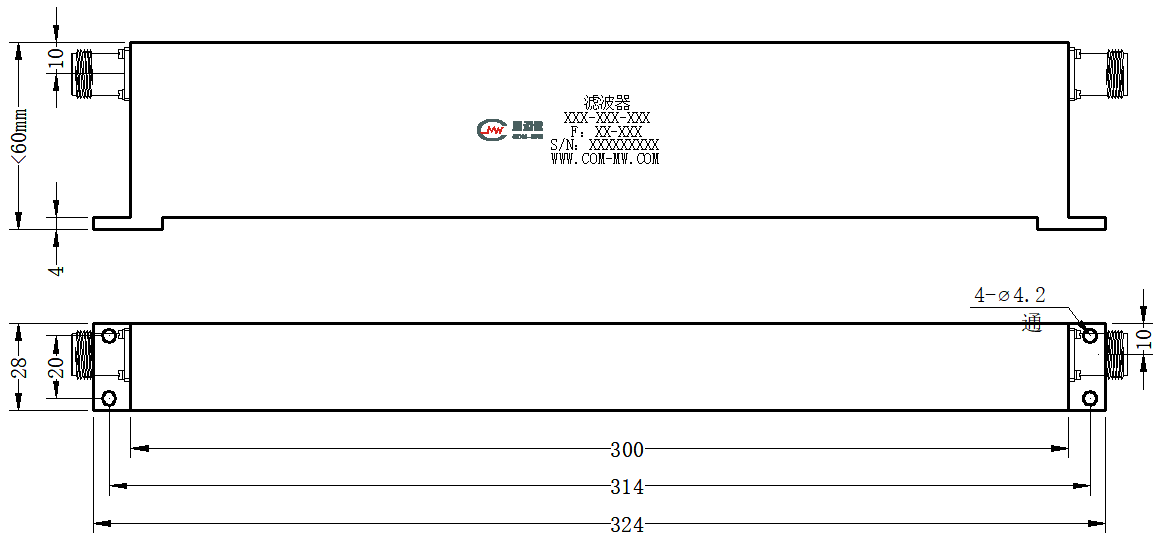

ZBSF6-C663-698-3375 Filter

Filter ZBSF6-C663-698-3375

Stopband F663~698MHz, ≥50dB, PassbandDC~643MHz, 718~2000MHz, N
In Stock View Details →

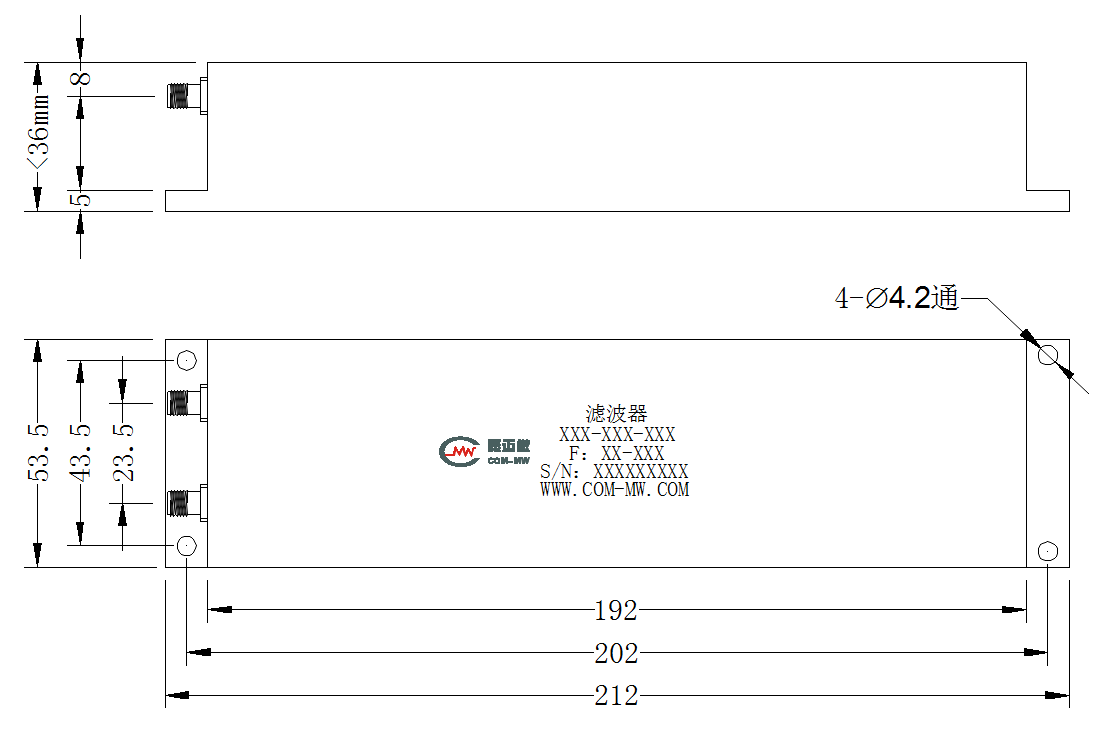

ZBSF6-C5470-5725-1190-8G Notch

Notch ZBSF6-C5470-5725-1190-8G

Stopband F5470~5725MHz, ≥45dB, PassbandDC~5430MHz, 5765~8000MHz, SMA
In Stock View Details →
ZBSF6-C5150-5850-2557 Filter

Filter ZBSF6-C5150-5850-2557

Stopband F5150~5850MHz, ≥60dB, PassbandDC~5050MHz, 5950~10000MHz, SMA
In Stock View Details →
ZBSF6-C4890-5010-337 Filter

Filter ZBSF6-C4890-5010-337

Stopband F4890~5010MHz, ≥50dB, PassbandDC~4870MHz, 5030~6000MHz, SMA
In Stock View Details →
ZBSF6-C4650-4770-333 Filter

Filter ZBSF6-C4650-4770-333

Stopband F4650~4770MHz, ≥50dB, PassbandDC~4630MHz, 4790~6000MHz, SMA
In Stock View Details →

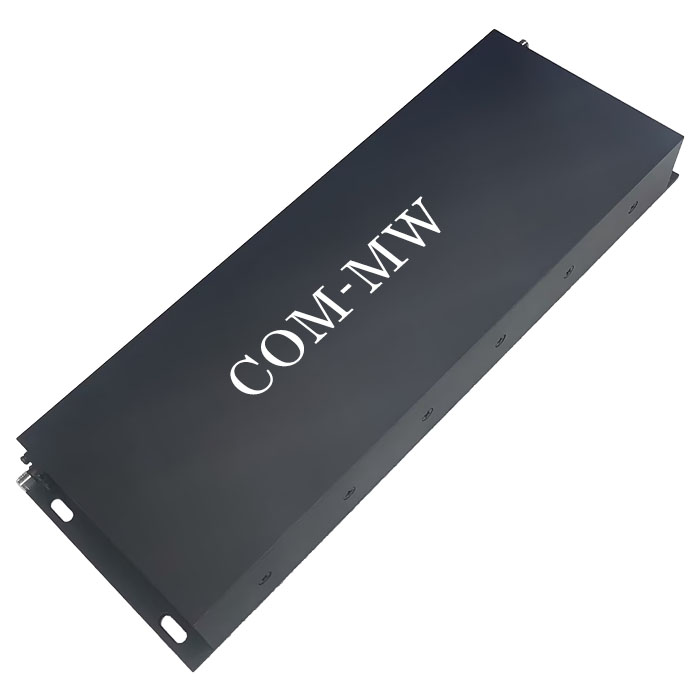

ZBSF6-C452.5-457.5-1457 Filter

Filter ZBSF6-C452.5-457.5-1457

Stopband F452.5~457.5MHz, ≥60dB, PassbandDC~447.5MHz, 462.5~1200MHz, SMA
In Stock View Details →

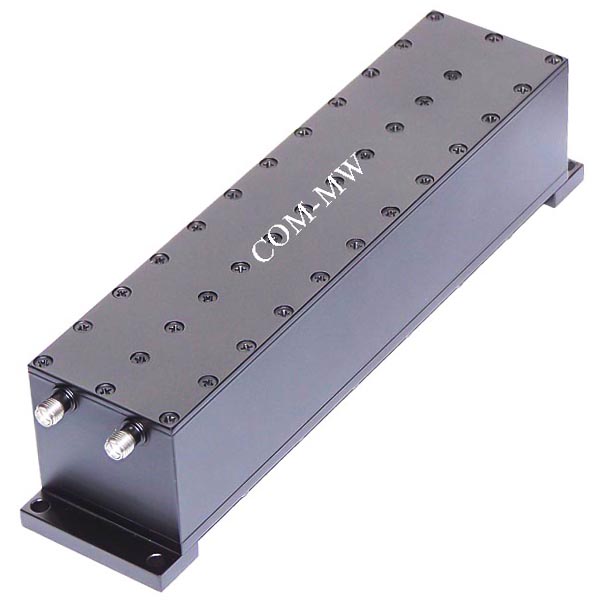

ZBSF6-C4390-4510-336 Filter

Filter ZBSF6-C4390-4510-336

Stopband F4390~4510MHz, ≥50dB, PassbandDC~4370MHz, 4530~6000MHz, SMA
In Stock View Details →
ZBSF6-C3690-3810-335 Filter

Filter ZBSF6-C3690-3810-335

Stopband F3690~3810MHz, ≥50dB, PassbandDC~3675MHz, 3825~6000MHz, SMA
In Stock View Details →
ZBSF6-C3490-3610-331 Filter

Filter ZBSF6-C3490-3610-331

Stopband F3490~3610MHz, ≥50dB, PassbandDC~3475MHz, 3625~6000MHz, SMA
In Stock View Details →

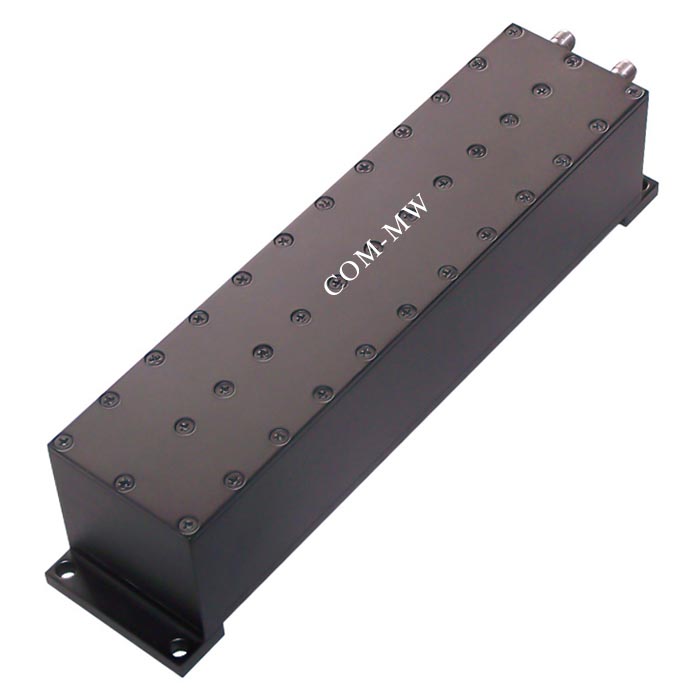

ZBSF6-C3290-3410-334 Filter

Filter ZBSF6-C3290-3410-334

Stopband F3290~3410MHz, ≥50dB, PassbandDC~3275MHz, 3425~6000MHz, SMA
In Stock View Details →
ZBSF6-C2600-2680-5876 Filter

Filter ZBSF6-C2600-2680-5876

Stopband F2600~2680MHz, ≥50dB, PassbandDC~2590MHz, 2690~6000MHz, N
In Stock View Details →
ZBSF6-C1980-2010-3447 Filter

Filter ZBSF6-C1980-2010-3447

Stopband F1980~2010MHz, ≥60dB, PassbandDC~1970MHz, 2020~6000MHz, SMA
In Stock View Details →
ZBSF6-C1885-1915-4895 Filter

Filter ZBSF6-C1885-1915-4895

Stopband F1885~1915MHz, ≥60dB, PassbandDC~1875MHz, 1925~6000MHz, SMA
In Stock View Details →
ZBSF6-C1785-1805-1209 Filter

Filter ZBSF6-C1785-1805-1209

Stopband F1785~1805MHz, ≥60dB, PassbandDC~1775MHz, 1815~4000MHz, SMA
In Stock View Details →

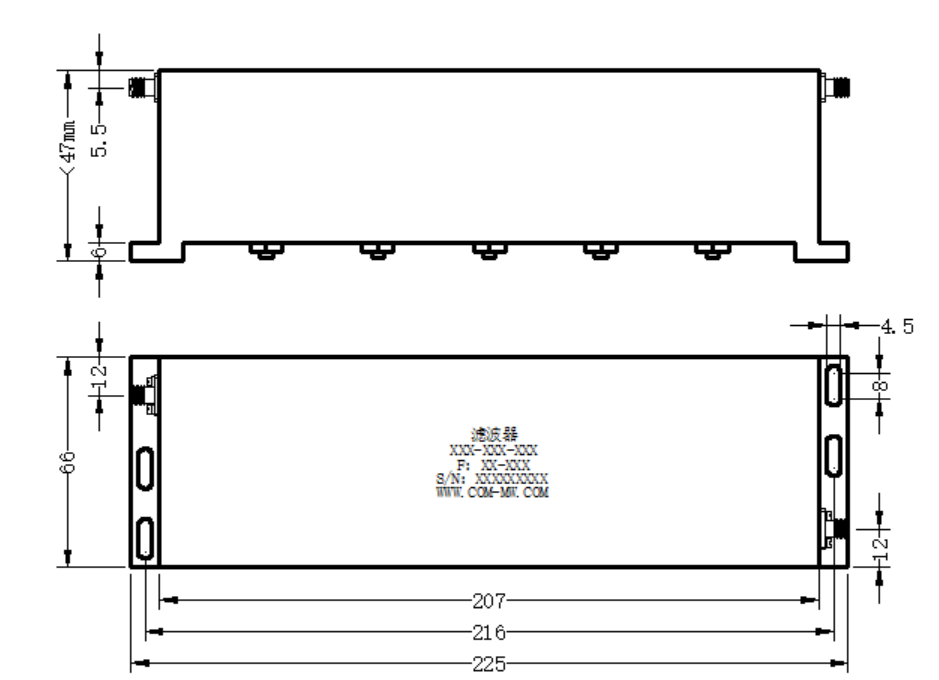

ZBSF6-C1710-1880-2543 Notch filter

Notch filter ZBSF6-C1710-1880-2543

Stopband F1710~1880MHz, ≥50dB, PassbandDC~1670MHz, 1930~4000MHz, SMA
In Stock View Details →

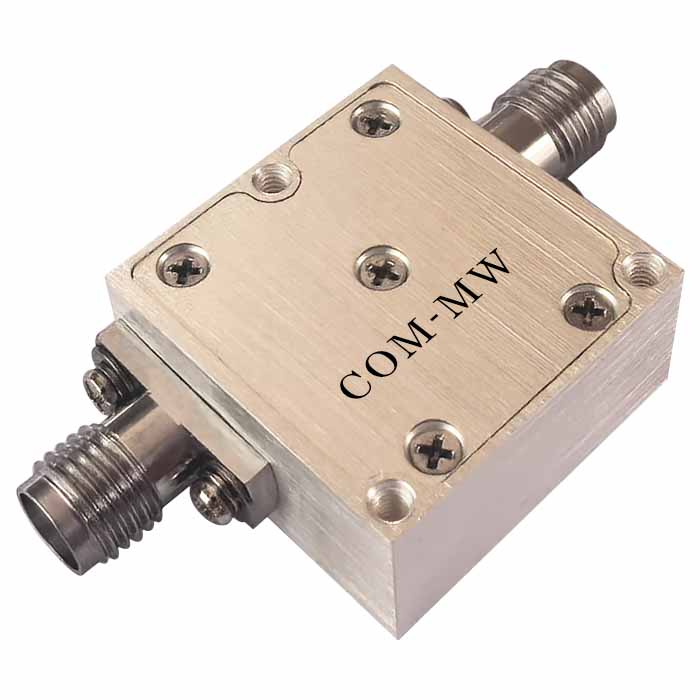

ZBSF5-L2.4-2.6G-3738 Filter

Filter ZBSF5-L2.4-2.6G-3738

Stopband F2.4~2.6GHz, ≥50dB, PassbandDC~2.17GHz, 2.9~18GHz, SMA
In Stock View Details →

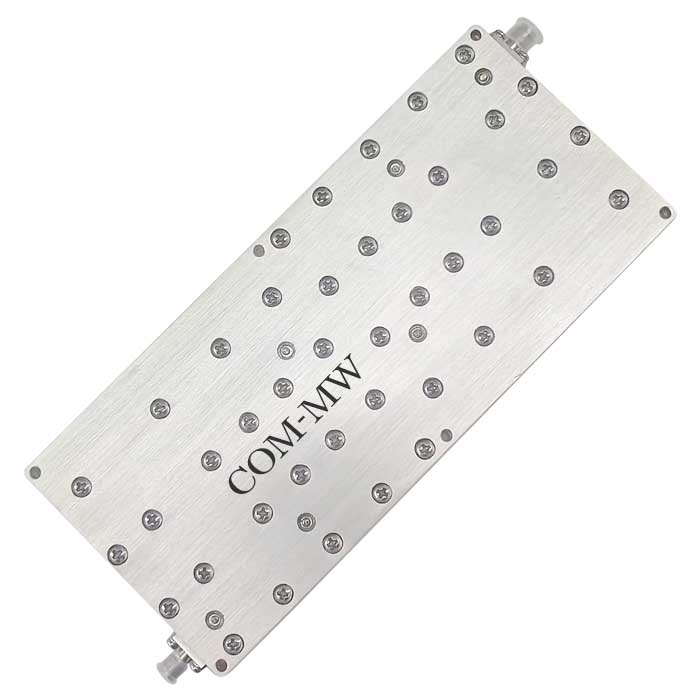

ZBSF2-M758-821-1479 Filter

Filter ZBSF2-M758-821-1479

Stopband F758~821MHz, ≥50dB, PassbandDC~706MHz, 888~1200MHz, SMA
In Stock View Details →

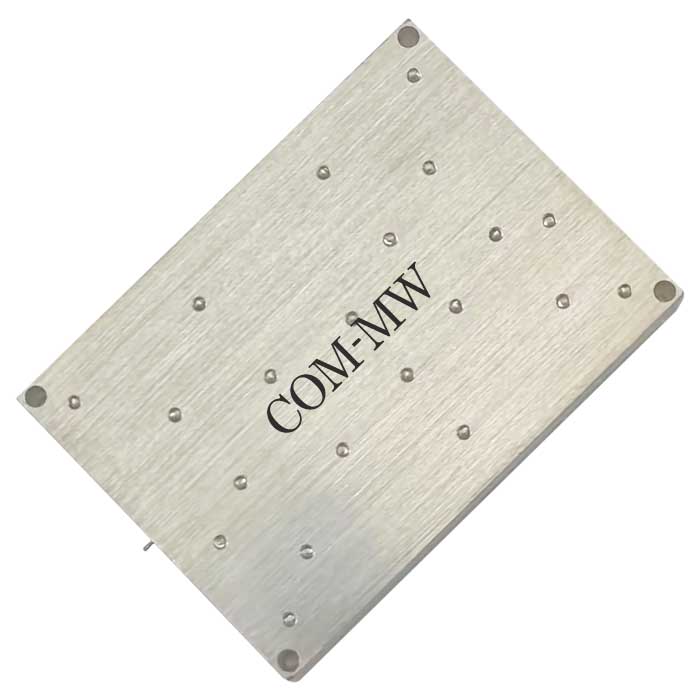

ZBSF2-L500-1660-1498 Filter

Filter ZBSF2-L500-1660-1498

Stopband F1220~1310MHz, ≥50dBc, Passband500~1120MHz, 1410~1660MHz, Pin
In Stock View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
