ZBSF7-C3600-3605-1037 Filter

Filter ZBSF7-C3600-3605-1037

Stopband F3600~3605MHz, ≥40dB, PassbandDC~3595MHz, 3610~6000MHz, SMA
View Details →
ZBSF7-C3595-3600-904 Filter

Filter ZBSF7-C3595-3600-904

Stopband F3595~3600MHz, ≥40dB, PassbandDC~3590MHz, 3605~6000MHz, SMA
View Details →
ZBSF7-C3580-3600-905 Filter

Filter ZBSF7-C3580-3600-905

Stopband F3580~3600MHz, ≥40dB, PassbandDC~3575MHz, 3605~6000MHz, SMA
View Details →
ZBSF7-C3497.5-3502.5-902 Filter

Filter ZBSF7-C3497.5-3502.5-902

Stopband F3497.5~3502.5MHz, ≥40dB, PassbandDC~3492.5MHz, 3507.5~6000MHz, SMA
View Details →
ZBSF7-C3490-3510-903 Filter

Filter ZBSF7-C3490-3510-903

Stopband F3490~3510MHz, ≥40dB, PassbandDC~3485MHz, 3515~6000MHz, SMA
View Details →
ZBSF7-C3400-3420-901 Filter

Filter ZBSF7-C3400-3420-901

Stopband F3400~3420MHz, ≥40dB, PassbandDC~3395MHz, 3425~6000MHz, SMA
View Details →
ZBSF7-C3400-3405-900 Filter

Filter ZBSF7-C3400-3405-900

Stopband F3400~3405MHz, ≥40dB, PassbandDC~3395MHz, 3410~6000MHz, SMA
View Details →

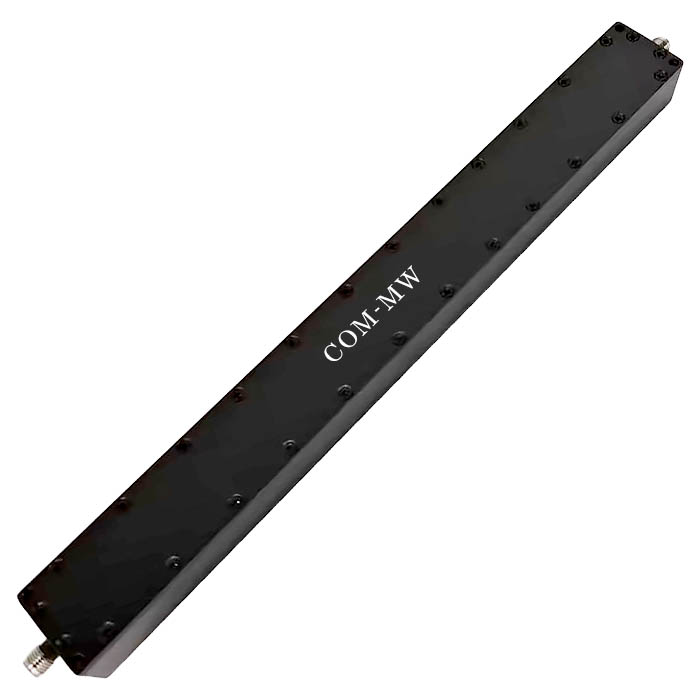

ZBSF6-MC1150-1610-5813 Filter

Filter ZBSF6-MC1150-1610-5813

Stopband F 1150~1279MHz, 1525~1610MHz, ≥35dB, Passband DC~1000MHz, 1400~1463MHz, 1650~6000MHz, SMA
View Details →
ZBSF6-M9400-9900-2697 Filter

Filter ZBSF6-M9400-9900-2697

Stopband F9400~9900MHz, ≥50dB, PassbandDC~9150MHz, 10150~15000MHz, SMA
View Details →
ZBSF6-M9000-9500-4948 Filter

Filter ZBSF6-M9000-9500-4948

Stopband F9000~9500MHz, ≥40dB, PassbandDC~8750MHz, 9750~20000MHz, SMA
View Details →
ZBSF6-M7.7-8.5G-5567 Filter

Filter ZBSF6-M7.7-8.5G-5567

Stopband F7.725~8.5GHz, ≥70dB, PassbandDC~7.3GHz, 8.9~18GHz, SMA
View Details →
ZBSF6-M6875-7125-5062 Filter

Filter ZBSF6-M6875-7125-5062

Stopband F6875~7125MHz, ≥50dB, PassbandDC~6700MHz, 7300~15000MHz, SMA
View Details →
ZBSF6-M6525-7125-2914 Filter

Filter ZBSF6-M6525-7125-2914

Stopband F6525~7125MHz, ≥50dB, PassbandDC~6250MHz, 7400~13000MHz, SMA
View Details →
ZBSF6-M6525-6875-5061 Filter

Filter ZBSF6-M6525-6875-5061

Stopband F6525~6875MHz, ≥50dB, PassbandDC~6350MHz, 7050~14200MHz, SMA
View Details →
ZBSF6-M6425-6525-5060 Filter

Filter ZBSF6-M6425-6525-5060

Stopband F6425~6525MHz, ≥50dB, PassbandDC~6300MHz, 6650~14000MHz, SMA
View Details →
ZBSF6-M6178-6190-5862 Filter

Filter ZBSF6-M6178-6190-5862

Stopband F6178~6190MHz, ≥70dB, PassbandDC~6078MHz, 6290~18000MHz, SMA
View Details →
