Feature：low pass× Clear all
matches 1152 models Default Newest

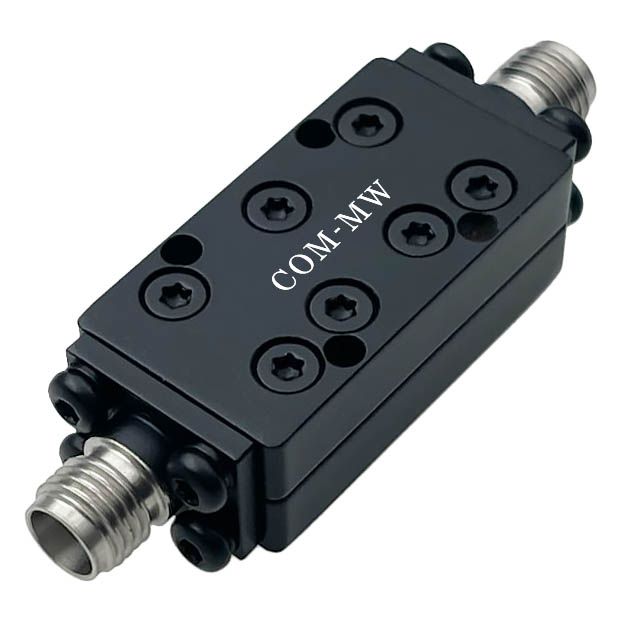

ZLPF-M1-18G-B4862 Filter

Filter ZLPF-M1-18G-B4862

Passband1~18GHz, 26-40GHz≥50dB, SMA
View Details →

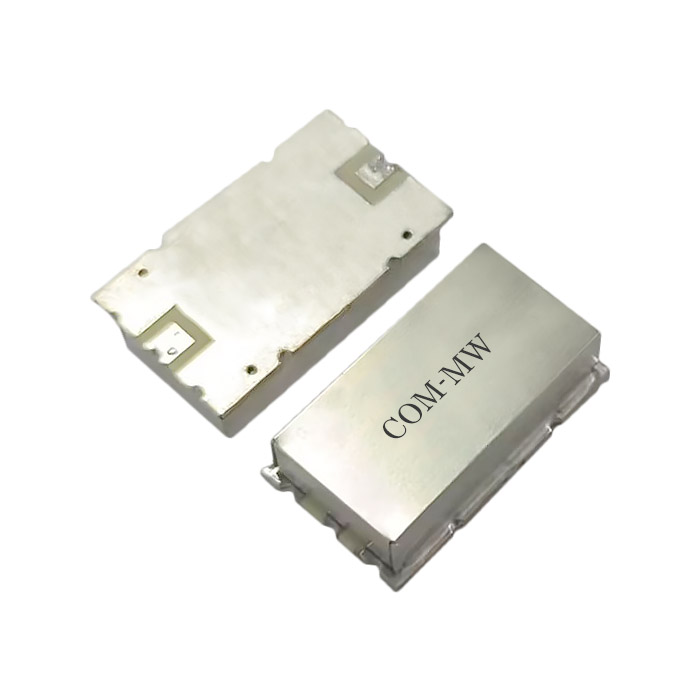

ZLPF-LDC-30-B3A Filter

Filter ZLPF-LDC-30-B3A

PassbandDC~30MHz, 45-120MHz≥50dB, SMD
View Details →
ZLPF-LDC-2200-B192 Filter

Filter ZLPF-LDC-2200-B192

PassbandDC~2200MHz, 2400-5000MHz≥50dBc, Pin
View Details →
ZLPF-LDC-2200-B19 Filter

Filter ZLPF-LDC-2200-B19

PassbandDC~2200MHz, 2400-5000MHz≥50dBc, Pin
View Details →
ZLPF-LDC-2.5G-B9 Filter

Filter ZLPF-LDC-2.5G-B9

PassbandDC~2500MHz, 3000-6000MHz≥50dBc, SMA-K
View Details →
ZLPF-LDC-1100-B8 Filter

Filter ZLPF-LDC-1100-B8

PassbandDC~1100MHz, 1300-1800MHz≥55dBc, SMA
View Details →

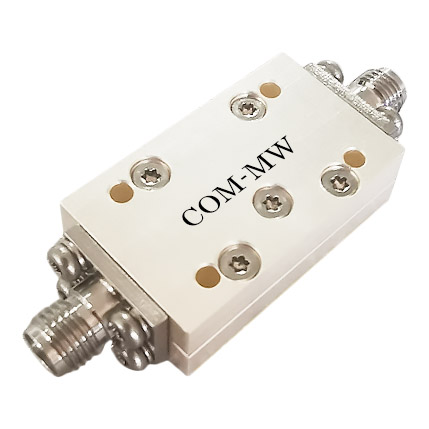

ZLPF-LDC-10.1G Low Pass Filter

Low Pass Filter ZLPF-LDC-10.1G

Passband0~10100MHz, 12-20GHz≥60dBc, SMA
View Details →
ZLPF-LDC-1.2G-B9 Filter

Filter ZLPF-LDC-1.2G-B9

PassbandDC~1200MHz, 1400-3000MHz≥50dBc, SMA-K
View Details →
ZLPF-L100-1100-B8 Filter

Filter ZLPF-L100-1100-B8

Passband100~1100MHz, 1300-1800MHz≥55dBc, SMA
View Details →

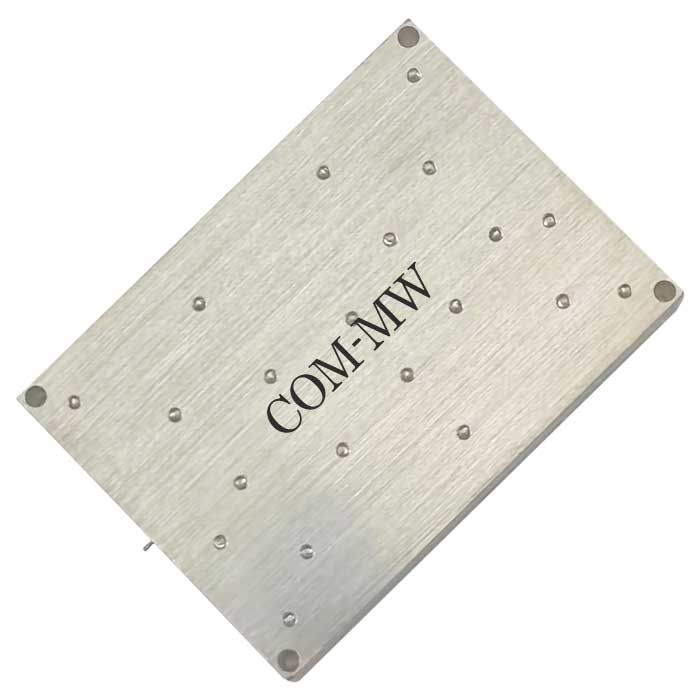

ZLPF-BM1800-3000-0574 Filter

Filter ZLPF-BM1800-3000-0574

PassbandDC~3000MHz, 3400MHz≥40dBc, 3.6-6.0GHz≥50dBc, SMA
View Details →
ZLPF-11L1400-C5872 Filter

Filter ZLPF-11L1400-C5872

Passband960~1400MHz, 1518-1700MHz≥40dBc, dB, Pin
View Details →
ZLPF-100-1100-B19 Filter

Filter ZLPF-100-1100-B19

Passband100~1100MHz, 1300-1800MHz≥55dBc, Pin
View Details →
ZBF5-L600-500-2041 Filter

Filter ZBF5-L600-500-2041

Passband350~850MHz, DC-200MHz≥40dBc, 1000-1300MHz≥40dBc, 1300-2300MHz≥30dBc, Pin
View Details →
ZBF5-L0-5000-451 Filter

Filter ZBF5-L0-5000-451

PassbandDC~5000MHz, 5600-10000MHz≥25dB, Pin
View Details →
ZBF5-L0-3200-450 Filter

Filter ZBF5-L0-3200-450

PassbandDC~3200MHz, 3600-8000MHz≥25dBc, Pin
View Details →
ZBF2-L1515-2970-1953 Filter

Filter ZBF2-L1515-2970-1953

PassbandDC~3030MHz, 3.3-5GHz≥50dBc, GHz≥dB, Pin
View Details →
ZBF15-L455-30-010 Filter

Filter ZBF15-L455-30-010

PassbandDC~470MHz, 1268-2491.75MHz≥80dBc, Pin
View Details →
ZBF15-L455-30-009 Filter

Filter ZBF15-L455-30-009

PassbandDC~470MHz, 1268-2491.75MHz≥80dBc, dB, Pin
View Details →

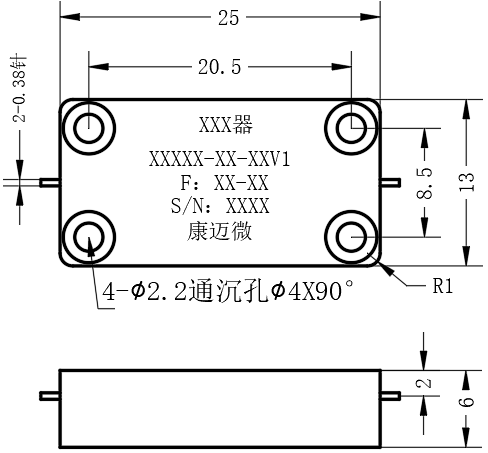

ZBF15-L4000-400-1175 Filter

Filter ZBF15-L4000-400-1175

Passband3800~4200MHz, DC-3500MHz≥60dB, 4500-8000MHz≥50dB, Pin
View Details →
UCL-LPF07000-1050M-40-S Filter

Filter UCL-LPF07000-1050M-40-S

PassbandDC~7GHz, 8.05-14GHz≥40dB, SMA
View Details →
TLF-650M100G4-50S Filter

Filter TLF-650M100G4-50S

Passband0~650MHz, 750-4000MHz≥50dB, dB, SMA
View Details →
TLF-520M130G4-50S Filter

Filter TLF-520M130G4-50S

Passband0~520MHz, 650-4000MHz≥50dB, dB, SMA
View Details →

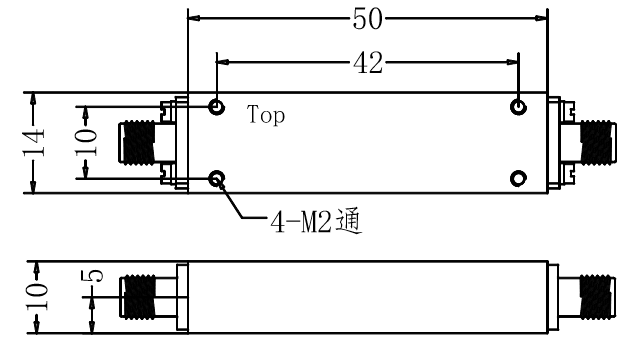

TLF-2G300G4-50S Filter

Filter TLF-2G300G4-50S

Passband0~2000MHz, 2300-4000MHz≥50dB, , SMA
View Details →
TLF-1.5G200G4-50S Filter

Filter TLF-1.5G200G4-50S

Passband0~1500MHz, 1700-4000MHz≥50dB, , SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
