Feature：low pass× Clear all
matches 1152 models Default Newest
ZLPF3-L0-500-4627 Filter

Filter ZLPF3-L0-500-4627

PassbandDC~500MHz, 650-3000MHz≥50dB, dB, N
View Details →
ZLPF3-L0-500-3519 Filter

Filter ZLPF3-L0-500-3519

PassbandDC~500MHz, 600-6000MHz≥50dB, SMA
View Details →
ZLPF3-L0-5-3659 Filter

Filter ZLPF3-L0-5-3659

PassbandDC~5MHz, 6-10MHz≥50dB, 12-100MHz≥40dB, SMD
View Details →
ZLPF3-L0-480-3665 Filter

Filter ZLPF3-L0-480-3665

PassbandDC~480MHz, 760-1000MHz≥40dB, dB, SMA
View Details →
ZLPF3-L0-45-3692 Filter

Filter ZLPF3-L0-45-3692

PassbandDC~45MHz, 80MHz≥40dB, 120-500MHz≥60dB, SMA
View Details →
ZLPF3-L0-410-1507 Filter

Filter ZLPF3-L0-410-1507

PassbandDC~410MHz, 519MHz≥40dB, 570-2500MHz≥60dB, N
View Details →
ZLPF3-L0-4.7-397 Filter

Filter ZLPF3-L0-4.7-397

PassbandDC~4.7MHz, 5.8-300MHz≥50dB, SMD
View Details →
ZLPF3-L0-3600-357 Filter

Filter ZLPF3-L0-3600-357

PassbandDC~3600MHz, 4500-6000MHz≥40dB, Pin
View Details →
ZLPF3-L0-33-1744 Filter

Filter ZLPF3-L0-33-1744

PassbandDC~33MHz, 39-1000MHz≥30dB, dB, SMD
View Details →
ZLPF3-L0-325-302 Filter

Filter ZLPF3-L0-325-302

PassbandDC~325MHz, 480-2000MHz≥45dB, dB, SMA
View Details →
ZLPF3-L0-32-3787 Filter

Filter ZLPF3-L0-32-3787

PassbandDC~32MHz, 47-61MHz≥45dB, 61-200MHz≥63dB, Pin
View Details →
ZLPF3-L0-310-2352 Filter

Filter ZLPF3-L0-310-2352

PassbandDC~310MHz, 330-3000MHz≥40dB, dB, SMA
View Details →

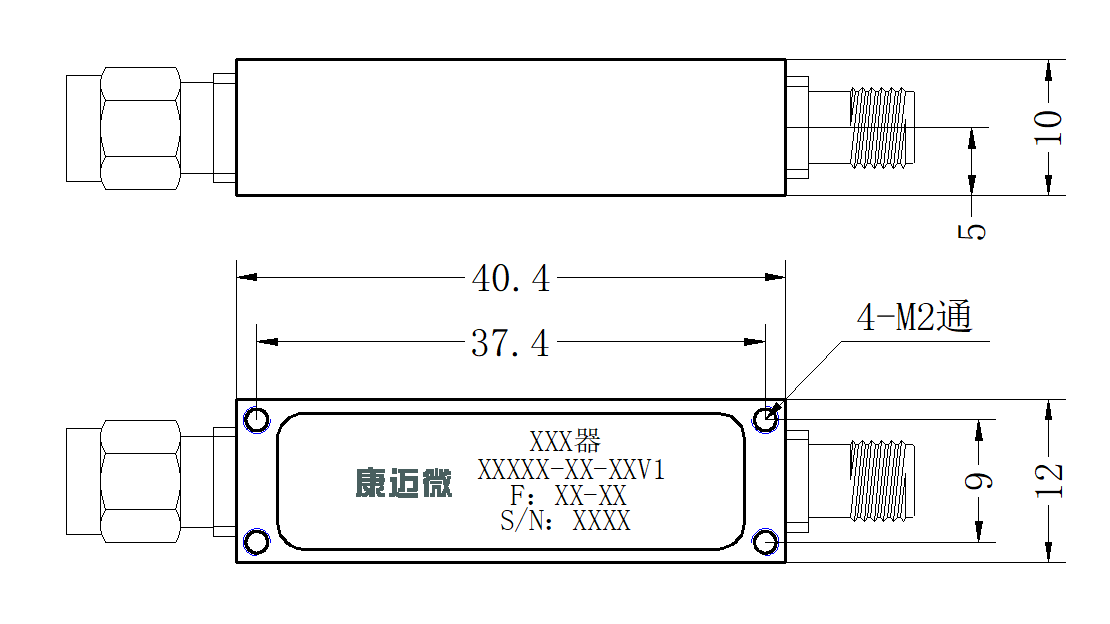

ZLPF3-L0-3000-3645 Filter

Filter ZLPF3-L0-3000-3645

PassbandDC~3000MHz, 3400-5000MHz≥40dB, dB, SMA
View Details →
ZLPF3-L0-300-766 Filter

Filter ZLPF3-L0-300-766

PassbandDC~300MHz, 450-6000MHz≥50dB, SMA
View Details →
ZLPF3-L0-30.5-3664 Filter

Filter ZLPF3-L0-30.5-3664

PassbandDC~30.5MHz, 39-61MHz≥50dB, 65-150MHz≥40dB, SMD
View Details →
ZLPF3-L0-30.2-395 Filter

Filter ZLPF3-L0-30.2-395

PassbandDC~30.2MHz, 51.2-300MHz≥50dB, SMD
View Details →
ZLPF3-L0-30.2-2310 Filter

Filter ZLPF3-L0-30.2-2310

PassbandDC~30.2MHz, 50.2-100MHz≥50dB, dB, SMD
View Details →
ZLPF3-L0-30-4447 Filter

Filter ZLPF3-L0-30-4447

PassbandDC~30MHz, 34.5-6000MHz≥40dB, dB, N
View Details →
ZLPF3-L0-30-3669 Filter

Filter ZLPF3-L0-30-3669

PassbandDC~30MHz, 60-80MHz≥40dB, 80-120MHz≥60dB, SMA
View Details →
ZLPF3-L0-30-2797 Filter

Filter ZLPF3-L0-30-2797

Passband0~30MHz, 70MHz≥85dB, SMD
View Details →
ZLPF3-L0-30-1585 Filter

Filter ZLPF3-L0-30-1585

PassbandDC~30MHz, 36MHz≥25dB, 70-500MHz≥50dB, SMD
View Details →
ZLPF3-L0-3.2-3658 Filter

Filter ZLPF3-L0-3.2-3658

PassbandDC~3.2MHz, 3.6-6.4MHz≥50dB, 7-100MHz≥40dB, SMD
View Details →
ZLPF3-L0-3-3972 Filter

Filter ZLPF3-L0-3-3972

PassbandDC~3MHz, 4.5-50MHz≥30dBc, 50-200MHz≥40dBc, SMD
View Details →
ZLPF3-L0-3-2708 Filter

Filter ZLPF3-L0-3-2708

PassbandDC~3, 4.6-800MHz≥20dB, dB, SMD
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
