Feature：low pass× Clear all
matches 1152 models Default Newest
ZLPF5-L0-70-3903 Filter

Filter ZLPF5-L0-70-3903

PassbandDC~70MHz, Rejection110-1000MHz≥30dB, SMD
View Details →
ZLPF5-L0-66-3269 Filter

Filter ZLPF5-L0-66-3269

PassbandDC~66MHz, 100-1000MHz≥70dB, N
View Details →
ZLPF5-L0-6000-1870 Filter

Filter ZLPF5-L0-6000-1870

PassbandDC~6000MHz, 6300MHz≥25dBc, 6500-15000MHz≥40dBc, SMA
View Details →
ZLPF5-L0-6000-1454 Filter

Filter ZLPF5-L0-6000-1454

PassbandDC~6000MHz, 6.5GHz≥30dB, 7GHz≥50dB, SMA
View Details →

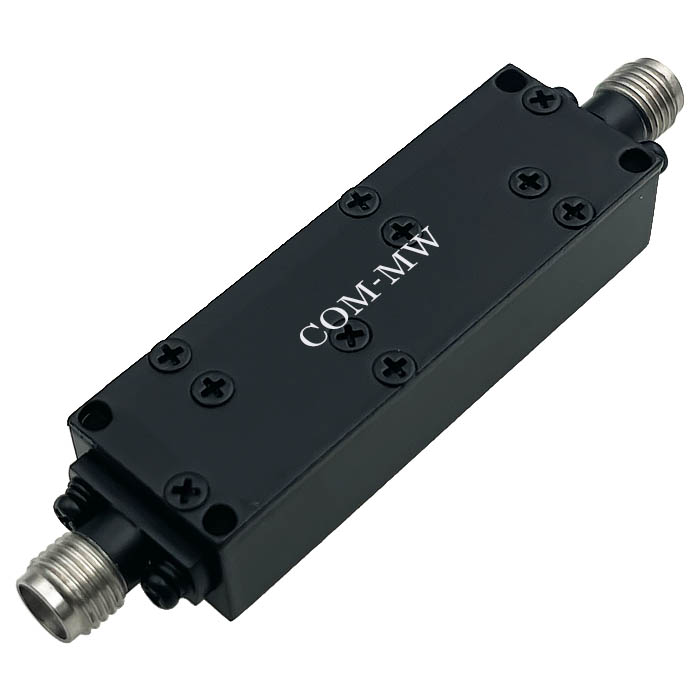

ZLPF5-L0-6000-1016 Filter

Filter ZLPF5-L0-6000-1016

PassbandDC~6000MHz, 6.5-14GHz≥55dB, SMA
View Details →
ZLPF5-L0-600-1313 Filter

Filter ZLPF5-L0-600-1313

PassbandDC~600MHz, 700-6000MHz≥40dB, SMA-K
View Details →
ZLPF5-L0-580-446 Filter

Filter ZLPF5-L0-580-446

PassbandDC~580MHz, 1000-1500MHz≥70dBc, 1500-6500MHz≥25dBc, SMA
View Details →
ZLPF5-L0-550-596 Filter

Filter ZLPF5-L0-550-596

PassbandDC~550MHz, 650-1500MHz≥50dBc, Pin
View Details →
ZLPF5-L0-550-3835 Filter

Filter ZLPF5-L0-550-3835

PassbandDC~550MHz, 600-1500MHz≥50dBc, SMA
View Details →
ZLPF5-L0-550-1382 Filter

Filter ZLPF5-L0-550-1382

PassbandDC~550MHz, 650-1500MHz≥45dBc, SMA-K
View Details →
ZLPF5-L0-512-3797 Filter

Filter ZLPF5-L0-512-3797

PassbandDC~512MHz, 0.6-6GHz≥60dBc, dB, TNC
View Details →
ZLPF5-L0-500-3273 Filter

Filter ZLPF5-L0-500-3273

PassbandDC~500MHz, 700-2000MHz≥70dB, N
View Details →
ZLPF5-L0-500-1816 Filter

Filter ZLPF5-L0-500-1816

PassbandDC~500MHz, 620-2000MHz≥40dB, SMD
View Details →
ZLPF5-L0-500-1086 Filter

Filter ZLPF5-L0-500-1086

PassbandDC~500MHz, 800-3000MHz≥50dB, SMA-K
View Details →
ZLPF5-L0-500-009 Filter

Filter ZLPF5-L0-500-009

PassbandDC~500MHz, 700-3000MHz≥55dBc, Pin
View Details →
ZLPF5-L0-450-3775 Filter

Filter ZLPF5-L0-450-3775

PassbandDC~450MHz, 1150-1700MHz≥90dB, 550-1150MHz≥55dB, N
View Details →
ZLPF5-L0-450-3766 Filter

Filter ZLPF5-L0-450-3766

PassbandDC~450MHz, 1150-1700MHz≥90dB, 550-1150MHz≥55dB, SMA
View Details →
ZLPF5-L0-40-3268 Filter

Filter ZLPF5-L0-40-3268

PassbandDC~40MHz, 60-1000MHz≥70dB, N
View Details →
ZLPF5-L0-4.5G-2578 Filter

Filter ZLPF5-L0-4.5G-2578

PassbandDC~4.5GHz, 5.5-10GHz≥40dB, SMA
View Details →
ZLPF5-L0-4.4G-1109 Filter

Filter ZLPF5-L0-4.4G-1109

PassbandDC~4400MHz, 6-7GHz≥50dBc, SMA-K
View Details →
ZLPF5-L0-3870-1947 Filter

Filter ZLPF5-L0-3870-1947

PassbandDC~3870MHz, 4096MHz≥15dB, 4320MHz≥30dB, SMA
View Details →
ZLPF5-L0-3650-714 Filter

Filter ZLPF5-L0-3650-714

PassbandDC~3650MHz, 4-10GHz≥35dBc, Pin
View Details →
ZLPF5-L0-3600-2711 Filter

Filter ZLPF5-L0-3600-2711

PassbandDC~3600MHz, 4300-7000MHz≥40dBc, SMA-K
View Details →
ZLPF5-L0-3500-3309 Filter

Filter ZLPF5-L0-3500-3309

PassbandDC~3500MHz, 5-12GHz≥50dB, 17.5-18.5GHz≥50dB, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
