Feature：Highpass× Clear all
matches 622 models Default Newest
ZHPF4-M10-27G-1773 Filter

Filter ZHPF4-M10-27G-1773

Passband10~27GHz, DC-8.5GHz≥60dB, dB, SMA
In Stock View Details →

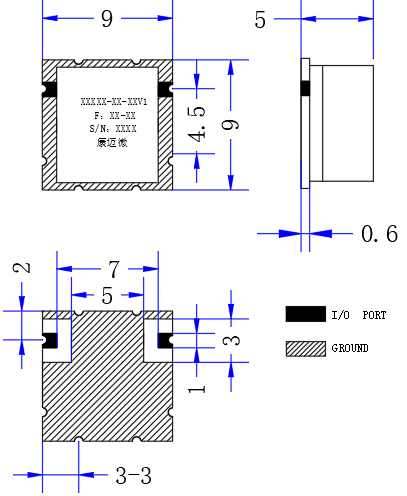

ZHPF15-L0.5-12.5G-2775 Filter

Filter ZHPF15-L0.5-12.5G-2775

Passband0.5~12.5GHz, DC-350MHz≥50dBc, 400MHz≥35dB, dB, SMD
In Stock View Details →
ZHPF14-L249-1000-729 Filter

Filter ZHPF14-L249-1000-729

Passband249~1000MHz, 230MHz≥30dB, DC-215MHz≥50dB, SMA
In Stock View Details →
ZHPF1-M6.3-18G-450 Filter

Filter ZHPF1-M6.3-18G-450

Passband6.3~18GHz, DC-5.8GHz≥40dB, SMA
In Stock View Details →

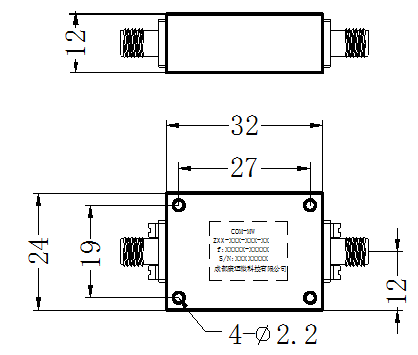

ZHPF-M6-18G-CC Highpass filter

Highpass filter ZHPF-M6-18G-CC

Passband6~18GHz, DC-4800MHz≥40dB, SMA
In Stock View Details →
OQ-HPF1-M12.73-30G-305 Filter

Filter OQ-HPF1-M12.73-30G-305

Passband12.73~30GHz, DC-4GHz≥70dB, 4-9GHz≥40dB, SMA
In Stock View Details →

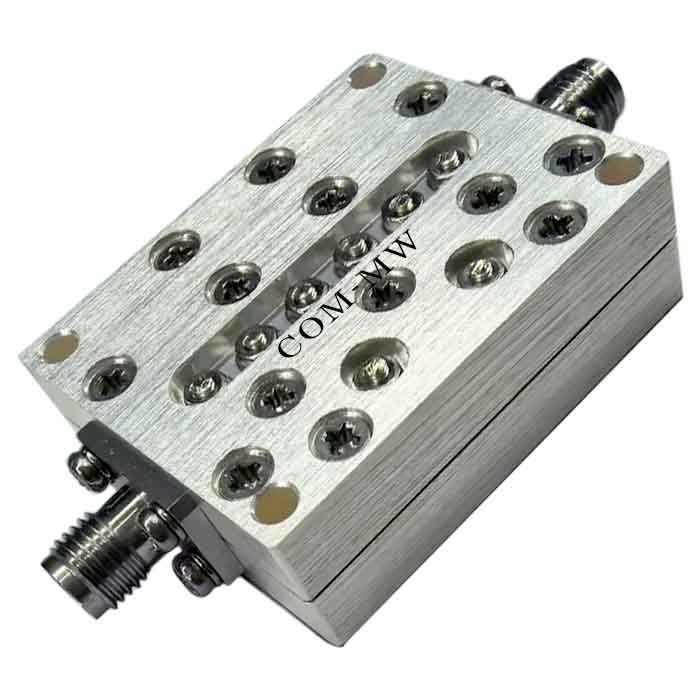

ZLPF2-M4.8-18G-3373 Filter

Filter ZLPF2-M4.8-18G-3373

Passband4.8~18GHz, DC-4.2GHz≥50dB, dB, SMA
In Stock View Details →
ZLPF2-M4.3-18G-3371 Filter

Filter ZLPF2-M4.3-18G-3371

Passband4.3~18GHz, DC-3.8GHz≥50dB, dB, SMA
In Stock View Details →
ZHPF6-M5500-18000-3931 Filter

Filter ZHPF6-M5500-18000-3931

Passband5500~18000MHz, DC-4500MHz≥40dB, dB, SMA
In Stock View Details →
ZHPF4-M4-23G-1584 Filter

Filter ZHPF4-M4-23G-1584

Passband4~23GHz, DC-3.2GHz≥50dB, dB, SMA
In Stock View Details →
ZHPF4-M21.8-40G-1628 Filter

Filter ZHPF4-M21.8-40G-1628

Passband21.8~40GHz, DC-18GHz≥50dB, dB, 2.92
In Stock View Details →
ZHPF4-M0.8-18G-1687 Filter

Filter ZHPF4-M0.8-18G-1687

Passband0.8~18GHz, DC-0.5GHz≥55dB, dB, SMA
In Stock View Details →
ZHPF3-L0.85-18G-4518 Filter

Filter ZHPF3-L0.85-18G-4518

Passband0.85~18GHz, DC-600MHz≥50dB, 600-700MHz≥30dB, SMA
In Stock View Details →
ZHPF2-L1290-1772-3241 Filter

Filter ZHPF2-L1290-1772-3241

Passband1290~3000MHz, DC-950MHz≥40dB, dB, SMA
In Stock View Details →

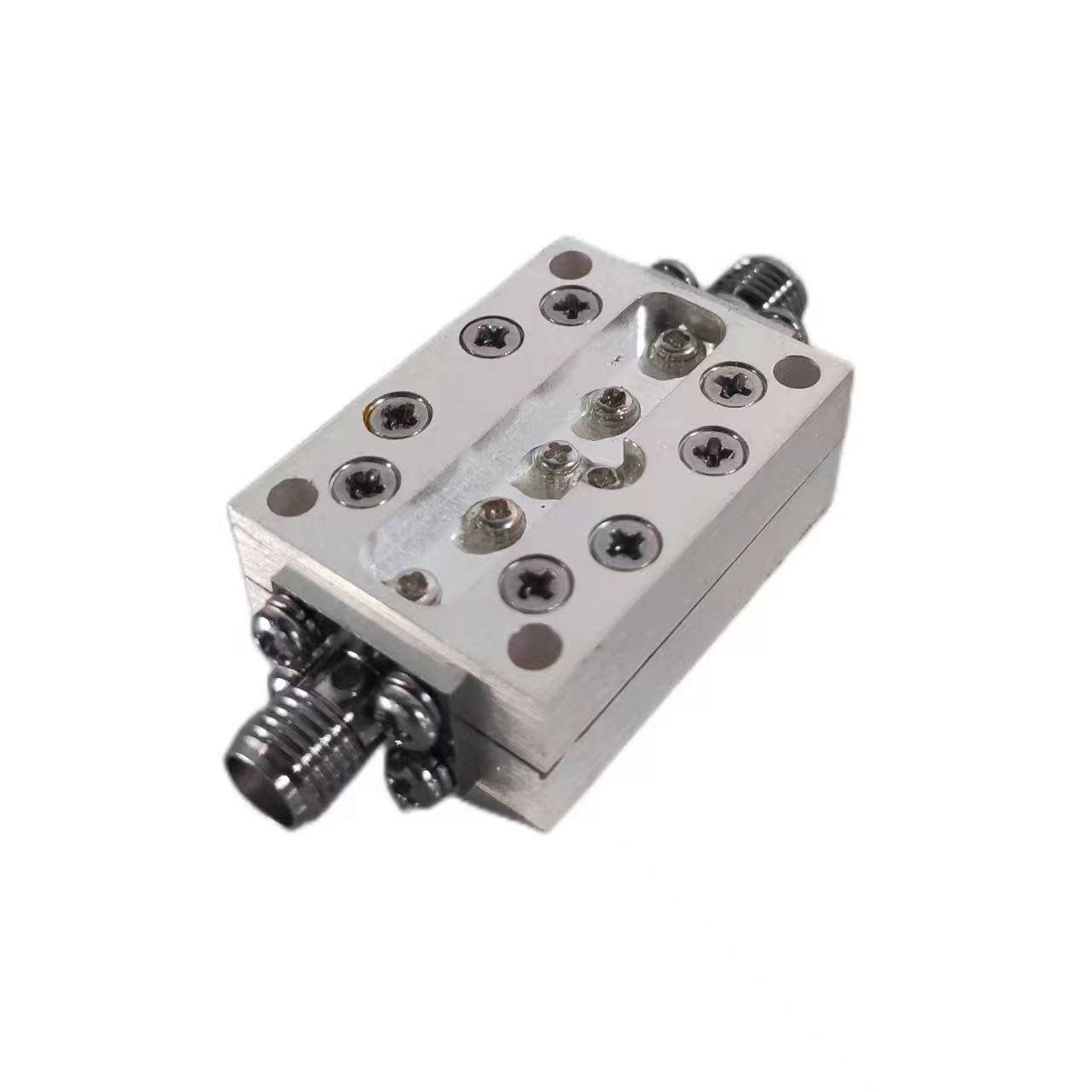

ZHPF6-M8000-18000-3896 Filter

Filter ZHPF6-M8000-18000-3896

Passband8000~18000MHz, DC-6800MHz≥50dB, SMA
In Stock View Details →

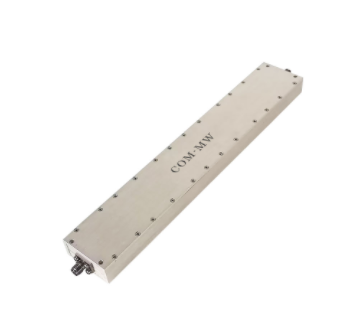

ZHPF6-M3000-18000-5254 Filter

Filter ZHPF6-M3000-18000-5254

Passband3000~18000MHz, DC-2900MHz≥45dB, dB, SMA
In Stock View Details →

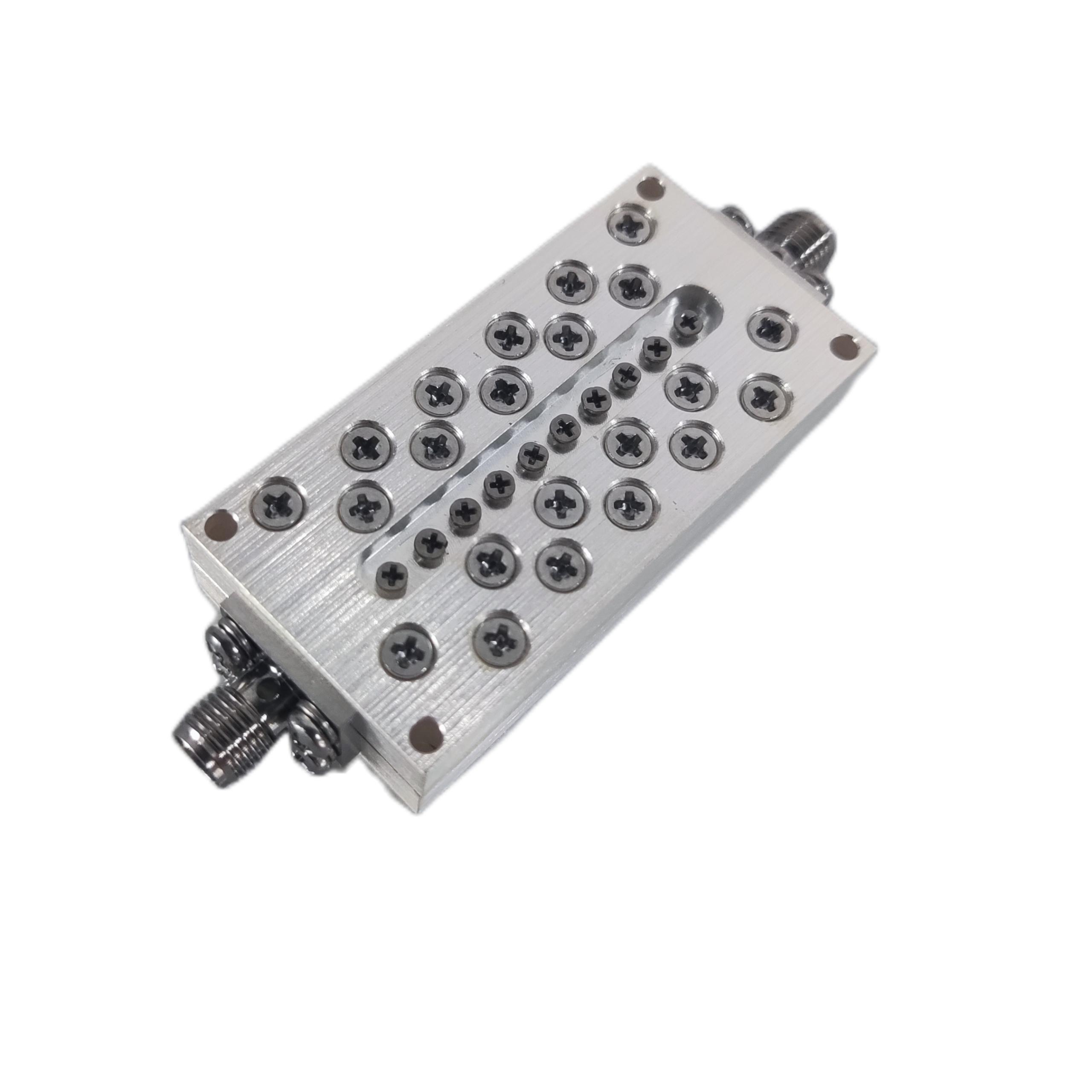

ZHPF6-M1000-18000-3910 Filter

Filter ZHPF6-M1000-18000-3910

Passband1000~18000MHz, 890-935MHz≥40dB, DC-890MHz≥60dB, SMA
In Stock View Details →
ZHPF5-M6-18G-264 Filter

Filter ZHPF5-M6-18G-264

Passband6~18GHz, 5.6GHz≥20dB, 5.5GHz≥35dB, SMA
In Stock View Details →

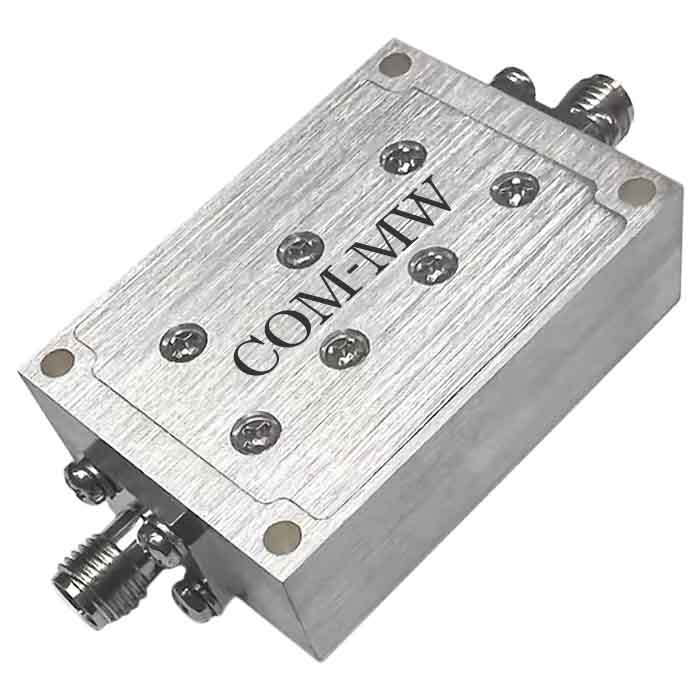

ZHPF5-C6-18G-3280 Filter

Filter ZHPF5-C6-18G-3280

Passband6~18GHz, 4.8-5GHz≥40dB, 4-4.8GHz≥50dB, DC-4GHz≥80dB, SMA
In Stock View Details →
ZHPF5-C4-18G-3121 Filter

Filter ZHPF5-C4-18G-3121

Passband4~18GHz, 3-3.5GHz≥10dB, SMA
In Stock View Details →

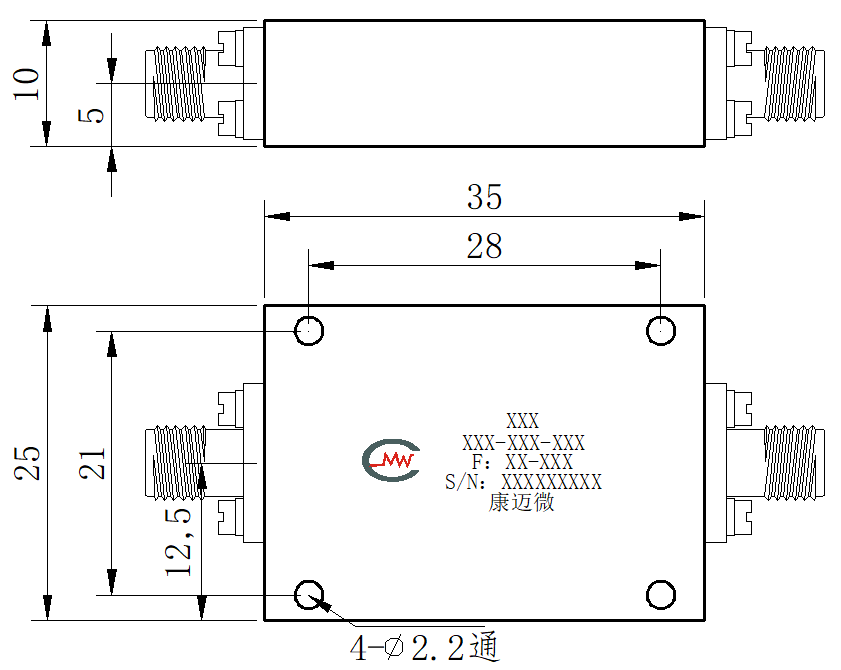

ZHPF4-M9.6-18G-1324 Filter

Filter ZHPF4-M9.6-18G-1324

Passband9.6~26.5GHz, DC-8GHz≥50dB, dB, SMA
In Stock View Details →
ZHPF4-M2.4-18G-1505 Filter

Filter ZHPF4-M2.4-18G-1505

Passband2.4~18GHz, DC-2.16GHz≥60dB, SMA
In Stock View Details →
ZHPF4-M18.5-40G-1594 Filter

Filter ZHPF4-M18.5-40G-1594

Passband18.5~40GHz, DC-13GHz≥50dB, dB, Pin
In Stock View Details →
ZHPF4-M17.9-40G-1760 Filter

Filter ZHPF4-M17.9-40G-1760

Passband17.9~40GHz, DC-16.2GHz≥60dB, 16.2-17GHz≥30dB, 2.92
In Stock View Details →
