Feature：Highpass× Clear all
matches 622 models Default Newest

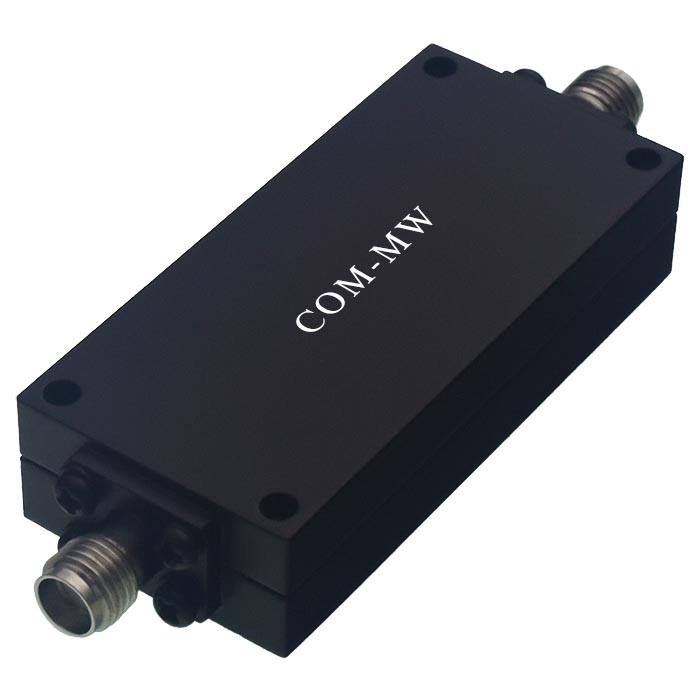

DCHPF-M1-12G Filter

Filter DCHPF-M1-12G

Passband1~12GHz, DC-800MHz≥50dB, 915MHz≥20dB, SMA
In Stock View Details →

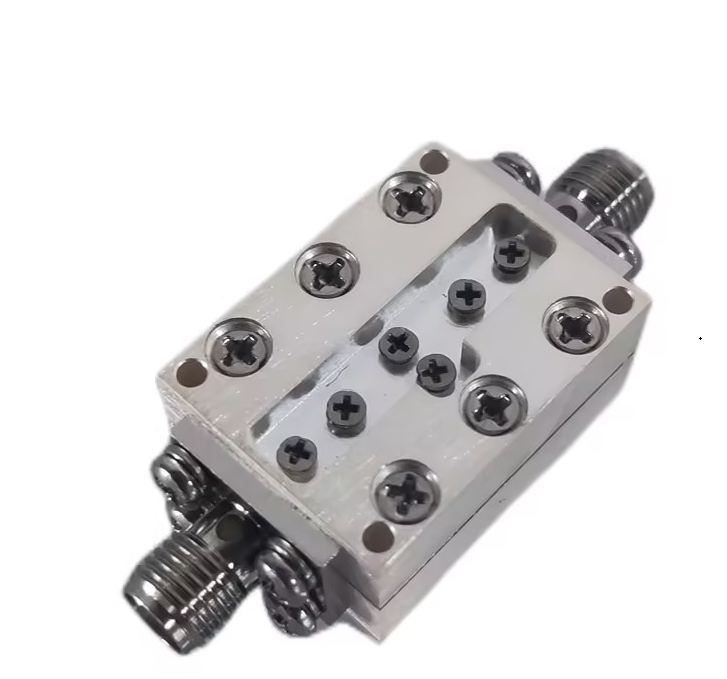

ZHPF6-M9000-18000-2467 Filter

Filter ZHPF6-M9000-18000-2467

Passband9000~18000MHz, DC-8100MHz≥40dB, dB, SMA
In Stock View Details →
ZHPF6-M7000-18000-3908 Filter

Filter ZHPF6-M7000-18000-3908

Passband7000~18000MHz, DC-6100MHz≥50dB, SMA
In Stock View Details →

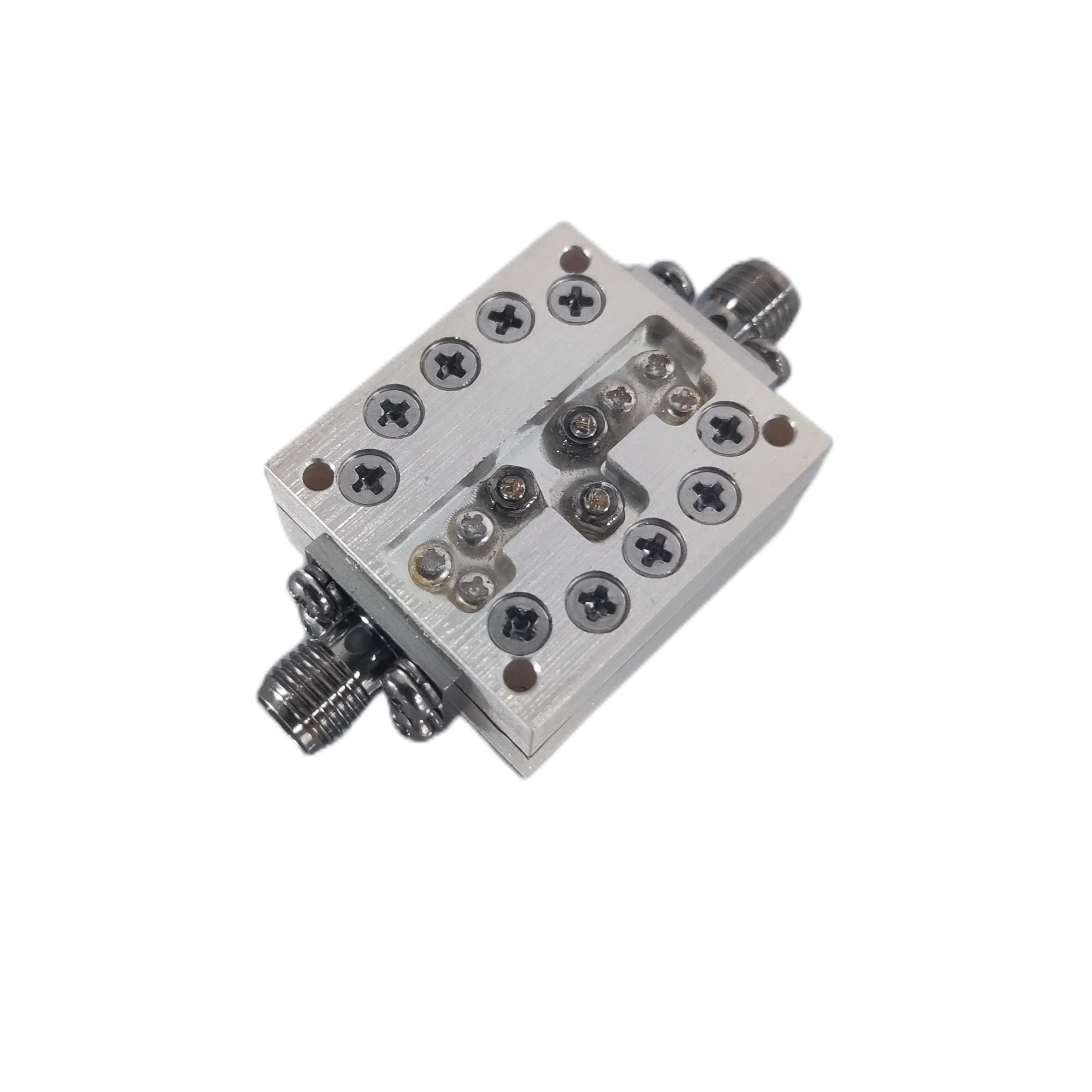

ZHPF6-M6500-18000-547 Filter

Filter ZHPF6-M6500-18000-547

Passband6500~18000MHz, DC-5850MHz≥45dB, dB, SMA
In Stock View Details →
ZHPF6-M6000-18000-3911 Filter

Filter ZHPF6-M6000-18000-3911

Passband6000~18000MHz, DC-5300MHz≥50dB, dB, SMA
In Stock View Details →
ZHPF6-M2500-18000-3912 Filter

Filter ZHPF6-M2500-18000-3912

Passband2500~18000MHz, DC-2200MHz≥40dB, , SMA
In Stock View Details →

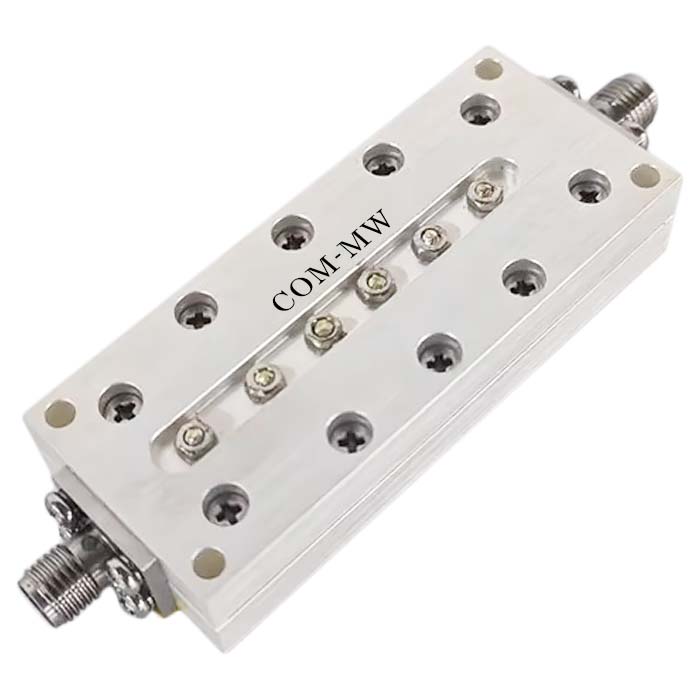

ZHPF6-M1200-18000-4177 Filter

Filter ZHPF6-M1200-18000-4177

Passband1200~18000MHz, DC-915MHz≥50dB, dB, SMA
In Stock View Details →
ZHPF6-L1300-4000-4018 Filter

Filter ZHPF6-L1300-4000-4018

Passband1300~4000MHz, DC-1000MHz≥60dB, dB, SMA
In Stock View Details →
ZHPF4-M8.5-40G-1579 Filter

Filter ZHPF4-M8.5-40G-1579

Passband8.5~40GHz, DC-7.2GHz≥40dB, 2.92
In Stock View Details →

Filter ZHPF4-M15-40G-1414

Passband15~40GHz, DC-13GHz≥60dB, dB, 2.92
In Stock View Details →
ZHPF2-L1-3G-1813 Filter

Filter ZHPF2-L1-3G-1813

Passband1~3GHz, DC-835MHz≥25dBc, SMD
In Stock View Details →
ZHPF15-L600-6000-1887 Filter

Filter ZHPF15-L600-6000-1887

Passband600~6000MHz, DC-366MHz≥70dBc, dB, SMA
In Stock View Details →

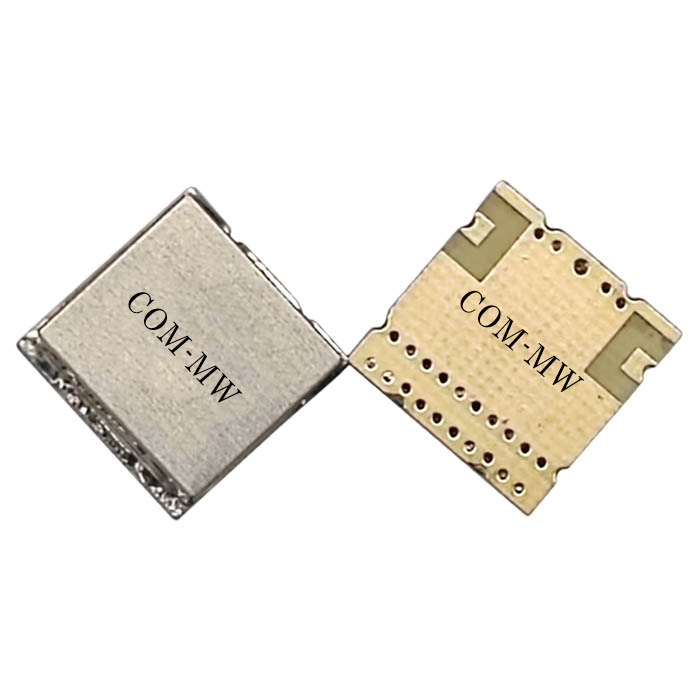

ZHPF15-L1-18G-1695 Filter

Filter ZHPF15-L1-18G-1695

Passband1~18GHz, DC-850MHz≥40dBc, 850-900MHz≥25dB, dB, SMD
In Stock View Details →

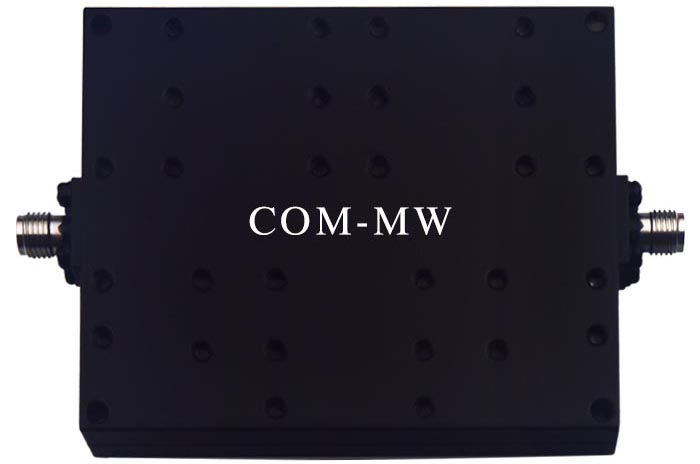

ZHPF1-M3.5-13G-362 Filter

Filter ZHPF1-M3.5-13G-362

Passband3.5~13GHz, DC-3GHz≥60dB, SMA
In Stock View Details →
ZHPF1-M18-40G-128 Filter

Filter ZHPF1-M18-40G-128

Passband18~40GHz, DC-15GHz≥45dB, 2.92
In Stock View Details →
STHP7R0-M059 Thin film filter

Thin film filter STHP7R0-M059

Bandwidth7.0-17.5GHz, Rejection45@DC-4.6GHz,
In Stock View Details →
DCHPF-M6.6-40G Highpass filter

Highpass filter DCHPF-M6.6-40G

Passband6.6~40GHz, DC-5.9GHz≥40dB, 2.92-K
In Stock View Details →
ZHPF6-M5000-18000-3879 Filter

Filter ZHPF6-M5000-18000-3879

Passband5000~18000MHz, DC-3800MHz≥50dB, SMA
In Stock View Details →

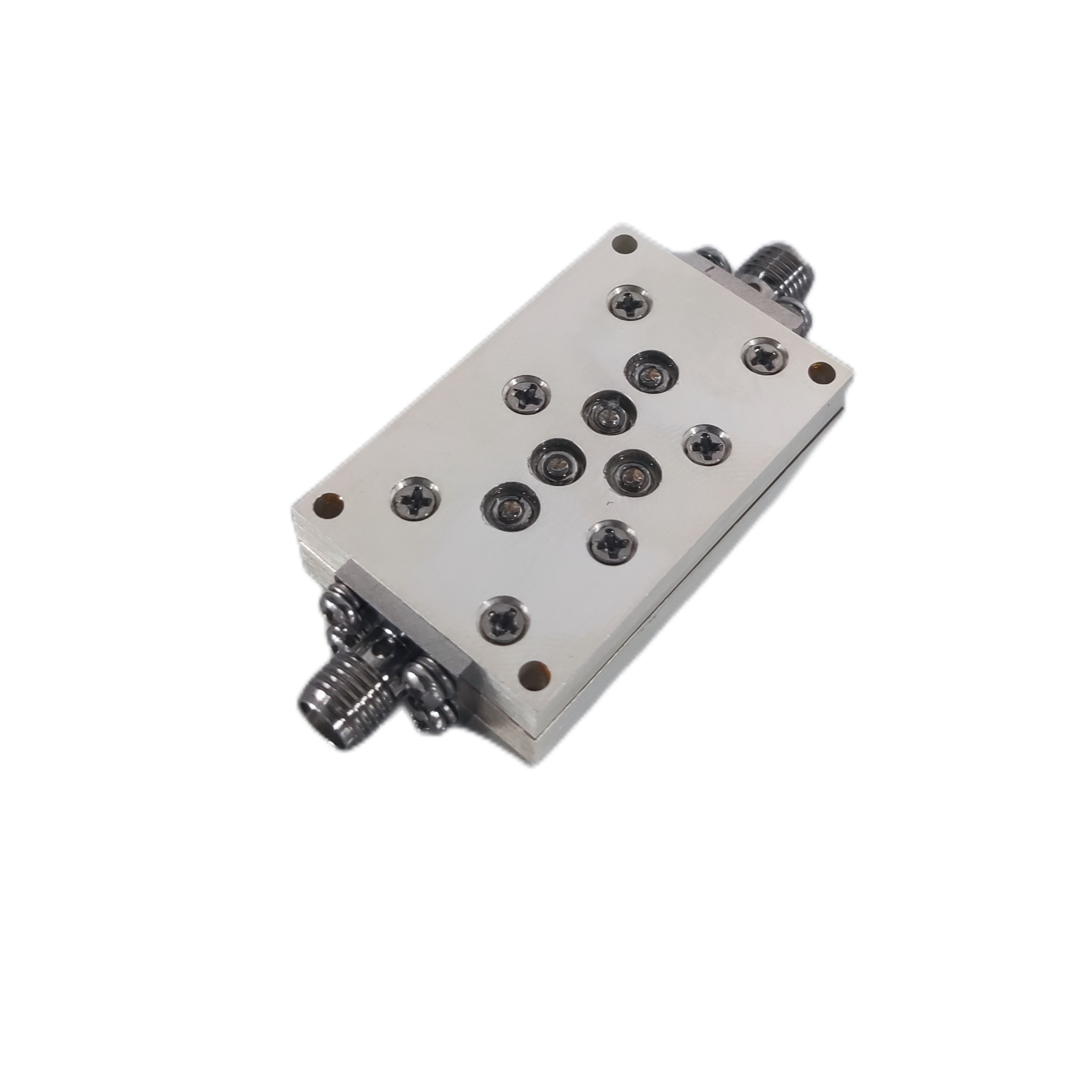

ZHPF6-M4500-18000-2113 Filter

Filter ZHPF6-M4500-18000-2113

Passband4500~18000MHz, DC-4000MHz≥40dB, dB, SMA
In Stock View Details →
ZHPF6-M4000-18000-3323 Filter

Filter ZHPF6-M4000-18000-3323

Passband4000~18000MHz, DC-3300MHz≥40dB, SMA
In Stock View Details →

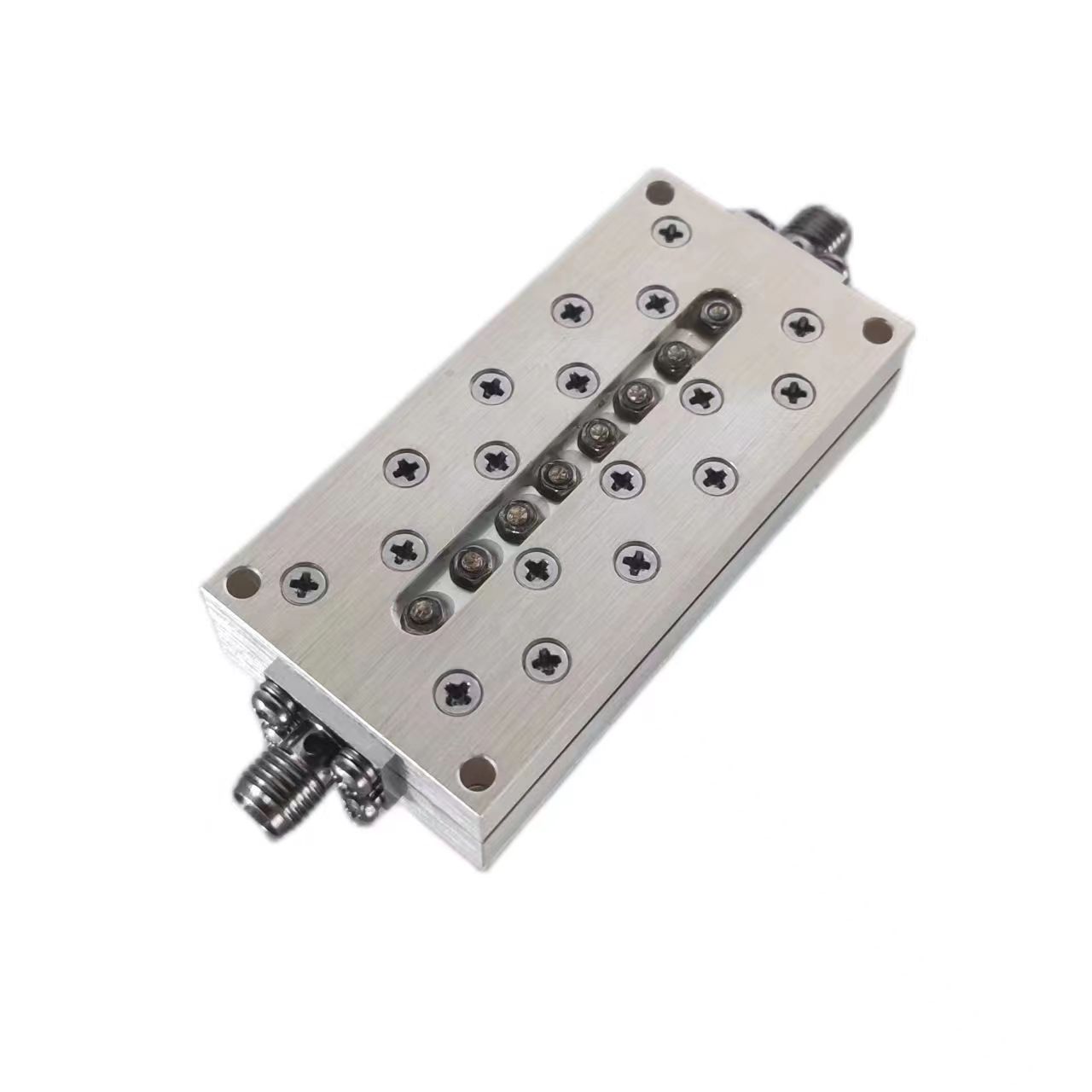

ZHPF6-M3000-18000-3892 Filter

Filter ZHPF6-M3000-18000-3892

Passband3000~18000MHz, DC-2700MHz≥40dB, dB, SMA
In Stock View Details →
ZHPF6-L600-6000-3831 Filter

Filter ZHPF6-L600-6000-3831

Passband600~6000MHz, DC-500MHz≥60dB, dB, SMA
In Stock View Details →
ZHPF5-L2-18G-3711 Filter

Filter ZHPF5-L2-18G-3711

Passband2~18GHz, DC-1.7GHz≥40dB, SMA
In Stock View Details →
ZHPF4-M5.4-18G-1474 Filter

Filter ZHPF4-M5.4-18G-1474

Passband5.4~18GHz, DC-4.8GHz≥40dB, dB, SMA
In Stock View Details →
