Feature：Highpass× Clear all
matches 622 models Default Newest

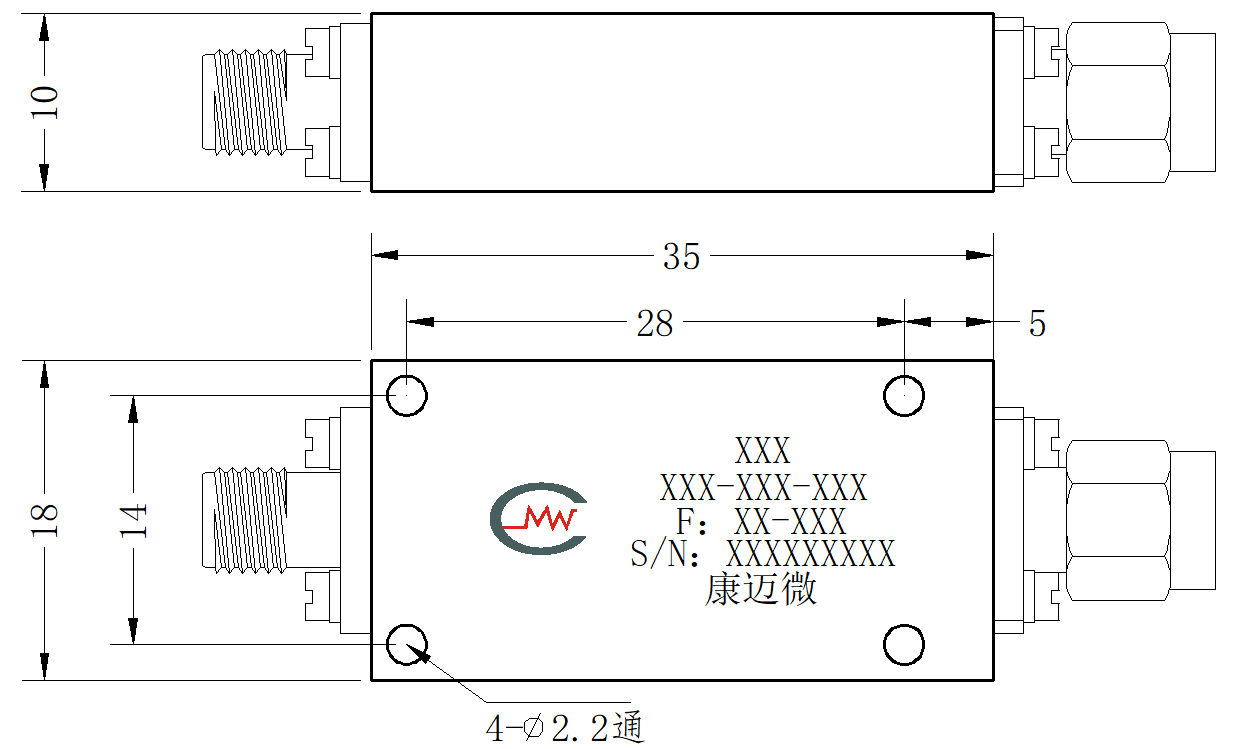

ZHPF4-M1-18G-1434 Filter

Filter ZHPF4-M1-18G-1434

Passband1~18GHz, DC-0.85GHz≥45dB, dB, SMA
In Stock View Details →
ZHPF2-M9-18G-3279 Filter

Filter ZHPF2-M9-18G-3279

Passband9~18GHz, DC-7.6GHz≥50dB, SMA
In Stock View Details →

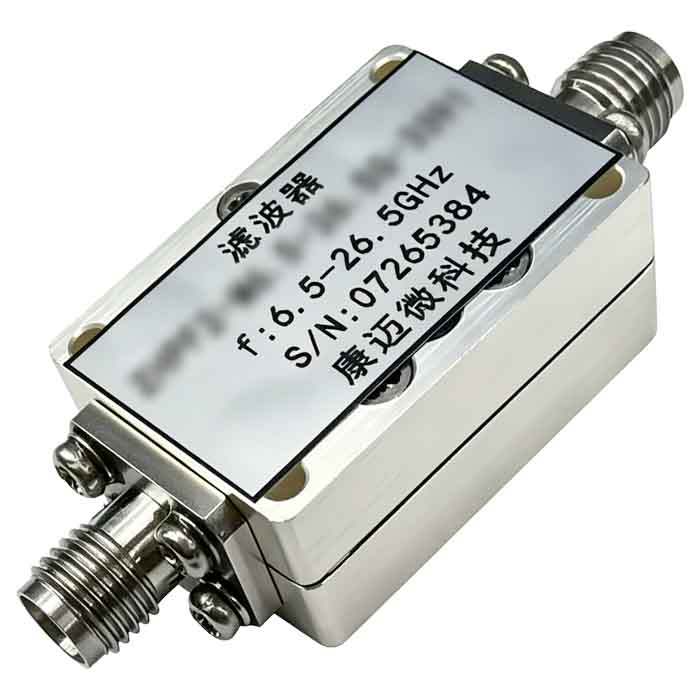

ZHPF2-M6.5-26.5G-3391 Filter

Filter ZHPF2-M6.5-26.5G-3391

Passband6.5~26.5GHz, DC-5.6GHz≥50dBc, 5.85GHz≥40dBc, SMA
In Stock View Details →

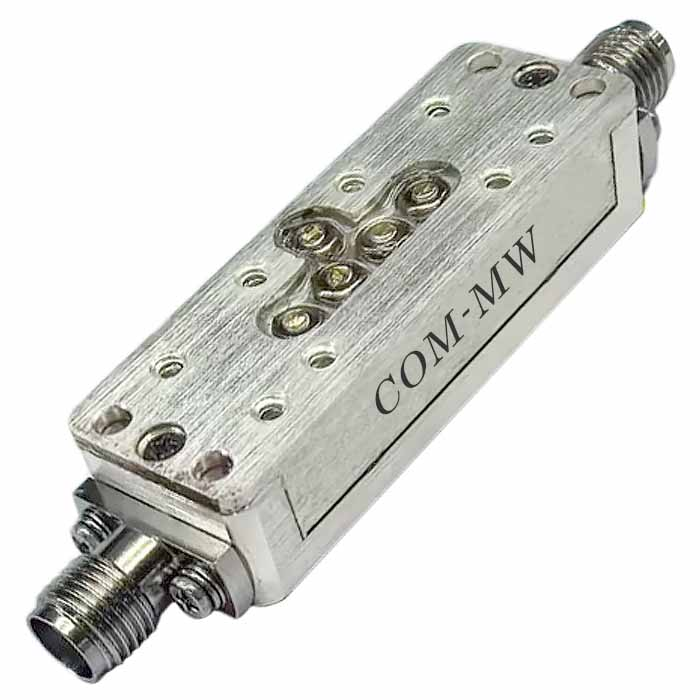

ZHPF2-M6-18G-3338 Filter

Filter ZHPF2-M6-18G-3338

Passband6~18GHz, 5.4GHz≥30dBc, DC-5GHz≥55dBc, SMA
In Stock View Details →

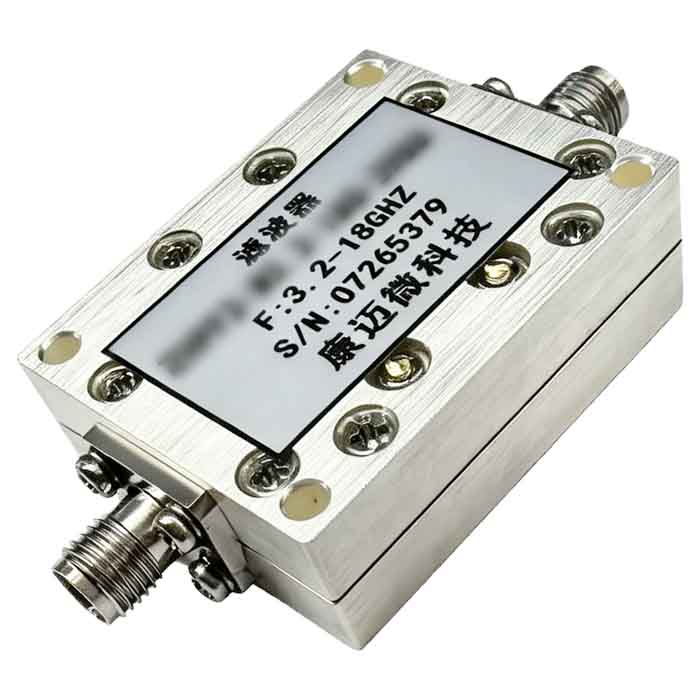

ZHPF2-M3.2-18G-2986 Filter

Filter ZHPF2-M3.2-18G-2986

Passband3.2~18GHz, DC-2880MHz≥50dBc, MHz≥dBc, SMA
In Stock View Details →
ZHPF2-M2.5-6G-2948 Filter

Filter ZHPF2-M2.5-6G-2948

Passband2.5~6GHz, 2180-2240MHz≥30dBc, DC-2180MHz≥50dBc, SMA
In Stock View Details →

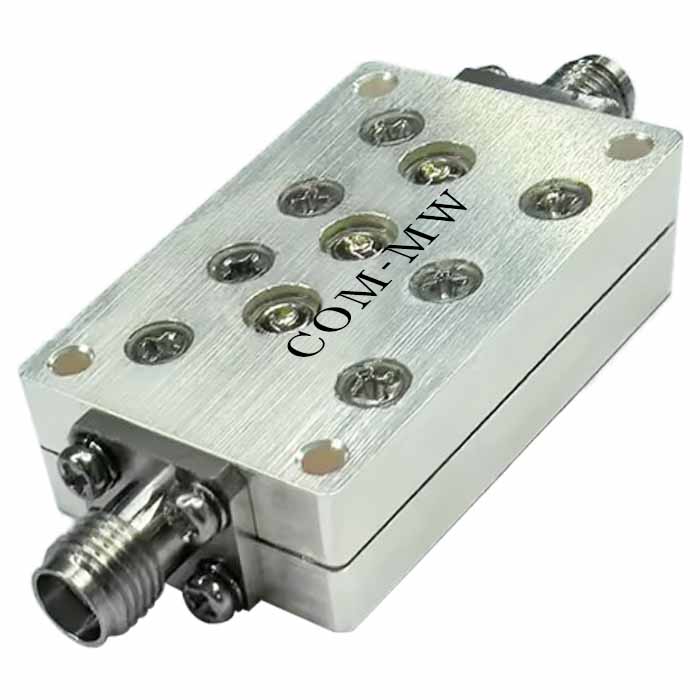

ZHPF2-M2-18G-3333 Filter

Filter ZHPF2-M2-18G-3333

Passband2~18GHz, DC-1.5GHz≥50dB, dB, SMA
In Stock View Details →
ZHPF2-C2-18G-2461 Filter

Filter ZHPF2-C2-18G-2461

Passband2~18GHz, 10-1400MHz≥50dBc, dB, Pin
In Stock View Details →
ZHPF13-M5-21G-2606 Filter

Filter ZHPF13-M5-21G-2606

Passband5~21GHz, DC-4GHz≥40dB, SMA
In Stock View Details →

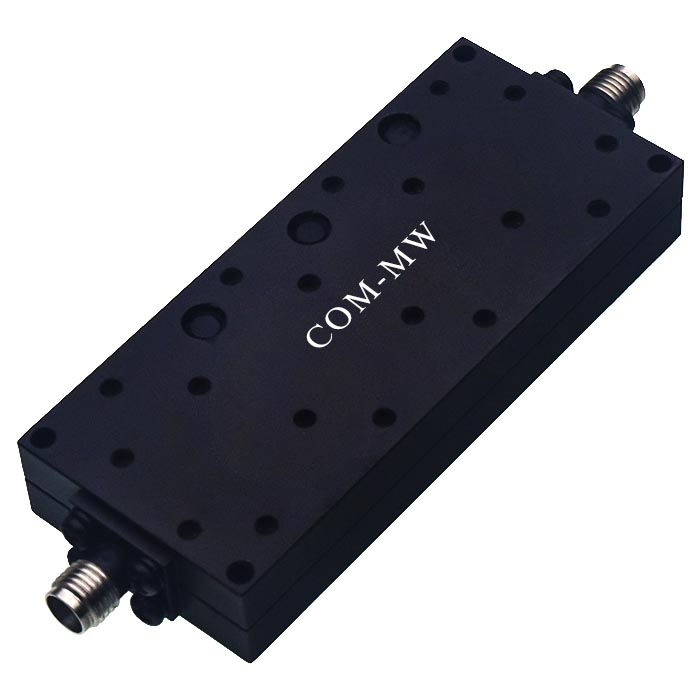

ZHPF13-M3-18G-1714 Filter

Filter ZHPF13-M3-18G-1714

Passband3~18GHz, DC-2.6GHz≥70dB, 2.6-2.69GHz≥55dB, SMA
In Stock View Details →

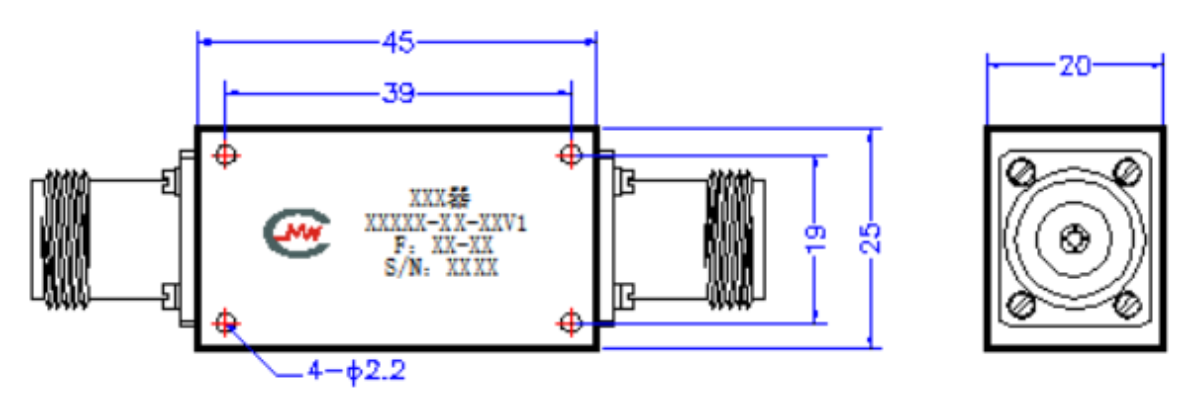

ZHPF1-M3.6-18G-299 Filter

Filter ZHPF1-M3.6-18G-299

Passband3.6~18, DC-3.2GHz≥60dB, N
In Stock View Details →

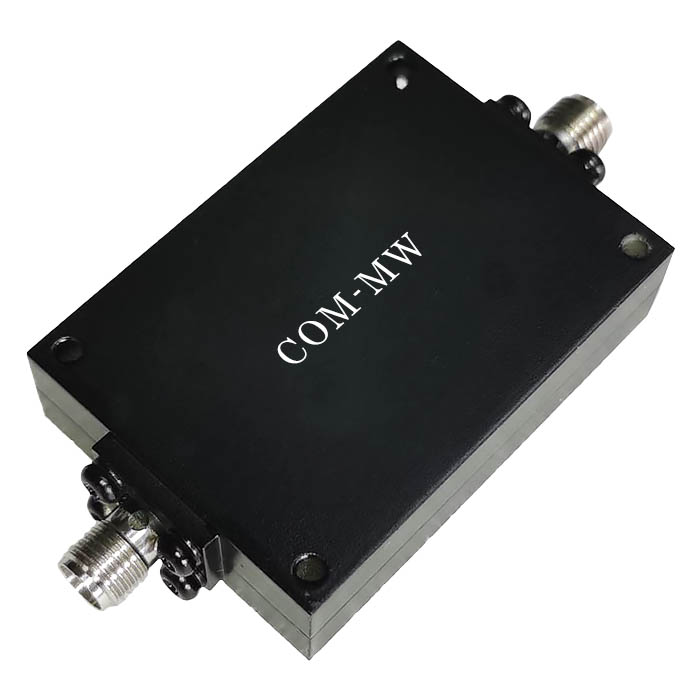

ZHPF1-M1.6-6G-360 Filter

Filter ZHPF1-M1.6-6G-360

Passband1.6~6GHz, DC-1.3GHz≥60dB, SMA
In Stock View Details →
ZHPF1-M1.4-12.75G-080 Filter

Filter ZHPF1-M1.4-12.75G-080

Passband1.4~12.75GHz, DC-1200MHz≥45dB, SMA
In Stock View Details →
ZHPF1-M1-12G-044 Filter

Filter ZHPF1-M1-12G-044

Passband1~12GHz, DC-0.8GHz≥50dB, 915MHz≥20dB, SMA
In Stock View Details →

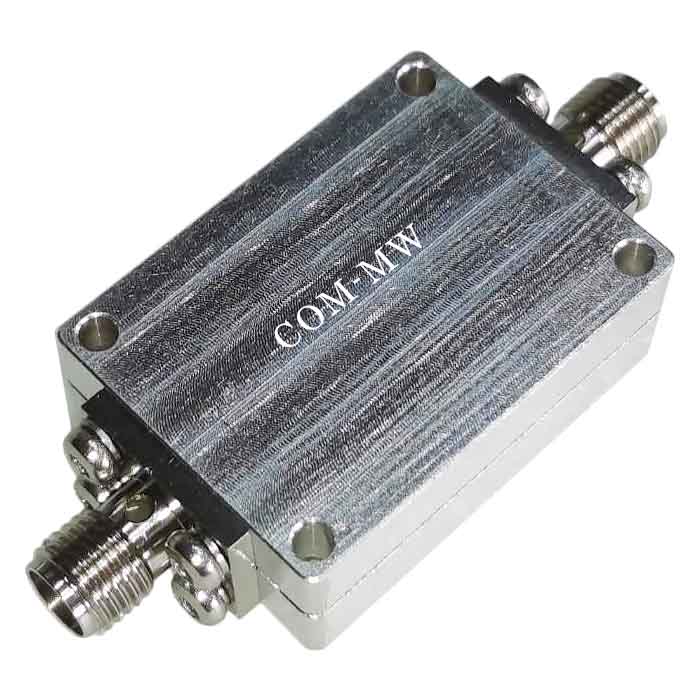

WBP2.8-17.3G-S3225 Filter

Filter WBP2.8-17.3G-S3225

Passband2.8~17.3GHz, DC-2.4GHz≥50dB, SMA
In Stock View Details →

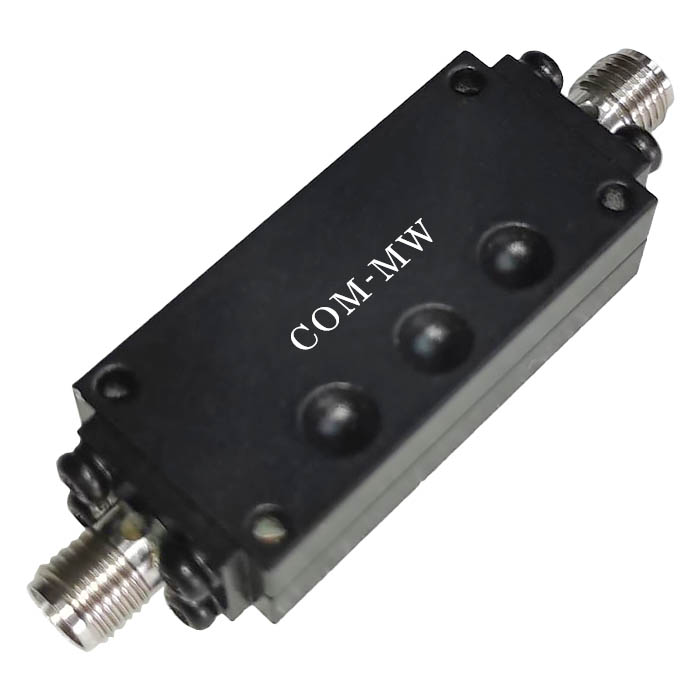

SMHP2R9-180G-50 Filter

Filter SMHP2R9-180G-50

Passband2.9~18GHz, 2.7GHz≥30dB, DC-2.4GHz≥50dB, SMA
In Stock View Details →
JX-HPF1-6G18G-50S Filter

Filter JX-HPF1-6G18G-50S

Passband6~18GHz, DC-5.1GHz≥50dB, SMA
In Stock View Details →
HP18.5G-40G-279 Filter

Filter HP18.5G-40G-279

Passband18.5~40GHz, DC-13GHz≥50dB, dB, Pin
In Stock View Details →
ZHPF8-M2000-4000-1723 Filter

Filter ZHPF8-M2000-4000-1723

Passband2000~4000MHz, DC-1.9GHz≥20dB, dB, SMA
In Stock View Details →
ZHPF6-M7500-18000-2955 Filter

Filter ZHPF6-M7500-18000-2955

Passband7.5~18GHz, DC~6.5GHz≥50dB, dB, SMA
In Stock View Details →

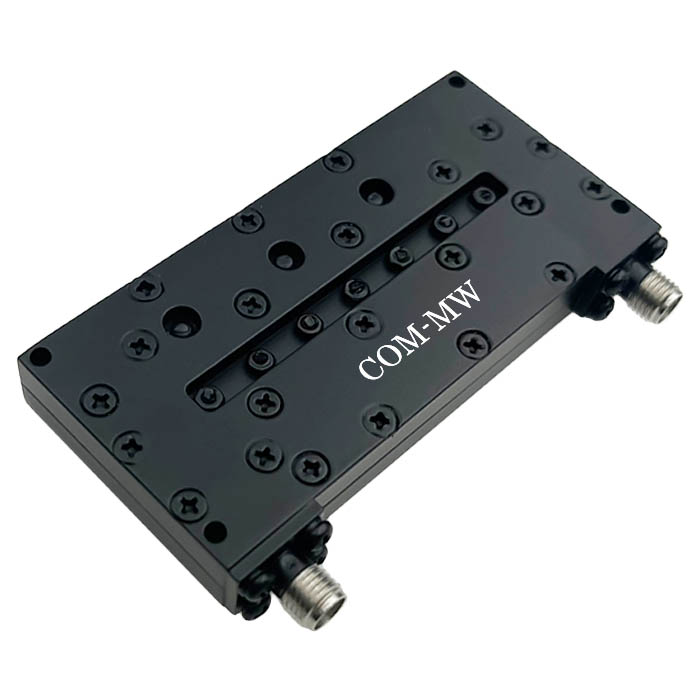

ZHPF6-M3300-13000-092 Filter

Filter ZHPF6-M3300-13000-092

Passband3.3~13GHz, DC-3GHz≥50dB, SMA
In Stock View Details →
ZHPF6-M2300-18000-995 Filter

Filter ZHPF6-M2300-18000-995

Passband2.3~18GHz, DC-2GHz≥50dB, SMA
In Stock View Details →
ZHPF6-M1.3-12G-279 Filter

Filter ZHPF6-M1.3-12G-279

Passband1.3~12GHz, DC-950MHz≥60dB, SMA
In Stock View Details →
ZHPF6-L1000-4000-3637 Filter

Filter ZHPF6-L1000-4000-3637

Passband1000~4000MHz, DC-915MHz≥dB, dB, SMA
In Stock View Details →
