RF Filter

Total 154 models
Categories
Categories RF Filter
RF Filter16049
RF Filter15377 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1230
Antenna1174 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1428
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter193 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
Feature
Bandpass 142 low pass 3 Highpass 4 Notch 4
F Low MHz
950 101 955 2 960 49 963 1 966 1
–
Center frequency MHz
960 - 1037.5 14 1045 - 1092.5 25 1095 - 1200 51 1225 - 1405 21 1450 - 2125 31
–
F High MHz
960 - 1090 12 1100 - 1224 25 1225 - 1500 63 1550 - 2050 27 2150 - 11000 27
–
IL on center frequency dB
0.2 - 0.3 4 0.4 - 0.5 17 0.7 - 0.8 2 1 - 1.5 92 2 - 3 27
–
Maximum loss of side frequency dB
0.4 - 0.6 8 0.7 - 1 18 1.2 - 1.4 4 1.5 - 2.5 98 3 - 4 26
–
Rejection dB
11 - 30 9 35 - 43 50 45 - 55 57 60 - 70 37 80 1
–
Connector
Other 2 SMD 36 SMA 33 N 5 Microstrip pad 3 Microstrip needle 75
Power Handling
0.32 - 2 118 3 - 20 19 30 - 80 7 100 - 200 10
–
Filter type
LC 133 Cavity&waveguide 16 stripline 3 MMIC 1 Dielectric 1
F Low：950 - 966 MHz× Clear all
matches 154 models Default Newest
ZBF5-L1550-1200-2277 Filter

Filter ZBF5-L1550-1200-2277

Passband950~2150MHz, DC-760MHz≥40dB, 2600-3600MHz≥40dB, SMD
In Stock View Details →
ZBF15-L1250-600-1171 Filter

Filter ZBF15-L1250-600-1171

Passband950~1550MHz, DC-800MHz≥40dBc, 1.8-4GHz≥40dBc, SMD
In Stock View Details →
ZBF15-L1200-500-865 Filter

Filter ZBF15-L1200-500-865

Passband950~1450MHz, DC-0.7MHz≥50dBc, 1.7-4GHz≥50dBc, SMD
In Stock View Details →
ZHPF5-L0.95-6G-3108 Filter

Filter ZHPF5-L0.95-6G-3108

Passband0.95~6GHz, RejectionDC-700MHz≥40dB, SMD
In Stock View Details →
WLD010033K Filter

Filter WLD010033K

Passband950~3300MHz, 400MHz≥40dBc, 6000MHz≥40dBc, Microstrip pad, MMIC
In Stock View Details →
ZBF5-L1550-1200-3708 Filter

Filter ZBF5-L1550-1200-3708

Passband950~2150MHz, DC-750MHz≥40dB, 2.35-5.5GHz≥40dB, SMD
In Stock View Details →
ZBF5-L1092.5-265-2338 Filter

Filter ZBF5-L1092.5-265-2338

Passband960~1225MHz, DC-800MHz≥40dB, 1400-3000MHz≥45dB, SMD
In Stock View Details →
ZBF5-L1000-100-3479 Filter

Filter ZBF5-L1000-100-3479

Passband950~1050MHz, DC-800MHz≥40dB, SMD
In Stock View Details →
ZBF15-L962-524-524 Filter

Filter ZBF15-L962-524-524

Passband960~1224MHz, DC-500MHz≥47dBc, 1400-2448MHz≥47dBc, Pin
In Stock View Details →
ZBF15-L1200-500-866 Filter

Filter ZBF15-L1200-500-866

Passband950~1450MHz, DC-0.7MHz≥50dBc, 1.7-4GHz≥50dBc, SMA
In Stock View Details →
ZBF15-L1100-300-644 Filter

Filter ZBF15-L1100-300-644

Passband950~1250MHz, DC-800MHz≥40dB, 1400-3000MHz≥40dB, SMD
In Stock View Details →
ZBF15-L1350-800-1172 Filter

Filter ZBF15-L1350-800-1172

Passband950~1750MHz, DC-800MHz≥40dBc, 2-4GHz≥40dBc, SMD
In Stock View Details →
ZBF5-L1550-1200-2276 Filter

Filter ZBF5-L1550-1200-2276

Passband950~2150MHz, DC-800MHz≥40dBc, 2500-6000MHz≥40dBc, SMA
In Stock View Details →
ZHPF3-L950-11000-4292 Filter

Filter ZHPF3-L950-11000-4292

Passband950~11000MHz, Passband IL, DC-530MHz≥60dB, 530-640MHz≥40dB, SMD
In Stock View Details →
ZBF15-L1100-300-643 Filter

Filter ZBF15-L1100-300-643

Passband950~1250MHz, DC-780MHz≥40dB, 1400-3000MHz≥40dB, SMA-K
In Stock View Details →
ZBF5-L1092.5-265-2315 Filter

Filter ZBF5-L1092.5-265-2315

Passband960~1225MHz, DC-830MHz≥40dB, 1400-5000MHz≥40dB, SMA-K
In Stock View Details →
ZBF13-L1550-1200-1839 Filter

Filter ZBF13-L1550-1200-1839

Passband950~2150MHz, DC-700MHz≥50dBc, 2.5-5GHz≥50dBc, SMD
In Stock View Details →
ZBF13-C1105-290-3637 Filter

Filter ZBF13-C1105-290-3637

Center Frequency1105MHz, Passband960~1250MHz, DC-860MHz≥65dBc, 1350-2000MHz≥65dBc, N
In Stock View Details →

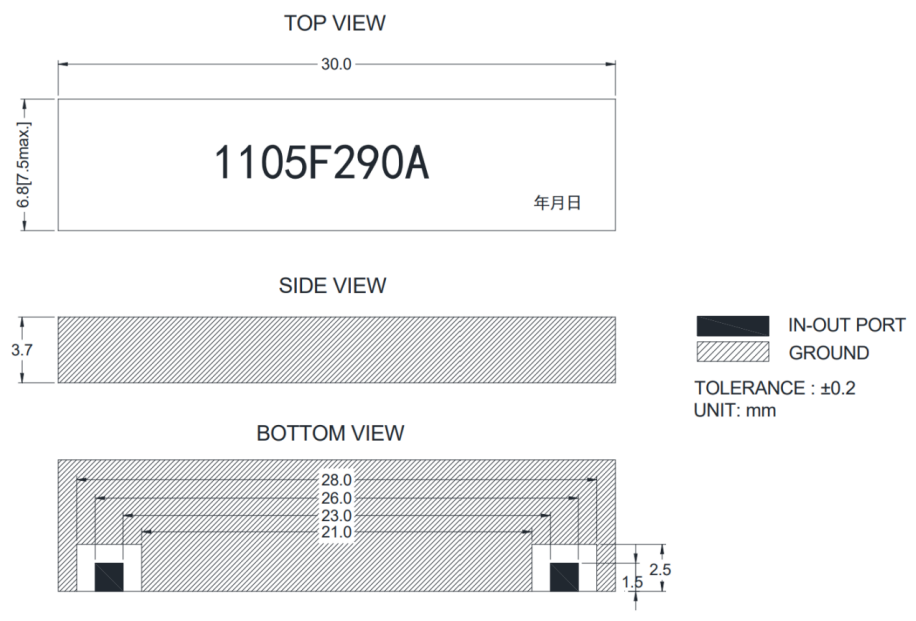

ZBF20-D1105-290-066 Filter

Filter ZBF20-D1105-290-066

Passband960~1250MHz, DC-760MHz≥50dBc, 760-920MHz≥25dBc, 1450-1800MHz≥50dBc, Microstrip pad
In Stock View Details →
ZBF-L1480-1040-3754 Filter

Filter ZBF-L1480-1040-3754

Passband960~2000MHz, DC-550MHz≥40dBc, 2500-4000MHz≥40dBc, Pin
In Stock View Details →
ZBF15-L1200-500-1798 Filter

Filter ZBF15-L1200-500-1798

Passband950~1450MHz, DC-0.6MHz≥50dBc, 1.9-6GHz≥50dBc, SMD
In Stock View Details →

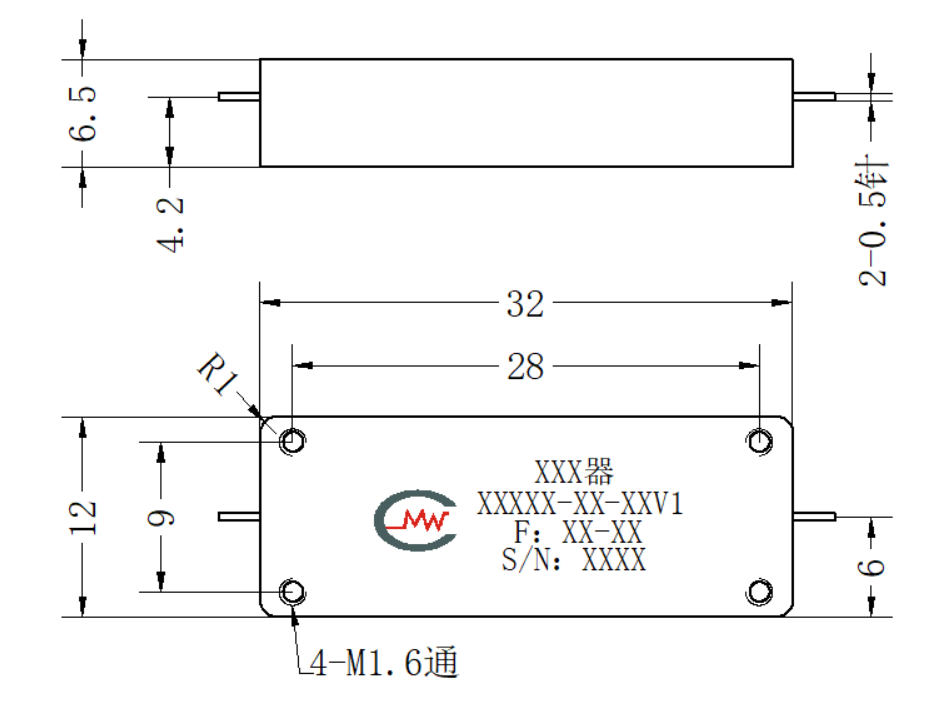

ZBF13-L1350-800-1672 Filter

Filter ZBF13-L1350-800-1672

Passband950~1750MHz, DC-0.5GHz≥40dBc, 2.4-2.7GHz≥40dBc, Pin
In Stock View Details →
ZLPF13-L960-1230-254 Filter

Filter ZLPF13-L960-1230-254

Passband960~1230MHz, 1.92-4.0GHz≥60dB, 4.0-5.0GHz≥50dB, N
View Details →
ZLPF13-L960-1225-2196 Filter

Filter ZLPF13-L960-1225-2196

Passband960~1225MHz, 1.9-2.5GHz≥70dBc, Pin
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
