Filters
Filters 1
Feature
Bandpass 14 Notch 21
F Low MHz
851 6 855 4 859 7 860 17 861 1
–
Center frequency MHz
860 - 861.5 2 865 - 865.5 2 880 - 910 2 915 - 1200 6 1294 - 1930 2
–
F High MHz
862 - 866 6 870 - 880 8 894 - 930 10 955 - 970 5 1540 - 3005 6
–
IL on center frequency dB
0.2 - 0.5 2 1 - 1.5 7 2 - 3 5
–
Maximum loss of side frequency dB
0.5 - 1 2 1.5 - 2 11 2.3 - 2.5 6 2.8 - 3 14 3.8 - 4 2
–
Rejection dB
30 - 40 9 44.999 - 55 12 60 - 70 12 90 - 110 2
–
Connector
Other 1 SMD 7 SMA 15 N 8 Microstrip needle 4
Power Handling
0.1 - 1 6 2 - 5 8 10 - 50 16 100 - 120 4 150 1
–
Filter type
LC 16 Cavity&waveguide 18 SAW 1
F Low：851 - 861 MHz× Clear all
matches 35 models Default Newest
ZBF3-L1200-680-2979 Filter

Filter ZBF3-L1200-680-2979

Passband860~1540MHz, 650MHz≥40dBc, 1750MHz≥40dBc, SMD
In Stock View Details →
ZBSF6-L851-870-6153 Filter

Filter ZBSF6-L851-870-6153

Stopband F851~870MHz, ≥50dB, PassbandDC~775MHz, 945~4000MHz, SMA
View Details →

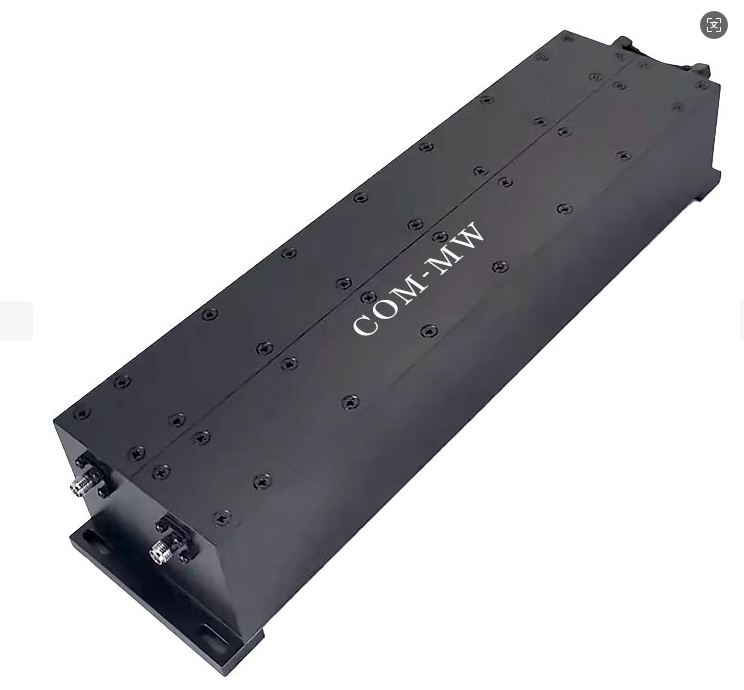

ZBSF6-C860-930-5239 Filter

Filter ZBSF6-C860-930-5239

Stopband F860~930MHz, ≥40dB, PassbandDC~845MHz, 945~3000MHz, SMA
View Details →

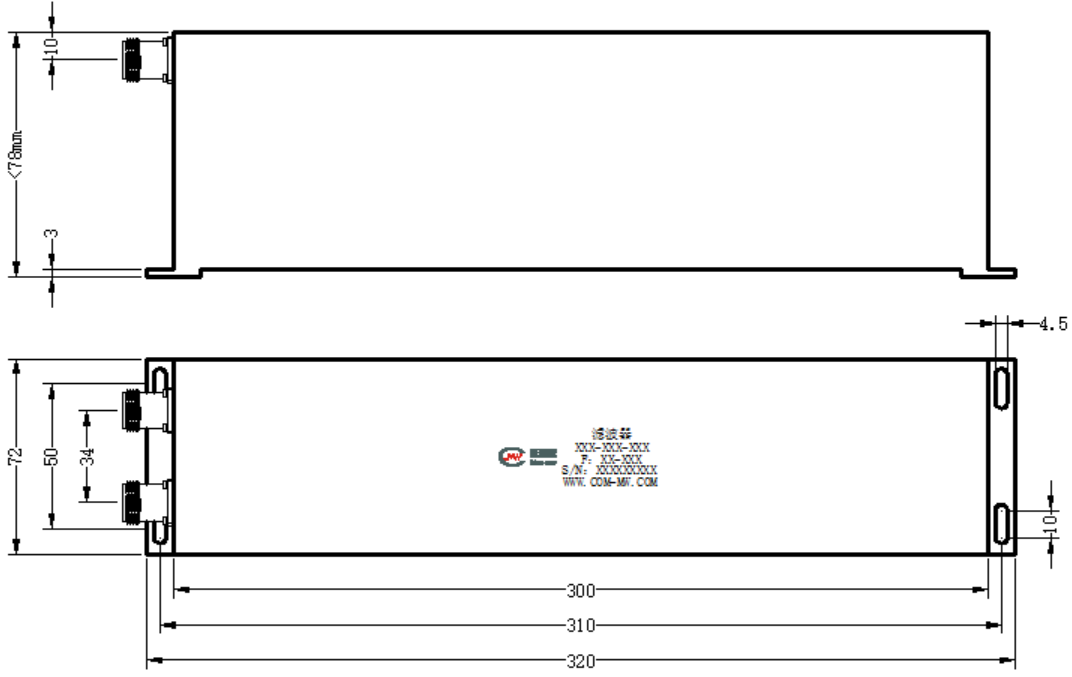

ZBSF6-C860-894-3558 Filter

Filter ZBSF6-C860-894-3558

Stopband F860~894MHz, ≥65dBc, PassbandDC~850MHz, 904~3000MHz, N
View Details →
ZBSF6-C859-894-6013 Filter

Filter ZBSF6-C859-894-6013

Stopband F859~894MHz, ≥105dB, PassbandDC~839MHz, 914~3000MHz, SMA
View Details →
ZBSF6-C859-894-5444 Filter

Filter ZBSF6-C859-894-5444

Stopband F859~894MHz, ≥70dB, PassbandDC~849MHz, 904~4000MHz, N
View Details →

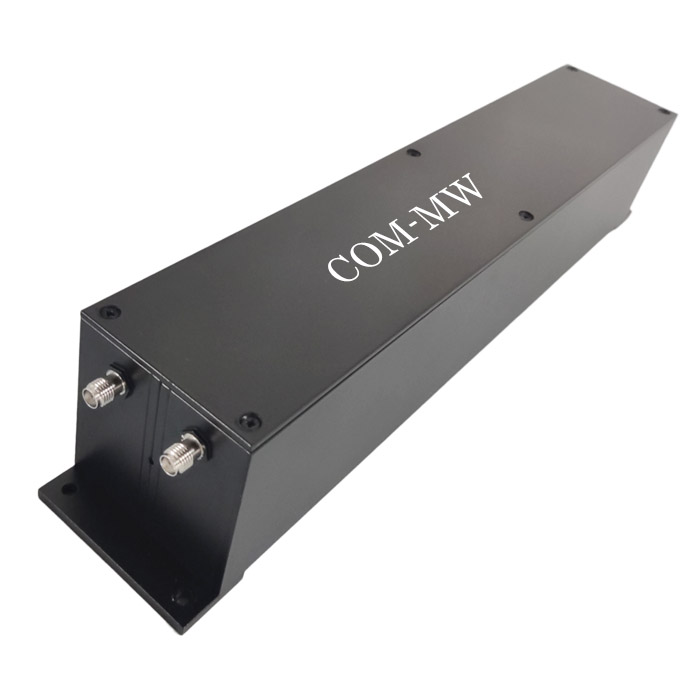

ZBSF6-C855-880-5938 Filter

Filter ZBSF6-C855-880-5938

Stopband F855~880MHz, ≥60dB, PassbandDC~845MHz, 890~3000MHz, SMA
View Details →

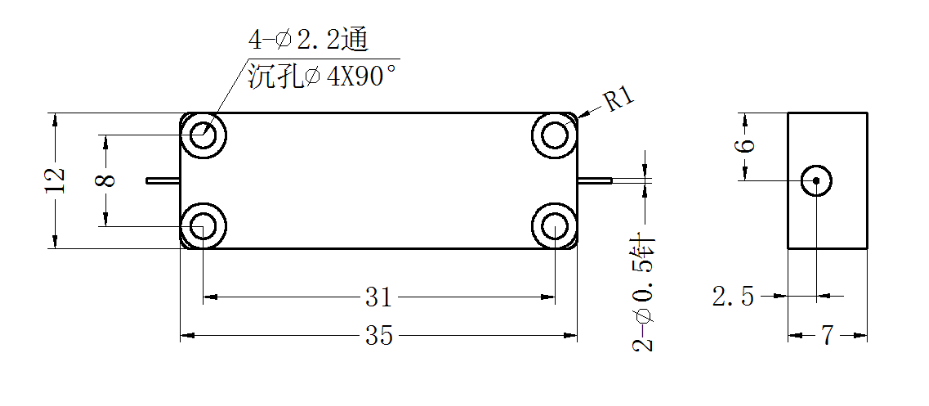

ZBSF2-L860-960-2196 Filter

Filter ZBSF2-L860-960-2196

Stopband F860~960MHz, ≥30dBc, Passband600~800MHz, 1018~1100MHz, Pin
View Details →

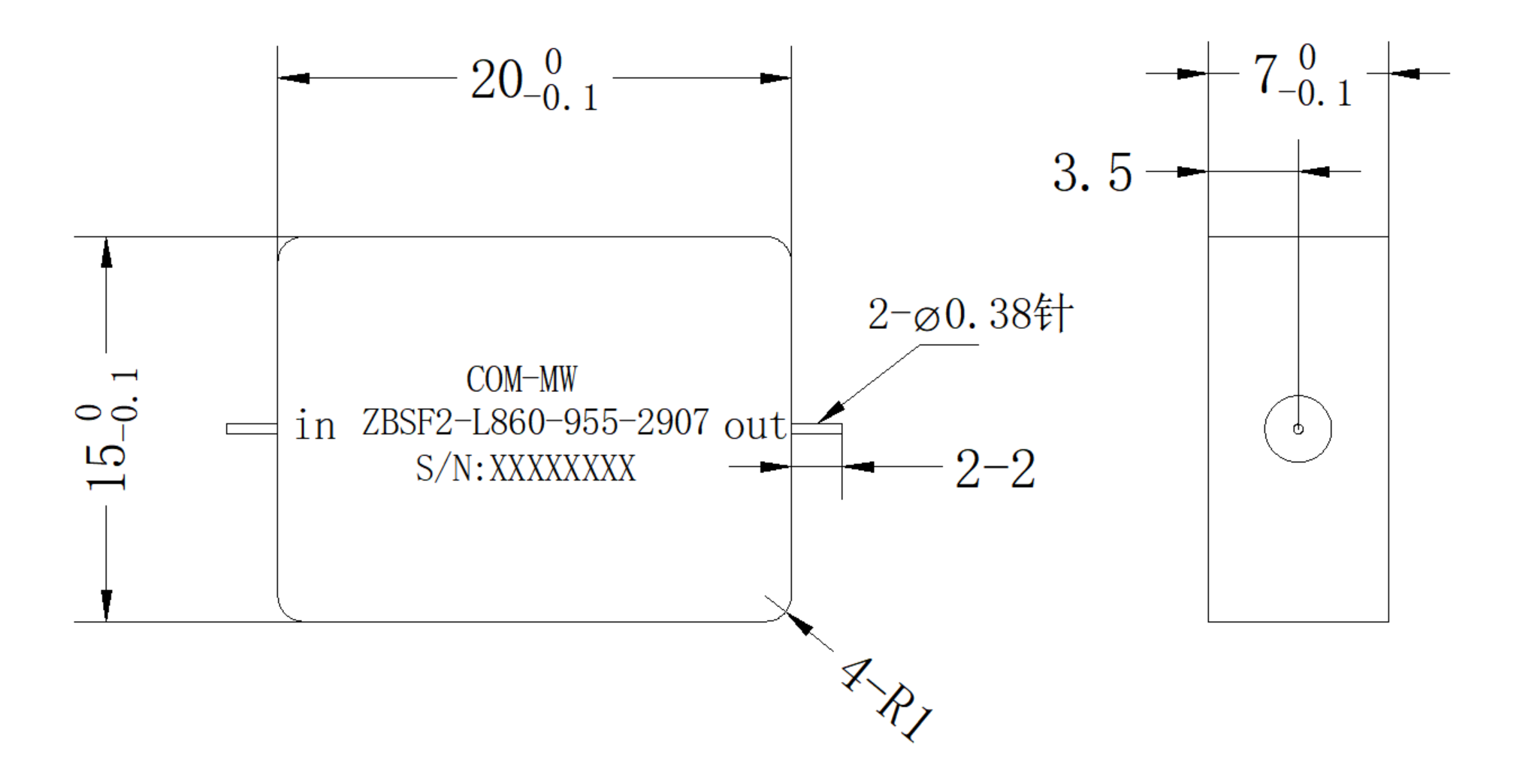

ZBSF2-L860-955-2907 Filter

Filter ZBSF2-L860-955-2907

Stopband F860~955MHz, ≥35dBc, Passband30~800MHz, 1020~2400MHz,
View Details →
ZBF6-C865.5-29-5152 Filter

Filter ZBF6-C865.5-29-5152

Passband851~880MHz, DC-831MHz≥70dB, 900-2000MHz≥70dB, SMA
View Details →
ZBF6-C860-10-2337 Filter

Filter ZBF6-C860-10-2337

Passband855~865MHz, DC-845MHz≥55dB, 875-2000MHz≥55dB, L29, -150dBc@2*43dBmdesign assurance
View Details →

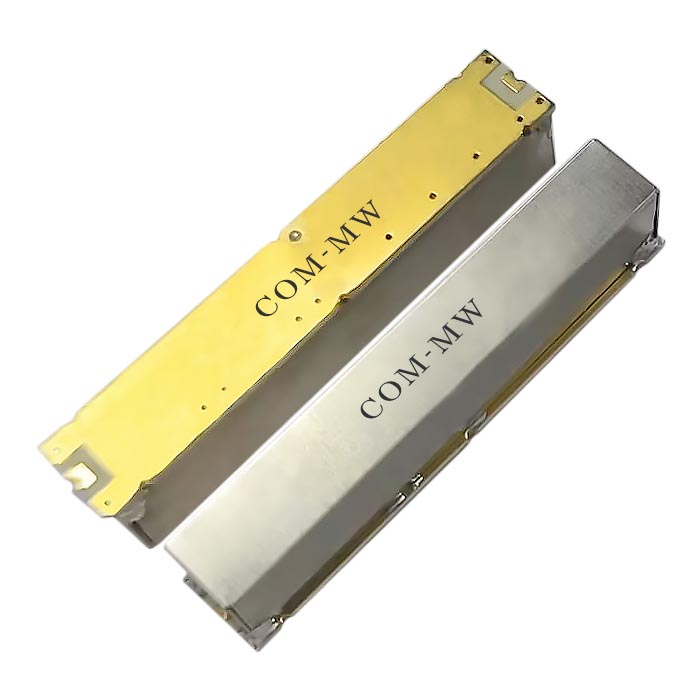

ZBF3-L1200-680-4591 Filter

Filter ZBF3-L1200-680-4591

Passband860~1540MHz, 750MHz≥20dBc, 1660MHz≥20dBc, SMD
View Details →
ZBF3-L1200-680-4448 Filter

Filter ZBF3-L1200-680-4448

Passband860~1540MHz, 750MHz≥20dBc, 1660MHz≥20dBc, SMD
View Details →
ZBF3-L1200-680-3908 Filter

Filter ZBF3-L1200-680-3908

Passband860~1540MHz, DC-650MHz≥40dBc, 1750-3000MHz≥40dBc, SMD
View Details →
ZBF2-L915-110-1584 Filter

Filter ZBF2-L915-110-1584

Passband860~970MHz, DC-400MHz≥60dBc, 400-700MHz≥40dBc, Pin
View Details →

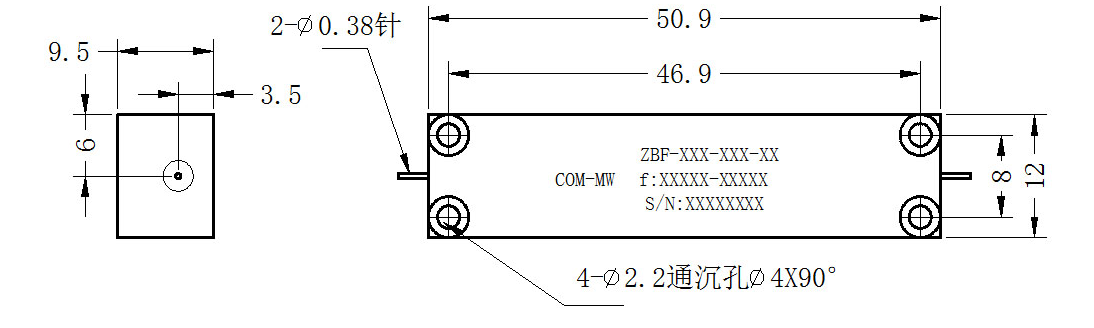

ZBF2-L1930-2140-1952 Filter

Filter ZBF2-L1930-2140-1952

Passband855~3005MHz, DC-750MHz≥50dBc, 750-820MHz≥8dBc, Pin
View Details →

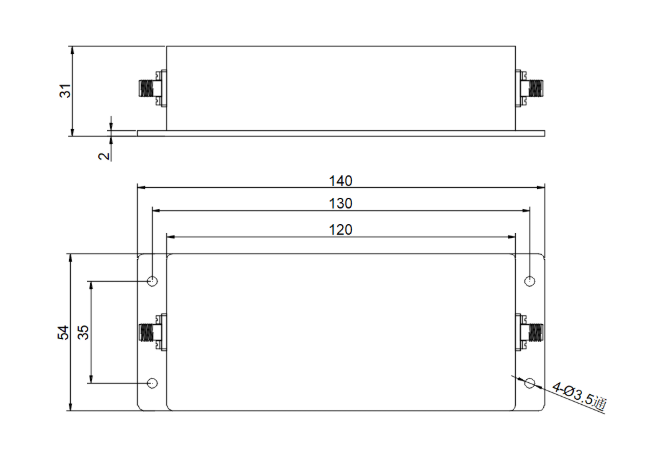

ZBF2-C1294-868-2518 Filter

Filter ZBF2-C1294-868-2518

Passband860~1728MHz, DC-561MHz≥20dB, 561-736MHz≥10dB, SMA
View Details →
ZBF15-L915-110-324 Filter

Filter ZBF15-L915-110-324

Passband860~970MHz, DC-770MHz≥40dBc, 1700-3000MHz≥40dBc, SMD
View Details →
ZBF15-L910-100-1326 Filter

Filter ZBF15-L910-100-1326

Passband860~960MHz, DC-770MHz≥40dB, 1050-4000MHz≥50dB, SMD
View Details →
ZBF15-L880-50-750 Filter

Filter ZBF15-L880-50-750

Passband855~905MHz, 1020MHz≥40dB, 1980-3280MHz≥50dB, Microstrip pad
View Details →
ZBF15-L865-10-414 Filter

Filter ZBF15-L865-10-414

Passband860~870, fc±60MHz≥40dB, dB, SMA
View Details →
ZBF13-C861.5-1-318 Filter

Filter ZBF13-C861.5-1-318

Center Frequency861.5MHz, Passband861~862MHz, DC-818MHz≥90dB, 851.5MHz≥60dB, SMA
View Details →

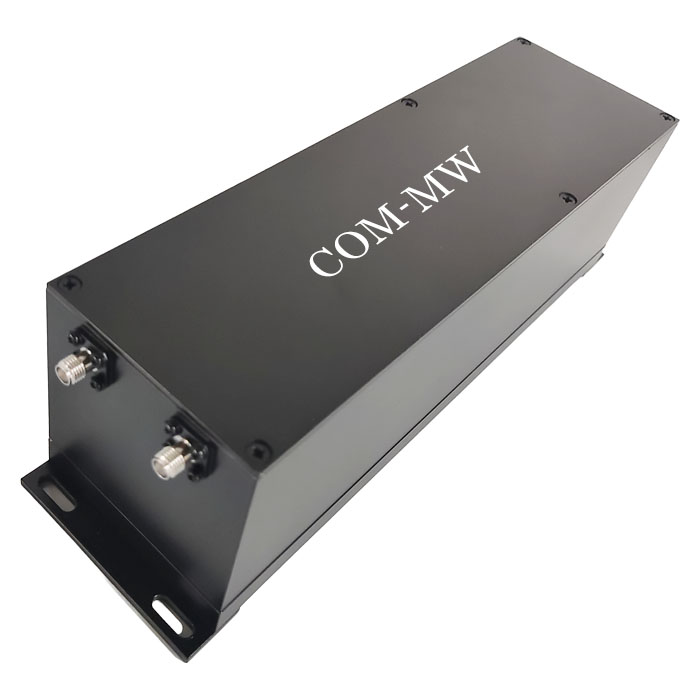

K6-860-875-8S6050-001 Filter

Filter K6-860-875-8S6050-001

Stopband F860~875MHz, ≥60dB, PassbandDC~852MHz, 883~3000MHz, SMA
View Details →
K6-860-875-8N6050-002 Filter

Filter K6-860-875-8N6050-002

Stopband F860~875MHz, ≥60dB, PassbandDC~852MHz, 883~3000MHz, N
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
