F Low：610 - 617 MHz× Clear all
matches 24 models Default Newest
ZBF15-L630-30-1669 Filter

Filter ZBF15-L630-30-1669

Passband615~645MHz, DC-575MHz≥40dBc, 685-1000MHz≥40dBc, SMD
In Stock View Details →
ZBF15-L626-24-1461 Filter

Filter ZBF15-L626-24-1461

Passband614~638MHz, DC-588MHz≥30dBc, 664-2000MHz≥30dBc, SMD
In Stock View Details →
K6-617-652-10S60100-003 Filter

Filter K6-617-652-10S60100-003

Stopband F617~652MHz, ≥60dB, PassbandDC~607MHz, 662~2200MHz, SMA
In Stock View Details →
ZLPF13-L610-678-946 Filter

Filter ZLPF13-L610-678-946

Passband610~678MHz, MHz≥dBc, 1220-2034MHz≥50dBc, dBc, Microstrip pad
View Details →
ZBSF6-L617-960-5703 Filter

Filter ZBSF6-L617-960-5703

Stopband F617~960MHz, ≥50dB, PassbandDC~537MHz, 1040~3500MHz, SMA
View Details →
ZBSF6-C617-652-5441 Filter

Filter ZBSF6-C617-652-5441

Stopband F617~652MHz, ≥60dB, PassbandDC~607MHz, 662~3000MHz, N
View Details →
ZBF6-C657.5-81-5193 Filter

Filter ZBF6-C657.5-81-5193

Passband617~698MHz, DC-572MHz≥40dB, 743-4000MHz≥40dB, SMA
View Details →
ZBF5-L750-270-3323 Filter

Filter ZBF5-L750-270-3323

Passband615~885MHz, dB, dB, Pin
View Details →

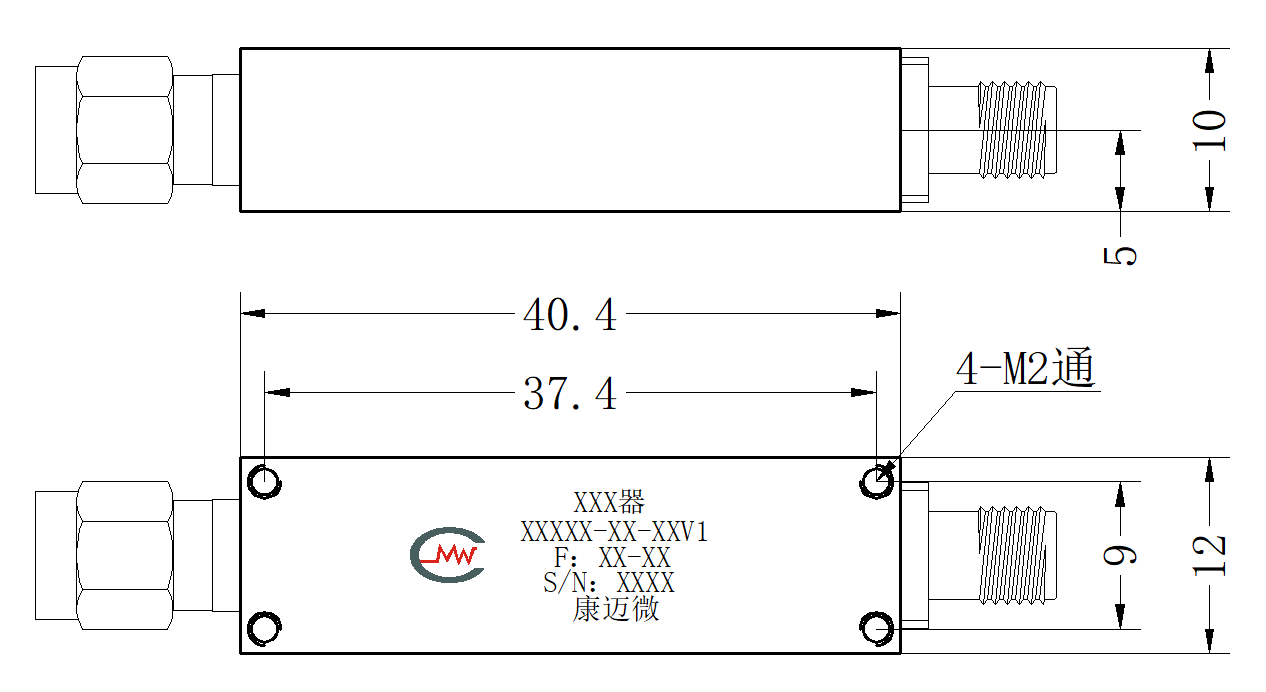

ZBF3-L620-20-3691 Filter

Filter ZBF3-L620-20-3691

Passband610~630MHz, DC-560MHz≥40dB, 680-1000MHz≥40dB, SMA
View Details →

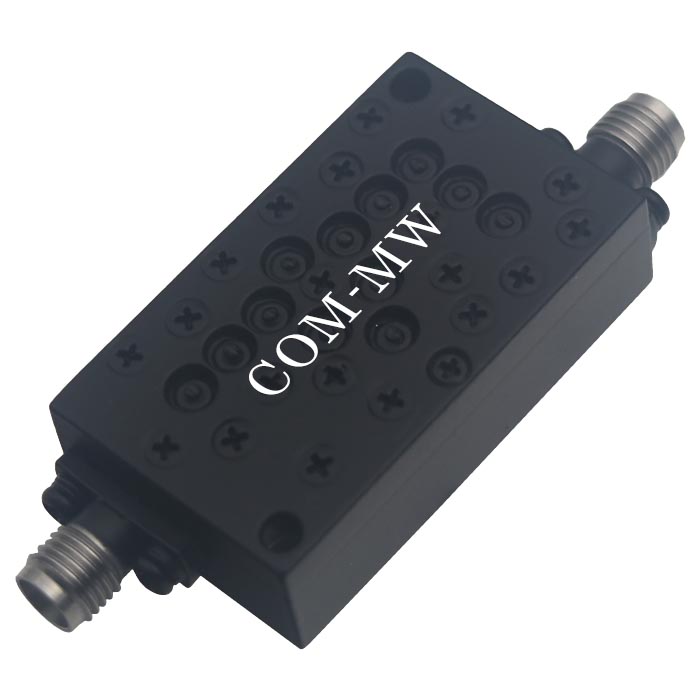

ZBF2-C626-24-2595 Filter

Filter ZBF2-C626-24-2595

Passband614~638MHz, DC-594MHz≥30dB, 594-604MHz≥10dB, N
View Details →
ZBF2-C625-30-1162 Filter

Filter ZBF2-C625-30-1162

Passband610~640MHz, DC-560MHz≥75dBc, 900-1710MHz≥50dBc, Pin
View Details →
ZBF15-L720-210-734 Filter

Filter ZBF15-L720-210-734

Passband615~825MHz, DC-500MHz≥50dB, 550MHz≥45dB, SMD
View Details →
ZBF15-L630-30-1643 Filter

Filter ZBF15-L630-30-1643

Passband615~645MHz, DC-547.5MHz≥40dB, 712.5-1000MHz≥40dB, SMD
View Details →
ZBF13-L635-50-1255 Filter

Filter ZBF13-L635-50-1255

Passband610~660MHz, DC-550MHz≥45dBc, Pin
View Details →
ZBF13-L612-3-2018 Filter

Filter ZBF13-L612-3-2018

Center Frequency612MHz, MHz, F0±35MHz≥35dB, DC-524MHz≥60dB, Pin
View Details →
ZBF13-C621-10-884 Filter

Filter ZBF13-C621-10-884

Passband616~626MHz, DC-601MHz≥50dB, 641-1500MHz≥50dB, N
View Details →
K6-617-652-30S5050-005 Filter

Filter K6-617-652-30S5050-005

Stopband F617~652MHz, ≥50dB, PassbandDC~587MHz, 682~3000MHz, SMA
View Details →
K6-617-652-30N5050-006 Filter

Filter K6-617-652-30N5050-006

Stopband F617~652MHz, ≥50dB, PassbandDC~587MHz, 682~3000MHz, N
View Details →

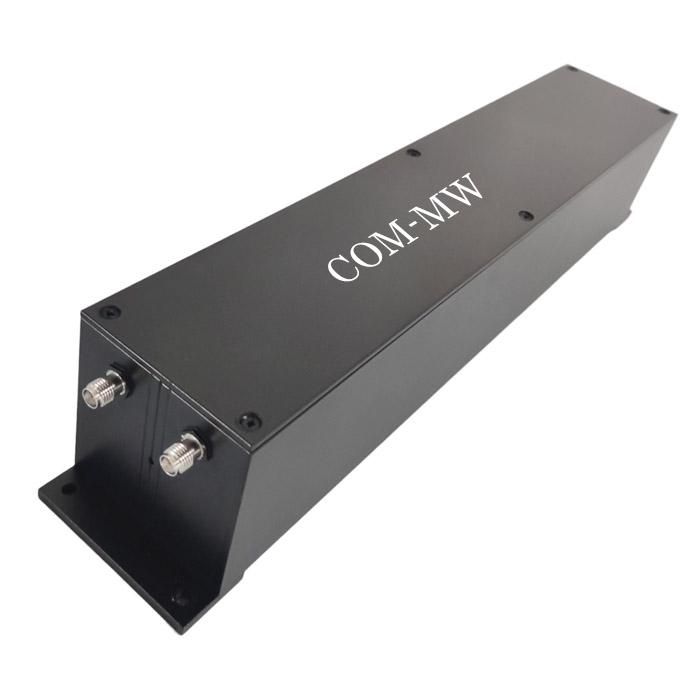

K6-617-652-10S6050-004 Filter

Filter K6-617-652-10S6050-004

Stopband F617~652MHz, ≥60dB, PassbandDC~607MHz, 662~2200MHz, SMA
View Details →
K6-617-652-10S6050-003 Filter

Filter K6-617-652-10S6050-003

Stopband F617~652MHz, ≥60dB, PassbandDC~607MHz, 662~2200MHz, SMA
View Details →
K6-617-652-10S4050-001 Filter

Filter K6-617-652-10S4050-001

Stopband F617~652MHz, ≥40dB, PassbandDC~607MHz, 662~2200MHz, SMA
View Details →
K6-617-652-10N6050-004 Filter

Filter K6-617-652-10N6050-004

Stopband F617~652MHz, ≥60dB, PassbandDC~607MHz, 662~2200MHz, N
View Details →
K6-617-652-10N4050-002 Filter

Filter K6-617-652-10N4050-002

Stopband F617~652MHz, ≥40dB, PassbandDC~607MHz, 662~2200MHz, N
View Details →
HBTE-BSF-617-652-N-120-5441 Notch filter

Notch filter HBTE-BSF-617-652-N-120-5441

Stopband F617~652MHz, ≥70dB, PassbandDC~607MHz, 662~3000MHz, N
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
