RF Filter

Total 21 models
Categories
Categories RF Filter
RF Filter16049
RF Filter15377 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1230
Antenna1174 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1428
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter193 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
Feature
Bandpass 21
F Low MHz
56.8 1 57 4 57.5 3 58 10 58.5 3
–
Center frequency MHz
59 - 60 3 70 - 72.5 16 76.8 - 87 2
–
F High MHz
61 - 62.5 3 71.5 - 82 10 82.5 - 86.5 6 96.8 - 116 2
–
IL on center frequency dB
0.5 - 1 12 1.7 - 2 4 3 - 4 4 33 1
–
Maximum loss of side frequency dB
1 - 2 12 2.7 - 3 4 4 - 4.5 2 5 - 34 3
–
Rejection dB
30 - 32 2 35 - 40 8 45 - 50 6 53 - 60 5
–
Connector
SMD 11 SMA 2 Microstrip needle 8
Power Handling
0.1 1 0.5 1 1 10 2 8 5 1
–
Filter type
LC 20 SAW 1
F Low：56.8 - 58.5 MHz× Clear all
matches 21 models Default Newest
BF002 Filter

Filter BF002

Passband57~61MHz, DC-52MHz≥33dB, 68-2600MHz≥32dB, SMD, Replace BPF-B59+
In Stock View Details →
BF080 Filter

Filter BF080

Passband58~82MHz, DC-46MHz≥40dB, 94-500MHz≥40dB, SMD
In Stock View Details →
ZBF9-S70-24.5-1106 Filter

Filter ZBF9-S70-24.5-1106

Passband58~82MHz, -40dB BW29.7MHz, Pin
In Stock View Details →
ZBF15-L70-26-1288 Filter

Filter ZBF15-L70-26-1288

Passband57~83MHz, 115-200MHz≥30dBc, DC-10MHz≥30dBc, Pin
In Stock View Details →
ZBF3-L70-23-243 Filter

Filter ZBF3-L70-23-243

Passband58.5~81.5MHz, DC-47MHz≥53dB, 93-200MHz≥53dB, SMD
In Stock View Details →
ZBF13-L60.05-4.9-1513 Filter

Filter ZBF13-L60.05-4.9-1513

Passband57.6~62.5MHz, DC-50MHz≥40dB, 70-700MHz≥40dB, SMD
In Stock View Details →
ZBF3-L70-24-3600 Filter

Filter ZBF3-L70-24-3600

Passband58~82MHz, SMD
In Stock View Details →
ZBF6-L70-23-3584 Filter

Filter ZBF6-L70-23-3584

Passband58.5~81.5MHz, 40MHz≥50dB, 100MHz≥50dB, Pin
View Details →
ZBF5-L70-25-2461 Filter

Filter ZBF5-L70-25-2461

Passband57.5~82.5MHz, DC-45MHz≥60dB, 102.5-200MHz≥60dB, SMA-K
View Details →
ZBF3-L76.8-40-3062 Filter

Filter ZBF3-L76.8-40-3062

Passband56.8~96.8MHz, 44.8MHz≥32dB, 108.8MHz≥32dB, 微带半圆孔
View Details →
ZBF3-L72.5-28-3147 Filter

Filter ZBF3-L72.5-28-3147

Passband58.5~86.5MHz, 110MHz≥20dBc, 140-1000MHz≥40dBc, Pin
View Details →

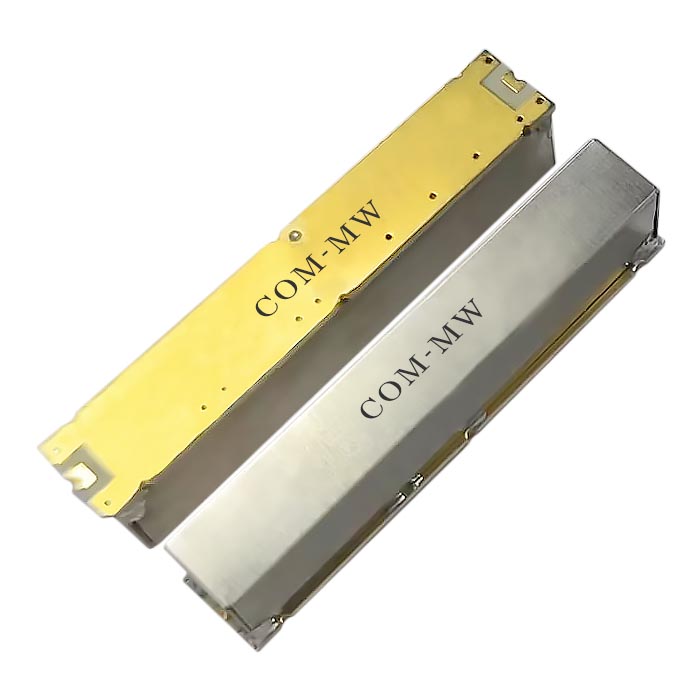

ZBF3-L70-26-3702 Filter

Filter ZBF3-L70-26-3702

Passband57~83MHz, SMD
View Details →

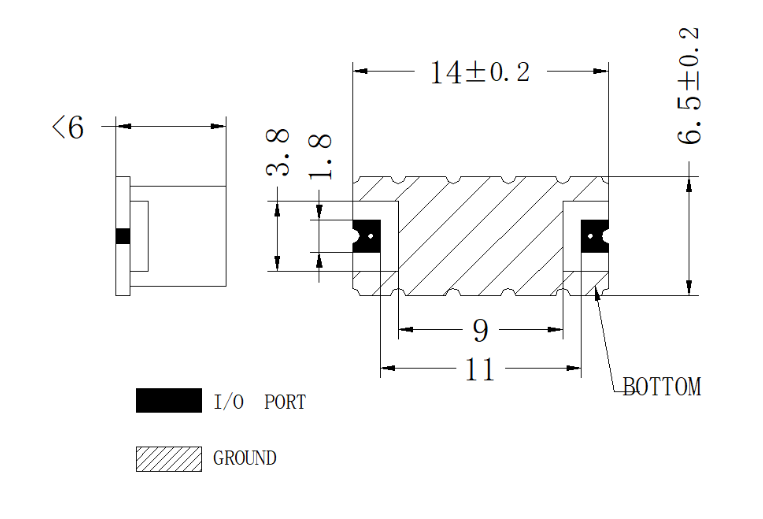

ZBF2-L70-24-1973 Filter

Filter ZBF2-L70-24-1973

Passband58~82MHz, fo±40MHz≥50dB, DC-20MHz≥60dB, SMD
View Details →

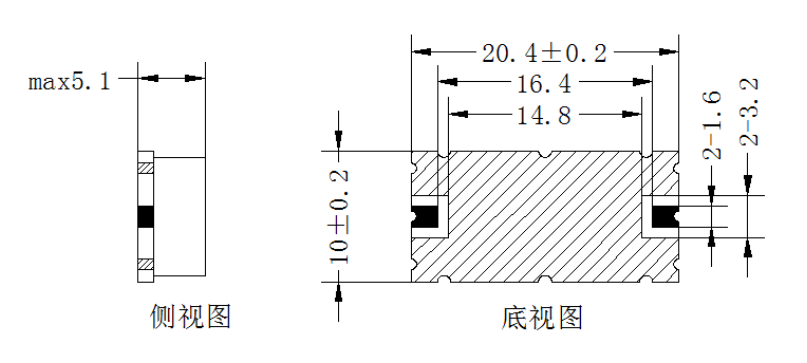

ZBF2-L70-24-1912 Filter

Filter ZBF2-L70-24-1912

Passband58~82MHz, DC-45MHz≥35dB, 90-500MHz≥35dB, SMD
View Details →
ZBF15-L70-26-1289 Filter

Filter ZBF15-L70-26-1289

Passband57~83MHz, 115-200MHz≥50dBc, DC-40MHz≥35dBc, Pin
View Details →
ZBF15-L70-25-1335 Filter

Filter ZBF15-L70-25-1335

Passband57.5~82.5MHz, DC-30MHz≥60dBc, 110MHz≥30dBc, SMD
View Details →

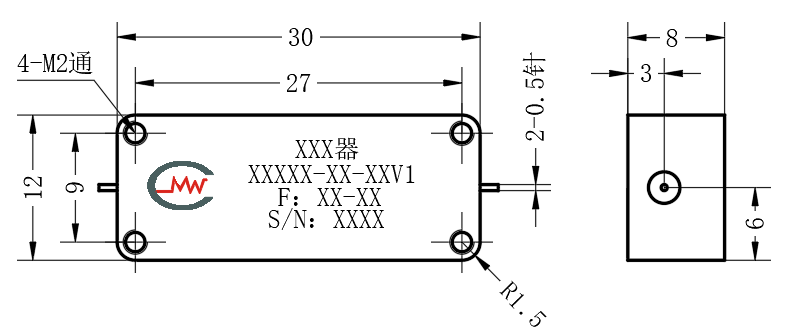

ZBF15-L70-24-681 Filter

Filter ZBF15-L70-24-681

Passband58~82MHz, F0±35MHz≥35dBc, F0±45MHz≥45dBc, Pin
View Details →

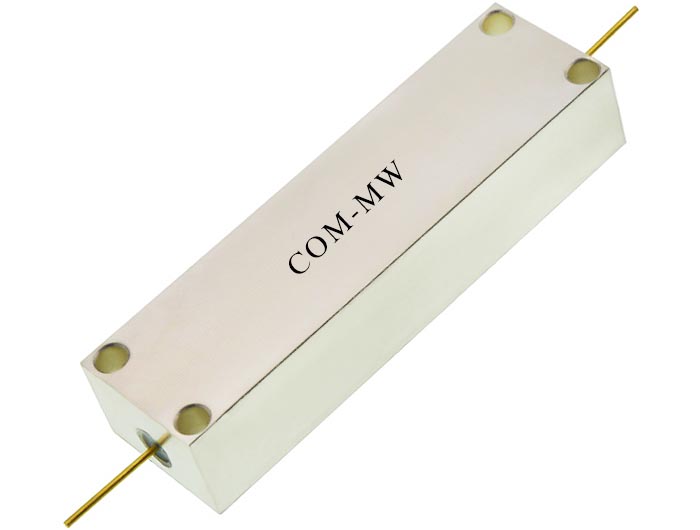

ZBF15-L70-24-464 Filter

Filter ZBF15-L70-24-464

Passband58~82MHz, DC-42MHz≥45dBc, 110-400MHz≥45dBc, Pin
View Details →

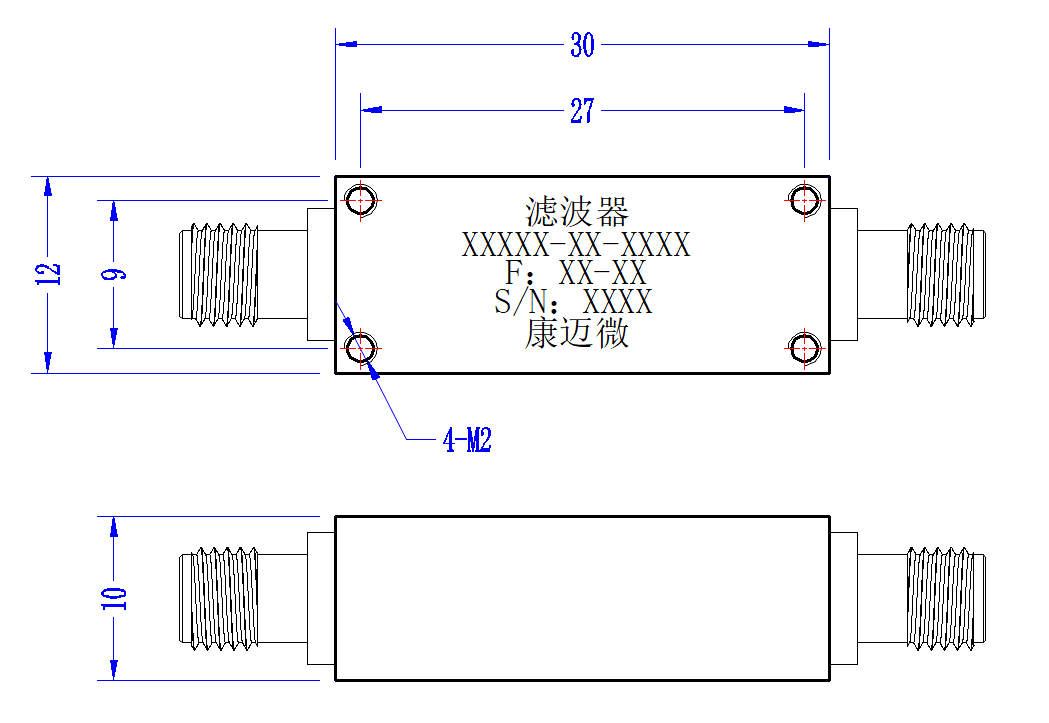

ZBF13-L87-58-1949 Filter

Filter ZBF13-L87-58-1949

Passband58~116MHz, DC-35MHz≥60dBc, 145-1000MHz≥60dBc, SMA
View Details →
ZBF13-L70-24-1080 Filter

Filter ZBF13-L70-24-1080

Passband58~82MHz, DC-20MHz≥60dB, 20-30MHz≥50dB, Pin
View Details →
ZBF13-L60-4-1073 Filter

Filter ZBF13-L60-4-1073

Passband58~62MHz, DC-50MHz≥35dBc, 70-500MHz≥40dBc, SMD
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
