Filters
Filters 1
Feature
Bandpass 57 low pass 1 Highpass 2
F Low MHz
506 - 517.6 9 518 - 524 23 525 - 535 15 536 - 545 11 547.5 - 548 2
–
Center frequency MHz
507.5 - 530 9 533 - 554 10 565 - 631 8 650 - 715 9 720 - 1256 21
–
F High MHz
509 - 542 10 548 - 570 9 605 - 755 11 760 - 935 24 960 - 4000 6
–
IL on center frequency dB
1 25 1.5 2 2 13 3 16 4 1
–
Maximum loss of side frequency dB
0.8 - 1.5 5 1.6 - 1.8 4 2 - 3 34 3.8 - 7 17
–
Rejection dB
20 - 30 12 32 - 40 18 45 - 50 17 52 - 60 9 65 - 77 4
–
Connector
SMD 15 SMA 14 Microstrip needle 31
Power Handling
0.1 - 1 23 2 - 5 33 10 - 15 3 120 1
–
Filter type
LC 50 Cavity&waveguide 10
F Low：506 - 548 MHz× Clear all
matches 60 models Default Newest
ZHPF5-L0.53-4G-3100 Filter

Filter ZHPF5-L0.53-4G-3100

Passband0.53~4GHz, RejectionDC-370MHz≥40dB, SMD
In Stock View Details →
ZBF14-L720-400-751 Filter

Filter ZBF14-L720-400-751

Passband520~920MHz, DC-400MHz≥40dB, 1100-3000MHz≥40dB, SMD
In Stock View Details →
ZBF15-L720-400-410 Filter

Filter ZBF15-L720-400-410

Passband520~920MHz, DC-220MHz≥40dBc, 1220-2000MHz≥40dBc, Pin
In Stock View Details →
ZBF14-L720-400-752 Filter

Filter ZBF14-L720-400-752

Passband520~920MHz, DC-400MHz≥40dB, 1100-2000MHz≥40dB, SMA
In Stock View Details →
ZBF15-L565-80-680 Filter

Filter ZBF15-L565-80-680

Passband525~605MHz, DC-470MHz≥35dB, 660-1200MHz≥35dB, SMD
In Stock View Details →
ZBF15-L620-160-1453 Filter

Filter ZBF15-L620-160-1453

Passband540~700MHz, DC-460MHz≥40dB, 780-2000MHz≥40dB, SMD
In Stock View Details →
ZBF15-L554-24-1458 Filter

Filter ZBF15-L554-24-1458

Passband542~566MHz, DC-516MHz≥30dBc, 592-2000MHz≥30dBc, SMD
In Stock View Details →
ZBF15-L530-24-1457 Filter

Filter ZBF15-L530-24-1457

Passband518~542MHz, DC-492MHz≥30dBc, 568-2000MHz≥30dBc, SMD
In Stock View Details →
ZLPF2-L512-750-2168 Filter

Filter ZLPF2-L512-750-2168

Passband512~750MHz, 1.02-2GHz≥45dBc, dB, SMD
View Details →
ZHPF3-L512-750-2729 Filter

Filter ZHPF3-L512-750-2729

Passband512~750MHz, DC-238MHz≥52dBc, Pin
View Details →
ZBF6-C545-8-SMA Filter

Filter ZBF6-C545-8-SMA

Passband541~549MHz, DC-531MHz≥40dB, 559-1000MHz≥40dB, SMA
View Details →
ZBF6-C525-14.8-619 Filter

Filter ZBF6-C525-14.8-619

Passband517.6~532.4MHz, DC-475MHz≥111dB, 550-600MHz≥77dB, SMA
View Details →
ZBF5-L720-400-3693 Filter

Filter ZBF5-L720-400-3693

Passband520~920MHz, DC-420MHz≥40dBc, 1000-2500MHz≥40dBc, Pin
View Details →
ZBF5-L680-320-2064 Filter

Filter ZBF5-L680-320-2064

Passband520~840MHz, 1040-1680MHz≥50dBc, Pin
View Details →
ZBF3-L800-550-4010 Filter

Filter ZBF3-L800-550-4010

Passband525~1075MHz, DC-440MHz≥45dB, 1190-1400MHz≥45dB, Pin
View Details →
ZBF3-L735-400-3351 Filter

Filter ZBF3-L735-400-3351

Passband535~935MHz, DC-450MHz≥35dB, 1000-3000MHz≥35dB, SMD
View Details →

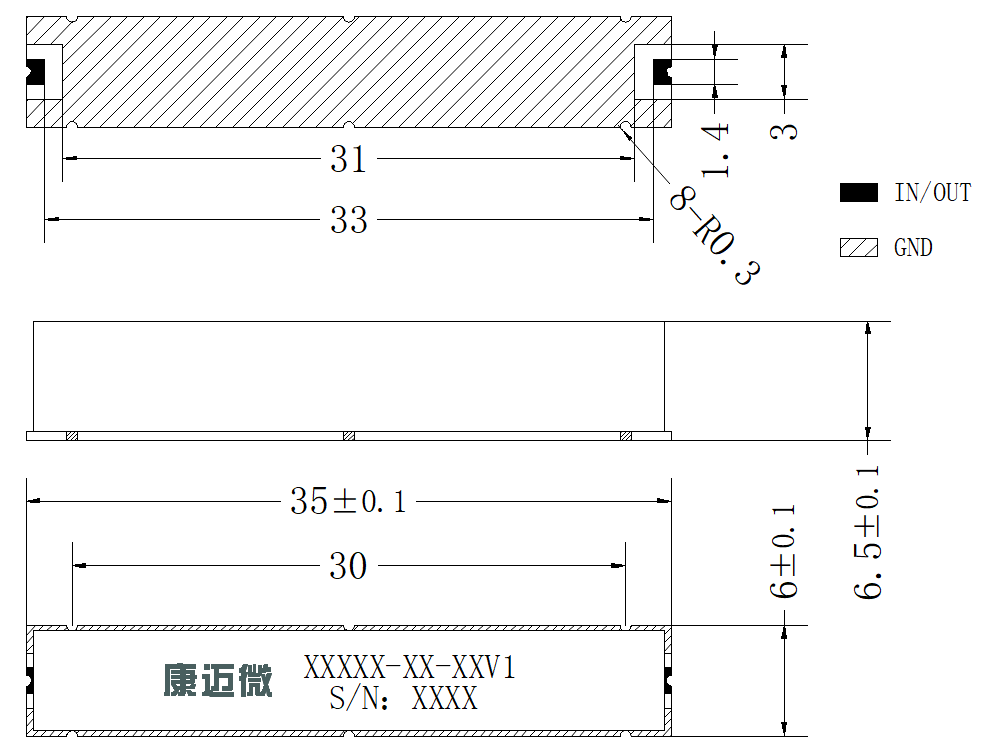

ZBF3-L720-400-3903 Filter

Filter ZBF3-L720-400-3903

Passband520~920MHz, 455MHz≥20dBc, 985MHz≥20dBc, SMD
View Details →
ZBF3-L720-400-3282 Filter

Filter ZBF3-L720-400-3282

Passband520~920MHz, DC-440MHz≥35dB, 1000-1500MHz≥35dB, SMD
View Details →
ZBF3-L720-360-1745 Filter

Filter ZBF3-L720-360-1745

Passband540~900MHz, DC-360MHz≥40dB, 1080-3000MHz≥40dB, Pin
View Details →
ZBF3-L715-370-2567 Filter

Filter ZBF3-L715-370-2567

Passband530~900MHz, DC-345MHz≥40dB, 1085-2000MHz≥40dB, SMA
View Details →
ZBF3-L665-270-1845 Filter

Filter ZBF3-L665-270-1845

Passband530~800MHz, DC-477MHz≥30dB, 880-1600MHz≥30dB, Pin
View Details →
ZBF3-L660-280-1623 Filter

Filter ZBF3-L660-280-1623

Passband520~800MHz, DC-400MHz≥50dB, 1000-2000MHz≥50dB, Pin
View Details →
ZBF3-L650-220-4107 Filter

Filter ZBF3-L650-220-4107

Passband540~760MHz, DC-480MHz≥45dB, 820-2000MHz≥45dB, Pin
View Details →
ZBF3-L631-238-2853 Filter

Filter ZBF3-L631-238-2853

Passband512~750MHz, DC-238MHz≥52dB, Pin
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
